104
REAR LIFTING
This can only be achieved when the sun-
roof is completely closed. Press the front end
(2) of the control button (A-fig. 128).
Press end (1) of the button (A-
fig. 128) to return the sunroof to the
horizontal position (roof closed).
SLIDING WING
The sunroof is equipped with manual-oper-
ated sliding wing preventing direct sun rays.
To open the wing pull handle (A-fig.
131).
When opening the sunroof, the wing is au-
tomatically pushed inside the roof panel.
When closing the sunroof, the wing comes
out partially in order to have access to the
handle for manual closing.
EMERGENCY OPERATION
(fig. 132-133-134)
If the electrical control device does not
work the sunroof can be opened manual-
ly as follows:
– Apply leverage to the points indicated
by the arrows and remove the plate with
switch (A-fig. 132).
fig. 133
349PGSm
fig. 132
A0D0119m
fig. 131
350PGSm378PGSm
fig. 130

105
– Using the special key (B-fig. 133)
provided in the tool bag rotate bushing
(C-fig. 133) of the motor to move the
sunroof.
IMPORTANT When the operation has
been ended the key should be turned half
a turn in the opposite direction until a
click is heard before it is removed.LUGGAGE
COMPARTMENT
The boot lid can be opened from outside
the vehicle and from inside the vehicle.
IMPORTANT If the boot is not prop-
erly shut, the corresponding warning light
on the check panel will come on.
OPENING FROM OUTSIDE
(fig. 135)
Turn the badge (A) in the direction
shown by the arrow, insert the key (B)
and turn it anticlockwise.
Opening is facilitated by a servocontrol
which operates the lock.
351PGSm
fig. 134
1010PGSm
fig. 135

1024PGSm
fig. 137
106
OPENING FROM INSIDE
(fig. 136)
To open from inside:
– With the vehicle stationary, press but-
ton (A) inside the glovebox.
Due to its position, this control cannot
be operated when the glovebox is key-
locked.
REMOTE CONTROL OPENING
(
fig. 137)
(optional for the versions/markets where
applicable)
The luggage compartment may be re-
mote opened by pressing the push-button
(A-fig. 137) on the key with metallic
insert (B), even when the electronic
alarm is ON (where installed).In this case the alarm disengages the
boot control sensor, the system (with the
exception of versions for certain markets)
sounds two beeps and the direction indi-
cators light up for about three seconds.
When the boot is closed again the con-
trol function is restored, the system (with
the exception of versions for certain mar-
kets) sounds two beeps and the direction
indicators light up for about three seconds.
574PGSm
fig. 136

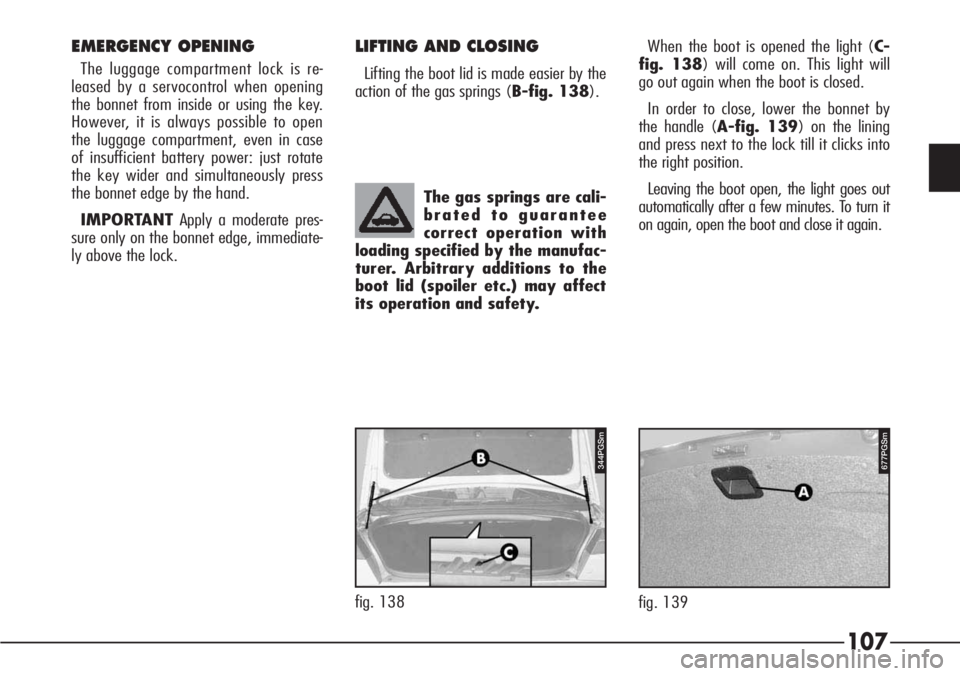

107
The gas springs are cali-
brated to guarantee
correct operation with
loading specified by the manufac-
turer. Arbitrary additions to the
boot lid (spoiler etc.) may affect
its operation and safety.
EMERGENCY OPENING
The luggage compartment lock is re-
leased by a servocontrol when opening
the bonnet from inside or using the key.
However, it is always possible to open
the luggage compartment, even in case
of insufficient battery power: just rotate
the key wider and simultaneously press
the bonnet edge by the hand.
IMPORTANTApply a moderate pres-
sure only on the bonnet edge, immediate-
ly above the lock.
LIFTING AND CLOSING
Lifting the boot lid is made easier by the
action of the gas springs (B-fig. 138).When the boot is opened the light (C-
fig. 138) will come on. This light will
go out again when the boot is closed.
In order to close, lower the bonnet by
the handle (A-fig. 139) on the lining
and press next to the lock till it clicks into
the right position.
Leaving the boot open, the light goes out
automatically after a few minutes. To turn it
on again, open the boot and close it again.
fig. 139
677PGSm344PGSm
fig. 138

108
SECURING THE LOAD
The loads carried may be blocked with
straps hooked to the special rings in the
boot corners (fig. 140). The rings also
serve to secure the luggage retaining net
(available on request c/o Alfa Romeo Au-
thorized Services).
fig. 140
678PGSm
Do not load the luggage
compartment above the
permitted maximum (see “Techni-
cal specifications”). Also make sure
that the objects contained in the
boot are well secured to prevent
them from being thrown forward
causing harm to the passengers in
the event of sharp braking.
WARNING
A heavy load that has not
been secured may cause
serious harm to passengers in the
event of an accident.
WARNINGIMPORTANT Travelling at night with
a load in the boot it is necessary to adjust
the height of the low beam headlights
(see next paragraph “Headlights” in this
chapter). For correct use of the aiming
device, also make sure that the load does
not exceed the values given in the same
paragraph.

109
BONNET
The lever used to open the bonnet is lo-
cated under the left end of the dash-
board.
To open:
– Pull the lever (A-fig. 141) until the
bonnet clicks open.
357PGSm
fig. 141
Do this only with the car
stationary.
WARNING
– Raise the safety lever upwards (B-
fig. 142).
– Raise the bonnet.
IMPORTANT Bonnet raising is aided
by two gas springs. Do not tamper with
these springs and always accompany the
bonnet while raising it.
A0D0033m
fig. 142
DANGER-SERIOUS IN-
JURY. When carrying out
checks or maintenance operations
in the engine compartment, take
special care not to bump the head
on the raised bonnet.
WARNING

110
To close:
– Lower the bonnet to approx. 20 cm.
from the engine bay, then let it drop. Try
lifting it to make sure that it is shut com-
pletely and not simply caught in the safe-
ty position.
If the bonnet does not close properly do
not push it down but open it again and
repeat the above procedure.HEADLIGHTS
IMPORTANTOn the inside surface of
the headlight there could appear a slight
coat of fogging; this does not show a defect,
since it is a natural occurrence due to low
temperature and to the degree of humidity
in the air; it will soon disappear as soon as
the lights are turned on. The presence of
drops inside the headlight shows water seep-
age, refer to the Alfa Romeo Dealership.
For safety reasons the
bonnet shall always be
perfectly closed when travelling.
Always check for proper bonnet
locking. If the bonnet is left inad-
vertently open, stop the car im-
mediately and close the bonnet.
WARNING

111
GAS DISCHARGE HEADLIGHTS
(optional for versions/markets where
applicable)
Gas discharge headlights (xenon) work
with a voltaic arc, in an atmosphere satu-
rated with pressurised xenon gas, instead
of the incandescent filament.
The lighting produced is remarkably
higher than that of the conventional light
in both terms of the quality of the light
(lighter) and of the amplitude and posi-
tion of the lit area.
The advantages offered by better light-
ing are noted (due to less sight fatigue
and better orientation capability of the
driver, thus of travelling safety) especially
in bad weather, fog and/or insufficient
signs, because of the higher lighting
of the side beams which are normally
shaded.
The heavy increase of lighting in the
side beams considerably increases driving
safety because it allows the driver to bet-
ter see other users at the sides of the
road (pedestrians, cyclists and motorcy-
clists).Very high voltage is needed to trigger
the voltaic arc, after which the supply can
be at low voltage.
The headlights reach their maximum in-
tensity after about 15 seconds from
switching on.
The high luminosity produced by this
type of headlight calls for the use of an
automatic system to keep the headlight
beam aiming constant and prevent daz-
zling other vehicles when braking, accel-
erating and carrying loads.
The electromechanical system for auto-
matic constant beam aiming makes the
headlight aiming device superfluous.
Xenon lights are very long-lasting and
failure is unlikely.
If necessary, have the
system checked and any
repairs done only by Authorized Al-
fa Romeo Services.
WARNING
