EBD failure
EBD failure is indicated by the turning
on of warning lights
>+xon the in-
strument panel (on certain versions to-
gether with the dedicated message on
the display) (see section “Warning lights
and messages”).
In this case with sharp braking the rear
wheels might lock too early, with the
possibility of skidding. Drive extremely
carefully to the closest Alfa Romeo Au-
thorized Services to have the system
checked.
BRAKE ASSIST
(emergency braking
assistance)
The system, which cannot be cut out,
recognizes emergency braking (on the
ground of the brake pedal operation
speed) and considerably increases the
pressure in the brake circuit.
Brake Assist is deactivated on the ver-
sions equipped with VDC system in the
event of VDC system failure, indicated
by the turning on of warning light
áon
the instrument panel (on certain ver-
sions together with a message on the
display).
FAILURE WARNING LIGHTS
ABS failure
ABS failure is indicated by the turning
on of warning light
>on the instru-
ment panel (on certain versions together
with the dedicated message on the dis-
play) (see section “Warning lights and
messages”). In this case the braking
system is still efficient, though without
the aid of the ABS system.
Drive carefully to the closest Alfa Romeo
Authorized Services to have the system
checked.

110
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
VDC SYSTEM
(Vehicle Dynamics
Control)
(where provided)
The VDC system is an electronic system
controlling the car stability in the event
of tyre grip loss.
The VDC system is therefore particular-
ly useful when grip conditions of the
road surfaces changes.
VDC SYSTEM
INTERVENTION
It is signalled by the blinking of the
warning light
áon the instrument pan-
el, to inform the driver that the car is
in critical stability and grip conditions.
TURNING THE VDC SYSTEM
ON/OFF
The VDC system is automatically acti-
vated when the engine is started. When
travelling, to turn the VDC off press the
ASR/ VDC button on the central console
fig. 103for 2 seconds. Turning off the
VDC will also turn off the ASR. Both func-
tions can be reactivated by pressing the
ASR/VDC button.
VDC system deactivation is indicated
by the instrument panel warning light
á(on certain versions a symbol is dis-
played) and by the circular led around
the ASR/VDC button.
If the VDC has been turned off when
travelling, at next engine start-up it will
turn on again automatically.
FAILURE WARNING LIGHTS
In the event of failure, the VDC system
is automatically disconnected and the
warning light
ácomes on with fixed
light on the instrument panel (on cer-
tain versions together with a message
on the display) (see section “Warning
lights and messages”). In this case con-
tact Alfa Romeo Authorized Services as
soon as possible.
A0E0026mfig. 103

111
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
Performance of the
VDC system, in terms
of active safety should not in-
duce the driver to take point-
less and unnecessary risks.
The style of driving must in
any case always be adapted to
the conditions of the road sur-
face, visibility an traffic. Road
safety is always the driver’s
responsibility.
WARNING
During the use of the
space-saver spare
wheel (where provided), the
VDC system carries on work-
ing. However, you must re-
mind that the space-saver
spare wheel has dimensions
smaller than the standard tyre
and therefore its grip is re-
duced as to the other car tyres.
WARNING
For correct operation of
the VDC system, the
tyres must absolutely be of
the same brand and type on all
wheels, in perfect conditions
and, above all, of type, brand
and size specified.
WARNING
HILL HOLDER SYSTEM
(where provided)
This system is an integral part of the VDC
system and it is provided to facilitate
starting on slopes:
❒uphill: car at a standstill on a road
with a gradient higher than 6%, en-
gine running, clutch and brake ped-
al depressed, gearbox to neutral or
engaged gear other than reverse;
❒downhill: car at a standstill on a road
with a gradient higher than 6%, en-
gine running, clutch and brake ped-
al depressed and reverse gear en-
gaged.
At pickup the VDC system control unit
will keep brake force on wheels until
reaching the torque suitable for starting,
or in any case for about 1 second in or-
der to pass easily from the brake pedal
to the accelerator pedal.

Failure warnings
System failure is indicated by the turn-
ing on of warning light
*(where pro-
vided) on the instrument panel (on cer-
tain versions together with the dedicat-
ed message on the display) (see section
“Warning lights and messages”).
IMPORTANTThe Hill Holder system
is not a parking brake. Never get out
of the car without engaging the hand-
brake, switching the engine off and en-
gaging the first gear.
ASR SYSTEM
(AntiSlip Regulation)
This system is an integral part of the VDC
system, it controls car drive and cuts in
automatically every time one or both dri-
ving wheels slip.
According to slipping conditions, two dif-
ferent control systems are activated:
❒ if slipping involves both driving
wheels, the ASR function intervenes
reducing the power transmitted by
the engine;
❒if slipping involves only one driving
wheel, the ASR system cuts in auto-
matically braking the wheel that is
slipping. This time elapsing without starting, the
system will deactivate automatically by
releasing gradually the brake force.
At releasing, the typical brake disen-
gagement noise indicating that the car
is going to move will be heard.
112
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS

113
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
The performance of the
system, in terms of ac-
tive safety should not induce
the driver to take pointless
and unnecessary risks. The
style of driving must in any
case always be adapted to the
conditions of the road surface,
visibility an traffic. Road safe-
ty is always the driver’s re-
sponsibility.

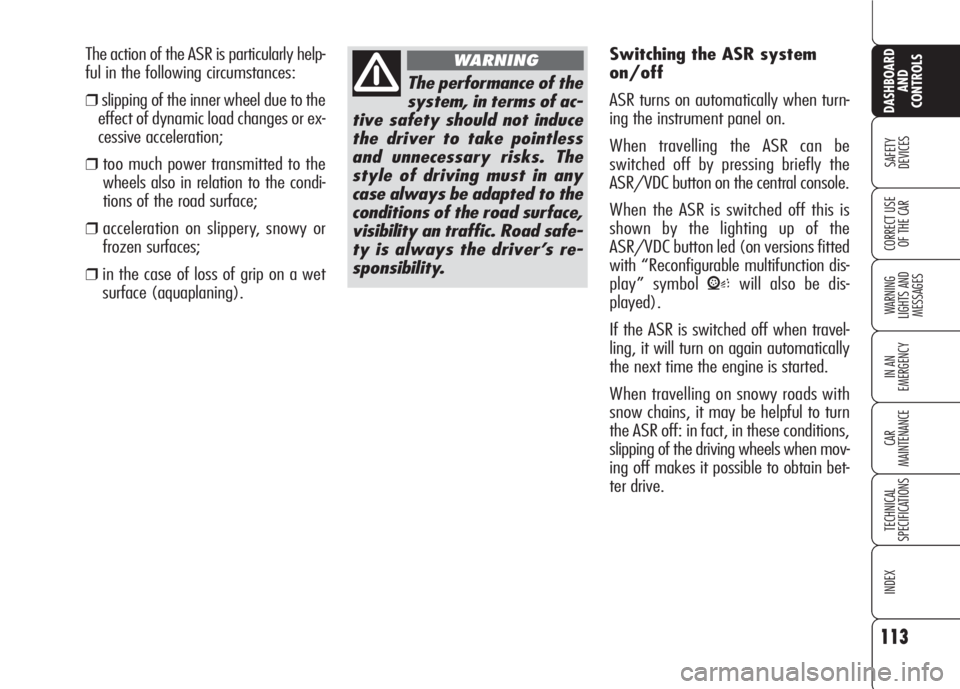

WARNINGThe action of the ASR is particularly help-
