1
INSTRUMENTS and CONTROLS
Prevention messages
I n f o r m a t i o n m e s s a g e s ( i g n i t i o n a t " O N " )
Message is on S t a t u s o f t h e s y s t e m
2WD two wheel
drive system Flashing When the "2WD" (2 wheel drive) mode is selected using the
transmission mode selector.
4WD four wheel
drive system Flashing When the "4WD" (4 wheel drive) mode is selected using the
transmission mode selector.
This mode is the default mode.
4WD LOCK four
wheel drive system Flashing When the "LOCK" (4 wheel drive) mode is selected using the
transmission mode selector.
Dynamic stability
control system (ASC) Fixed When the dynamic stability control system (ASC) is active.
Exterior
temperature Fixed This indicates the exterior temperature.
When the vehicle is stationary or if the speed is below 12 mp
h
(20 km/h) the temperature displayed may not correspond to the
exterior temperature.
D i s p l a y is on Cause Solution - action Observations
Service
indicator Fixed Informs the driver of
the time remaining
before the vehicle’s
scheduled service. Contact a
PEUGEOT dealer.
This is displayed for a few
seconds when the ignition is
switched on.
Break
advised Fixed Informs the driver that
he should stop to take
a break. You are advised to
take a break.
This is displayed when the driving
time that you set previously is
reached.
An audible signal is heard 3 times
and is then heard every 5 minutes
until the vehicle is stops.
Page 34 of 221
1
i
i
ii
INSTRUMENTS and CONTROLS
C h o i c e o f t h e d i s p l a y l a n g u a g e
(LANGUAGE)
You can choose between different lan-
guages for the display.
On the menus screen:
press the INFO button to select
"LANGUAGE" .
press and hold the INFO button
for a few seconds to display the
"LANGUAGE" screen.
press the INFO button to scroll the lan-
guages (Japonais, English, Deutsch,
Français, Espanol, Italiano, "---" and
PREVIOUS) in succession.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m y o u r s e -
lection.
If you select the parameter "---",
no message will be displayed in
message display situations. If the battery is disconnected, the
parameter memory is cleared
and the default language (ENG-
LISH) is restored automatically.
A c t i v a t i o n / d e a c t i v a t i o n o f t h e
"INFO" button sound
You can activate or deactivate the INFO
button sound.
On the menus screen:
press the INFO button to se-
lect the INFO button sound
activation/deactivation sym-
bol (located on menu 2/2) .
press and hold the INFO button for
a few seconds to scroll the choices
(ON, OFF) in succession.
T h e m o d e s e l e c t e d i s c o n fi r m e d .
If the battery is disconnected, the
parameter memory is cleared
and the default choice (ON) is
restored automatically. C h a n g i n g t h e d i s p l a y i n t e r v a l
o f t h e " B R E A K A D V I S E D "
message
You can change the display interval of
the
"BREAK ADVISED" message.
On the menus screen:
press the INFO button to select
"ALERT" (located on menu 2/2) .
press and hold the INFO button
for a few seconds to display the
"ALERT" screen.
press the INFO button to select the
display interval of the "BREAK AD-
VISED" message.
press and hold the INFO button for
a f e w s e c o n d s t o c o n fi r m .
If the battery is disconnected, the
parameter memory is cleared
and the default value (OFF) is
restored automatically.
Page 82 of 221
3
i
i
ACCESS
The electric window switches
remain operational for approxi-
mately 30 seconds after the
ignition is switched off and the
switch on the driver’s door re-
mains operational for a further
30 seconds when the door is
opened.
The windows can no longer be
opened or closed after the driver’s
door is closed.
The rear windows do not lower
fully.

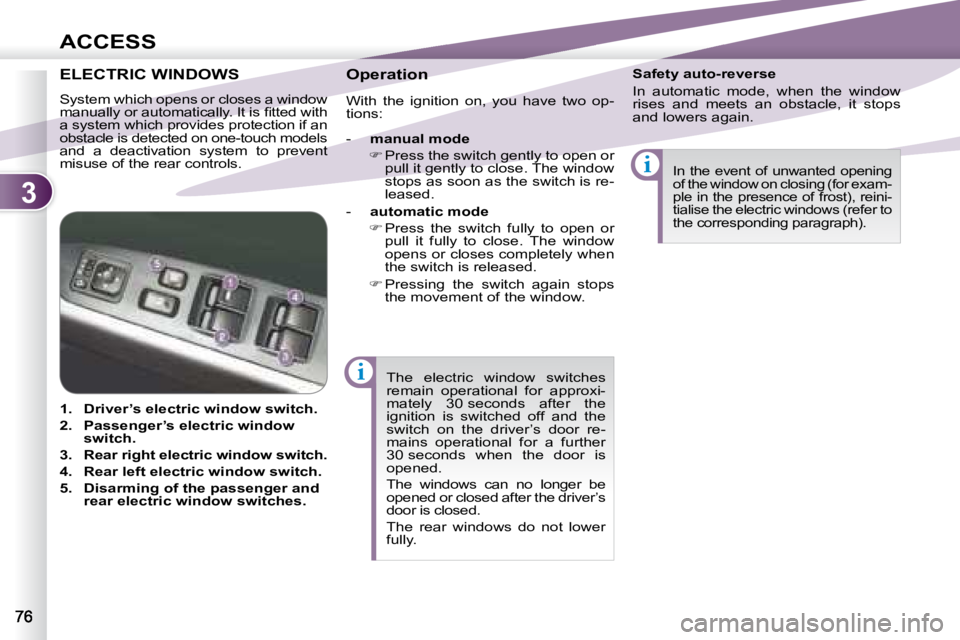

ELECTRIC WINDOWS
System which opens or closes a window
m a n u a l l y o r a u t o m a t i c a l l y . I t i s fi t t e d w i t h
a system which provides protection if an
obstacle is detected on one-touch models
and a deactivation system to prevent
misuse of the rear controls.
1. Driver’s electric window switch.
2. Passenger’s electric window
switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
5. Disarming of the passenger and
rear electric window switches.
In the event of unwanted opening
of the window on closing (for exam-
ple in the presence of frost), reini-
tialise the electric windows (refer to
the corresponding paragraph).
Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.
Operation
With the ignition on, you have two op-
tions:
-
manual mode
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.
- automatic mode
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.
Pressing the switch again stops
the movement of the window.
Page 83 of 221
3
i
ACCESS

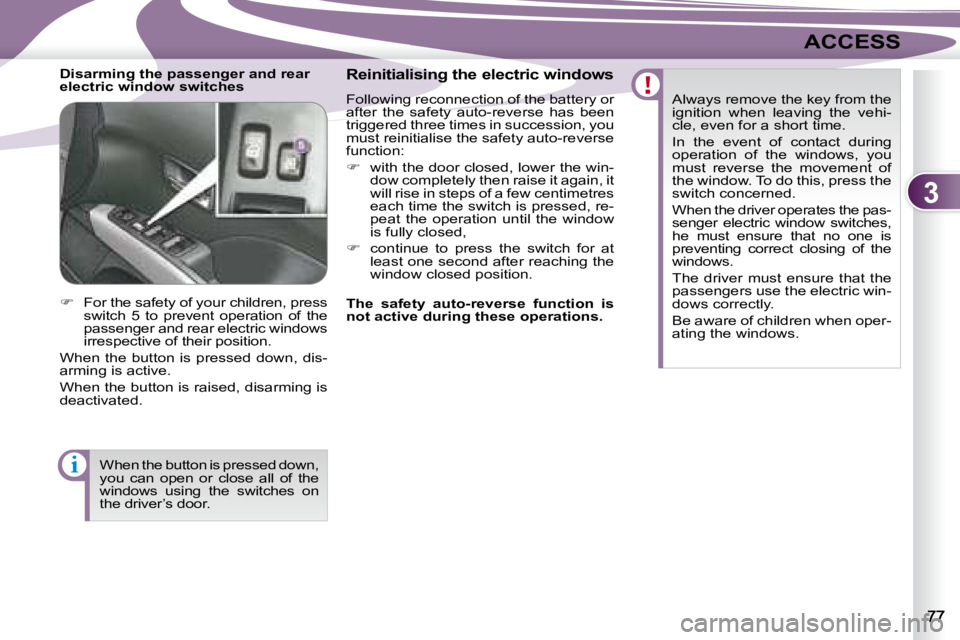

Disarming the passenger and rear
electric window switches Reinitialising the electric windows
Following reconnection of the battery or
after the safety auto-reverse has been
triggered three times in succession, you
must reinitialise the safety auto-reverse
function:
with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,
continue to press the switch for at
least one second after reaching the
window closed position.
The safety auto-reverse function is
not active during these operations. Always remove the key from the
ignition when leaving the vehi-
cle, even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the pas-
senger electric window switches,
he must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver’s door.
Page 93 of 221
4
VISIBILITY
LIGHTS STALK LIGHTS STALK
System for selection and control of the
various front and rear lights providing
the vehicle’s lighting.
Main lighting
The various front and rear lights of the
vehicle are designed to adapt the driv-
er’s visibility progressively in relation to
the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clear- ly when the road is clear.
Additional lighting
O t h e r l i g h t s a r e i n s t a l l e d t o f u l fi l t h e r e -
quirements of particular driving condi-
tions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better vis- ibility,
- daytime lights to be seen during the day. Programming
Various automatic lighting control
modes are also available according to
the following options:
- follow-me-home lighting,
- automatic lighting.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the ring
A and the lever B . lights off,
automatic switching on of the
lights,
side lights only,
B. lever for inversion of the lights by
pulling: dipped headlamps/main
beam headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
h e a d l a m p s d i r e c t l y ( " h e a d l a m p fl a s h " )
for as long as he pulls the lever.
Displays
Lighting of the corresponding indicator
l i g h t o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the selective switching on of the lighting
selected.
A. main lighting mode selection ring,
with:
dipped headlamps or main
beam headlamps.
Page 100 of 221
4
VISIBILITY

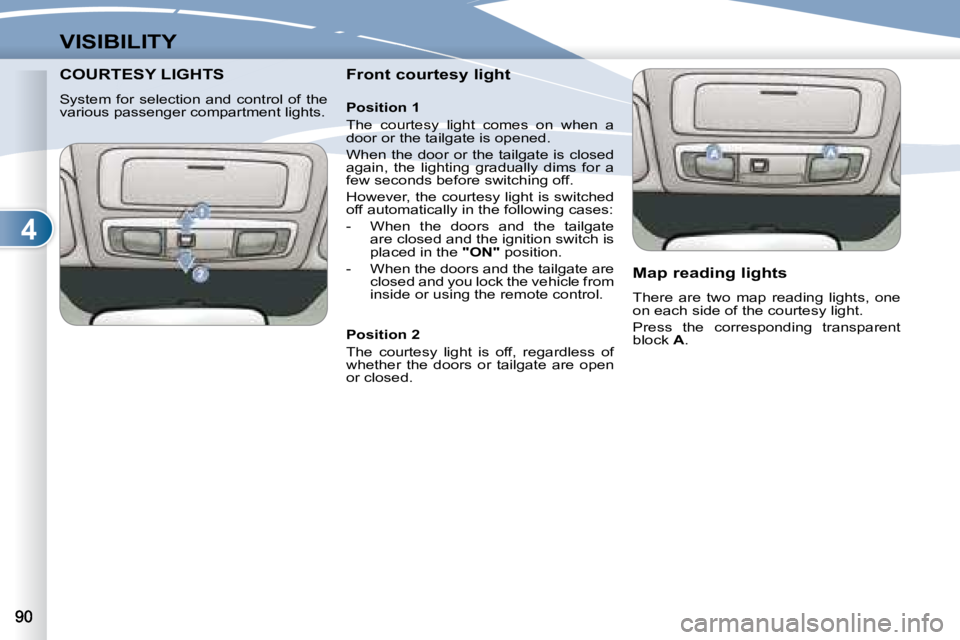

COURTESY LIGHTS COURTESY LIGHTS
System for selection and control of the
various passenger compartment lights. Front courtesy light
Map reading lights
There are two map reading lights, one
on each side of the courtesy light.
Press the corresponding transparent
block A .
Position 1
The courtesy light comes on when a
door or the tailgate is opened.
When the door or the tailgate is closed
again, the lighting gradually dims for a
few seconds before switching off.
However, the courtesy light is switched
off automatically in the following cases:
- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON" position.
- When the doors and the tailgate are closed and you lock the vehicle from
inside or using the remote control.
Position 2
The courtesy light is off, regardless of
whether the doors or tailgate are open
or closed.
Page 109 of 221
6
99
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
HAZARD WARNING LIGHTS HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
HORN
Audible warning to alert other road us-
ers to an imminent danger.
Lower the lights stalk when moving
to the left (position 1 ).
Raise the lights stalk when moving
to the right (position 1 ).
The indicator light on the instrument
p a n e l fl a s h e s .
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c
jam, switch on the hazard warn-
ing lights when you are the last
in the queue.
Press button A , the direction indica-
t o r s fl a s h .
They can operate with the ignition off.
Press one of the spokes of the
steering wheel.
The "motorway" function
System for indicating a change of lane
on a motorway.
Press up or down once (positions 2 ),
without passing the point of resistance;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
Page 117 of 221
6
SAFETY
107

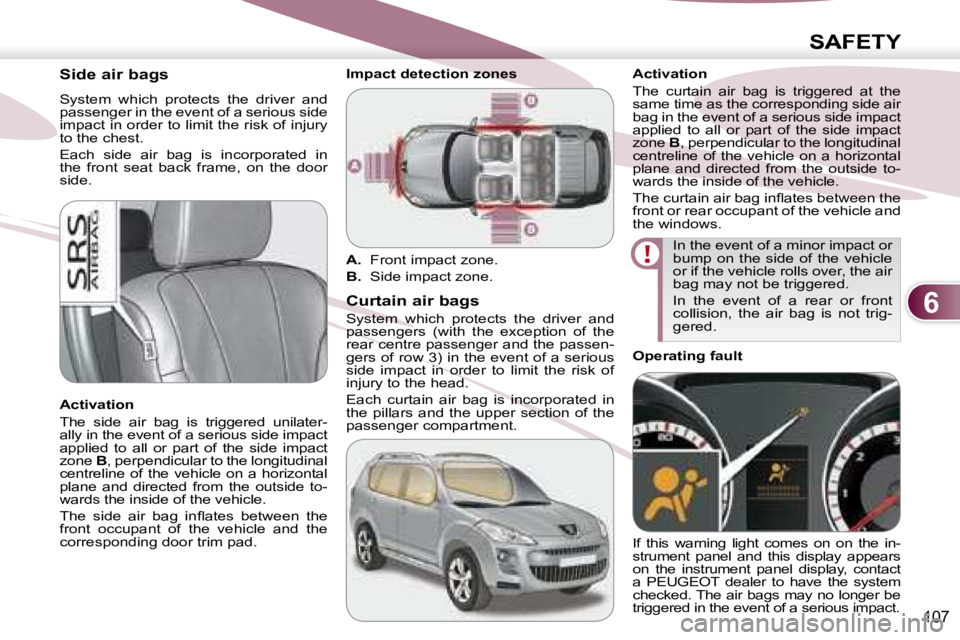

Side air bags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
Each side air bag is incorporated in
the front seat back frame, on the door
side.
Activation
The side air bag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Curtain air bags
System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
gers of row 3) in the event of a serious
side impact in order to limit the risk of
injury to the head.
Each curtain air bag is incorporated in
the pillars and the upper section of the
passenger compartment. Activation
The curtain air bag is triggered at the
same time as the corresponding side air
bag in the event of a serious side impact
applied to all or part of the side impact
zone
B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle
or if the vehicle rolls over, the air
bag may not be triggered.
In the event of a rear or front
collision, the air bag is not trig-
gered.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Operating fault
If this warning light comes on on the in-
strument panel and this display appears
on the instrument panel display, contact
a PEUGEOT dealer to have the system
checked. The air bags may no longer be
triggered in the event of a serious impact.
