with particle emission filter)
The minimum level of this additive is indicated by lighting
of the service warning light, accompanied by an aud ible
signal and a message on the multifunction display.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Check that the terminals are
clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (refer
to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l -
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, exception-
ally, notice the emission of water
vapour at the exhaust on accel-
eration. This does not have any
adverse effect on the perform-
ance of the vehicle or on the en-
vironment.
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health or indeed very corro-
sive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in
the PEUGEOT network. D o n o t d i s c a r d t h e o i l fi l t e r
through public channels, depos-
it it in the containers dedicated
to this use in the PEUGEOT net-
work.
Page 137 of 221
9
i
PRACTICAL INFORMATION
CHANGING CHANGING A BULB
Operating procedure for replacing a
faulty bulb with a new bulb. Handle the bulbs using a dry
cloth.
Do not clean the headlamps
using a dry or abrasive cloth,
or using detergent or solvent
products, use a sponge and
soapy water. In certain climatic conditions
(low temperature, humidity),
t
he
presence of condensation on
the inside of the headlamp
glass is normal ; it disappears a
few minutes after the lights are
switched on.
Front lights
Blown bulb
Refer to the appropriate procedure to
change the corresponding bulb.
1. Direction indicators
(PY 21 W - 21 W).
2. Dipped headlamps (H11 - 55 W)
or xenon bulb (D2S - 35 W).
3. Side lights (W 5 W - 5 W).
4. Main beam headlamps
(H7 - 55 W).
5. Front fog lamps
(H11 - 55 W). WARNING: RISK OF
ELECTROCUTION
Xenon bulbs must be replaced by a
PEUGEOT dealer.
Page 139 of 221
9
PRACTICAL INFORMATION
Changing the side lights (3)
Unscrew the cover H .
Disconnect the connector.
Turn the bulb holder I a quarter of a
turn and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Unscrew the cover F .
Disconnect the connector.
Turn the bulb G to the left and re-
move it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.

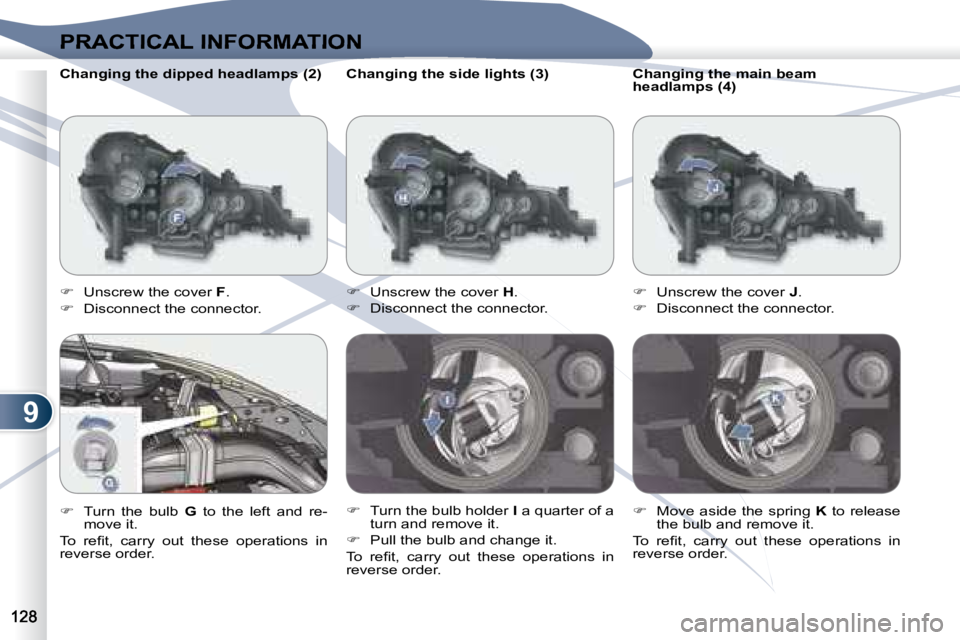

Changing the dipped headlamps (2)
Changing the main beam
headlamps (4)
Unscrew the cover J .
Disconnect the connector.
Move aside the spring K to release
the bulb and remove it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 141 of 221
9
i
PRACTICAL INFORMATION
Rear lights
1. Third brake light (diodes).
2. Brake lights/Side lights
(21/5 - W 21 W - 5 W).
3. Direction indicators
(WY 21 W - 21 W).
4. Reversing lights (W 21 W - 21 W).
5. Number plate lights
(W 5 W - 5 W).
6. Fog lamps (W 21 W - 21 W). Changing the brake lights/side
lights and direction indicators
These two bulbs are changed from out-
side with the tailgate open:
Open the tailgate (refer to the
"Access" section),
R e m o v e t h e t w o l i g h t fi x i n g b o l t s A ,
E x t r a c t t h e l i g h t f r o m o u t s i d e ,
Turn the pin C to the left and remove it.
Pull the bulb D and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Turn the pin B to the left and remove it.
Pull the bulb and change it. W h e n r e fi t t i n g t h e l i g h t , a l i g n t h e t w o
pins
E with the openings on the vehicle.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r .
Changing the third brake light (diodes)
All work on the diode lights must be car-
ried out by a PEUGEOT dealer.
Page 142 of 221
9
PRACTICAL INFORMATION

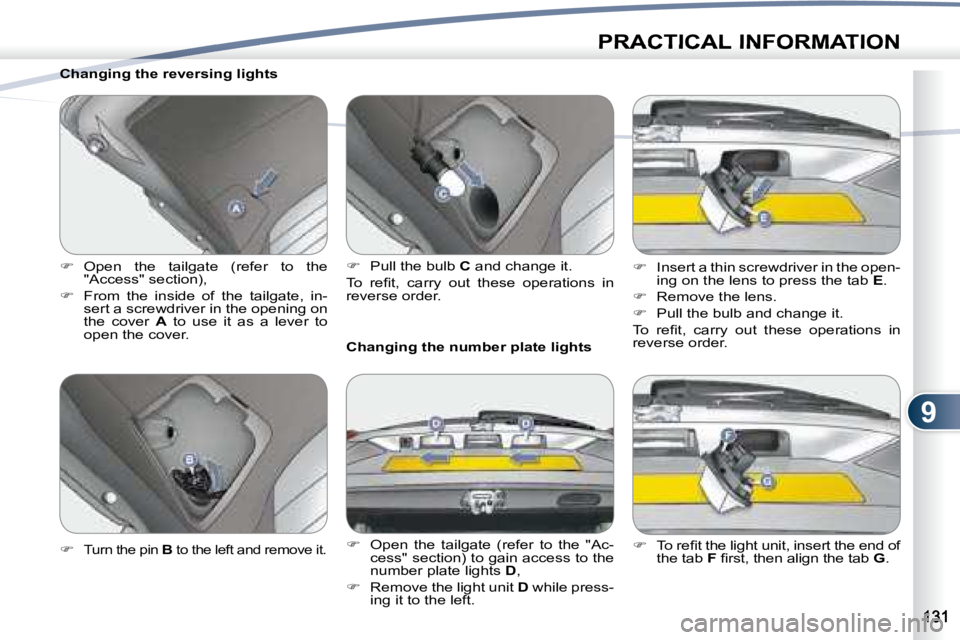

Changing the reversing lights
Open the tailgate (refer to the
"Access" section),
From the inside of the tailgate, in-
sert a screwdriver in the opening on
the cover A to use it as a lever to
open the cover. Changing the number plate lights
Open the tailgate (refer to the "Ac-
cess" section) to gain access to the
number plate lights D ,
Remove the light unit D while press-
ing it to the left.
Turn the pin B to the left and remove it.
Pull the bulb C and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Insert a thin screwdriver in the open-
ing on the lens to press the tab E .
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
T o r e fi t t h e l i g h t u n i t , i n s e r t t h e e n d o f
the tab F fi r s t , t h e n a l i g n t h e t a b G .
Page 143 of 221
9
Changing the fog lamps
Open the tailgate and the lower tail-
gate (refer to the "Access" section)
and fold down the cover A .
Remove the 4 clips B using a screw-
driver to detach the light cover.
Remove the bolts C and remove the
light unit.
Turn the pin and bulb assembly D to
the left.
Remove the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
W h e n r e fi t t i n g t h e l i g h t u n i t , a l i g n
the clips E with the openings on the
bodywork.
Page 145 of 221
9
PRACTICAL INFORMATION
Fascia fuses
T h e f u s e b o x e s a r e p l a c e d i n t h e l o w e r
p a r t o f t h e f a s c i a b e h i n d t h e g l o v e b o x .
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 * 30 A Heating.
2
15 A Brake lights, third brake light, built-in systems
interface.
3 10 A Rear fog lamps.
4 30 A Windscreen wipers and wash-wipe.
5 10 A Diagnostic socket.
6 20 A C e n t r a l l o c k i n g , e x t e r i o r m i r r o r s .
7 15 A Audio equipment, telematics, multifunction display,
hands-free kit, rear DVD player.
8 7.5 A Remote control key, air conditioning control unit,
instrument panel, controls bar, steering wheel
controls.
9 15 A Multifunction display, instrument panel.
10 15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction display, automatic headlamp
adjustment, heated seats, air bags control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 -
Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A E x t e r i o r m i r r o r s , a u d i o e q u i p m e n t , t e l e m a t i c s , r e a r
DVD player.
Page 146 of 221
9
PRACTICAL INFORMATION
Access to the fuses
O p e n t h e g l o v e b o x ,
Push the two opening guides A in-
w a r d s t o p a s s t h e fi r s t n o t c h ,
Remove the retaining tab B pulling
it outwards,
Support the cover and tilt it down-
wards,
Change the fuse (refer to the cor-
responding paragraph).
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d
out by a PEUGEOT dealer.
Fuse N° Rating Functions
17 10 A 4 wheel drive control unit.
18 7.5 A Reversing lights, parking assistance control unit,
reversing camera, air bags control unit.
19 15 A Accessories socket.
20* 30 A Electric window controls.
21 * 30 A Rear screen demisting.
22 7.5 A H e a t e d e x t e r i o r m i r r o r s .
23 - Not used.
24 25 A Driver's electric seat, footwell lighting, releasing of
the rear bench seat.
25 30 A Heated seats.
