9
i
PRACTICAL INFORMATION

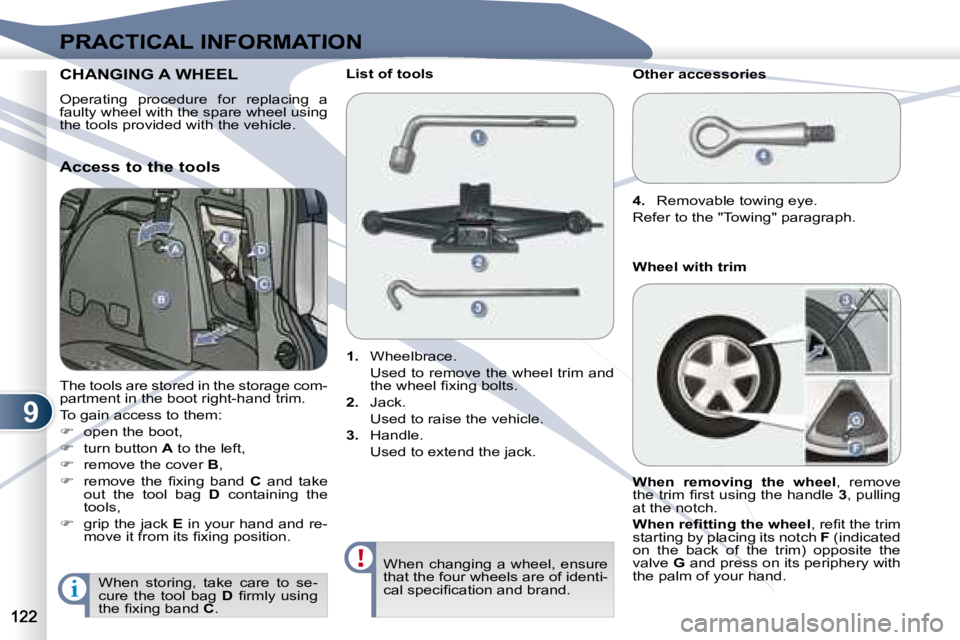

CHANGING CHANGING A WHEEL
Operating procedure for replacing a
faulty wheel with the spare wheel using
the tools provided with the vehicle.
The tools are stored in the storage com-
partment in the boot right-hand trim.
To gain access to them:
open the boot,
turn button A to the left,
remove the cover B ,
r e m o v e t h e fi x i n g b a n d C and take
out the tool bag D containing the
tools,
grip the jack E in your hand and re-
m o v e i t f r o m i t s fi x i n g p o s i t i o n .
1. Wheelbrace.
Used to remove the wheel trim and t h e w h e e l fi x i n g b o l t s .
2. Jack.
Used to raise the vehicle.
3. Handle.
U s e d t o e x t e n d t h e j a c k .
List of tools
Other accessories
4. Removable towing eye.
Refer to the "Towing" paragraph.
Access to the tools
Wheel with trim
When changing a wheel, ensure
that the four wheels are of identi-
c a l s p e c i fi c a t i o n a n d b r a n d .
When removing the wheel , remove
t h e t r i m fi r s t u s i n g t h e h a n d l e 3 , pulling
at the notch.
W h e n r e fi t t i n g t h e w h e e l , r e fi t t h e t r i m
starting by placing its notch F (indicated
on the back of the trim) opposite the
valve G and press on its periphery with
the palm of your hand.
When storing, take care to se-
cure the tool bag D fi r m l y u s i n g
t h e fi x i n g b a n d C .
Page 138 of 221
9i
PRACTICAL INFORMATION

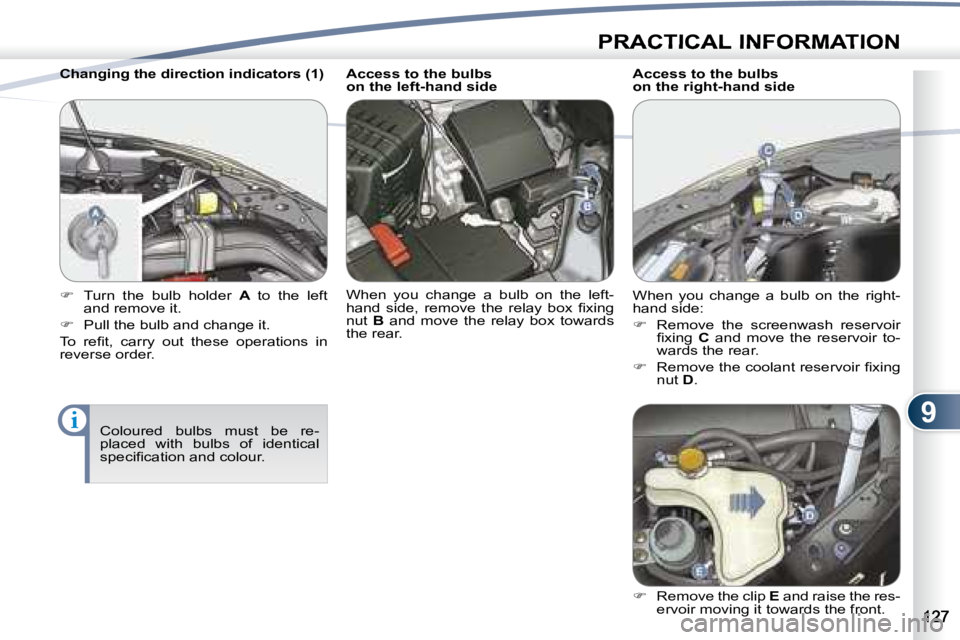

Changing the direction indicators (1) Coloured bulbs must be re-
placed with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r .
Turn the bulb holder A to the left
and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order. Access to the bulbs
on the left-hand side
When you change a bulb on the left-
h a n d s i d e , r e m o v e t h e r e l a y b o x fi x i n g
nut
B a n d m o v e t h e r e l a y b o x t o w a r d s
the rear. Access to the bulbs
on the right-hand side
When you change a bulb on the right-
hand side:
Remove the screenwash reservoir
fi x i n g C and move the reservoir to-
wards the rear.
R e m o v e t h e c o o l a n t r e s e r v o i r fi x i n g
nut D .
Remove the clip E and raise the res-
ervoir moving it towards the front.
Page 140 of 221
9
PRACTICAL INFORMATION

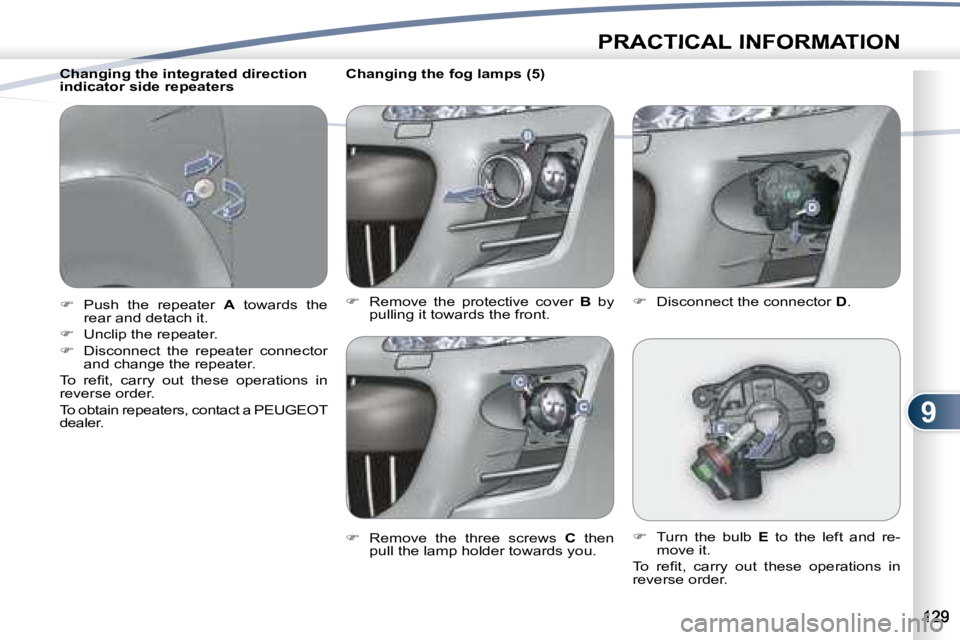

Changing the fog lamps (5)
Remove the protective cover B by
pulling it towards the front.
Remove the three screws C then
pull the lamp holder towards you.
Turn the bulb E to the left and re-
move it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Disconnect the connector D .
Changing the integrated direction
indicator side repeaters
Push the repeater A towards the
rear and detach it.
Unclip the repeater.
Disconnect the repeater connector
and change the repeater.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
To obtain repeaters, contact a PEUGEOT
dealer.
Page 149 of 221
9
i
PRACTICAL INFORMATION
The battery A is located under the bon-
net on the left.
To gain access to it:
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut.
BATTER BATTERY
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
ple, right-hand engine mounting).
Start the engine of the assisting ve-
hicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Raise the front of the cover 1 to re-
lease the three clips 2 .
Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level reg-
ularly. If necessary, top up the
level with distilled water.
Starting using another battery
Looking for an earth point at the
right-hand engine mounting
Page 151 of 221
9
PRACTICAL INFORMATION
CHANGING A WIPER BLADE CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Remove the wiper blade, sliding it
towards the outside.
Fitting a front or rear wiper
blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
b l a d e i n p l a c e a n d fi x i t .
Fold down the wiper arm carefully.
Page 152 of 221
9
i
PRACTICAL INFORMATION
TOWING TOWING
Operating procedure for having your
v e h i c l e t o w e d o n a fl a t b e d o r f o r t o w -
ing another vehicle using a removable
mechanical device.
Access to the tools Having your vehicle towed
on a flatbed
Below the front bumper, install the
towing system on the towing eye 1 .
On the rear bumper, remove the
cover by pulling at the bottom using
the jack handle 2 .
Towing another vehicle
The towing eye and the tools are stored
in the storage compartment in the right-
hand boot trim.
To can access to them:
open the boot,
turn button A to the left,
remove the cover B ,
r e m o v e t h e fi x i n g b a n d C and take
out the tool bag D containing the
tools,
take the towing eye and the tools re-
quired out of the tool bag.
When being towed with the en-
gine off, there is no longer any
braking or steering assistance.
Place the gear lever in neutral.
Always have the vehicle towed
o n a fl a t b e d .
Never have the vehicle towed
with the four wheels on the
ground, this could damage the
transmission.
The vehicle must not be towed
with the front or rear wheels on
the ground even if it is in front
"2WD" (2 wheel drive) mode.
Screw in the towing eye fully using
the wheelbrace 3 .
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Page 153 of 221
9
PRACTICAL INFORMATION
TOWING A TRAILER, CARAVAN, TOWING A TRAILER, CARAVAN,
ETC.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g
load must be reduced by 10 % of the
GTW and so on for every 1 000 metres
of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle. T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lights
Check the electrical signalling on
the trailer.
If this message is
displayed, stop your
vehicle as soon as it
is safe to do so.
I f t h e m e s s a g e fl a s h e s s l o w l y , w a i t f o r
the engine to cool before topping up the
level, if necessary.
I f t h e m e s s a g e fl a s h e s r a p i d l y , c o n t a c t
a PEUGEOT dealer without delay.
Opening of the lower tailgate is
prohibited if a towbar is being
used.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d
its driver must be particularly careful.
We recommend the use of origi-
nal PEUGEOT towbars and their
harnesses that have been tested
and approved from the design
stage of your vehicle and that the
fi t t i n g o f t h e t o w b a r i s e n t r u s t e d
to a PEUGEOT dealer.
I f t h e t o w b a r i s n o t fi t t e d b y a
PEUGEOT dealer, it is impera-
t i v e t h a t i t i s fi t t e d u s i n g t h e
electrical pre-equipment located
at the rear of the vehicle and in
accordance with the manufac-
turer’s instructions.
Page 158 of 221
10
TECHNICAL DATA
WEIGHTS AND TOWED LOADS (IN KG) WEIGHTS
* The kerb weight is equal to the weight without load + driver (75 kg).
** The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
*** The braked trailer value corresponds to the towing ca pacities of the vehicle on a 12 % gradient.
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the tow ed weight to 600 kg, without load transfer.
Engines
2.2 litre HDI PEF 16V
Gearbox
Manual
(6-speed)
Model codes
U4HNH V4HNH
Version
5 seats 7 seats
