2007.5 Peugeot 308 Dag Owner's Manual

i
!

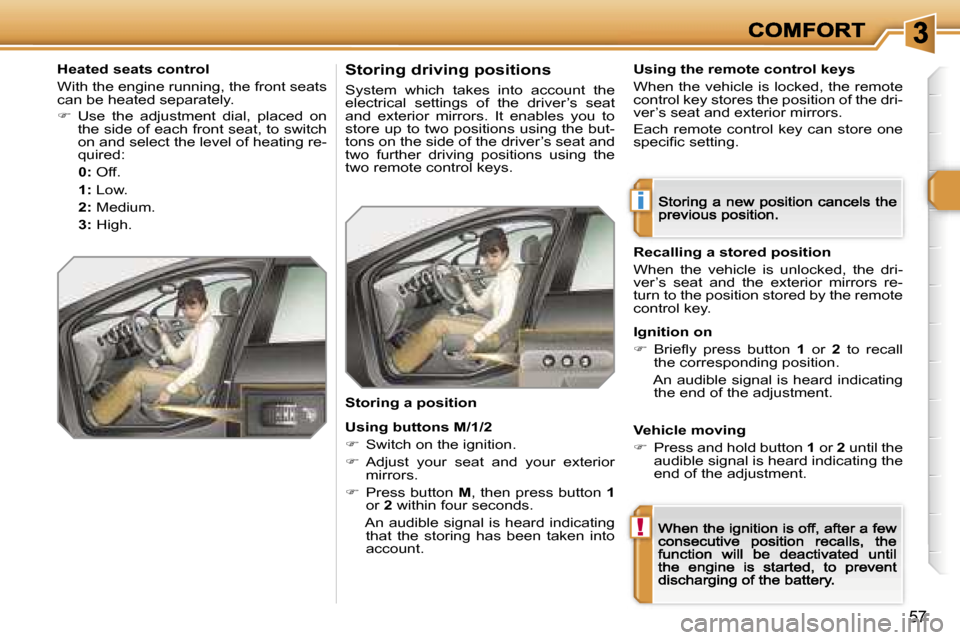

57
Heated seats control
With the engine running, the front seats can be heated separately.
 Use the adjustment dial, placed on the side of each front seat, to switch on and select the level of heating re-quired:
0: Off.
1: Low.
2: Medium.
3: High.
Storing driving positions
System which takes into account the electrical settings of the driver’s seat and exterior mirrors. It enables you to store up to two positions using the but-tons on the side of the driver’s seat and two further driving positions using the two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the dri-ver’s seat and the exterior mirrors re-turn to the position stored by the remote control key.
Storing a position
Using buttons M/1/2
 Switch on the ignition.
 Adjust your seat and your exterior mirrors.
 Press button M, then press button 1or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into account.
Using the remote control keys
When the vehicle is locked, the remote control key stores the position of the dri-ver’s seat and exterior mirrors.
Each remote control key can store one specific setting.
Ignition on
 Briefly press button 1 or 2 to recall the corresponding position.
An audible signal is heard indicating the end of the adjustment.
Vehicle moving
Press and hold button 1 or 2 until the audible signal is heard indicating the end of the adjustment.

!
58
REAR SEATS
Bench seat the left-hand (2/3) or right-hand (1/3) section of which can be folded to adapt the boot load space.
Rear head restraints
These have a high position (comfort and safety) and a low position (rear vis-ibility).
They can also be removed; to remove them:
 pull the head restraint fully forwards and upwards at the same time,
 then, press the lug A.
Removing the seat cushion
 Move the corresponding front seat forwards.
 Pull the handle 1 forwards to raise the seat cushion 2.
 Tilt the seat cushion 2 fully against the front seat.
 Remove the seat cushion 2 from its fixings by pulling upwards.
Refitting the seat cushion
 Position the seat cushion 2 vertically in its fixings.
 Fold down the seat cushion 2.
 Press on the seat cushion to secure it.

!
i

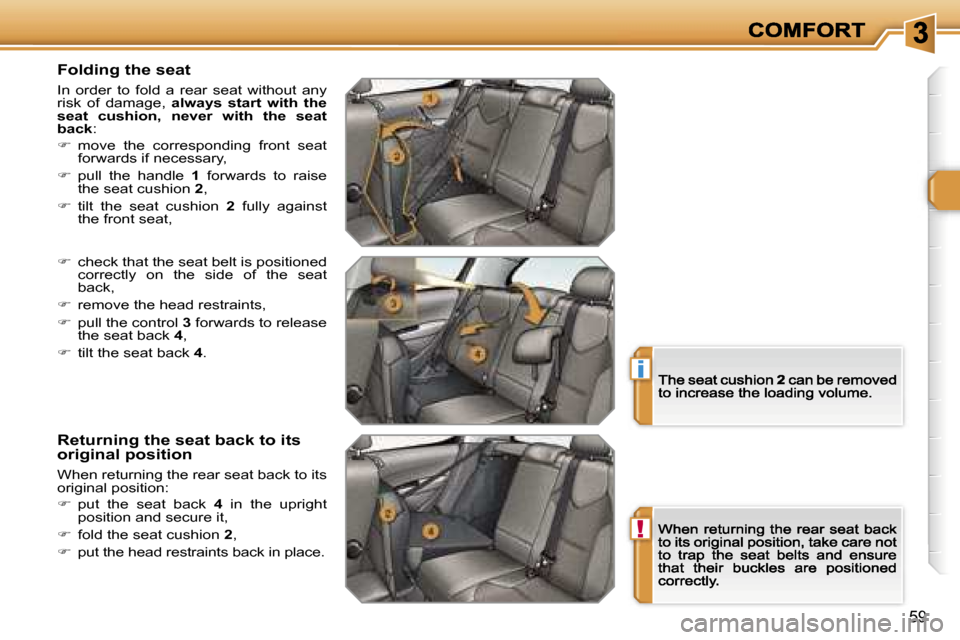

59
Folding the seat
In order to fold a rear seat without any risk of damage, always start with the seat cushion, never with the seat back:
 move the corresponding front seat forwards if necessary,
 pull the handle 1 forwards to raise the seat cushion 2,
 tilt the seat cushion 2 fully against the front seat,
Returning the seat back to its original position
When returning the rear seat back to its original position:
 put the seat back 4 in the upright position and secure it,
 fold the seat cushion 2,
 put the head restraints back in place.
 check that the seat belt is positioned correctly on the side of the seat back,
 remove the head restraints,
 pull the control 3 forwards to release the seat back 4,
 tilt the seat back 4.

!
i
i

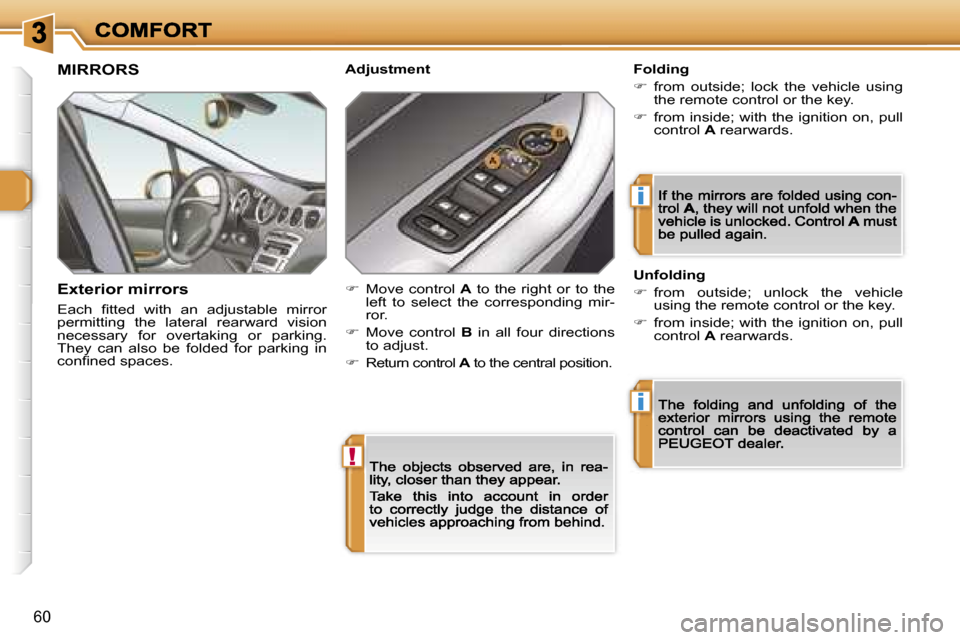

60
MIRRORS
Exterior mirrors
Each fitted with an adjustable mirror permitting the lateral rearward vision necessary for overtaking or parking. They can also be folded for parking in confined spaces.
Folding
 from outside; lock the vehicle using the remote control or the key.
 from inside; with the ignition on, pull control A rearwards.
Adjustment
Unfolding
 from outside; unlock the vehicle using the remote control or the key.
 from inside; with the ignition on, pull control A rearwards.
 Move control A to the right or to the left to select the corresponding mir-ror.
 Move control B in all four directions to adjust.
 Return control A to the central position.AA

!

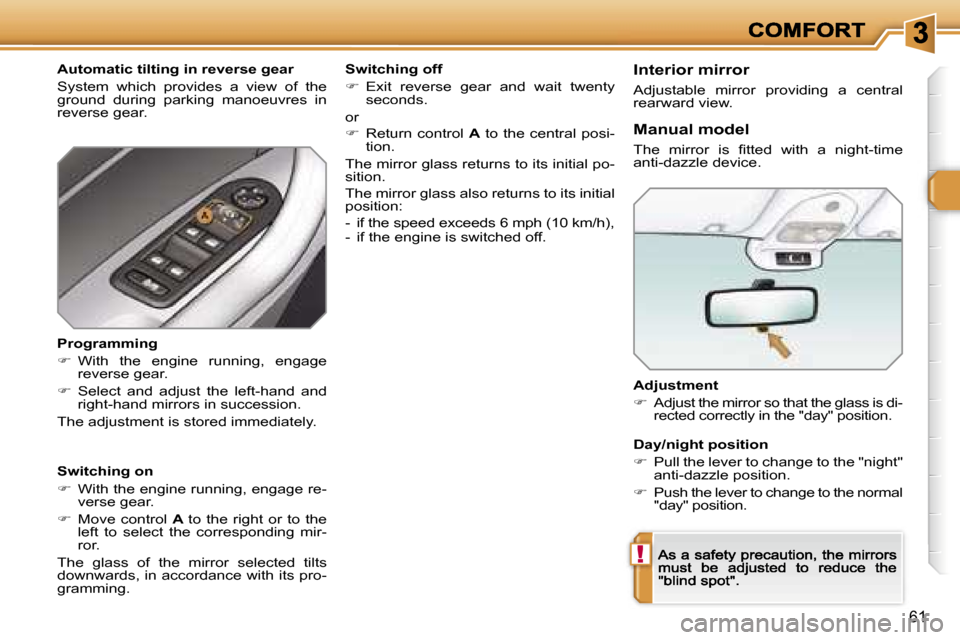

61
Adjustment
 Adjust the mirror so that the glass is di-rected correctly in the "day" position.
Manual model
The mirror is fitted with a night-time anti-dazzle device.
Day/night position
 Pull the lever to change to the "night" anti-dazzle position.
 Push the lever to change to the normal "day" position.
Automatic tilting in reverse gear
System which provides a view of the ground during parking manoeuvres in reverse gear.
Switching on
 With the engine running, engage re-verse gear.
 Move control A to the right or to the left to select the corresponding mir-ror.
The glass of the mirror selected tilts downwards, in accordance with its pro-gramming.
Programming
 With the engine running, engage reverse gear.
 Select and adjust the left-hand and right-hand mirrors in succession.
The adjustment is stored immediately.
Switching off
 Exit reverse gear and wait twenty seconds.
or
 Return control A to the central posi-tion.
The mirror glass returns to its initial po-sition.
The mirror glass also returns to its initial position:
- if the speed exceeds 6 mph (10 km/h),- if the engine is switched off.
Interior mirror
Adjustable mirror providing a central rearward view.

!
61
Adjustment
 Adjust the mirror so that the glass is di-rected correctly in the "day" position.
Manual model
The mirror is fitted with a night-time anti-dazzle device.
Day/night position
 Pull the lever to change to the "night" anti-dazzle position.
 Push the lever to change to the normal "day" position.
Automatic tilting in reverse gear
System which provides a view of the ground during parking manoeuvres in reverse gear.
Switching on
 With the engine running, engage re-verse gear.
 Move control A to the right or to the left to select the corresponding mir-ror.
The glass of the mirror selected tilts downwards, in accordance with its pro-gramming.
Programming
 With the engine running, engage reverse gear.
 Select and adjust the left-hand and right-hand mirrors in succession.
The adjustment is stored immediately.
Switching off
 Exit reverse gear and wait twenty seconds.
or
 Return control A to the central posi-tion.
The mirror glass returns to its initial po-sition.
The mirror glass also returns to its initial position:
- if the speed exceeds 6 mph (10 km/h),- if the engine is switched off.
Interior mirror
Adjustable mirror providing a central rearward view.

!
i

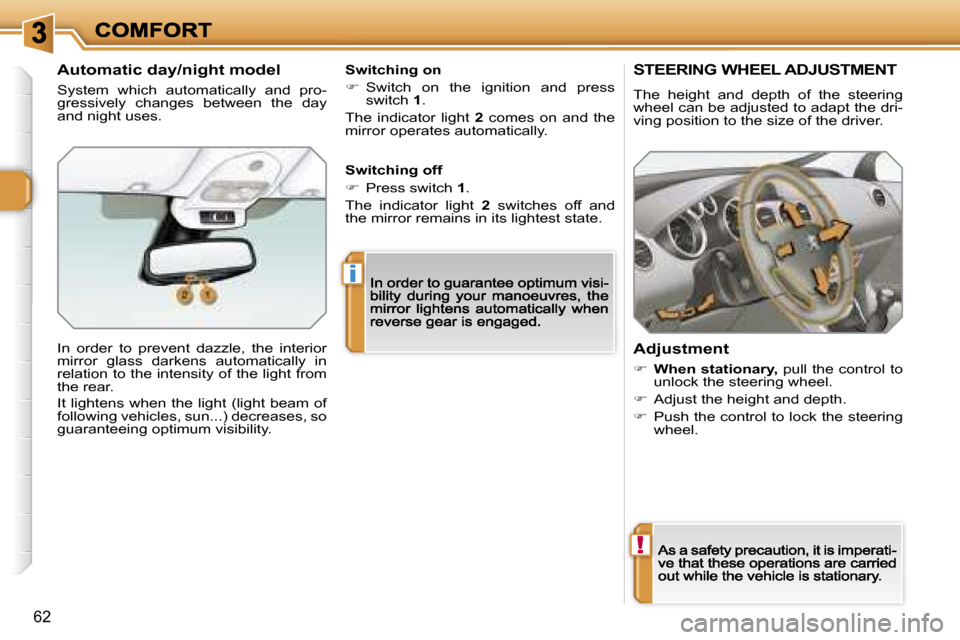

62
STEERING WHEEL ADJUSTMENT
The height and depth of the steering wheel can be adjusted to adapt the dri-ving position to the size of the driver.
Adjustment
When stationary, pull the control to unlock the steering wheel.
 Adjust the height and depth.
 Push the control to lock the steering wheel.
Automatic day/night model
System which automatically and pro-gressively changes between the day and night uses.
In order to prevent dazzle, the interior mirror glass darkens automatically in relation to the intensity of the light from the rear.
It lightens when the light (light beam of following vehicles, sun...) decreases, so guaranteeing optimum visibility.
Switching on
 Switch on the ignition and press switch 1.
The indicator light 2 comes on and the mirror operates automatically.
Switching off
 Press switch 1.
The indicator light 2 switches off and the mirror remains in its lightest state.

!
i
62
STEERING WHEEL ADJUSTMENT
The height and depth of the steering wheel can be adjusted to adapt the dri-ving position to the size of the driver.
Adjustment
When stationary, pull the control to unlock the steering wheel.
 Adjust the height and depth.
 Push the control to lock the steering wheel.
Automatic day/night model
System which automatically and pro-gressively changes between the day and night uses.
In order to prevent dazzle, the interior mirror glass darkens automatically in relation to the intensity of the light from the rear.
It lightens when the light (light beam of following vehicles, sun...) decreases, so guaranteeing optimum visibility.
Switching on
 Switch on the ignition and press switch 1.
The indicator light 2 comes on and the mirror operates automatically.
Switching off
 Press switch 1.
The indicator light 2 switches off and the mirror remains in its lightest state.
