2007.5 Peugeot 206 SW Dag Owner's Manual

Accesses60 -
CHILD SAFETY LOCK
On each rear door this prevents
opening of the door from the inside.
Turn switch 1 an eighth turn
(45 degrees) using the ignition key.
Automatic central locking of the
doors
The doors can lock automatically
when you are driving (at a speed of
more than 6 mph (10 km/h)).
Above 6 mph (10 km/h), press but-
ton
B briefly to unlock the doors tem-
porarily.
You can activate or deactivate this
function. To switch off
Press and hold button
B.
Notes: if one of the doors is open,
locking from the inside and automatic
central locking are not possible.
If the boot is open, automatic central
locking of the doors is possible.
To switch on
Press and hold button
B.
Activation of the function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
The message is displayed each time
the vehicle is started.

61Accesses-
LOCKING/UNLOCKING THE
TAILGATE
Without central locking
To lock, turn the key from A to C.
To open, turn the key from A to B,
press the handle then lift the tail-
gate.
With central locking
Locking and unlocking of the tailgate
is simultaneous with the doors.
The lighting is activated on opening
the tailgate.
TAILGATE RELEASE
This enables the tailgate to be
unlocked in the event of a central
locking fault:
- Fold back the rear seats to gain access to the boot from inside the
vehicle,
- Pull the tailgate trim to release it,
- Pull the opening catch 1 upwards.
"Boot open" warning
If the tailgate is not shut properly:
-
with the engine running , you are
warned by an audible signal and a
message or graphic on the multi-
function display,
- when the vehicle is moving , the
courtesy light flashes if the cour-
tesy light button is in this position.

Accesses62 -
OPENING THE BONNET
Inside the vehicle: pull the handle on
the left-hand side, under the fascia.
Outside the vehicle: lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
FILLING THE FUEL TANK
The tank must be filled with fuel with
the engine switched off .
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel to
use.
If you fill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is
approximately 50 litres.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.

63Visibility-
THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A. Dipped/Main beam change
Pull the stalk towards you.
Vehicles fitted with front fog
lamps and a rear fog lamp (ring C)
Side lights Dipped/Main beam
headlampsAutomatic switching
on of lights Rear fog lamp Front fog lamps (first rotation
of the ring forwards)
Front and rear fog
lamps (2nd rotation of
the ring forwards).
Note: to switch off
the rear fog lamp and the front fog
lamps, turn the ring backwards twice
in succession.
Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manu-
ally, the front fog lamps, the rear fog
lamp and the side lights remain on
(turn the ring backwards to switch off
the front fog lamps. The side lights
then switch off).
Vehicles fitted with a rear fog
lamp (ring B)
This only operates with the dipped/
main beam headlamps.
Note: when the lights are switched
off automatically, the rear fog lamp
and the dipped headlamps remain on
(turn the ring backwards to switch off
the rear fog lamp. The dipped head-
lamps and side lights then switch
off).
The front fog lamps operate with the
side lights and the dipped headlamps.
Lights off
Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
tus is confirmed by the indicator light
on the instrument panel.
Lights on reminder
With the ignition off and the auto-
matic lighting function switched off,
when the driver’s door is opened, a
buzzer sounds if you have left your
lights on.

Visibility64 -
"Follow me home" lighting
When you leave your vehicle, the
side lights and dipped headlamps
can be left on for approximately
30 seconds.
To do this:
-
place the key in the STOP position,- place the lights stalk in the 0 position,- flash the headlamps,
- get out of the vehicle and lock it.
AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam
headlamps switch on automatical-
ly if the light is poor and when the
windscreen wipers operate continu-
ously and switch off when the light
becomes bright enough or the wind-
screen wipers are switched off.
In foggy weather or in snow, the
brightness sensor can detect
sufficient light, the lights will not
come on automatically.
This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Place the lights stalk in the AUTO/0
position,
- Press the end of the lights stalk for more than four seconds.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre of the
windscreen, behind the interior
mirror. It is used for automatic
switching on of the lights.
Operating check
Activation
The activated function is accom-
panied by an audible signal and a
message on the multifunction dis-
play.

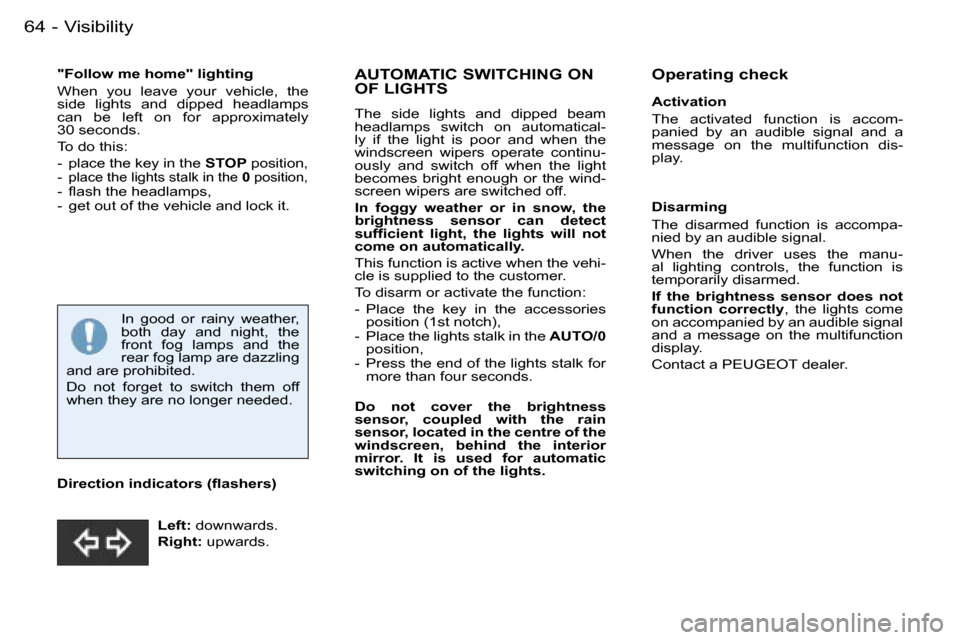

In good or rainy weather,
both day and night, the
front fog lamps and the
rear fog lamp are dazzling
and are prohibited.
Do not forget to switch them off
when they are no longer needed.
Direction indicators (flashers) Left: downwards.
Right: upwards. Disarming
The disarmed function is accompa-
nied by an audible signal.
When the driver uses the manu-
al lighting controls, the function is
temporarily disarmed.
If the brightness sensor does not
function correctly
, the lights come
on accompanied by an audible signal
and a message on the multifunction
display.
Contact a PEUGEOT dealer.

Visibility64 -
"Follow me home" lighting
When you leave your vehicle, the
side lights and dipped headlamps
can be left on for approximately
30 seconds.
To do this:
-
place the key in the STOP position,- place the lights stalk in the 0 position,- flash the headlamps,
- get out of the vehicle and lock it.
AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam
headlamps switch on automatical-
ly if the light is poor and when the
windscreen wipers operate continu-
ously and switch off when the light
becomes bright enough or the wind-
screen wipers are switched off.
In foggy weather or in snow, the
brightness sensor can detect
sufficient light, the lights will not
come on automatically.
This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Place the lights stalk in the AUTO/0
position,
- Press the end of the lights stalk for more than four seconds.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre of the
windscreen, behind the interior
mirror. It is used for automatic
switching on of the lights.
Operating check
Activation
The activated function is accom-
panied by an audible signal and a
message on the multifunction dis-
play.
In good or rainy weather,
both day and night, the
front fog lamps and the
rear fog lamp are dazzling
and are prohibited.
Do not forget to switch them off
when they are no longer needed.
Direction indicators (flashers) Left: downwards.
Right: upwards. Disarming
The disarmed function is accompa-
nied by an audible signal.
When the driver uses the manu-
al lighting controls, the function is
temporarily disarmed.
If the brightness sensor does not
function correctly
, the lights come
on accompanied by an audible signal
and a message on the multifunction
display.
Contact a PEUGEOT dealer.

65Visibility-

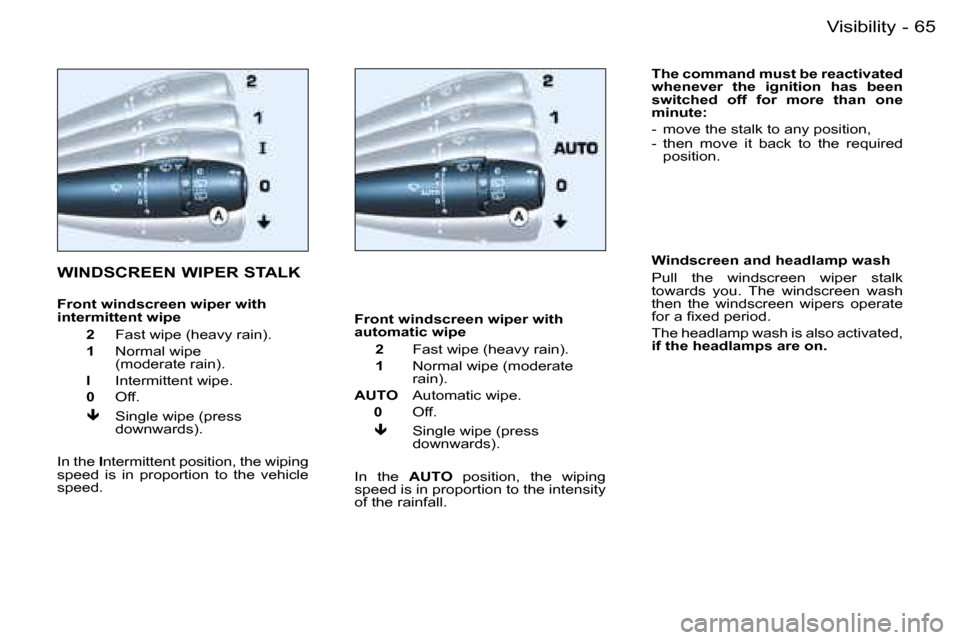

WINDSCREEN WIPER STALK
Front windscreen wiper with
intermittent wipe
2 Fast wipe (heavy rain).
1 Normal wipe
(moderate rain).
l Intermittent wipe.
0 Off.
 Single wipe (press
downwards).
In the Intermittent position, the wiping
speed is in proportion to the vehicle
speed.
Front windscreen wiper with
automatic wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate
rain).
AUTO Automatic wipe.
0 Off.
 Single wipe (press
downwards).
In the AUTO position, the wiping
speed is in proportion to the intensity
of the rainfall. The command must be reactivated
whenever the ignition has been
switched off for more than one
minute:
- move the stalk to any position,
- then move it back to the required
position.
Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fixed period.The headlamp wash is also activated,
if the headlamps are on.

Visibility66 -
Automatic windscreen wipers
In the AUTO position, the windscreen
wipers operate automatically and
adapt their speed to the intensity

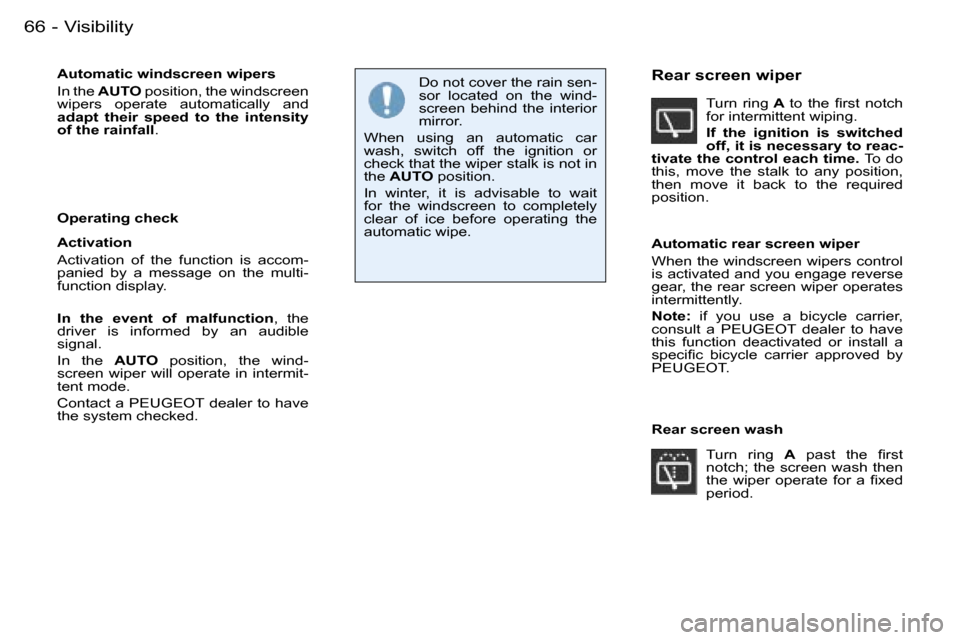

of the rainfall . Do not cover the rain sen-
sor located on the wind-
screen behind the interior
mirror.
When using an automatic car
wash, switch off the ignition or
check that the wiper stalk is not in
the AUTO position.
In winter, it is advisable to wait
for the windscreen to completely
clear of ice before operating the
automatic wipe.Rear screen wiper
Rear screen wash Turn ring
A to the first notch
for intermittent wiping.
If the ignition is switched
off, it is necessary to reac-
tivate the control each time. To do
this, move the stalk to any position,
then move it back to the required
position.
Turn ring A past the first
notch; the screen wash then
the wiper operate for a fixed
period.
Operating check
Activation
Activation of the function is accom-
panied by a message on the multi-
function display.
In the event of malfunction
, the
driver is informed by an audible
signal.
In the AUTO position, the wind-
screen wiper will operate in intermit-
tent mode.
Contact a PEUGEOT dealer to have
the system checked. Automatic rear screen wiper
When the windscreen wipers control
is activated and you engage reverse
gear, the rear screen wiper operates
intermittently.
Note:
if you use a bicycle carrier,
consult a PEUGEOT dealer to have
this function deactivated or install a
specific bicycle carrier approved by
PEUGEOT.
