2006 YAMAHA YBR125 fuse

TABLE OF CONTENTS
Battery .......................................... 6-28
Replacing the fuse ........................ 6-30
Replacing the headlight bulb ........ 6-31
Replacing the tail/brake light
bulb ........................................... 6-32
Replacing a turn signal light
bulb ........................................... 6-33
Replacing the auxiliary light
bulb ........................................... 6-33
Front wheel ................................... 6-34
Rear wheel ................................... 6-36
Troubleshooting ............................ 6-37
Troubleshooting chart ................... 6-38
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U3D9E0E0.book Page 2 Saturday, December 25, 2004 11:35 AM

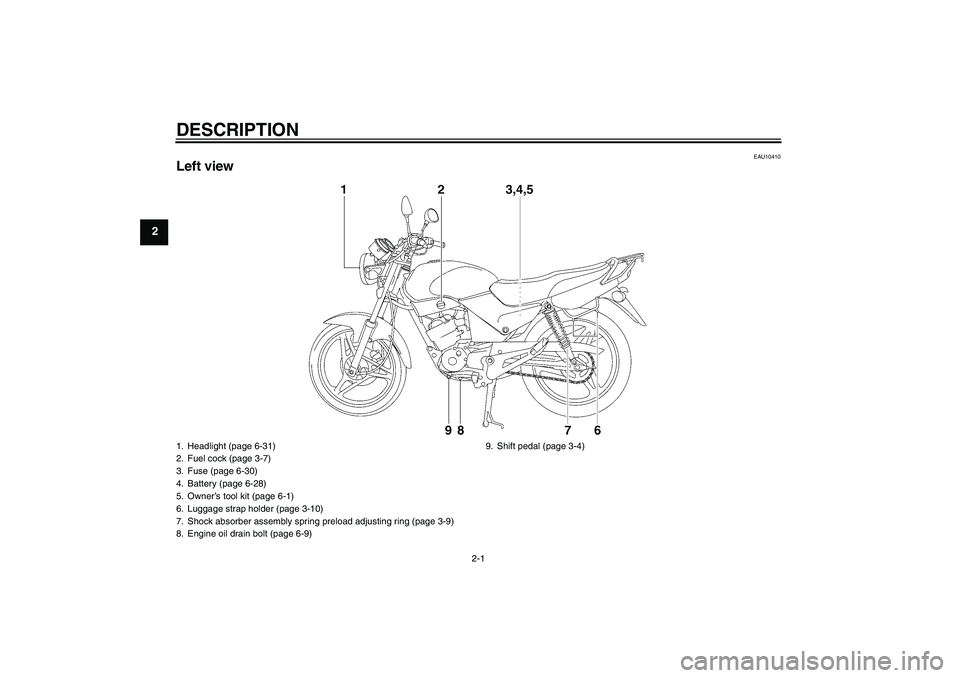

DESCRIPTION
2-1
2
EAU10410
Left view1. Headlight (page 6-31)
2. Fuel cock (page 3-7)
3. Fuse (page 6-30)
4. Battery (page 6-28)
5. Owner’s tool kit (page 6-1)
6. Luggage strap holder (page 3-10)
7. Shock absorber assembly spring preload adjusting ring (page 3-9)
8. Engine oil drain bolt (page 6-9)9. Shift pedal (page 3-4)U3D9E0E0.book Page 1 Saturday, December 25, 2004 11:35 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6that the breather hose is properly
routed, in good condition, and not
obstructed.
CAUTION:
ECA10600
If the breather hose is positioned in
such a way that the frame is ex-
posed to electrolyte or gas expelled
from the battery, the frame could
suffer structural and external dam-ages.
EAU23502
Replacing the fuse The fuse holder is located behind panel
B. (See page 6-5.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. FuseSpecified fuse:
15.0 A
U3D9E0E0.book Page 30 Saturday, December 25, 2004 11:35 AM

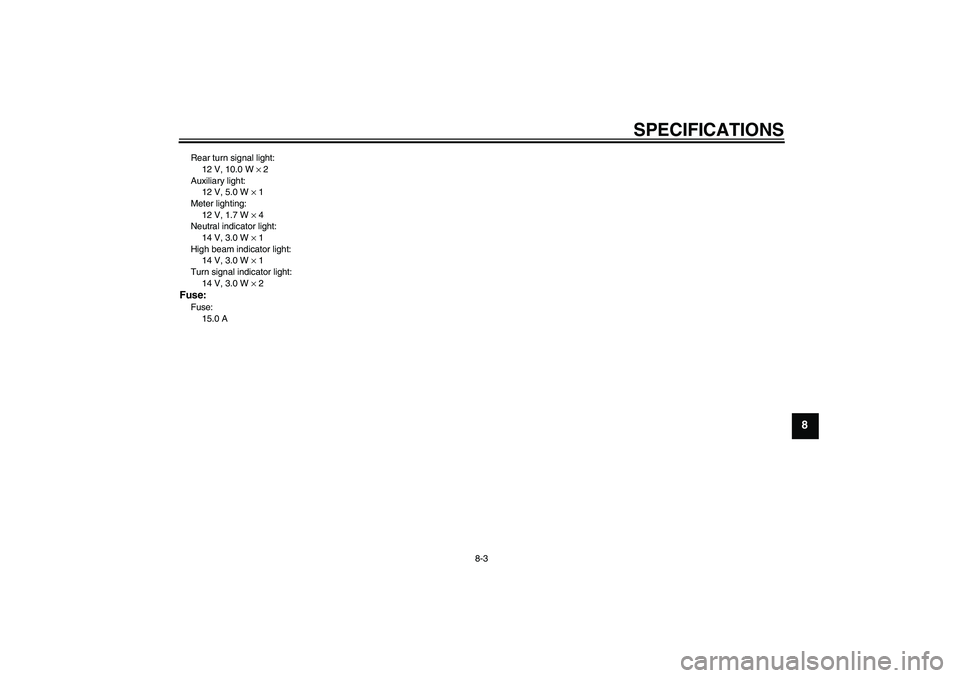

SPECIFICATIONS
8-3
8
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
Meter lighting:
12 V, 1.7 W × 4
Neutral indicator light:
14 V, 3.0 W × 1
High beam indicator light:
14 V, 3.0 W × 1
Turn signal indicator light:
14 V, 3.0 W × 2Fuse:Fuse:
15.0 A
U3D9E0E0.book Page 3 Saturday, December 25, 2004 11:35 AM

INDEXAAir filter element, cleaning..................... 6-11
Auxiliary light bulb, replacing ................ 6-33BBattery................................................... 6-28
Brake and clutch levers, checking and
lubricating ........................................... 6-25
Brake and shift pedals, checking and
lubricating ........................................... 6-24
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever .............................................. 3-5
Brake pads and shoes, checking .......... 6-20
Brake pedal ............................................. 3-5
Brake pedal free play, adjusting............ 6-18CCables, checking and lubricating .......... 6-24
Carburetor, adjusting ............................ 6-12
Care ........................................................ 7-1
Carrier ................................................... 3-10
Catalytic converter .................................. 3-7
Centerstand, checking and
lubricating ........................................... 6-26
Clutch lever ............................................. 3-4
Clutch lever free play, adjusting ............ 6-17
Cowling and panels, removing and
installing................................................ 6-5DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack ................................... 6-22EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-13Engine oil ................................................ 6-9
Engine, starting a warm .......................... 5-2
FFront brake lever free play,
checking ............................................. 6-18
Front fork, checking .............................. 6-26
Fuel......................................................... 3-6
Fuel cock ................................................ 3-7
Fuel consumption, tips for reducing........ 5-3
Fuel gauge.............................................. 3-3
Fuel tank cap .......................................... 3-5
Fuse, replacing ..................................... 6-30HHandlebar switches ................................ 3-3
Headlight bulb, replacing ...................... 6-31
High beam indicator light ........................ 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................ 9-1
Indicator lights ........................................ 3-2KKey identification number ....................... 9-1
Kickstarter............................................... 3-9LLuggage strap holders .......................... 3-10MMain switch/steering lock........................ 3-1
Model label ............................................. 9-2NNeutral indicator light .............................. 3-2PParking ................................................... 5-4
Part locations .......................................... 2-1Periodic maintenance and lubrication
chart ...................................................... 6-2
Pre-operation check list........................... 4-2
RRear brake light switch, adjusting ......... 6-19SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................... 3-4
Shock absorber assemblies, adjusting.... 3-9
Spark plug, checking ............................... 6-8
Specifications .......................................... 8-1
Speedometer unit .................................... 3-2
Starter (choke) lever................................ 3-8
Starting a cold engine ............................. 5-1
Starting circuit cut-off system ................ 3-10
Start switch.............................................. 3-4
Steering, checking................................. 6-27
Storage.................................................... 7-3
Swingarm pivots, lubricating ................. 6-26TTachometer ............................................. 3-3
Tail/brake light bulb, replacing .............. 6-32
Throttle cable free play, adjusting ......... 6-13
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires ...................................................... 6-14
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-37
Troubleshooting chart ........................... 6-38
Turn signal indicator lights ...................... 3-2
Turn signal light bulb, replacing ............ 6-33
Turn signal switch ................................... 3-4
U3D9E0E0.book Page 1 Saturday, December 25, 2004 11:35 AM
