Replacing the headlight bulb ....... 6-26U5YSE1E0.book Page 1 Monday, November 7, 2005 8:38 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6 8. Place the ignitor unit panel in the
original position and install the
quick fasteners.
NOTE:To install a quick fastener, push its pin
back so that it will protrude from the fas-
tener head, then insert the fastener and
push the protruding pin in until it is flushwith the fastener head.
9. Install the rider seat.
EAU23792

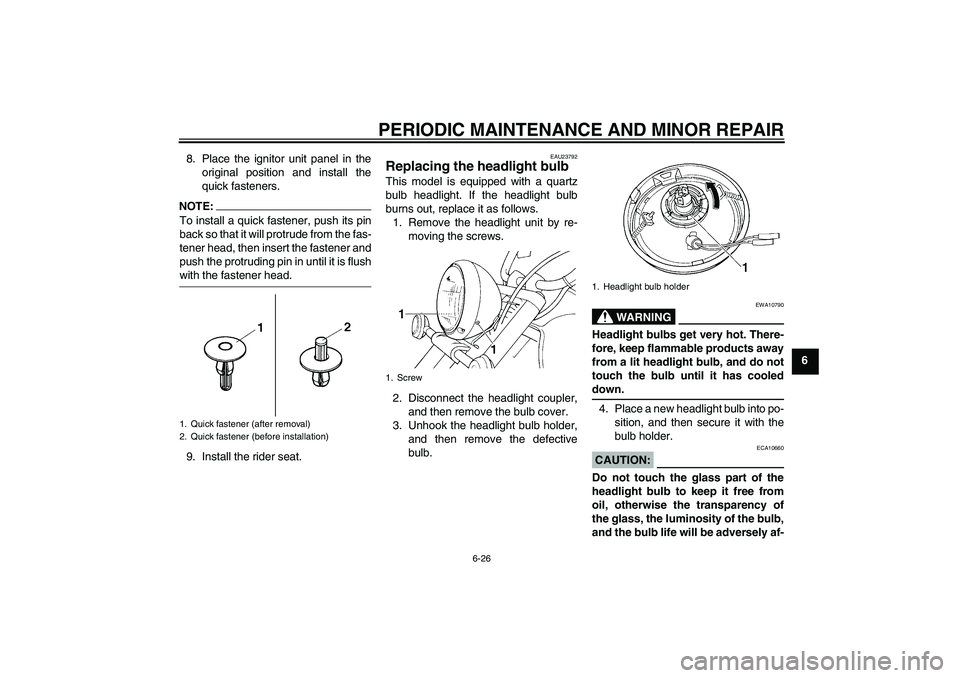

Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the bulb cover.
3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
1. Quick fastener (after removal)
2. Quick fastener (before installation)
1. Screw
1. Headlight bulb holder
U5YSE1E0.book Page 26 Monday, November 7, 2005 8:38 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24281
Replacing a turn signal light
bulb or the tail/brake light bulb 1. Remove the lens by removing the
screws.2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.
CAUTION:
ECA10680
Do not overtighten the screws, oth-erwise the lens may break.
1. Do not touch the glass part of the bulb.
1. Screw
1. Screw
U5YSE1E0.book Page 27 Monday, November 7, 2005 8:38 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU33411
Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Remove the socket (together with
the bulb) by pushing it in and turn-
ing it counterclockwise.3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by pushing it in and turning it
clockwise until it stops.
6. Install the headlight unit by install-
ing the screws.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Screw
1. Auxiliary light bulb socket
U5YSE1E0.book Page 28 Monday, November 7, 2005 8:38 AM

SPECIFICATIONS
8-3
8
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 4.0 W × 1
Meter lighting:
14 V, 1.4 W × 2
Neutral indicator light:
12 V, 1.7 W × 1
High beam indicator light:
12 V, 1.7 W × 1
Oil level warning light:
12 V, 1.7 W × 1
Turn signal indicator light:
12 V, 1.7 W × 1
Engine trouble warning light:
12 V, 1.7 W × 1
Immobilizer system indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 ASignaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Carburetor heater fuse:
15.0 A
Ignitor unit fuse:
5.0 A
Backup fuse:
10.0 A
U5YSE1E0.book Page 3 Monday, November 7, 2005 8:38 AM

INDEX
AAir filter element, cleaning .................... 6-10
Anti-theft alarm (optional) ....................... 3-6
Auxiliary light bulb, replacing ................ 6-28BBattery .................................................. 6-23
Brake and clutch levers,
checking and lubricating ..................... 6-20
Brake and shift pedals,
checking and lubricating ..................... 6-20
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever ............................................. 3-8
Brake lever free play, adjusting ............ 6-16
Brake pedal ............................................ 3-8CCables, checking and lubricating .......... 6-19
Carburetors, adjusting .......................... 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-10
Clutch lever............................................. 3-7
Clutch lever free play, adjusting ........... 6-15DDimmer switch ........................................ 3-6EEngine break-in ...................................... 5-4
Engine idling speed .............................. 6-11
Engine oil ................................................ 6-7
Engine, starting a warm .......................... 5-2
Engine stop switch.................................. 3-7
Engine trouble warning light ................... 3-4FFinal gear oil ........................................... 6-9
Front and rear brake pads, checking .... 6-17Front fork, checking...............................6-21
Fuel ......................................................... 3-9
Fuel cock ............................................... 3-11
Fuel consumption, tips for reducing ........ 5-3
Fuel tank cap........................................... 3-9
Fuses, replacing .................................... 6-24
HHandlebar switches ................................. 3-6
Hazard switch.......................................... 3-7
Headlight bulb, replacing....................... 6-26
Helmet holder ........................................ 3-13
High beam indicator light......................... 3-4
Horn switch ............................................. 3-7IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-17
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLuggage strap holders .......................... 3-16MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2NNeutral indicator light .............................. 3-3OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-5
Parking ....................................................5-4
Part locations .......................................... 2-1Pass switch ............................................. 3-6
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-17
Rear suspension, lubricating ................ 6-21SSafety information ................................... 1-1
Seats..................................................... 3-12
Shifting .................................................... 5-3
Shift pedal ............................................... 3-8
Shock absorber assembly, adjusting .... 3-15
Sidestand .............................................. 3-17
Sidestand, checking and lubricating ..... 6-21
Spark plugs, checking............................. 6-5
Specifications.......................................... 8-1
Speedometer unit ................................... 3-5
Starter (choke) lever ............................. 3-12
Starting a cold engine ............................. 5-1
Start switch ............................................. 3-7
Steering, checking ................................ 6-22
Storage ................................................... 7-3
Storage compartment ........................... 3-14
Supporting the motorcycle .................... 6-28TThrottle cable free play, checking ......... 6-12
Throttle grip and cable,
checking and lubricating ..................... 6-19
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-29
Troubleshooting chart ........................... 6-30
Turn signal indicator light ........................ 3-3
U5YSE1E0.book Page 1 Monday, November 7, 2005 8:38 AM
