2006 YAMAHA WR 450F engine

3 - 12
INSP
ADJ
AIR FILTER CLEANING
AIR FILTER CLEANING
NOTE:
Proper air filter maintenance is the biggest key
to preventing premature engine wear and
damage.
CAUTION:
Never run the engine without the air filter
element in place; this would allow dirt and
dust to enter the engine and cause rapid
wear and possible engine damage.
1. Remove:
Air filter case cover 1
NOTE:
Loosen the quick screw 2 and draw the air fil-
ter case cover to remove it because its claws
a are inserted in the side cover as shown.
2. Unhook:
Binder 1
3. Remove:
Air filter element 1
Filter guide 2
4. Clean:
Air filter element
Clean them with solvent.
NOTE:
After cleaning, remove the remaining solvent
by squeezing the element.

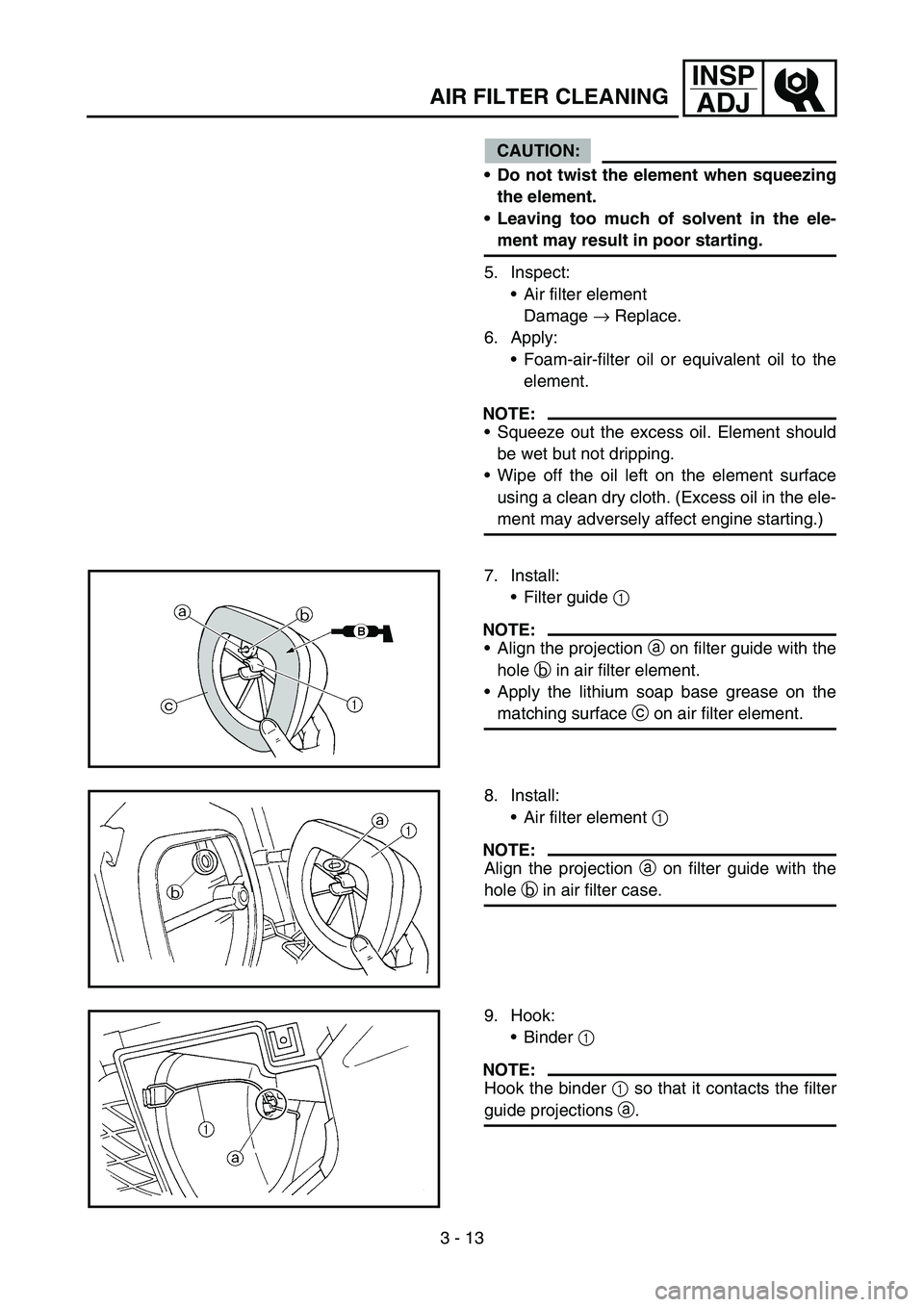

3 - 13
INSP
ADJ
CAUTION:
Do not twist the element when squeezing
the element.
Leaving too much of solvent in the ele-
ment may result in poor starting.
5. Inspect:
Air filter element
Damage → Replace.
6. Apply:
Foam-air-filter oil or equivalent oil to the
element.
NOTE:
Squeeze out the excess oil. Element should
be wet but not dripping.
Wipe off the oil left on the element surface
using a clean dry cloth. (Excess oil in the ele-
ment may adversely affect engine starting.)
7. Install:
Filter guide 1
NOTE:
Align the projection a on filter guide with the
hole b in air filter element.
Apply the lithium soap base grease on the
matching surface c on air filter element.
8. Install:
Air filter element 1
NOTE:
Align the projection a on filter guide with the
hole b in air filter case.
9. Hook:
Binder 1
NOTE:
Hook the binder 1 so that it contacts the filter
guide projections a.
AIR FILTER CLEANING

3 - 14
INSP
ADJ
ENGINE OIL LEVEL INSPECTION
ENGINE OIL LEVEL INSPECTION
1. Stand the machine on a level surface.
NOTE:
When checking the oil level make sure that
the machine is upright.
Place the machine on a suitable stand.
WARNING
Never remove the oil tank cap just after
high speed operation. The heated oil could
spurt out. causing danger. Wait until the oil
cools down to approximately 70 °C (158 °F).
2. Idle the engine more than 3 minutes while
keeping the machine upright. Then stop the
engine and inspect the oil level.
3. Remove:
Oil tank cap 1
1
4. Inspect:
Oil level
Oil level should be between maximum a
and minimum b marks.
Oil level low → Add oil to proper level.
NOTE:
When inspecting the oil level, do not screw the
oil level gauge into the oil tank.
Insert the gauge lightly.
a
b

3 - 15
INSP
ADJ
ENGINE OIL LEVEL INSPECTION
(For USA and CDN)
CAUTION:
Do not add any chemical additives.
Engine oil also lubricates the clutch and
additives could cause clutch slippage.
Do not allow foreign material to enter the
crankcase.
(Except for USA and CDN)
CAUTION:
Do not add any chemical additives or use
oils with a grade of CD
a or higher.
Do not use oils labeled “ENERGY CON-
SERVING II”
b or higher. Engine oil also
lubricates the clutch and additives could
cause clutch slippage.
Do not allow foreign materials to enter the
crankcase.
5. Start the engine and let it warm up for sev-
eral minutes.
CAUTION:
When the oil tank is empty, never start the
engine.
Recommended oil:
At 5 °C (40 °F) or higher
È
Yamalube 4 (20W-40) or SAE
20W-40 type SG motor oil
(Non-Friction modified)
At 15 °C (60 °F) or lower
É
Yamalube 4 (10W-30) or SAE
10W-30 type SG motor oil
(Non-Friction modified)
and/or
Yamalube 4-R (15W-50)
(Non-Friction modified)
Recommended oil:
Refer to the following chart for
selection of oils which are
suited to the atmospheric
temperatures.
Recommended engine oil classi-
fication:
API STANDARD:
API “SG” or higher grade
(Designed primarily for
motorcycles)-20
-4-10
140
3010
5020
6830
8640 50
104
122˚CTemp.
˚F
10W-30
10W-40
20W-40
20W-50
15W-40
a
b

3 - 16
INSP
ADJ
ENGINE OIL REPLACEMENT
6. Idle the engine more than 10 seconds
while keeping the machine upright. Then
stop the engine and add the oil to the maxi-
mum level.
7. Install:
Oil tank cap
ENGINE OIL REPLACEMENT
1. Start the engine and let it warm up for sev-
eral minutes.
2. Stop the engine and place an oil pan under
the drain bolt.
3. Remove:
Oil tank plug 1
Oil filler cap 2
Drain bolt (with gasket) 3
Oil filter drain bolt (O-ring) 4
Drain bolt (with gasket) 5
Drain bolt (with gasket) 6
Drain the crankcase and oil tank (frame)
of its oil.
4. Remove:
Engine skid plate
Engine oil hose clamp 1
Bolt (engine oil hose) 2
Engine oil hose 3
Oil strainer (frame) 4
5. Clean:
Oil strainer (frame)

3 - 17
INSP
ADJ
ENGINE OIL REPLACEMENT
6. If the oil filter is to be replaced during this
oil change, remove the following parts and
reinstall them.
7. Install:
Plain washer 1
Oil strainer (frame) 2
Engine oil hose 3
Bolt (engine oil hose) 4
Engine oil hose clamp 5
Engine skid plate
8. Install:
Gaskets
Oil filter drain bolt
Drain bolt (crankcase rear)
Drain bolt (crankcase left)
Drain bolt (frame)
9. Fill:
Crankcase Replacement steps:
Remove the oil filter cover 1 and oil filter
element 2.
Check the O-rings 3, if cracked or dam-
aged, replace them with a new one.
Install the oil filter element and oil filter
cover.
T R..
Oil filter cover:
10 Nm (1.0 m  kg, 7.2 ft  lb)
Oil quantity:
Periodic oil change:
1.0 L (0.88 Imp qt, 1.06 US qt)
With oil filter replacement:
1.1 L (0.97 Imp qt, 1.16 US qt)
Total amount:
1.2 L (1.06 Imp qt, 1.27 US qt)
New
T R..70 Nm (7.0 m · kg, 50 ft · lb)
T R..8 Nm (0.8 m · kg, 5.8 ft · lb)
T R..2 Nm (0.2 m · kg, 1.4 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
New
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..20 Nm (2.0 m · kg, 14 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
T R..23 Nm (2.3 m · kg, 17 ft · lb)

3 - 18
INSP
ADJ
IDLE SPEED ADJUSTMENT
10. Install:
Oil filler plug
11. Inspect:
Engine (for oil leaks)
Oil level
Refer to “ENGINE OIL LEVEL INSPEC-
TION”.
12. Check:
Oil pressure
EC35M021
IDLE SPEED ADJUSTMENT
1. Start the engine and thoroughly warm it up.
2. Adjust:
Idle speed Checking steps:
Slightly loosen the oil gallery bolt 1.
Start the engine and keep it idling until oil
starts to seep from the oil gallery bolt. If no
oil comes out after one minute, turn the
engine off so it will not seize.
Check oil passages, oil filter and oil pump
for damage or leakage.
Start the engine after solving the prob-
lem(s) and recheck the oil pressure.
Tighten the oil gallery bolt to specification.
T R..
Oil gallery bolt:
10 Nm (1.0 m  kg, 7.2 ft  lb)
Adjustment steps:
Turn the throttle stop screw 1 until the
specified engine idling speed.
NOTE:
Using a digital engine tachometer for idle
speed adjustment, detect the engine idling
speed by bringing the sensing element c of
the engine tachometer close to the ignition
coil 2.
To increase idle speed
→
Turn the throttle stop screw
1 in
a.
To decrease idle speed
→
Turn the throttle stop screw
1 out
b.
Engine idling speed:
1,700 ~ 1,900 r/min
c2

3 - 19
INSP
ADJ
VALVE CLEARANCE ADJUSTMENT
VALVE CLEARANCE ADJUSTMENT
NOTE:
The valve clearance should be adjusted
when the engine is cool to the touch.
The piston must be at Top Dead Center
(T.D.C.) on compression stroke to check or
adjust the valve clearance.
1. Remove:
Seat
Fuel tank
Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section in the CHAPTER 4.
2. Remove:
Carburetor
Refer to “CARBURETOR” section in the
CHAPTER 4.
Spark plug
Engine stay (upper)
Cylinder head cover
Refer to “CAMSHAFTS” section in the
CHAPTER 4.
3. Remove:
Timing plug 1
Straight plug 2
O-ring
1
2
4. Check:
Valve clearance
Out of specification → Adjust.
Valve clearance (cold):
Intake valve:
0.10 ~ 0.15 mm
(0.0039 ~ 0.0059 in)
Exhaust valve:
0.20 ~ 0.25 mm
(0.0079 ~ 0.0098 in)
Checking steps:
Turn the crankshaft counterclockwise with
a wrench.
Align the T.D.C. mark a on the rotor with
the align mark b on the crankcase cover
when piston is at T.D.C. on compression
stroke.
b
a
