SAFETY INFORMATION.....................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and Instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTION..........................................3-1
Main switch.......................................3-1
Indicator lights ..................................3-1
Speedometer unit .............................3-3
Battery voltage/fuel gauge ...............3-3
Clock .................................................3-4
Handlebar switches ..........................3-4
Front brake lever...............................3-5
Rear brake lever................................3-6
Fuel tank cap ....................................3-6
Fuel ...................................................3-6
Seat...................................................3-7
Front storage compartment..............3-7
Storage compartment.......................3-7
Adjusting the rear shock absorber
assemblies.....................................3-8
Sidestand ..........................................3-8
Sidestand switch operation check ...3-9
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Parking ..............................................5-3
PERIODIC MAINTENANCE AND
MINOR REPAIRS................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing cowlings
and panels .....................................6-5
Checking the spark plug ..................6-6
Engine oil ..........................................6-7
Final gear oil .....................................6-9
Coolant ...........................................6-10
Air filter and V-belt case air filter
elements ......................................6-11
Adjusting the carburetor .................6-12
Checking the throttle cable free
play ..............................................6-12
Tires ................................................6-13
Adjusting the brake lever free
play ..............................................6-15
Checking the front and rear brake
pads.............................................6-15
Checking the brake fluid level ........6-15
Changing the brake fluid ................6-16Checking and lubricating the
cables ..........................................6-16
Checking and lubricating the
centerstand and sidestand .........6-17
Checking the front fork ...................6-17
Checking the steering.....................6-17
Checking the wheel bearings .........6-18
Battery ............................................6-18
Replacing the fuse ..........................6-20
Replacing the headlight bulb or
a front turn signal light bulb ........6-20
Replacing a front turn signal light
bulb .............................................6-21
Replacing the license plate light
bulb .............................................6-21
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-22
Troubleshooting ..............................6-23
Troubleshooting chart .....................6-24
SCOOTER CARE AND STORAGE.....7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS...............................8-1
CONSUMER INFORMATION.............9-1
Identification numbers ......................9-1
TABLE OF CONTENTS
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 6
EAU10420
Right view
DESCRIPTION
2-2
2
7. Passenger handle
8. Rear shock absorber (page 3-8)
9. Seat (page 3-7)
10. Engine oil dipstick (page 6-7)11. Storage compartment (page 3-7)
12. Battery/fuse box (page 6-18)
13. Coolant reservoir (page 6-10)
14. Radiator
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 13
EAU10450
Main switch
The main switch controls the ignition
and lighting systems. The various
main switch positions are described
below.
EAU10630
ON
All electrical systems are supplied
with power, and the engine can be
started. The key cannot be removed.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAUM1020
“h”
The coolant temperature warning light
should come on when the key is tur-
ned to “h”. (See page 3-2.)
EAU10700
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, release it, and then turn
it to “LOCK”.
3. Remove the key.
T
o unlock the steering
Insert the key and turn it to “OFF”.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU10980
Indicator lights
1. Turn signal indicator lights
2. High beam indicator light
121
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 15
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU11390
Oil change indicator light “z”
1. Oil change indicator
2. Coolant temperature warning light
This indicator light comes on at the
initial 1000 km (600 mi) and every
3000 km (1800 mi) thereafter to indi-cate that the engine oil should be
changed.
If the engine oil is changed before the
oil change indicator comes on (i.e.
before the periodic oil change interval
has been reached), the indicator light
must be reset after the oil change for
the next periodic oil change to be
indicated at the correct time. (See
page 6-8.)
The electrical circuit of the indicator
light can be checked according to the
following procedure.
1. Set the engine stop switch to “h”
and turn the key to “ON”.
2. Check that the indicator comes
on for a few seconds and then
goes off.
3. If the indicator light does not
come on, have a Yamaha dealer
check the electrical circuit.
NOTE:
The oil change indicator light may
flash when the engine is revved with
the scooter on the centerstand, but
this does not indicate a malfunction.
EAUM1080
Coolant temperature warning light
“
y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “h”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10020
CAUTION
Do not operate the engine if it is
overheated.
12
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 16
EAU15603

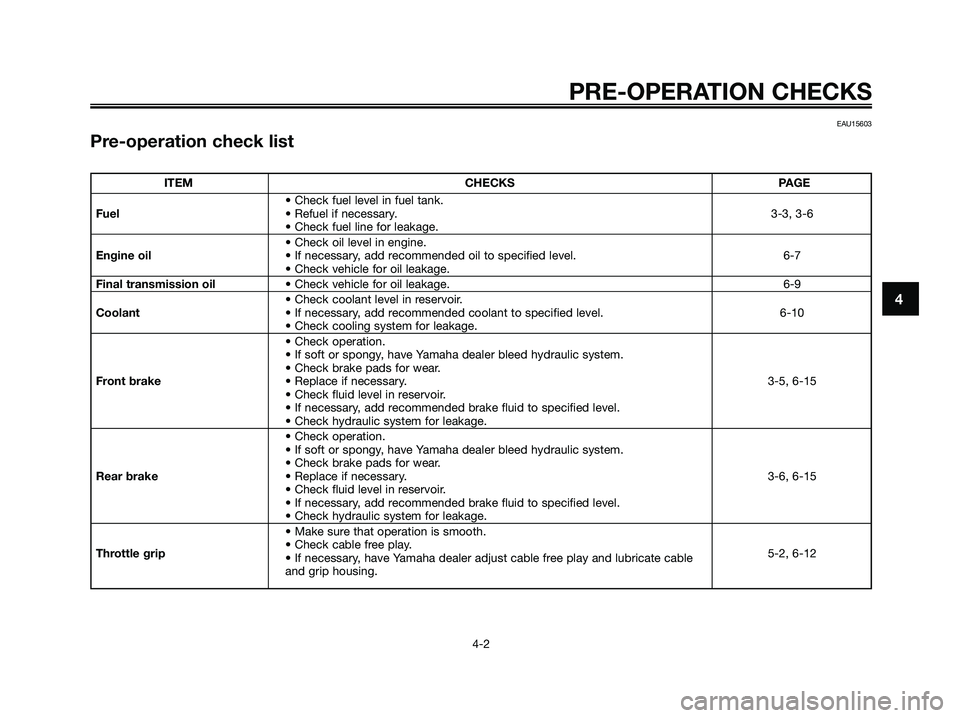

Pre-operation check list
PRE-OPERATION CHECKS
4-2
4
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary. 3-3, 3-6
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-7
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-9
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-10
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 3-5, 6-15
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 3-6, 6-15
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
5-2, 6-12
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 25
ODOMETER READING (x 1000 Km) ANNUAL
CHECK
NoITEM CHECK OR MAINTENANCE JOB 1 10 20 30 40
9 * Rear brake • Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √
•Replace brake pads. Whenever worn to the limit
10 * Wheels • Check runout and for damage.√√√√
11 * Wheel bearings • Check bearing for looseness or damage.√√√√
12 * Steering bearings • Check bearing play and steering for roughness.√√ √ √√
• Lubricate with lithium-soap-based grease. Every 24000 km
13 * Chassis fasteners • Make sure that all nuts, bolts and screws are √√√√ √
properly tightened.
14 Sidestand, centerstand • Check operation.
• Lubricate.√√√√ √
15 * Sidestand switch • Check operation.√√ √ √√ √
16 * Front fork • Check operation and for oil leakage.√√√√
17 * Shock absorber • Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 * Carburetor • Adjust engine idling speed.√√ √ √√ √
19 Engine oil • Change. (See page *-*.)√When the oil change
indicator light comes on (every 3000 km)
• Check oil level and vehicle for oil leakage. Every 3000 km√
20 * Engine oil strainer • Clean.√
21 * Cooling system • Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
22 Final gear oil • Check oil level and vehicle for oil leakage.√√ √
• Change.√√√
23 * V-belt • Replace. Every 10000 km
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 32
4. Add the recommended final gear
oil to the brim of the filler hole.
5. Install the oil filler bolt, and then
tighten it to the specified torque.
6. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.
EAU20070
Coolant
1. Maximum level
2. Minimum level
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1080
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
NOTE:
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
1. Coolant tank cap
2. Check the coolant level through
the check window.
NOTE:
The coolant should be between the
minimum and maximum level marks.
1
1
2
Recommended final gear oil:
Shaft drive gear oil (Part No.:
9079E-SH001-00)
Oil quantity:
0,15 L (0,033 US qt) (0,132 Imp.qt)
Tightening torque:
Final gear oil drain bolt:
22 Nm (2,2 m•kgf, 15,91 ft•lbf)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 39
3. If the coolant is at or below the
minimum level mark, remove the
front cowling by removing the
screws.
4. Open the reservoir cap, and then
add coolant to the maximum
level mark.
ECA10470
CAUTION
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with coo-
lant as soon as possible, other-
wise the engine may not be
sufficiently cooled and the coo-
ling system will not be protec-
ted against frost and corrosion.
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possi-
ble, otherwise the effective-
ness of the coolant will be
reduced.
5. Close the reservoir cap, and then
install the front cowling by insta-
lling the screws.
EAUM1320
Air filter and V-belt case air
filter elements
The air filter and the V-belt case air fil-
ter elements should be cleaned at the
intervals specified in the periodic
maintenance and lubrication chart.
Clean both filter elements more fre-
quently if you are riding in unusually
wet or dusty areas.Cleaning the air filter element
1. Air filter case cover
2. Screw (x 1)
1. Place the scooter on the centers-
tand.
2. Remove the air filter case cover
by removing the screws.
3. Pull the air filter element out.
1. Air filter
4. Lightly tap the air filter element to
remove most of the dust and dirt,
1
1
2
Coolant reservoir capacity:
0,45 L (0,099 US qt) (0,396 Imp.qt)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 40
