1-1
EBU00464

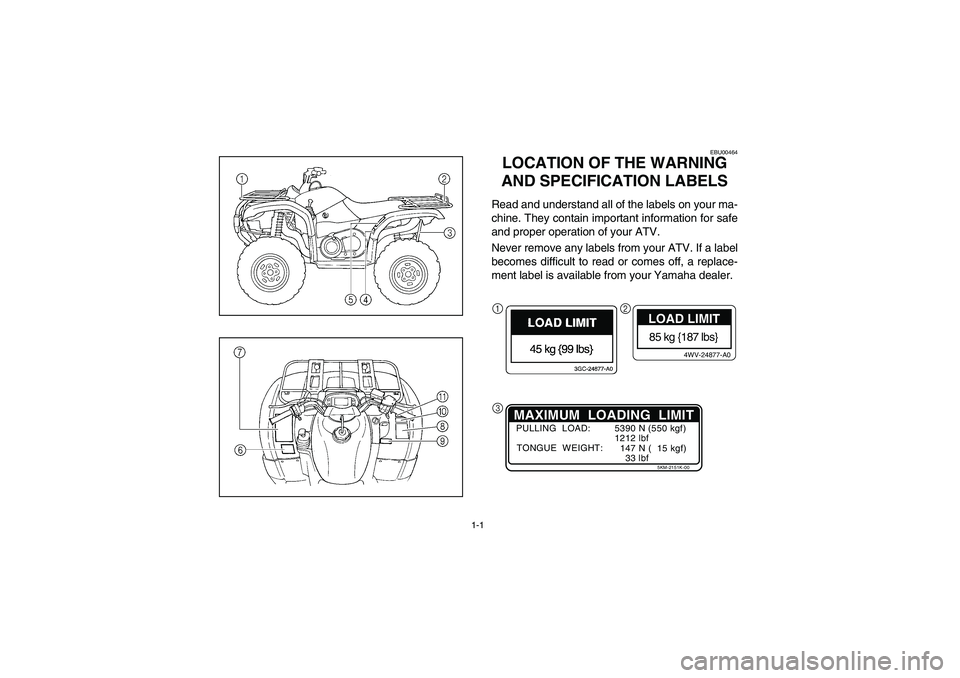

1-LOCATION OF THE WARNING
AND SPECIFICATION LABELSRead and understand all of the labels on your ma-
chine. They contain important information for safe
and proper operation of your ATV.
Never remove any labels from your ATV. If a label
becomes difficult to read or comes off, a replace-
ment label is available from your Yamaha dealer.1
2
3
85 kg {187 lbs}
4WV-24877-A0
LOAD LIMIT
PULLING LOAD:
TONGUE WEIGHT:5390 N (550 kgf)
1212 lbf
147 N ( 15 kgf)
33 lbf
5KM-2151K-00
MAXIMUM LOADING LIMIT
U2C660.book Page 1 Monday, April 11, 2005 10:29 AM

2-7

Never operate the ATV on hills too steep for the
ATV or for your abilities. Practice on smaller
hills before attempting larger hills.


Always follow proper procedures for climbing
hills as described in this manual. Check the ter-
rain carefully before you start up any hill. Never
climb hills with excessively slippery or loose
surfaces. Shift your weight forward. Never
open the throttle suddenly. Never go over the
top of a hill at high speed.


Always follow proper procedures for going
down hills and for braking on hills as described
in this manual. Check the terrain carefully be-
fore you start down any hill. Shift your weight
backward. Never go down a hill at high speed.
Avoid going down a hill at an angle that would
cause the vehicle to lean sharply to one side.
Go straight down the hill where possible.
U2C660.book Page 7 Monday, April 11, 2005 10:29 AM

2-9

Always follow proper procedures for crossing
the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose
surfaces. Shift your weight to the uphill side of
the ATV. Never attempt to turn the ATV around
on any hill until you have mastered the turning
technique described in this manual on level
ground. Avoid crossing the side of a steep hill if
possible.


Always use proper procedures if you stall or roll
backwards when climbing a hill. To avoid stall-
ing, use proper gear range and maintain a
steady speed when climbing a hill. If you stall or
roll backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, follow-
ing the procedure described in this manual.
U2C660.book Page 9 Monday, April 11, 2005 10:29 AM

4-57
EBU01312
Front and rear shock absorber adjustment
The spring preload can be adjusted to suit the rid-
er’s weight and riding conditions.NOTE:_ When adjusting the rear shock absorbers, the rear
wheels need to be removed. (See pages 8-123–
8-125 for removal and installation procedures.) _Adjust the spring preload as follows.
To increase the spring preload, turn the adjusting
ring in direction
a.
To decrease the spring preload, turn the adjusting
ring in direction
b.NOTE:_ A special wrench can be obtained at a Yamaha
dealer to make this adjustment. _
Standard position: B
A - Minimum (soft)
E - Maximum (hard)
1. Spring preload adjusting ring
2. Position indicator
1. Anneau de réglage de la précontrainte de ressort
2. Indicateur de position
1. Anillo de ajuste de la precarga del resorte
2. Indicador de posiciónU2C660.book Page 57 Monday, April 11, 2005 10:29 AM

6-27
EBU02321
Loading
Cargo or a trailer can change the stability and han-
dling of an ATV. You must use common sense and
good judgment when carrying cargo or towing a
trailer. Keep the following points in mind:

Never exceed the weight limits shown. An
overloaded ATV can be unstable.
MAXIMUM LOADING LIMIT

Vehicle loading limit (total weight of cargo,
rider and accessories, and tongue weight):
220 kg


Front carrier: 45 kg


Rear carrier: 85 kg


Storage box: 2.0 kg


Trailer hitch:
Pulling load (total weight of trailer and
cargo): 550 kgf
Tongue weight (vertical weight on trailer
hitch point): 15 kgf
U2C660.book Page 27 Monday, April 11, 2005 10:29 AM

6-29

Do not exceed the maximum tongue weight.
You can measure tongue weight with a bath-
room scale. Put the tongue of the loaded trailer
on the scale with the tongue at hitch height. Ad-
just the load in the trailer, if necessary, to re-
duce the weight on hitch.
If you are carrying cargo and towing a trailer, in-
clude the tongue weight in the maximum vehi-
cle load limit.


Load cargo on the carrier as close to the center
of the vehicle as possible. Put cargo at the rear
of the front carrier and at the front of the rear
carrier. Center the load from side to side.


Tie down cargo securely to the carriers. Make
sure cargo in the trailer cannot move around. A
shifting load can cause an accident.


Make sure the load does not interfere with con-
trols or your ability to see where you are going.
U2C660.book Page 29 Monday, April 11, 2005 10:29 AM

6-31

Ride more slowly than you would without a
load. The more weight you carry, the slower
you should go. Although conditions vary, it is
good practice not to exceed low range whenev-
er you are carrying heavier loads or when tow-
ing a trailer.


Allow more braking distance. A heavier vehicle
takes longer to stop.


Avoid making sharp turns unless at very slow
speeds.


Avoid hills and rough terrain. Choose terrain
carefully. Added weight affects the stability and
handling of the ATV.WARNING
_ Never exceed the stated load capacity for this
ATV. Overloading this ATV or carrying or tow-
ing cargo improperly could cause changes in
vehicle handling which could lead to an acci-
dent. Cargo should be properly distributed and
securely attached. Reduce speed when carry-
ing cargo or pulling a trailer. Allow greater dis-
tance for braking. _
U2C660.book Page 31 Monday, April 11, 2005 10:29 AM

7-19
WARNING
_

Never exceed the stated load capacity for
this ATV.


Cargo should be properly distributed and
securely attached.


Reduce speed when carrying cargo or pull-
ing a trailer. Allow greater distance for
braking.


Always follow the instructions in your
Owner’s Manual for carrying cargo or pull-
ing a trailer.
_
MAXIMUM LOADING LIMIT

Vehicle loading limit (total weight of
cargo, rider and accessories, and
trailer hitch vertical load): 220 kg


Front carrier: 45 kg


Rear carrier: 85 kg


Storage box: 2.0 kg


Trailer hitch:
Pulling load (total weight of trailer and
cargo): 550 kgf
Tongue weight (vertical weight on
trailer hitch point): 15 kgf
