2006 YAMAHA GP1300R check engine

2-18
E
EJU10341
Oil warning indicator
If the oil remaining in the tank drops to
about 1.7 L (0.45 US gal, 0.37 Imp gal) or
the oil filter is clogged, the oil warning indi-
cator and the warning light begin to blink.
The buzzer also starts sounding intermit-
tently.
If the oil warning indicators begin to blink,
refill with engine oil as soon as possible.
The warning signals will be cleared when
the engine restarts after refilling engine oil.
NOTE:@ If the warning indicators blink with adequate
oil in the tank, have a Yamaha dealer check
the oil filter for dirt and clogs.
@
EJU20042
Check engine warning
indicator
If a sensor malfunction or a short circuit is
detected, the warning light and indicator
begin to blink and the buzzer sounds inter-
mittently.
If this occurs, reduce the engine speed,
return to shore, and have a Yamaha dealer
check the engine.
UF1G73.book Page 18 Tuesday, July 12, 2005 8:55 AM

2-19
E
EJU20050
Engine overheat warning
indicator
If the engine starts to overheat, the warn-
ing light and engine overheat warning indi-
cator begin to blink, and the buzzer sounds
intermittently.
If the watercraft continues to be operated
at higher speeds after the warning system
has been activated, the warning light,
engine overheat warning indicator and the
buzzer will change from intermittently to
continuously on. (See “Engine overheat
warning system” on page 2-12 for further
details.)
The warning signals will turn off when the
engine is started after it has cooled down.
NOTE:@ When the warnings overlap each other, their
priority is as follows:
1. Final overheat warning
2. Fuel level warning
3. Oil level warning
4. Initial overheat warning
5. Exhaust temperature warning
6. Check engine warning
@
EJU11860
Exhaust temperature warning
indicator
If the exhaust system becomes too hot,
the warning light and exhaust temperature
warning indicator begin to blink, and the
buzzer sounds intermittently. (See “Exhaust
temperature warning system” on page 2-13
for further details.)
The warning signals will turn off when the
engine is started after it has cooled down.
UF1G73.book Page 19 Tuesday, July 12, 2005 8:55 AM

E
3
EJU10400
OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
2-stroke engine oil .................................. 3-3
Filling the fuel tank ................................. 3-4
Filling the oil tank ................................... 3-5
Pre-operation checks .............................. 3-6
Pre-operation check list ......................... 3-6
Pre-operation check points .................... 3-7
Operation ................................................ 3-16
Engine break-in .................................... 3-16
Launching the watercraft ..................... 3-17
Starting the engine ............................... 3-18
Stopping the engine ............................. 3-20
Leaving the watercraft ......................... 3-20
Operating your watercraft .................... 3-21
Getting to know your watercraft ........... 3-21
Learning to operate your watercraft .... 3-21
Riding watercraft with a passenger ..... 3-22
Starting the watercraft .......................... 3-23
Boarding and starting in deep water ... 3-25
Capsized watercraft ............................. 3-27
Turning the watercraft .......................... 3-29
Stopping the watercraft ........................ 3-31
Beaching the watercraft ....................... 3-32
Docking the watercraft ......................... 3-32
Rough water operation ........................ 3-32
Post-operation checks ......................... 3-33
Transporting .......................................... 3-35
UF1G73.book Page 1 Tuesday, July 12, 2005 8:55 AM

3-4
E
EJU20190
Filling the fuel tank
CAUTION:@ Be careful when refueling. Avoid getting
water or other contaminants in the fuel
tank. Contaminated fuel can cause poor
running or engine damage.
@
1. Open the hood and remove the front
storage compartment, to check the fuel
level. (See page 2-20 for front storage
compartment.)
2. Open the fuel tank filler cap, and slowly
add fuel to the fuel tank.
3. Stop filling when the fuel just reaches the
bottom of the filler tube on the fuel tank.
Do not fill into the filler tube, because
fuel could spill out.
Fuel tank capacity:
Total: 60 L (15.9 US gal, 13.2 Imp gal)
UF1G73.book Page 4 Tuesday, July 12, 2005 8:55 AM

3-6
E
EJU13460

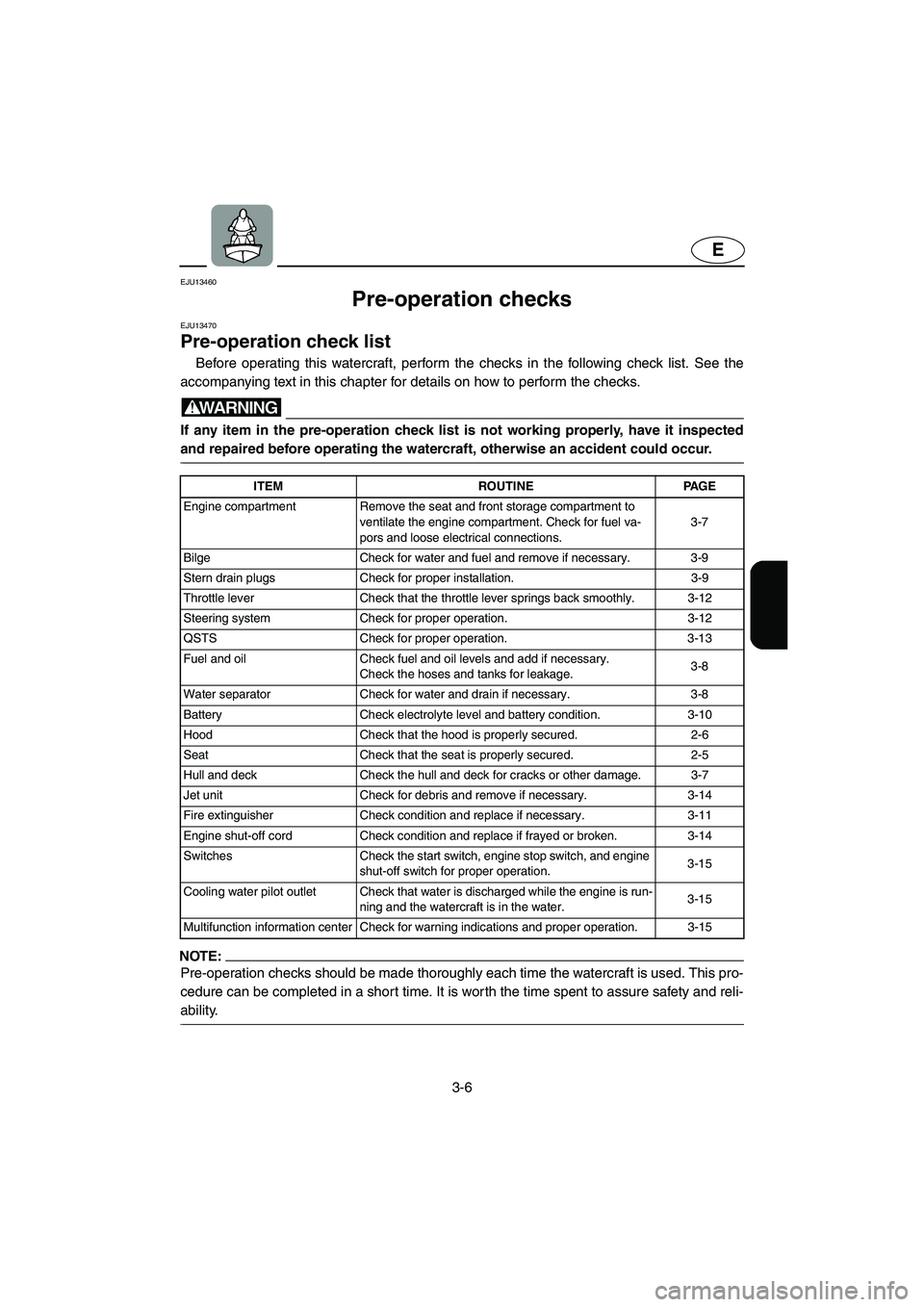

Pre-operation checks
EJU13470
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
POC-***
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove the seat and front storage compartment to
ventilate the engine compartment. Check for fuel va-
pors and loose electrical connections.3-7
Bilge Check for water and fuel and remove if necessary. 3-9
Stern drain plugs Check for proper installation. 3-9
Throttle lever Check that the throttle lever springs back smoothly. 3-12
Steering system Check for proper operation. 3-12
QSTS Check for proper operation. 3-13
Fuel and oil Check fuel and oil levels and add if necessary.
Check the hoses and tanks for leakage.3-8
Water separator Check for water and drain if necessary. 3-8
Battery Check electrolyte level and battery condition. 3-10
Hood Check that the hood is properly secured. 2-6
Seat Check that the seat is properly secured. 2-5
Hull and deck Check the hull and deck for cracks or other damage. 3-7
Jet unit Check for debris and remove if necessary. 3-14
Fire extinguisher Check condition and replace if necessary. 3-11
Engine shut-off cord Check condition and replace if frayed or broken. 3-14
Switches Check the start switch, engine stop switch, and engine
shut-off switch for proper operation.3-15
Cooling water pilot outlet Check that water is discharged while the engine is run-
ning and the watercraft is in the water.3-15
Multifunction information center Check for warning indications and proper operation. 3-15
UF1G73.book Page 6 Tuesday, July 12, 2005 8:55 AM

3-7
E
EJU10480
Pre-operation check points
EJU10500
Engine compartment
Ventilate the engine compar tment before
each use.
To ventilate the engine compartment,
remove seat and front storage compart-
ment. (See page 2-5 for seat, and 2-20 for
front storage compartment.) Allow the
engine compartment to remain open for a
few minutes to allow any fuel vapors to
escape. Also, check for loose electrical con-
nections.
WARNING@ Failure to ventilate the engine compart-
ment could result in fire or explosion. Do
not start the engine if there is a fuel leak
or a loose electrical connection.
@
EJU20570
Hull and deck
Check the hull and deck for cracks or
other damage. If any damage is found, have
a Yamaha dealer repair the watercraft.
UF1G73.book Page 7 Tuesday, July 12, 2005 8:55 AM

3-9
E
EJU20200
Bilge
Check for moisture and fuel residue in the
bilge.
This watercraft is equipped with a conven-
tional jet vacuum bilge draining system and
an electric bilge draining system. The elec-
tric bilge draining system is operated when
the engine is running. When excess water
reaches the water inlet of the electric bilge
pump, the water is discharged via the
exhaust passage from the jet thrust nozzle.
A small quantity of water will remain in the
bilge and should be removed manually. To
remove any residual water, perform the fol-
lowing procedure.
To remove water from the bilge:
1. Remove the stern drain plugs.
2. Raise the bow of the watercraft until the
water drains.
3. After the water has drained, wipe the
bilge with dry rags to make sure that the
bilge is thoroughly dry.
4. Install the drain plugs.
CAUTION:@
Make sure that the stern drain plugs
are tightened securely before launch-
ing the watercraft.

Clean any foreign materials, such as
dirt or sand, from the drain plug
threads before installing the drain
plugs.
@
EJU20581
Stern drain plug
Check the stern drain plugs for proper
installation.
UF1G73.book Page 9 Tuesday, July 12, 2005 8:55 AM

3-10
E
CAUTION:@
Make sure that the stern drain plugs
are tightened securely before launch-
ing the watercraft. Otherwise, water
may flood the engine compartment
and cause the watercraft to submerge.

Clean any foreign materials, such as
dirt or sand, from the drain plug
threads before installing the drain
plugs. Otherwise, the drain plugs may
be damaged and water may enter the
engine compartment.
@
EJU19690
Battery
Check the battery condition and the elec-
trolyte level.
Check that the battery leads are tightened
securely and there is no corrosion on the
battery terminals.
WARNING@
The battery must always be fully
charged and in good condition. Loss
of battery power may leave you
stranded. Never operate the watercraft
if the battery does not have sufficient
power to start the engine or if it shows
any other signs of decreased power.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
Make sure that the battery is securely
held in place.
1
Positive (+): Red lead
2
Negative (–): Black lead
3
Breather hose
UF1G73.book Page 10 Tuesday, July 12, 2005 8:55 AM
