2006 YAMAHA GP1300R Owners Manual

5-6
E
EJU18440
Jumping the battery
If the watercraft battery has run down, the
engine can be started using a 12-volt bat-
tery and jumper cables.
WARNING@ Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg or vegetable oil. Call physi-
cian immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc. well away.
If using or charging the battery in an
enclosed space, make sure that it is well
ventilated. Always shield your eyes when
working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
@
UF1G73.book Page 6 Tuesday, July 12, 2005 8:55 AM

5-7
E
EJU18820
Connecting the jumper cables
1. Connect the positive (+) jumper cable 1
to the positive (+) terminals of both bat-
teries.
2. Connect one end of the negative (–)
jumper cable 2 to the negative (–) termi-
nal of the booster battery 3.
3. Connect the other end of the negative (–)
cable to an unpainted bolt on the cylinder
head.
CAUTION:@ Do not connect the end of the jumper
cable to the negative (–) terminal on the
watercraft battery! Be sure all connec-
tions are secure and correct before
attempting to start the engine. Any
wrong connection may damage the elec-
trical system.
@
4. Start the engine, and then disconnect
the cables by reversing the steps above.
CAUTION:@
Never push the start switch while the
engine is running.

Do not operate the start switch for
more than 5 seconds, otherwise the
battery will be discharged and the
engine will not start. Also, the starter
motor may be damaged. If the engine
does not start in 5 seconds, release
the start switch, wait 15 seconds, and
try again.
@
UF1G73.book Page 7 Tuesday, July 12, 2005 8:55 AM

5-8
E
EJU19130
Towing the watercraft
If the watercraft becomes inoperative in
the water, it can be towed to shore.
If the watercraft must be towed in an
emergency using a towline, the operator
should ride the watercraft, holding onto the
handlebars.
CAUTION:@
Tow the watercraft at 5 mph (8 km/h) or
less, otherwise water could enter the
engine through the exhaust passages
or through the air intake and flood the
engine compartment if it is towed too
fast.

Tow the watercraft using the bow
eye1 only.

The bow must be kept up out of the
water during towing to prevent water
from entering the engine compart-
ment.
@
WARNING@
The watercraft should only be towed in
an emergency.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down. A
good rule of thumb is a towline that is
three times the combined length of the
towing boat and the watercraft.

The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the rider on the watercraft.
@
UF1G73.book Page 8 Tuesday, July 12, 2005 8:55 AM

5-9
E
EJU19020
Submerged watercraft
If the watercraft is submerged or flooded
with water, follow the procedure below and
consult a Yamaha dealer as soon as possi-
ble. Failure to do so may result in serious
engine damage!
In an emergency:
1. Beach the watercraft and remove the
stern drain plugs to drain the water from
the engine compartment. (See page 3-9
for further instructions.)
Remove the storage compartment plugs
to drain the water from each storage
compartment.
2. Install the stern drain plugs.
3. Have the watercraft inspected by a
Yamaha dealer as soon as possible.
UF1G73.book Page 9 Tuesday, July 12, 2005 8:55 AM

E
6
EJU11240

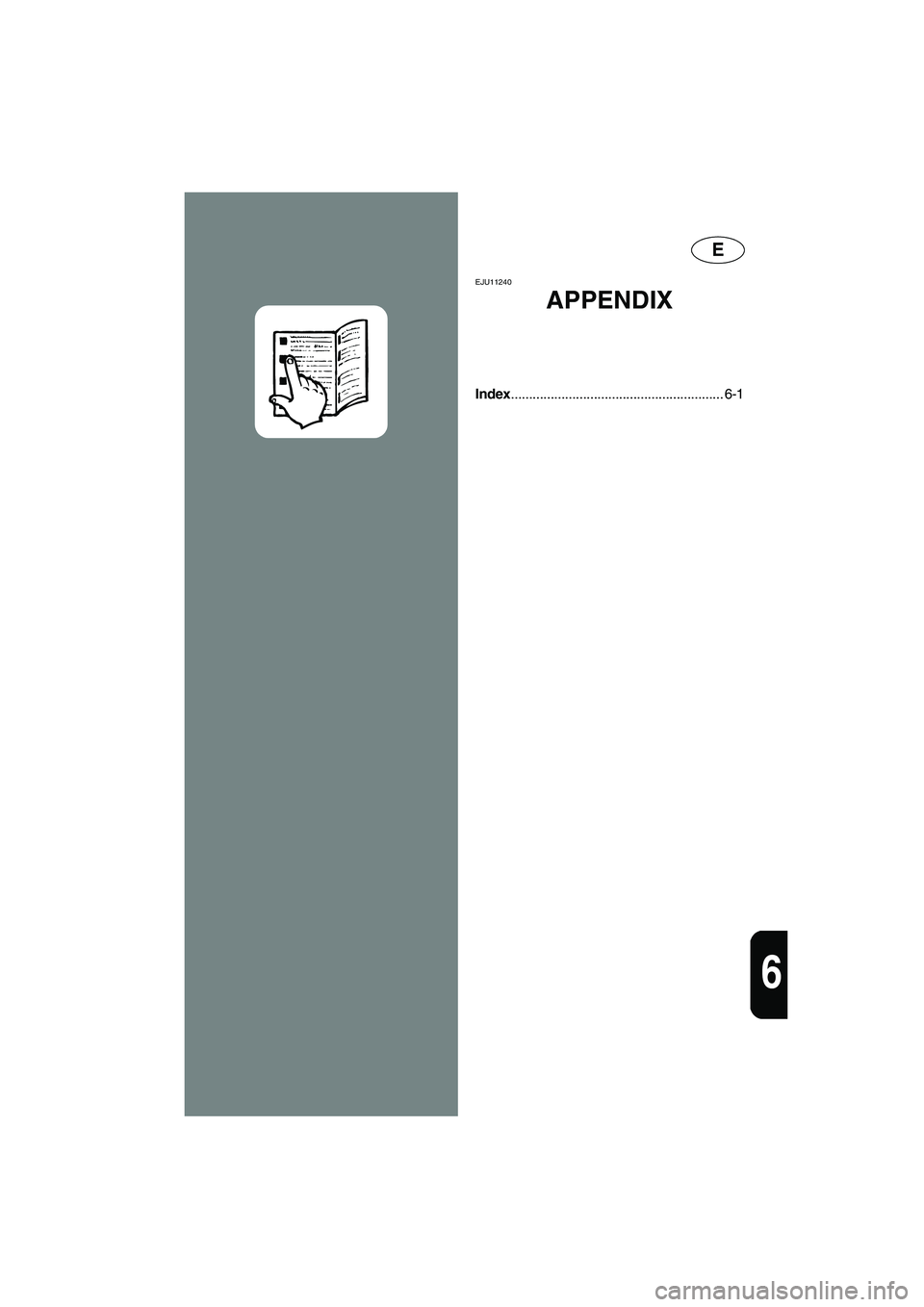

APPENDIX
Index........................................................... 6-1
UF1G73.book Page 1 Tuesday, July 12, 2005 8:55 AM

6-1
E
EJU11250
Index
2-stroke engine oil ................................... 3-3
A
Adjusting the fuel injection system ........ 4-20
Adjusting the Yamaha Adjustable
Sponson (YAS) ..................................... 4-22
B
Battery ............................................ 3-10, 4-5
Beaching the watercraft ........................ 3-32
Bilge ........................................................ 3-9
Bleeding the oil injection pump ............. 4-21
Boarding alone ...................................... 3-25
Boarding and starting in deep water ..... 3-25
Boarding with a passenger.................... 3-26
Bow down.............................................. 2-11
Bow up .................................................. 2-11
Builder’s plate.......................................... 1-2
C
Capsized watercraft .............................. 3-27
Check engine warning indicator ............ 2-18
Checking the trolling speed ................... 4-20
Cleaning and adjusting the
spark plugs ............................................ 4-14
Cleaning the jet intake and impeller ........ 5-4
Cleaning the watercraft ........................... 4-6
Connecting the jumper cables................. 5-7
Cooling water pilot outlet ................ 2-8, 3-15
Cruising limitations ................................ 1-10
D
Docking the watercraft .......................... 3-32
E
Emergency procedures ........................... 5-4
Engine break-in ..................................... 3-16
Engine compartment ............................... 3-7
Engine overheat warning indicator ........ 2-19
Engine overheat warning system .......... 2-12
Engine serial number .............................. 1-1
Engine shut-off cord (lanyard) ............... 3-14
Engine shut-off switch ............................. 2-7
Engine stop switch .................................. 2-7Enjoy your watercraft responsibly ......... 1-16
Exhaust temperature warning
indicator................................................. 2-19
Exhaust temperature warning
system ................................................... 2-13
F
Filling the fuel tank .................................. 3-4
Filling the oil tank .................................... 3-5
Fire extinguisher .................................... 3-11
Flushing the cooling system .................... 4-1
Front storage compartment ................... 2-20
Fuel and oil.............................................. 3-1
Fuel and oil systems ............................... 3-8
Fuel meter ............................................. 2-16
Fuel system ............................................. 4-3
Fuel tank ............................................... 4-11
Fuel tank filler cap ................................... 2-6
Fuel warning indicator ........................... 2-17
G
Gasohol ................................................... 3-3
Gasoline .................................................. 3-1
Getting to know your watercraft ............ 3-21
Glove compartment ............................... 2-21
H
Handgrip ................................................ 2-11
Hazard information ................................ 1-14
Hood........................................................ 2-6
Hour meter/Voltmeter ............................ 2-17
Hull and deck .......................................... 3-7
Hull Identification Number (HIN).............. 1-1
I
Identification numbers ............................. 1-1
Important labels ....................................... 1-3
Inspecting and adjusting the
throttle cable.......................................... 4-13
Inspecting the battery ............................ 4-18
Inspecting the fuel system ..................... 4-11
Inspecting the jet thrust nozzle angle .... 4-13
Inspecting the oil injection system ......... 4-12
J
Jet unit................................................... 3-14
Jumping the battery ................................. 5-6
UF1G73.book Page 1 Tuesday, July 12, 2005 8:55 AM

6-2
E
L
Label location .......................................... 1-3
Launching the watercraft ....................... 3-17
Learning to operate your watercraft ...... 3-21
Leaving the watercraft ........................... 3-20
Limitations on who may operate
the watercraft .......................................... 1-9
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-16
M
Maintenance and adjustments ................ 4-7
Model information.................................... 1-2
Multifunction information center ... 2-15, 3-15
O
Oil filter .................................................. 4-12
Oil tank .................................................. 4-12
Oil tank filler cap...................................... 2-6
Oil warning indicator.............................. 2-18
Operating your watercraft...................... 3-21
Operation .............................................. 3-16
Operation of controls and other
functions .................................................. 2-5
Operation requirements ........................ 1-11
Other labels ............................................. 1-7
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-9
P
Periodic maintenance chart................... 4-10
Post-operation checks........................... 3-33
Pre-operation check list........................... 3-6
Pre-operation check points ..................... 3-7
Pre-operation checks .............................. 3-6
Primary Identification (PRI-ID)
number .................................................... 1-1
Q
Quick Shift Trim System (QSTS) .......... 3-13
Quick Shift Trim System (QSTS)
selector.................................................. 2-10
R
Recommended equipment .................... 1-13
Replacing the fuse ................................ 4-21
Riding watercraft with a passenger ....... 3-22Rough water operation .......................... 3-32
S
Safe boating rules ................................. 1-16
Safety information ................................... 1-9
Seat ......................................................... 2-5
Specifications ........................................ 4-23
Speedometer......................................... 2-16
Starting and boarding in shallow
water ..................................................... 3-24
Starting from a dock .............................. 3-24
Starting the engine ................................ 3-18
Starting the watercraft ........................... 3-23
Start switch.............................................. 2-8
Steering system .............................2-9, 3-12
Stern drain plug ....................................... 3-9
Stopping the engine .............................. 3-20
Stopping the watercraft ......................... 3-31
Storage.................................................... 4-1
Storage compartments .......................... 2-20
Submerged watercraft ............................. 5-9
Switches ................................................ 3-15
T
Tachometer ........................................... 2-16
Throttle .................................................. 3-12
Throttle lever ........................................... 2-7
Towing the watercraft .............................. 5-8
Transporting .......................................... 3-35
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-29
W
Warning labels ........................................ 1-4
Watercraft characteristics ...................... 1-14
Water separator ...................................... 3-8
Y
Yamaha Adjustable Sponson (YAS) ..... 2-21
Yamaha Engine Management System
(YEMS).................................................. 2-14
UF1G73.book Page 2 Tuesday, July 12, 2005 8:55 AM

UF1G73.book Page 3 Tuesday, July 12, 2005 8:55 AM
