2006 YAMAHA FX CRUISER display

E
2
EJU01007
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-5
Rear seat ................................................ 2-5
Front seat ............................................... 2-6
Hood ....................................................... 2-7
Fuel tank filler cap .................................. 2-7
Engine stop switch ................................. 2-7
Engine shut-off switch ............................ 2-8
Throttle lever .......................................... 2-8
Start switch ............................................. 2-9
Cooling water pilot outlet ....................... 2-9
Steering system ................................... 2-10
Tilt lever ................................................ 2-11
Shift lever ............................................. 2-12
Quick Shift Trim System (QSTS)
selector ................................................. 2-13
Handgrip ............................................... 2-15
Reboarding step (for FX Cruiser) ........ 2-15
Yamaha Engine Management System
(YEMS) ................................................. 2-16
Multifunction meter ............................... 2-16
Analog speedometer/tachometer and
indicator lights ...................................... 2-17
Left multifunction display and
operation buttons ................................. 2-20
Storage compartments ........................ 2-25
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM

2-16
E
EJU19940
Yamaha Engine Management
System (YEMS)
This model is equipped with an inte-
grated, computerized management system
that controls and adjusts ignition timing, fuel
injection, engine diagnostics, and the Off-
Throttle Steering (OTS) system.
EJU22340
Multifunction meter
The multifunction meter is equipped with
the following two main components for help
and convenience in operating the watercraft.
1
Analog speedometer/tachometer and indicator
lights
2
Multifunction display and operation buttons
CAUTION:@ Do not run the engine for more than
15 seconds when checking the operation
of the meter on land. The engine could
overheat.
@
NOTE:@
When the multifunction meter starts oper-
ating, the analog speedometer/tachome-
ter makes one sweep, all displays light up
for 2 seconds, and then the meter starts
to operate normally.

The multifunction meter will continue to
operate for 25 seconds after the engine
stops.
@
E_F1Y-70.book Page 16 Friday, August 26, 2005 9:47 AM

2-19
E
EJU22260
“SPEED” indicator light
The “SPEED” indicator light 1 comes on
when the analog speedometer is selected.
The “SPEED” indicator light blinks three
times in the following instances:

The analog speedometer/tachometer is
switched to the speedometer function.

The display units of the multifunction
meter are switched to miles from kilome-
ters.

Miles are selected as the display units
when the multifunction meter starts oper-
ating.
EJU22000
“WARNING” indicator light
The “WARNING” indicator light 1 blinks
or comes on, together with a warning indica-
tor, when a malfunction has occurred.
E_F1Y-70.book Page 19 Friday, August 26, 2005 9:47 AM

2-20
E
EJU22040
Left multifunction display and
operation buttons
The left multifunction display is equipped
with the following functions.
1
Digital speedometer
2
Fuel meter
3
Hour meter/Voltmeter
4
Check engine warning indicator
5
Fuel warning indicator
6
Oil pressure warning indicator
7
Engine overheat warning indicator
The following operation buttons are on the
left side of the multifunction meter.
8
“Volt/Hour” button
9
“Speed/RPM” button
EJU22270
Digital speedometer
The digital speedometer 1
shows the
watercraft speed against water.
NOTE:@
To switch the speedometer display
between kilometers and miles, push the
“Vo l t / H o u r” button 2
for at least 1 second,
within 10 seconds after the multifunction
meter starts operating.

The “SPEED” indicator light 3
blinks
three times if miles are selected as the
display units when the multifunction meter
starts operating, or if the display units of
the meter are switched to miles.
@
E_F1Y-70.book Page 20 Friday, August 26, 2005 9:47 AM

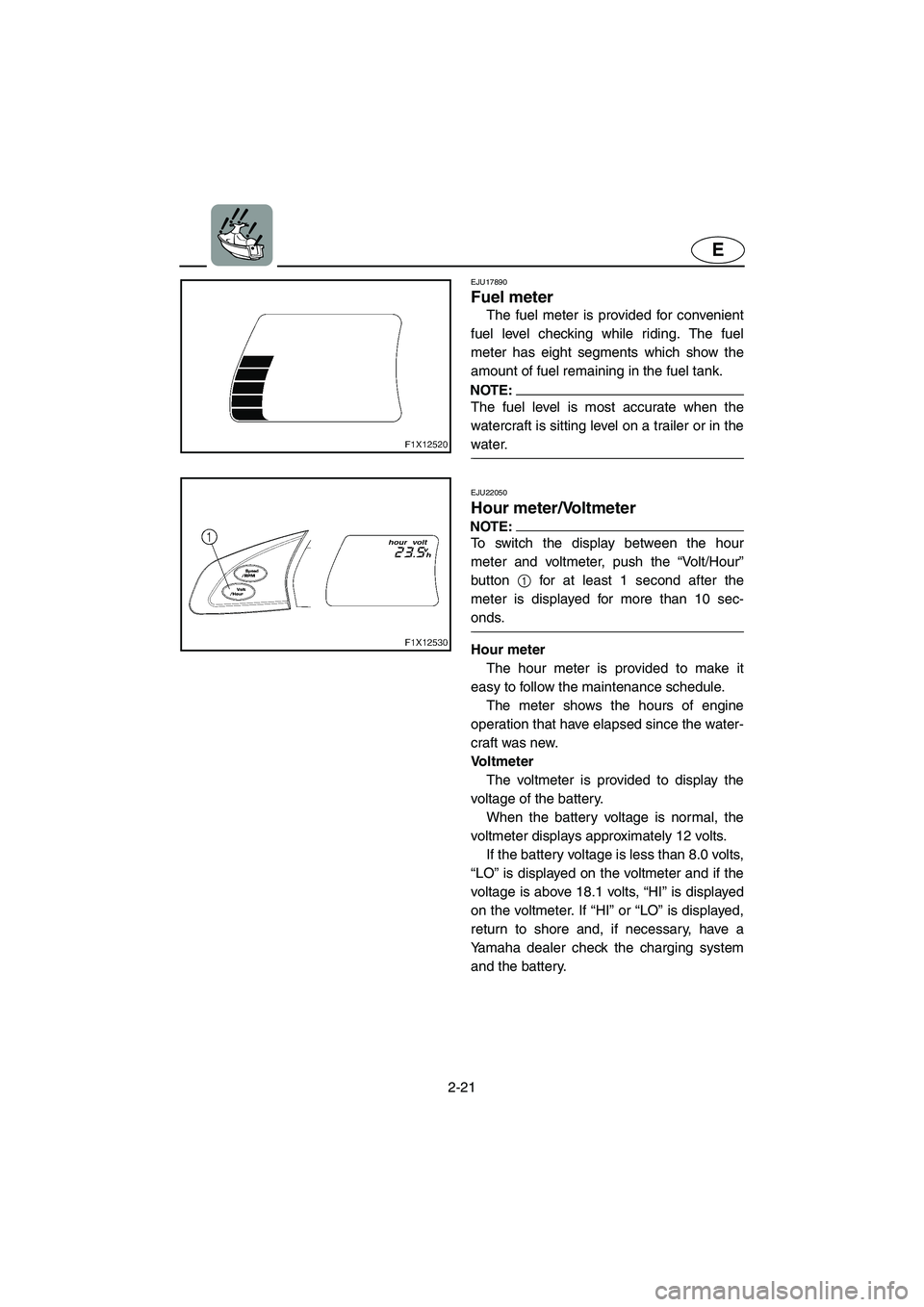

2-21
E
EJU17890
Fuel meter
The fuel meter is provided for convenient
fuel level checking while riding. The fuel
meter has eight segments which show the
amount of fuel remaining in the fuel tank.
NOTE:@ The fuel level is most accurate when the
watercraft is sitting level on a trailer or in the
water.
@
EJU22050
Hour meter/Voltmeter
NOTE:@ To switch the display between the hour
meter and voltmeter, push the “Vo l t / H o u r”
button 1 for at least 1 second after the
meter is displayed for more than 10 sec-
onds.
@
Hour meter
The hour meter is provided to make it
easy to follow the maintenance schedule.
The meter shows the hours of engine
operation that have elapsed since the water-
craft was new.
Vo l t m e t e r
The voltmeter is provided to display the
voltage of the battery.
When the battery voltage is normal, the
voltmeter displays approximately 12 volts.
If the battery voltage is less than 8.0 volts,
“LO” is displayed on the voltmeter and if the
voltage is above 18.1 volts, “HI” is displayed
on the voltmeter. If “HI” or “LO” is displayed,
return to shore and, if necessary, have a
Yamaha dealer check the charging system
and the battery.
E_F1Y-70.book Page 21 Friday, August 26, 2005 9:47 AM

6-2
E
J
Jet unit................................................... 3-15
Jumping the battery................................. 5-5
L
Label location .......................................... 1-5
Launching the watercraft ....................... 3-18
Learning to operate your watercraft ...... 3-22
Leaving the watercraft ........................... 3-21
Left multifunction display and
operation buttons .................................. 2-20
Limitations on who may operate
the watercraft ........................................ 1-12
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-18
M
Maintenance and adjustments ................ 4-7
Manufactured date label.......................... 1-4
Model information.................................... 1-3
Multifunction meter ....................... 2-16, 3-16
O
Oil pressure warning indicator............... 2-23
Operating your watercraft...................... 3-22
Operation .............................................. 3-17
Operation of controls and other
functions .................................................. 2-5
Operation requirements ........................ 1-14
Other labels ........................................... 1-10
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-9
P
Periodic maintenance chart................... 4-10
Post-operation checks........................... 3-36
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID)
number .................................................... 1-1
Q
Quick Shift Trim System (QSTS) .......... 3-14
Quick Shift Trim System (QSTS)
selector.................................................. 2-13R
Rear seat................................................. 2-5
Reboarding step (for FX Cruiser) .......... 2-15
Recommended equipment .................... 1-16
Replacing the fuse ................................ 4-24
Reverse on waterways .......................... 3-35
Riding watercraft with passengers ........ 3-23
Rough water operation .......................... 3-35
“RPM” indicator light.............................. 2-18
S
Safe boating rules ................................. 1-20
Safety information ................................. 1-12
Seat storage compartment .................... 2-26
Shift lever .............................................. 2-12
Shift lever and reverse gate .................. 3-13
Specifications ........................................ 4-25
“SPEED” indicator light ......................... 2-19
Starting and boarding in shallow
water ..................................................... 3-25
Starting from a dock .............................. 3-25
Starting the engine ................................ 3-19
Starting the watercraft ........................... 3-24
Start switch.............................................. 2-9
Steering system ...........................2-10, 3-12
Stern drain plug ..................................... 3-10
Stopping the engine .............................. 3-21
Stopping the watercraft ......................... 3-33
Storage.................................................... 4-1
Storage compartments .......................... 2-25
Submerged watercraft ............................. 5-8
Switches ................................................ 3-16
T
Throttle .................................................. 3-12
Throttle lever ........................................... 2-8
Tilt lever ................................................. 2-11
Towing the watercraft .............................. 5-7
Transporting .......................................... 3-38
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................. 5-1
Turning the watercraft ........................... 3-31
E_F1Y-70.book Page 2 Friday, August 26, 2005 9:47 AM
