PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
CAUTION:
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.
CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20011
Final gear oil The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the vehicle. In addi-
tion, the final gear oil must be changed
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
WARNING
EWA10370
Make sure that no foreign mate-
rial enters the final gear case.
Make sure that no oil gets on thetire or wheel.
To check the final gear oil level
1. Place the vehicle on the center-
stand.
NOTE:
The final gear oil level must be
checked on a cold engine.
Make sure that the vehicle is posi-
tioned straight up when checking
the oil level. A slight tilt to the sidecan result in a false reading.
U2D2EAE0.book Page 10 Monday, June 26, 2006 2:55 PM
Page 66 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
62. Remove the oil filler bolt, and then
check the oil level in the final gear
case.
NOTE:The oil level should be at the brim of thefiller hole.
3. If the oil is below the brim of the fill-
er hole, add sufficient oil of the rec-
ommended type to raise it to the
correct level.
4. Install the oil filler bolt, and then
tighten it to the specified torque.To change the final gear oil
1. Place an oil pan under the final
gear case to collect the used oil.
2. Remove the oil filler bolt and drain
bolt to drain the oil from the final
gear case.
3. Install the final gear oil drain bolt,
and then tighten it to the specified
torque.
4. Add the recommended final gear
oil to the brim of the filler hole.
5. Install the oil filler bolt, and then
tighten it to the specified torque.6. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.1. Final gear oil filler bolt
2. Final gear oil drain bolt
3. Correct oil level
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommended final gear oil:
Shaft drive gear oil (Part No.: 9079E-
SH001-00)
Oil quantity:
0.20 L (0.21 US qt) (0.18 Imp.qt)
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U2D2EAE0.book Page 11 Monday, June 26, 2006 2:55 PM
Page 67 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU39510
To check the coolant level
The coolant level should be checked as
follows before each ride. In addition,
the coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
1. Place the vehicle on the center-
stand.NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
reservoir cap.4. Add coolant or distilled water to
raise the coolant to the maximum
level mark, install the coolant res-
ervoir cap.
CAUTION:
ECA10470
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
1. Maximum level mark
2. Minimum level mark
1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U2D2EAE0.book Page 12 Monday, June 26, 2006 2:55 PM
Page 68 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6wise the engine may not be
sufficiently cooled and the cool-
ing system will not be protected
against frost and corrosion.
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.NOTE:
The radiator fans are automatically
switched on or off according to the
coolant temperature in the radia-
tor.
If the engine overheats, see page6-31 for further instructions.
EAU33030
Changing the coolant
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
EAU40370
Air filter element The air filter element must be cleaned
and replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart. Have a Yamaha dealer
clean and replace the air filter element.
U2D2EAE0.book Page 13 Monday, June 26, 2006 2:55 PM
Page 69 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
EAU21310
Checking the engine idling
speed The engine idling speed must be
checked as follows and, if necessary,
adjusted by a Yamaha dealer at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
Start the engine and warm it up for sev-
eral minutes at 1000–2000 r/min while
occasionally revving it to 4000–5000
r/min.NOTE:
The engine is warm when it quickly re-sponds to the throttle.
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
Engine idling speed:
1000–1100 r/min
1. Throttle cable free play
U2D2EAE0.book Page 14 Monday, June 26, 2006 2:55 PM
Page 70 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
WARNING
EWA11020
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind.
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.
Check the tire condition and airpressure before each ride.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
90–208 kg (198–459 lb):
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Maximum load*:
208 kg (459 lb)
* Total weight of rider, passenger, car-
go and accessories
U2D2EAE0.book Page 15 Monday, June 26, 2006 2:55 PM
Page 71 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16

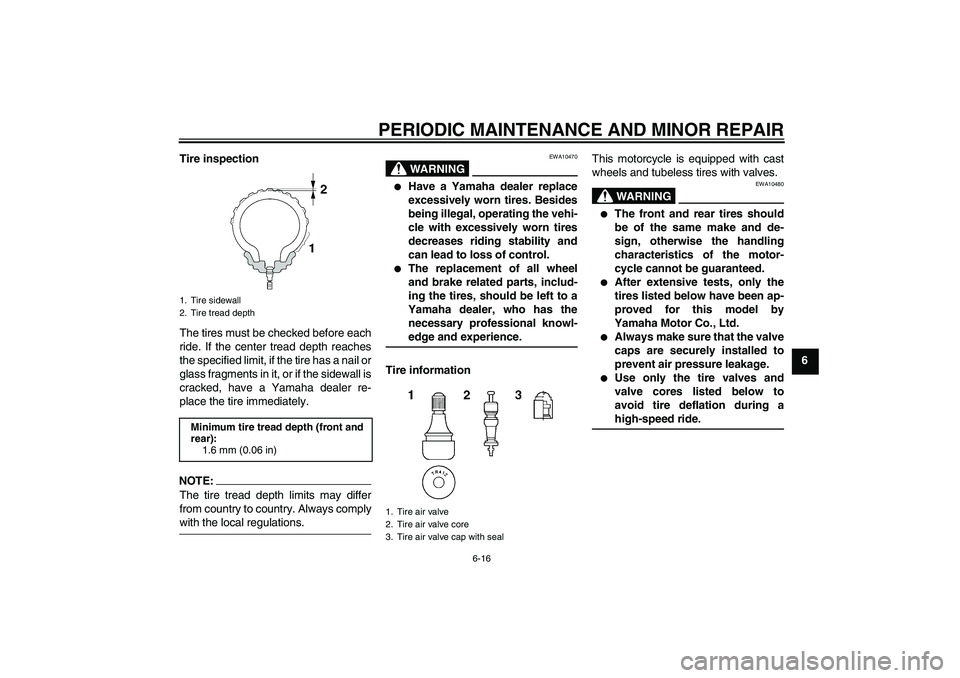

6 Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
Tire informationThis motorcycle is equipped with cast
wheels and tubeless tires with valves.
WARNING
EWA10480
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.
Use only the tire valves and
valve cores listed below to
avoid tire deflation during ahigh-speed ride.
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
U2D2EAE0.book Page 16 Monday, June 26, 2006 2:55 PM
Page 72 of 100
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6

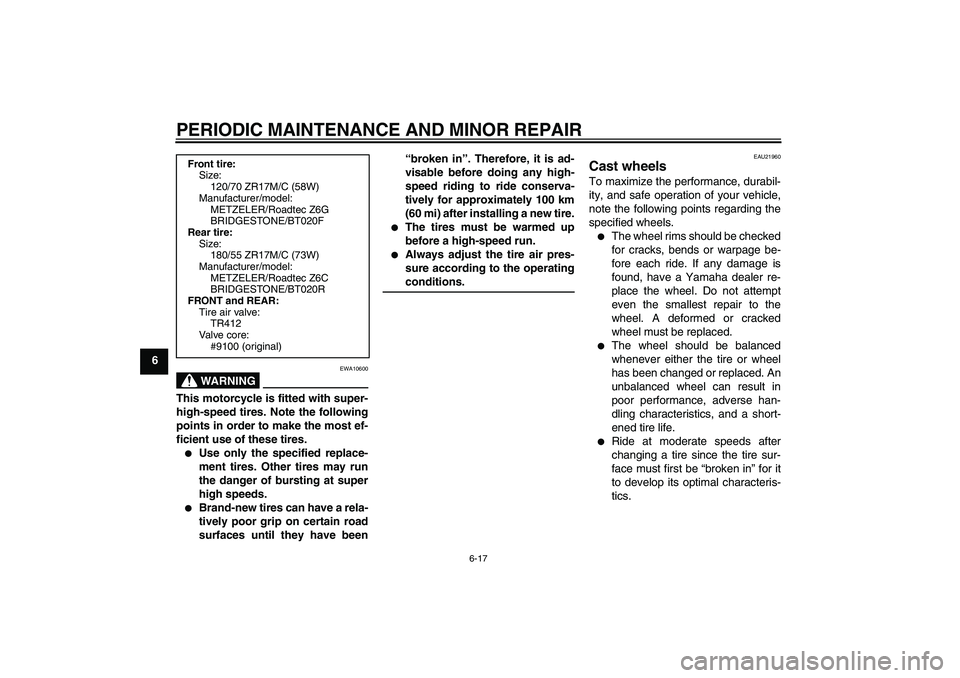

WARNING
EWA10600
This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been“broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
(60 mi) after installing a new tire.
The tires must be warmed up
before a high-speed run.
Always adjust the tire air pres-
sure according to the operatingconditions.
EAU21960
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
Front tire:
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
METZELER/Roadtec Z6G
BRIDGESTONE/BT020F
Rear tire:
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
METZELER/Roadtec Z6C
BRIDGESTONE/BT020R
FRONT and REAR:
Tire air valve:
TR412
Va l ve c o r e :
#9100 (original)
U2D2EAE0.book Page 17 Monday, June 26, 2006 2:55 PM
