Page 185 of 312

TOYOTA YARIS 2006 2.G Owners Manual 1782006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Break�in period
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the

1782006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Breakin period
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break−in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Avoid full throttle acceleration when
starting and driving.
Avoid racing the engine.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive slowly with the manual
transmission in a high gear.
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles).
Fuel
FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix −ups, your
Toyota has a smaller fuel tank opening.
The special nozzle on pumps with un-
leaded fuel will fit it, but the larger stan-
dard nozzle on pumps with leaded gas will
not.
At a minimum, the gasoline you use
should meet specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5 −M93
in Canada.
NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
OCTANE RATING
Select Octane Rating 87 (Research Oc-
tane Number 91) or higher.
Use of unleaded gasoline with an octane
rating or research octane number lower
than stated above will cause persistent
heavy knocking. If it is severe, this will
lead to engine damage.
If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, occasionally, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is normal
and there is no need for concern.
GASOLINES CONTAINING DETERGENT
ADDITIVES
Toyota recommends the use of gasoline
that contain detergent additives to
avoid buildup of engine deposits.
However, all gasoline sold in the U.S.
contains detergent additives to keep clean
and/or clean intake systems.

Page 186 of 312

TOYOTA YARIS 2006 2.G Owners Manual 1792006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
World�Wide Fuel C

1792006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
QUALITY GASOLINE
Automotive manufacturers in the U.S.,
Europe and Japan have developed a
specification for quality fuel named
WorldWide Fuel Charter (WWFC) that
is expected to be applied world wide.
The WWFC consists of four categories
that depend on required emission lev-
els. In the U.S., category 4 has been
adopted. The WWFC improves air quali-
ty by providing for better emissions in
vehicle fleets, and customer satisfaction
through better vehicle performance.
CLEANER BURNING GASOLINE
Cleaner burning gasoline, including re-
formulated gasoline that contains oxy-
genates such as ethanol or MTBE is
available in many areas.
Toyota recommends the use of cleaner
burning gasoline and appropriately blended
reformulated gasoline. These types of gas-
oline provide excellent vehicle perfor-
mance, reduce vehicle emissions, and im-
prove air quality.OXGENATES IN GASOLINE
Toyota allows the use of oxygenate
blended gasoline where the oxygenate
content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your
Toyota, be sure that it has an octane
rating no lower than 87.
Toyota does not recommend the use of
gasoline containing methanol.
GASOLINE CONTAINING MMT
Some gasoline contain an octane en-
hancing additive called MMT (Methylcy-
cropentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of
gasoline that contains MMT. If fuel con-
taining MMT is used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINE QUALITY
In a very few cases, you may experience
drivability problems caused by the particu-
lar gasoline that you are using. If you
continue to have unacceptable drivability,
try changing gasoline brands. If this does
not rectify your problem, then consult your
Toyota dealer.
NOTICE

Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
If driveab ility problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
42 L (11.1 gal., 9.2 lmp. gal.)

Page 187 of 312

TOYOTA YARIS 2006 2.G Owners Manual 1802006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

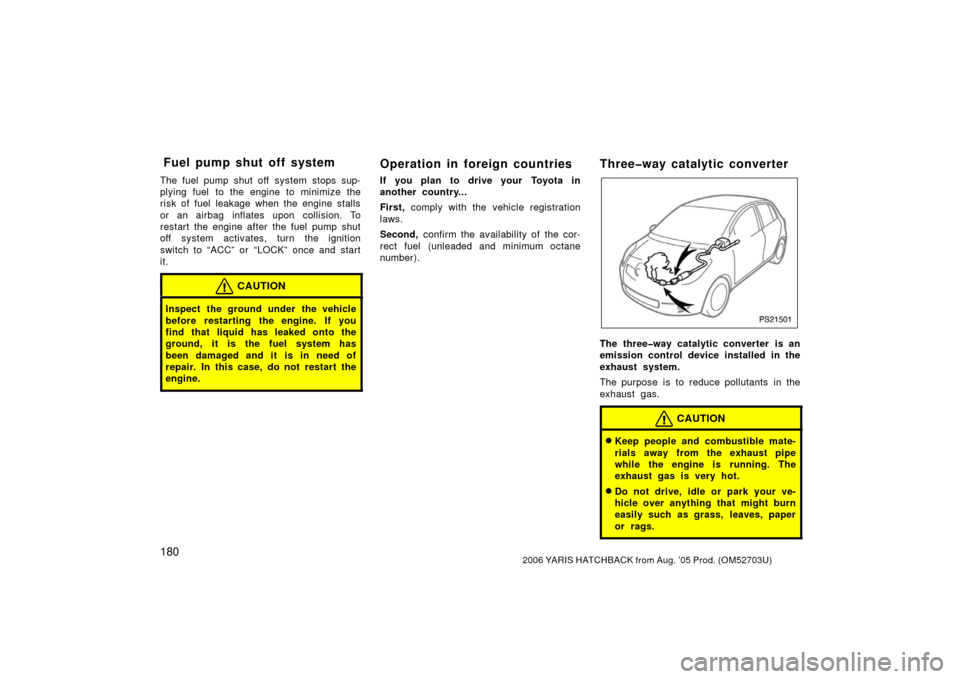

The fuel pump shut off system stops sup-
plying fuel to the engine to minimize the
risk of fuel leakage when the engine stalls
or an airbag in

Page 303 of 312

TOYOTA YARIS 2006 2.G Owners Manual 2962006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Dimensions and weights
Overall length mm (in.) 3825 (150.6)
Overall width mm (in.) 1695 (66.7)
Overall height mm (in.) 1530 (60.2)
Wheelbase

Page 312 of 312

TOYOTA YARIS 2006 2.G Owners Manual Publication No. OM52703U
Part No. 01999-52703
Printed in Japan 01−0511 −00
