2006 TOYOTA TUNDRA Anchor

’06 TUNDRA_U (L/O 0508)
66
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Standard and double cab models
Access cab models
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
Standard and double cab models—
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
Access cab models—
To raise: Slide the anchor up.
To lower: Pull the lock release knob and
slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
severe injuries in a co llision.
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.

’06 TUNDRA_U (L/O 0508)
11 8
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
Your vehicle has anchor brackets for se-
curing the top strap of a child restraint
system.
For instructions about how to use the an-
chor bracket, see “—Using a top strap” in
this Section.
The child restraint lower anchorages ap-
proved for your vehicle may also be used.
See “—Installation with child restraint low-
er anchorages” in this Section.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
—Types of child restraint
system

’06 TUNDRA_U (L/O 0508)
138
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
2. To remove the child restraint system,
press the buckle release button and
allow the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use the anchor bracket on the back panel
to attach the top strap.
Anchor brackets are installed for each
passenger seating position.
This symbol indicates the locations of
user ready anchor brackets.
— U sin g a to p st rap
(standard cab models)

’06 TUNDRA_U (L/O 0508)
139
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
TO USE THE ANCHOR BRACKET:
1. Remove the passenger head re- straint.2. Lightly push down on the top sur-face of the anchor bracket cover,
then pull it forward to remove.3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’06 TUNDRA_U (L/O 0508)
140
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

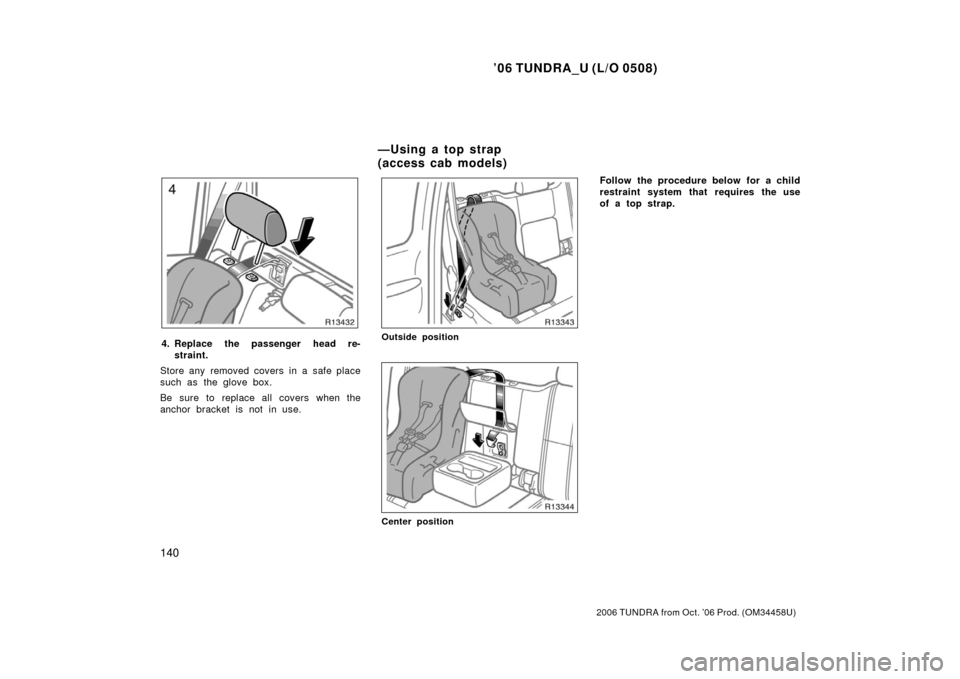

4. Replace the passenger head re-
straint.
Store any removed covers in a safe place
such as the glove box.
Be sure to replace all covers when the
anchor bracket is not in use.Outside position
Center position
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
— U sin g a to p st rap
(access cab models)

’06 TUNDRA_U (L/O 0508)
141
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Routing devices
Anchor brackets Symbol
Use the routing device on the rear of the
seat back and the anchor bracket on the
side floor to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of
user ready anchor brackets.TO USE THE ANCHOR BRACKET:
Outside position
1. Remove the head restraint.
Routing device
2. Route the top strap through the routing device as shown in the il-
lustration.
CAUTION
Make sure the top strap is not
twisted.

’06 TUNDRA_U (L/O 0508)
142
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)

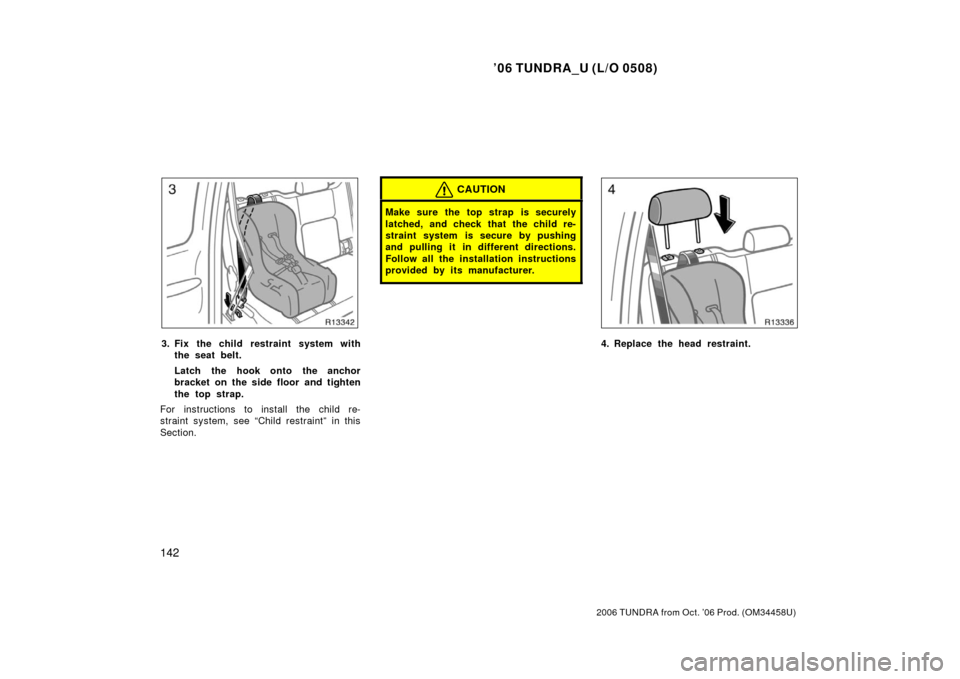

3. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket on the side floor and tighten
the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint.

’06 TUNDRA_U (L/O 0508)
143
2006 TUNDRA from Oct. ’06 Prod. (OM 34458U)
Center position
1. Remove the head restraint.2. Fold down the cup holder, unfasten the fastener that attaches the anchor
bracket cover, and lift the cover.3. Route the top strap through the sloton top of the seat, pass the strap
through the seat, then latch the hook
onto the anchor bracket.
Close the cover and return the cup
holder to the original position.
