Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
1—4 in the table on page 83 and based
on these conditions activates or deacti-
vates the following systems;
Front passenger airbag
Side airbag on the front passenger
seat
Front passenger ’s seat belt pretension-
er
The system monitors the weight and
load on the front passenger seat, and
the seat belt buckle switch to determine
conditions 1—4.
In order for the system to detect the
conditions correctly, do not do any of
the following:
Apply a heavy load to the front pas-
senger seat or equipment (e.g. seat-
back pocket).
Attach a commercial seatback table,
etc. to the front passenger seatback.
Put weight on the front passenger seat
by putting your hands or feet on the
seatback from the rear passenger seat.
The “AIRBAG ON” and “AIRBAG OFF”
indicator lights indicate the actuation of
the front passenger airbag, side airbag
on the front passenger seat and front
passenger ’s seat belt pretensioner.
The “AIRBAG OFF” indicator light will be
illuminated when the ignition switch is in
the “ON” position with the condition 2 in
the table shown below. If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “AIRBAG OFF” indicator light is
illuminated, one of the following is likely
to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
The front passenger seatback is in
contact with the rear/second seat.
To ensure the system correctly detects an
adult sitting in the front passenger seat,
make sure the above do not occur.
Make sure that the “AIRBAG ON” indicator
light is illuminated when an adult is
seated in the front passenger seat. If the
“AIRBAG OFF” indicator light is illumina-
ted, ask the passenger to sit up straight,
well back in the seat, and with the seat
belt worn correctly. If the “AIRBAG OFF”
indicator light still remains illuminated, ei-
ther ask the passenger to move to the
rear seat, or if that is not possible, move
the front passenger seat fully rearward.
—Front passenger occupant
classification system

’06 Rav4_U (L/O 0601)
82
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The “AIRBAG ON” and “AIRBAG OFF”
indicator lights will be illuminated ini-
tially when the ignition key is turned to
the “ON” position. After about four sec-
onds, they will go off. After that, the
front passenger occupant classification
system operates and judges which indi-
cator light be illuminated.
The SRS warning light and “AIRBAG
OFF” indicator light will come on if
there is a malfunction in the front pas-
senger occupant classification system.

’06 Rav4_U (L/O 0601)
92
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward−facing child restraint system on
the front passenger seat in the following
order:
1. Turn the ignition key to the “ON” posi- tion.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer. The “AIRBAG OFF” indicator light should
be illuminated when the ignition key is
“ON” and the child is in the child restraint
system after following these proc
edures.
The “AIRBAG OFF” indicator light indi-
cates the SRS front passenger airbag and
side airbag on the passenger side will not
deploy. If the “AIRBAG ON” indicator light
is illuminated, remove the child restraint
system and reinstall it with the ignition
key in the “ACC” or “LOCK” position. If
the “AIRBAG ON” indicator light is illumi-
nated when the ignition key is turned to
the “ON” position, then the SRS front pas-
senger airbag and side airbag on the pas-
senger side may deploy in an accident.
Do not drive the vehicle in this condition.
Remove the child restraint system and
contact your Toyota dealer.

’06 Rav4_U (L/O 0601)
11 4
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
For the U.S.A.
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator (green
light) on the instrument panel will tell you
that the tail lights are on.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight low beam
indicator light (green light) on the instru-
ment panel will tell you that the low
beams are on.
Automatic light cut off system
If the driver ’s door is opened and closed
with the engine turned off, the lights will
automatically turn off after 30 seconds. If
all the doors are locked with the wireless
remote control, the lights will turn off im-
mediately.
To turn on the lights again, turn the igni-
tion key to the “ON” position or turn the
headlight switch on. If you are going to
park for over one week, make sure the
headlight switch is off.NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Headlights and turn signals

’06 Rav4_U (L/O 0601)
11 7
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors are opened. For details,
see “Illuminated entry system” on page
119 in this Section.INTERIOR LIGHT CUT OFF OPERATION
To prevent the battery being discharged,
the light will automatically turn off when
the ignition switch is in the “LOCK” posi-
tion and the door is left opened with the
switch at “DOOR” position for 20 minutes
or more.Without electric moon roof
With electric moon roof
Interior light
Personal lights

’06 Rav4_U (L/O 0601)
11 8
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The personal lights operate separately
with each lens.
To turn on the light, push the lens on your
side. To turn the light off, push the lens
once again.
The personal light switch has the following
positions:
“DOOR”—Turns the lights on when any of
the side doors is opened. For details, see
“Illuminated entry system” on page 119 in
this Section.
“OFF”—Turn the lights on only when you
push the lens.
INTERIOR LIGHT CUT OFF OPERATION
To prevent the battery being discharged,
the light will automatically turn off when
the ignition switch is in the “LOCK” posi-
tion and the door is left opened with the
switch at “DOOR” position for 20 minutes

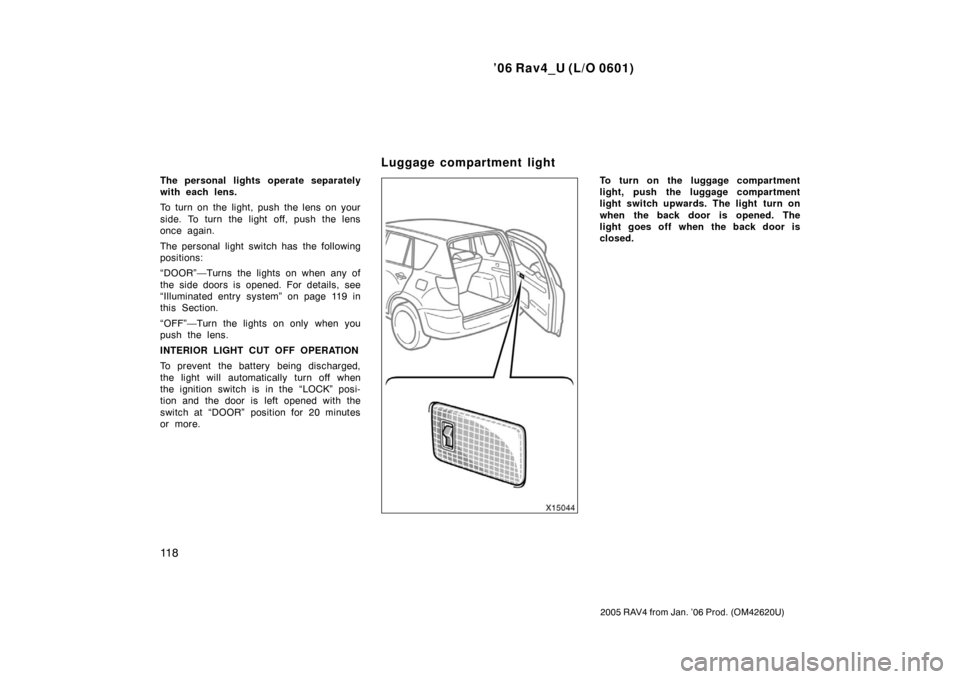

or more.To turn on the luggage compartment
light, push the luggage compartment
light switch upwards. The light turn on
when the back door is opened. The
light goes off when the back door is
closed.
Luggage compartment light

’06 Rav4_U (L/O 0601)
11 9
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The following lights will come on when
any of the side doors are opened. After
all the side doors are closed, the lights
remain on for about 15 seconds before

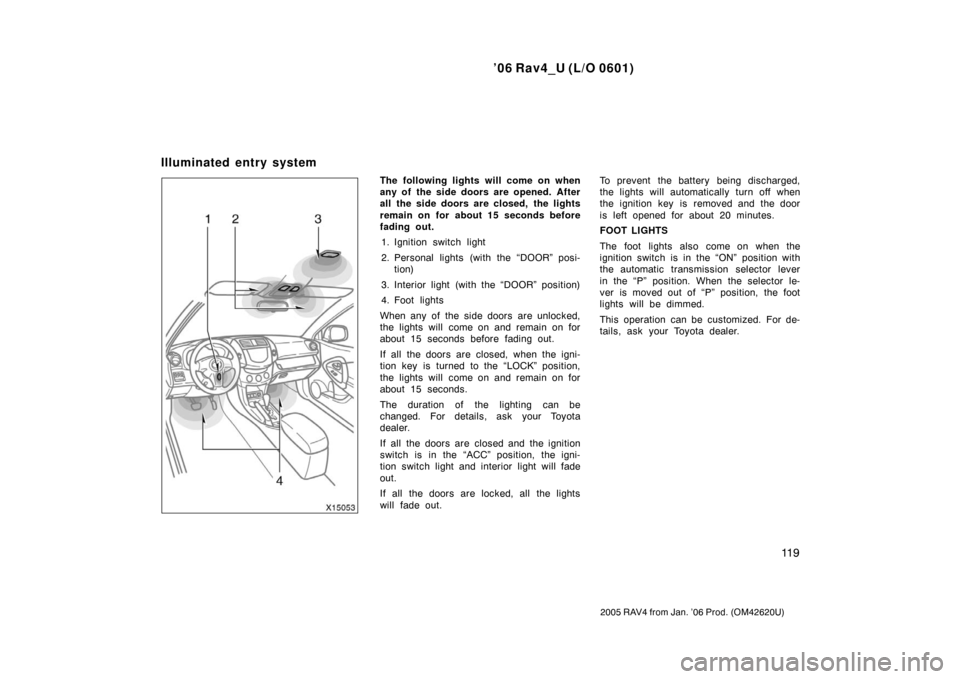

fading out.1. Ignition switch light
2. Personal lights (with the “DOOR” posi- tion)
3. Interior light (with the “DOOR” position)
4. Foot lights
When any of the side doors are unlocked,
the lights will come on and remain on for
about 15 seconds before fading out.
If all the doors are closed, when the igni-
tion key is turned to the “LOCK” position,
the lights will come on and remain on for
about 15 seconds.
The duration of the lighting can be
changed. For details, ask your Toyota
dealer.
If all the doors are closed and the ignition
switch is in the “ACC” position, the igni-
tion switch light and interior light will fade
out.
If all the doors are locked, all the lights
will fade out. To prevent the battery being discharged,
the lights will automatically turn off when
the ignition key is removed and the door
is left opened for about 20 minutes.
FOOT LIGHTS
The foot lights also come on when the
ignition switch is in the “ON” position with
the automatic transmission selector lever
in the “P” position. When the selector le-
ver is moved out of “P” position, the foot
lights will be dimmed.
This operation can be customized. For de-
tails, ask your Toyota dealer.
Illuminated entry system

’06 Rav4_U (L/O 0601)
124
2005 RAV4 from Jan. ’06 Prod. (OM42620U)
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge
