2006 TOYOTA MATRIX Owners Manual

’06 MATRIX_U (L/O 0508)
79
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 40 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

’06 MATRIX_U (L/O 0508)
80
2. To remove the booster seat, press thebuckle release button and allow the
belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Symbol
Use the anchor brackets in the luggage
compartment to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of the
anchor brackets.
— U sin g a to p st rap

’06 MATRIX_U (L/O 0508)
81
TO USE THE ANCHOR BRACKET:1. Outside anchor brackets only— Remove the head restraint.2. Open the lid of the anchor bracket.3. Securely fasten the child restraintsystem with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 67 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’06 MATRIX_U (L/O 0508)
82
4. Outside anchor brackets only—Replace the head restraint.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e A
—Installation with child
restraint lower anchorages

’06 MATRIX_U (L/O 0508)
83
Canada only
Ty p e B

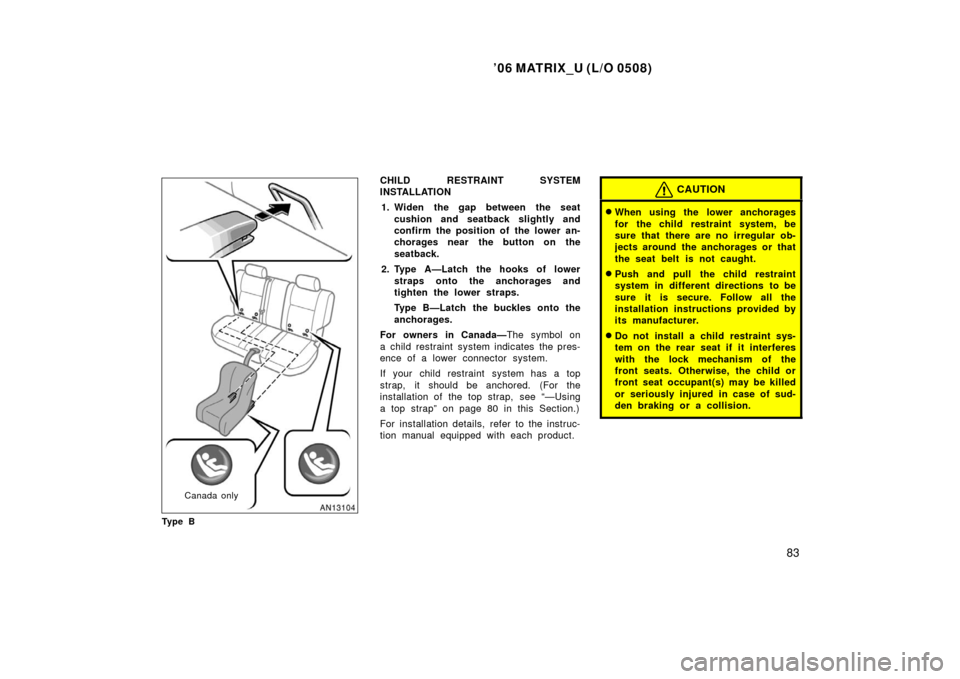

CHILD RESTRAINT SYSTEM
INSTALLATION 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 80 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

’06 MATRIX_U (L/O 0508)
84

’06 MATRIX_U (L/O 0508)
85
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside rear view mirrors 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 88
. . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 4

’06 MATRIX_U (L/O 0508)
86
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt steering wheelOutside rear view mirrors—
