’06 HIGHLANDER_U (L/O 0508)
141
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible.
The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Turn the ignition key to the “LOCK” position with the odometer reading
shown. (For details, see “Odometer and
two trip meters” on page 131 in this
Section.)
2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The odometer indicates “000000”
and the light goes off.
If the system fails to reset, the light will
continue flashing.
(p) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the “ACC” or
“LOCK” position. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the side doors or back door.
The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators
except the open door warning light
should come on. The “ABS” and “VSC”
warning lights, low tire pressure
warning light and engine oil replace-
ment reminder light go off after a few
seconds. The SRS warning light goes
off after about 6 seconds. (The “TRAC
OFF” indicator light, slip indicator light,
“AIRBAG ON” indicator light and
“AIRBAG OFF” indicator light also
come on and go off after a few
seconds.) If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

’06 HIGHLANDER_U (L/O 0508)
160
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on or blinks while driving, do
the following. If the warning light comes on:
1. Adjust the tire inflation pressure to the specified level as soon as pos-
sible. (See “Tires” on page 408 in
Section 8.)
2. Push the tire pressure warning sys- tem reset switch for a few seconds
and make sure the warning light
goes off.
If the light remains on after the reset
switch has been pushed, have the tire
pressure warning system checked at your
Toyota dealer.
If you have a flat tire, replace it with the
spare tire. For details, see “If you have
a flat tire” on page 337 in Section 4.
If the warning light blinks once every
second:
The low tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
If the warning light blinks twice every
second:
The low tire pressure warning system
needs to be initialized. Reset the system
with the tire pressure warning system re-
set switch. (To reset the system, see
“TIRE PRESSURE WARNING SYSTEM
RESET SWITCH”.) The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire inflation pres-
sure is low, or it may come on when
the tire inflation pressure is actually
normal.
A compact spare tire, snow tires, or
tire chains are used.
The tire inflation pressure is excessive-
ly higher than specified, or tire inflation
pressure suddenly drops due to burst-
ing or other causes.
The vehicle is driven on a slippery
road surface such as rough or frozen
roads.
The vehicle speed is less than 30 km/h
(19 mph) or more than 100 km/h (62
mph), and the driving duration is less
than 5 minutes.
The tires differ in tread pattern or
manufacturer.
The tires are not the specified size.
The tread wear is very different among
the installed tires.
Rapid acceleration/deceleration or
sharp turns is continued.
Towing a trailer.

’06 HIGHLANDER_U (L/O 0508)
161

The loading is over the limit or imbal-
anced.
Initialization was not performed correct-
ly after replacing or rotating tires or
wheels.
The outside temperature is below 0
C
(32 F) or above 40 C (104 F).
CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:
Adjust the tire inflation pressure to
the specified level as soon as pos-
sible.
Avoid abrupt steering wheel maneu-
vering and braking. If the vehicle
tires deteriorate, you could lose
control of the steering wheel or the
brakes, causing death or serious in-
jury.
Note: The tire pressure monitoring
system on your vehicle will warn you
when one of your tires is significantly
underinflated and when some com-
binations of your tires are significant-
ly underinflated. However, there are
other combinations of significantly
underinflated tires for which your
tire pressure monitoring system may
not warn you. These other combina-
tions are relatively common, account-
ing for approximately half the
instances in which vehicles have sig-
nificantly underinflated tires. For ex-
ample, your system may not warn you
when both tires on the same side or
on the same axle of your vehicle are
significantly underinflated. It is par-
ticularly important, therefore, for you
to check the tire pressure in all of
your tires regularly and maintain
proper pressure.
TIRE PRESSURE WARNING SYSTEM
RESET SWITCH
The tire pressure warning system need
to be initialized in the following condi-
tions:
When the low tire pressure warning
light blinks twice every second
After replacing or rotating tires or
wheels
When initializing the system, the pres-
ent tire condition is stored as a stan-
dard.

’06 HIGHLANDER_U (L/O 0508)
162
To initialize the system, perform the fol-
lowing:
1. Park the vehicle at a safe place and apply the parking brake. Stop the en-
gine.
2. Adjust the pressure of all the installed tires to the specified level. (See “Tires”
on page 408 in Section 8.)
3. Turn the ignition key to “ON”. If the low tire pressure warning light
comes on, push the reset switch for a
few seconds and make sure the warn-
ing light goes off.
4. Push and hold the reset switch until the low tire pressure warning light
blinks three times.
Initialization is completed after driving at
the speeds of 30 km/h (19 mph) or over
for more than one hour. If the following
driving conditions are satisfied, initializa-
tion will be completed in about one hour.
The vehicle speed is between 50 km/h
(31 mph) and 100 km/h (62 mph).
The roads are dry, smooth and straight.
The number of passengers is 1 or 2
(including driver).
When initializing the system, make sure
the low tire pressure warning light blinks
three times. If the warning light does not
blink three times, initializing will be failed
and the tire pressure warning system will
not function properly.
Do not push the reset switch without ad-
justing the tire inflation pressure to the
specified level. Otherwise, the low tire
pressure warning light may not come on
even if the tire pressure is low, or it may
come on when the tire inflation pressure
is actually normal.
If you push the reset switch while the
vehicle is moving, initialization is not per-
formed. If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
When the warning light blinks twice every
second while driving, you may be unable
to reset the system. In this case, set the
system again according to the above pro-
cedure.

’06 HIGHLANDER_U (L/O 0508)
164

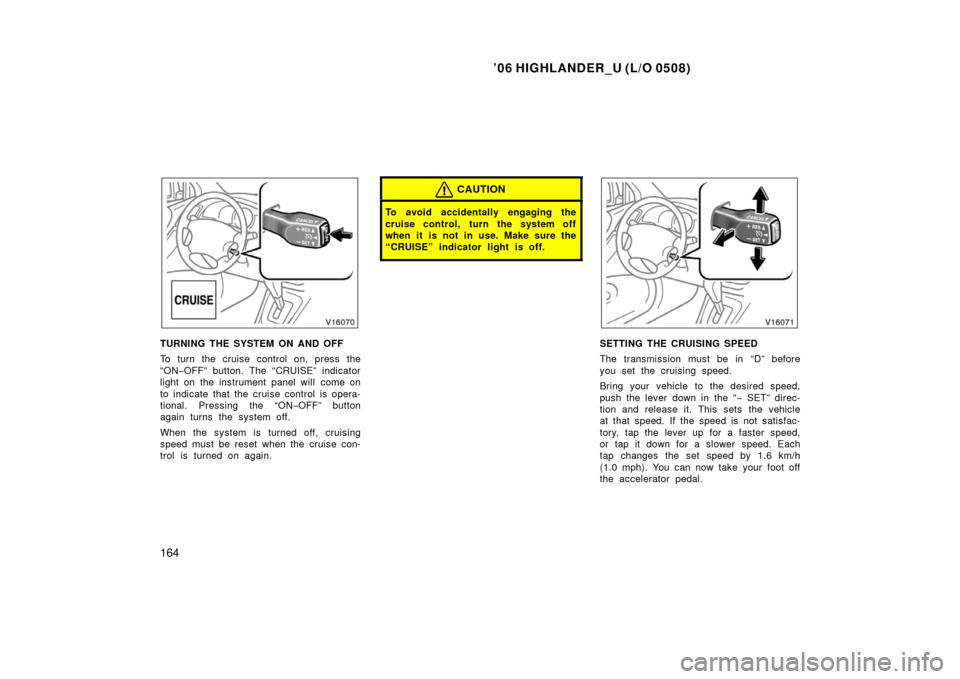

TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
“CRUISE” indicator light is off.
SETTING THE CRUISING SPEED
The transmission must be in “D” before
you set the cruising speed.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.

’06 HIGHLANDER_U (L/O 0508)
165
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory. The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
“ON
−OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph).
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction. RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you turn off the overdrive switch
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.

’06 HIGHLANDER_U (L/O 0508)
172
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK”.) Push and hold down the button
until you hear a beep—this will set the
station to the button. The preset button
number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM” or “FM” button.)
(Eject button)
Push the cassette tape eject button to
eject a cassette. Push the compact disc
eject button to eject a compact disc.
(Program)
Push “
” (preset button 4) to select
the other side of a cassette tape. The
display indicates which side is currently
selected (“
” indicates the top side, “”
indicates the bottom side).
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fastforward button)
Cassette player
Push “
” (preset button 6) to fast −for-
ward a cassette tape. “FF” will appear on
the display. Push “
” (preset button 5)
to rewind a tape. “REW” will appear on
the display.
To stop the tape while it is fast −forward-
ing, push “
” or “TAPE” button. To stop
the tape while it is rewinding, push “
”
or “TAPE” button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast −forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature. Compact disc player
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
MID (on some models): Adjusts mid−
pitched tones. The display ranges from −5
to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.

’06 HIGHLANDER_U (L/O 0508)
173
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Vehicles with rear seat entertainment sys-
tem—
The “DISC” button may also be used to
operate a DVD player when a disc is
loaded in the DVD player. Pressing the
“DISC” button changes between the CD
player and DVD player. When the DVD
player is in operation, “AUX” appears on
the display.
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”: The compact disc player unit
may be too hot. Allow the player to cool
down. “ERROR 1”:
The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC
With compact disc changer only—
Use these buttons to select the disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display. Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 3). “” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push the “FM” button to turn on the radio
and select the FM band. “FM1” or “FM2”
will appear on the display. This system
allows you to set twelve FM stations, two
for each of the preset button.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
