2006 TOYOTA CAMRY set clock

’06Camry_U (L/O 0507)
34
2006 CAMRY from July ‘05 Prod. (OM33708U)
1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.3. The removed cap can be stored on the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door.

’06Camry_U (L/O 0507)
196
2006 CAMRY from July ‘05 Prod. (OM33708U)
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.With multiinformation display
Without multiinformation display
Without multi−information display—To se-
lect “ C” or “ F”, push the “E/M” button.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F).
The key must be in the “ON” position.
If an abnormality exists in the connection
of the outside air temperature sensor, “ −−”
will appear on the display. If “ −−” appears
on the display, contact your Toyota dealer.
There may be a case that “−−” appears
momentarily when the ignition is quickly
turned to “ON”. It is normal if it goes out
soon.
Clock Outside temperature display

’06Camry_U (L/O 0507)
197
2006 CAMRY from July ‘05 Prod. (OM33708U)

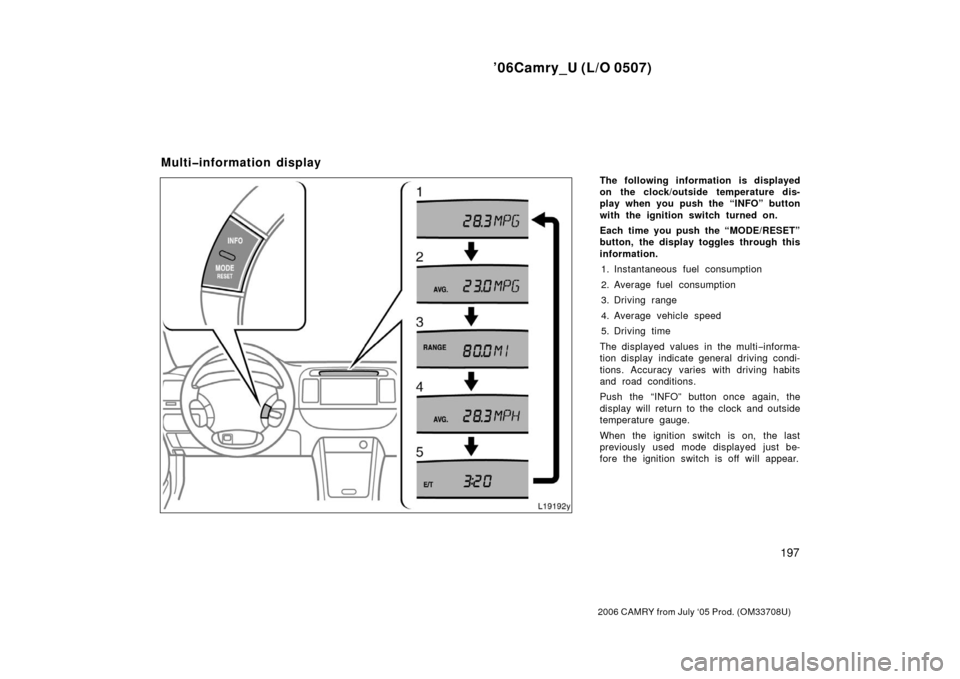

The following information is displayed
on the clock/outside temperature dis-
play when you push the “INFO” button
with the ignition switch turned on.
Each time you push the “MODE/RESET”
button, the display toggles through this
information.1. Instantaneous fuel consumption
2. Average fuel consumption
3. Driving range
4. Average vehicle speed
5. Driving time
The displayed values in the multi −informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
Push the “INFO” button once again, the
display will return to the clock and outside
temperature gauge.
When the ignition switch is on, the last
previously used mode displayed just be-
fore the ignition switch is off will appear.
Multiinformation display
