’06Camry_U (L/O 0507)
56
2006 CAMRY from July ‘05 Prod. (OM33708U)
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the seat belt pretensioners are
operating properly.

’06Camry_U (L/O 0507)
63
2006 CAMRY from July ‘05 Prod. (OM33708U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
The indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly. This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system, “AIRBAG ON” indi-
cator light, “AIRBAG OFF” indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 119 in Section 1−
6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on or remains on for more than about
6 seconds.
The light comes on while driving.
The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.

’06Camry_U (L/O 0507)
70
2006 CAMRY from July ‘05 Prod. (OM33708U)
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Do not disassemble or repair the
front and rear pillars and roof side
rails containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with a physical disability,
consult your Toyota dealer. It may
dangerously interfere with the SRS
side airbags and curtain shield air-
bags operation.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat

’06Camry_U (L/O 0507)
144
2006 CAMRY from July ‘05 Prod. (OM33708U)

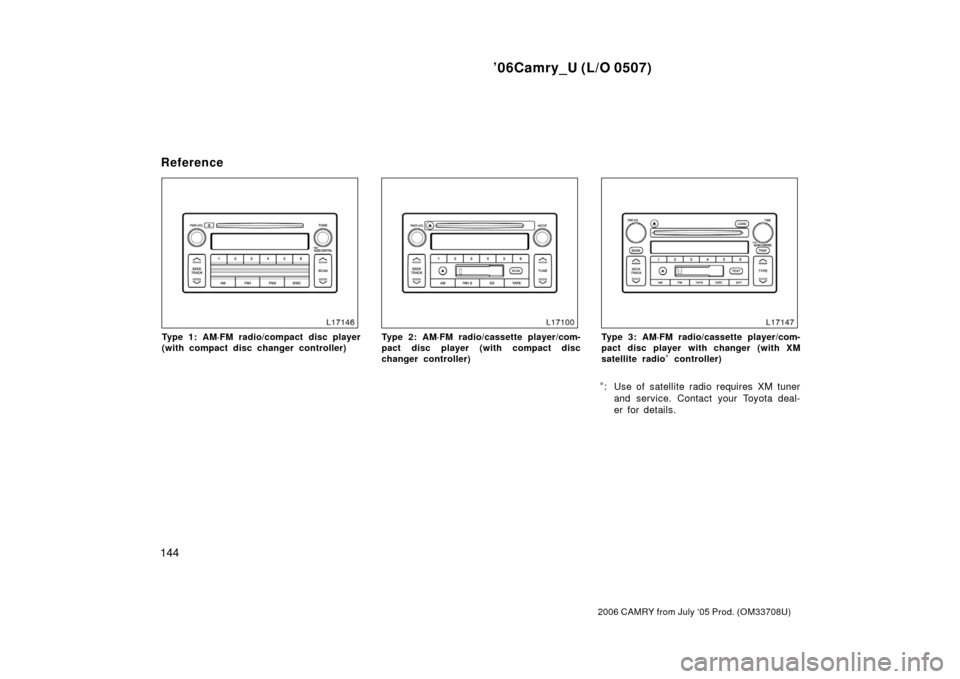

Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)Type 2: AM·FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)Type 3: AM·FM radio/cassette player/com-
pact disc player with changer (with XM
satellite radio
∗ controller)
∗: Use of satellite radio requires XM tunerand service. Contact your Toyota deal-
er for details.
Reference

’06Camry_U (L/O 0507)
145
2006 CAMRY from July ‘05 Prod. (OM33708U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM1”, “FM2”, “FM1·2”, “FM”,
“SAT”
∗, “TAPE”, “CD” or “DISC” to turn on
that function without pushing “PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1”, “FM2”, “FM1·2”, “FM”,
“SAT”
∗, “TAPE”, “CD” or “DISC” if the sys-
tem is already on but you want to switch
from one function to another.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
LISTENING TO THE XM SATELLITE
RADIO BROADCAST
∗ (type 3)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM satellite radio ser-
vice is also necessary.
How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states. How to subscribe:
You must enter into a separate service
agreement with the XM radio in order to
receive satellite broadcast programming in
the vehicle. Additional activation and ser-
vice subscription fees apply that are not
included in the purchase price of the ve-
hicle and optional digital satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to the
XM radio, visit XM on the web at
www.xmradio.com
or call an XM’s Listener
Care at (800) 852 −9696. The XM radio is
solely responsible for the quality, availabil-
ity and content of the satellite radio ser-
vices provided, which are subject to the
terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM satellite radio and are
subject to change.
Using your audio system—
—Some basics

’06Camry_U (L/O 0507)
146
2006 CAMRY from July ‘05 Prod. (OM33708U)
Satellite tuner technology notice:
Toyota’s satellite radio t uners are awarded
Type Approval Certificates from XM Satel-
lite Radio Inc. on “March 10, 2003” and
“April 15, 2003” as proof of compatibility
with the services offered by the XM satel-
lite radio.
Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE” knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel (000) alternates the
display between the radio ID and the spe-
cific radio ID code.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 2 and 3), and
bass levels. In fact, different kinds of mu-
sic and vocal programs usually sound bet-
ter with different mixes of treble, mi-
drange, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear window.
NOTICE
Putting a film (especially a conductive
or metallic film) on the rear wi
ndow
will noticeably reduce the sensitivity
of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Never try to disassemble or oil any
part of the cassette player. Do not
insert anything other than cassette
tapes into the slot.

’06Camry_U (L/O 0507)
147
2006 CAMRY from July ‘05 Prod. (OM33708U)
YOUR COMPACT DISC PLAYER (type 1
and 2)
When you insert a disc, gently push it in
with the label side up. The compact disc
player will play from track 1 through to
the end of the disc. Then it will play from
track 1 again.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 3)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. The compact disc player
will play from track 1 through to the end
of the disc. Then it will play from track
1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

’06Camry_U (L/O 0507)
149
2006 CAMRY from July ‘05 Prod. (OM33708U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station. (See “TUNE” or
“SEEK/TRACK”.) Push and hold down the
button until you hear a beep—this will set
the station to the button. The preset but-
ton number will appear on the display.
To recall a preset station: Push the button
for the station you want. The preset but-
ton number and station frequency will ap-
pear on the display.
This radio can store one AM and two FM
stations for each button. (The display will
show “AM”, “FM1” or “FM2” when you
push “AM”, “FM1” or “FM2” button.)
(Eject button)
Push the compact disc eject button to
eject a compact disc.
While the ignition is in “LOCK”, you can
eject a disc but you cannot reinsert it.
(Reverse/Fastforward button)
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast −forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
Each time you push the “AUDIO
CONTROL” knob, the mode changes. To
adjust the tone and balance, turn the
knob.
BASS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
TREBLE: Adjusts high− pitched tones. The
display ranges from −5 to 5.
BALANCE: Adjusts the sound balance be-
tween the right and left speakers. The
display ranges from L7 to R7.
FADER: Adjusts the sound balance be-
tween the front and rear speakers. The
display ranges from F7 to R7. DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“Err 1”: The disc may be dirty, damaged
or inserted incorrectly (up −side down).
Clean the disc and re −insert it.
“Err 3”: There is a problem inside the
system. Eject the disc or m agazine. Set
the disc or magazine again.
“Err 4”: Over−current. Ask your Toyota
dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
