Downloaded from www.Manualslib.com manuals search engine 10E-20 Keyless Start System:
No DTC Detection After Performing DTC CheckS6RW0DA504014

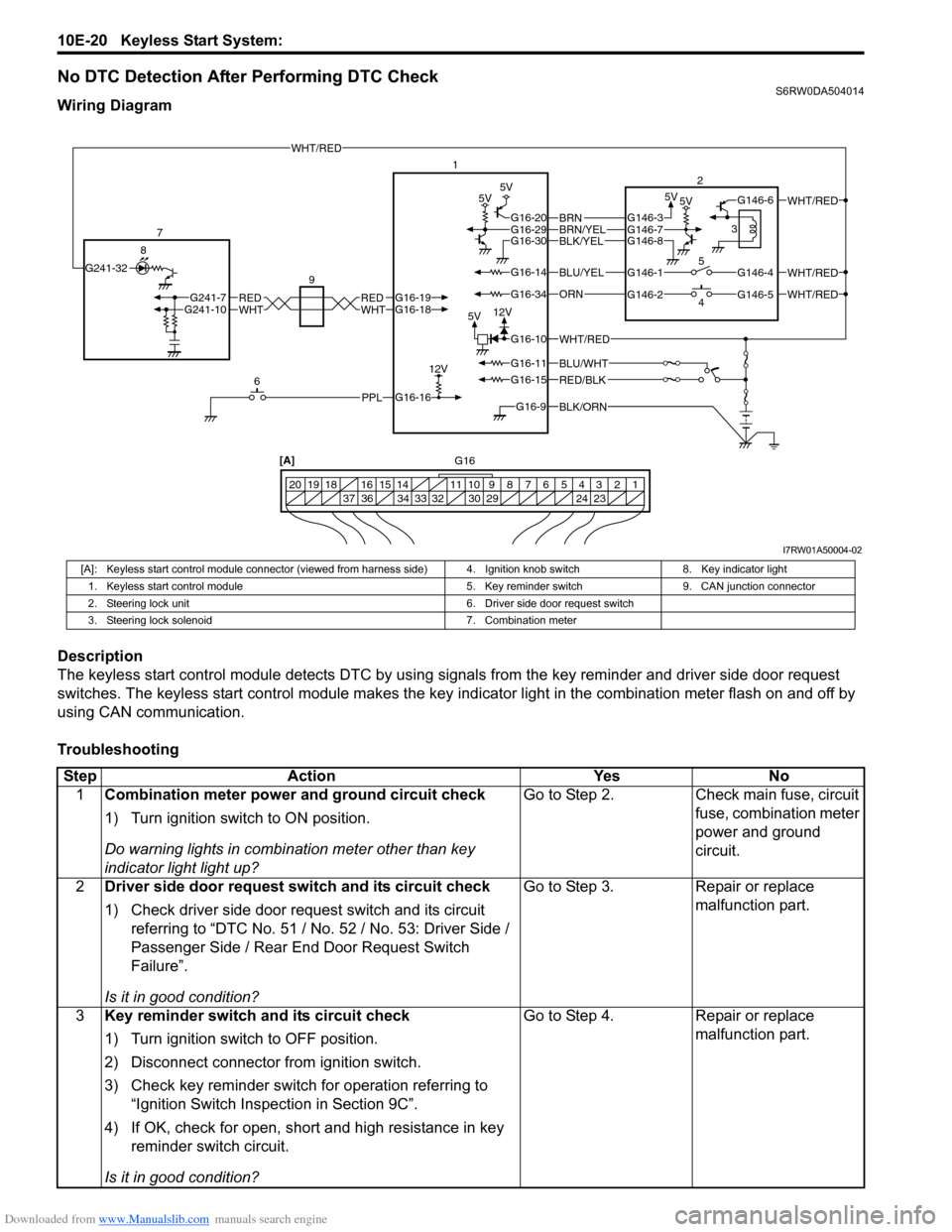

Wiring Diagram
Description
The keyless start control module detects DTC by using signals from the key reminder and driver side door request
switches. The keyless start control module makes the key indicator light in the combination meter flash on and off by
using CAN communication.
Troubleshooting
BLK/ORNG16-9
G16-15
G16-14
G16-16
G16-20G16-29G16-30
G16-10
G16-34
G16-11BLU/WHT
WHT/RED
WHT/RED
WHT/RED
PPL
RED/BLK
5V5V 5V5V
5V12V
12VWHTREDWHTREDG16-18G16-19G241-10G241-7
BLU/YEL
ORN
BLK/YELBRN/YELBRNG146-3
G146-1
G146-2G146-5
G146-4
G146-6
G146-7G146-8
WHT/RED
WHT/RED
G241-32
6 7
81
2
4 53
20 12 3 4 5 6 7 8 9 10 11 14 15 16
36 34 33 32 30 29 24 23 37 18 19
[A]
9
G16
I7RW01A50004-02
[A]: Keyless start control module connector (viewed from harness side) 4. Ignition knob switch 8. Key indicator light
1. Keyless start control module 5. Key reminder switch 9. CAN junction connector
2. Steering lock unit 6. Driver side door request switch
3. Steering lock solenoid 7. Combination meter
Step Action Yes No
1Combination meter power and ground circuit check
1) Turn ignition switch to ON position.
Do warning lights in combination meter other than key
indicator light light up?Go to Step 2. Check main fuse, circuit
fuse, combination meter
power and ground
circuit.
2Driver side door request switch and its circuit check
1) Check driver side door request switch and its circuit
referring to “DTC No. 51 / No. 52 / No. 53: Driver Side /
Passenger Side / Rear End Door Request Switch
Failure”.
Is it in good condition?Go to Step 3. Repair or replace
malfunction part.
3Key reminder switch and its circuit check
1) Turn ignition switch to OFF position.
2) Disconnect connector from ignition switch.
3) Check key reminder switch for operation referring to
“Ignition Switch Inspection in Section 9C”.
4) If OK, check for open, short and high resistance in key
reminder switch circuit.
Is it in good condition?Go to Step 4. Repair or replace
malfunction part.
Page 1543 of 1556

Downloaded from www.Manualslib.com manuals search engine Keyless Start System: 10E-21

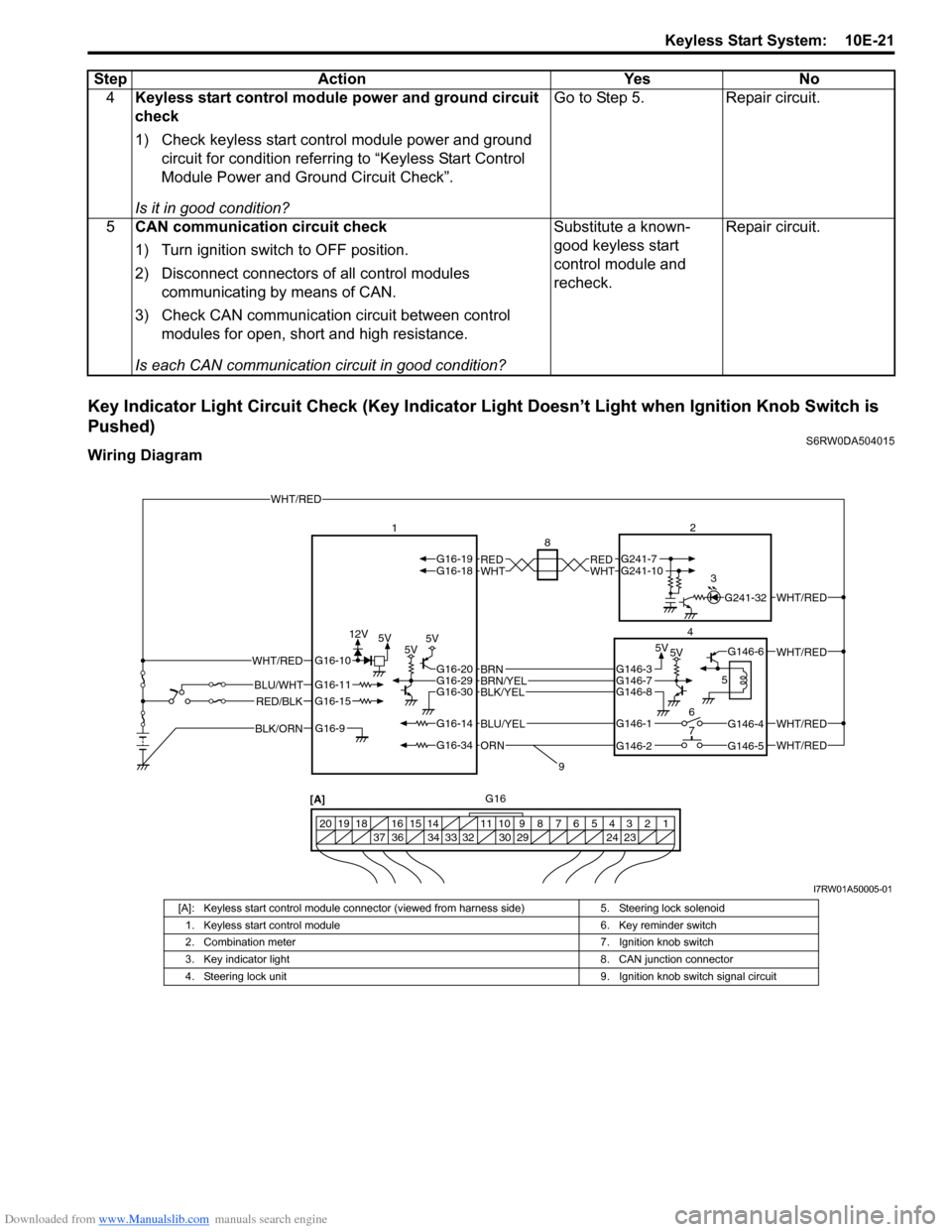

Key Indicator Light Circuit Check (Key Indicator Light Doesn’t Light when Ignition Knob Switch is
Pushed)
S6RW0DA504015
Wiring Diagram4Keyless start control module power and ground circuit
check
1) Check keyless start control module power and ground
circuit for condition referring to “Keyless Start Control
Module Power and Ground Circuit Check”.
Is it in good condition?Go to Step 5. Repair circuit.
5CAN communication circuit check
1) Turn ignition switch to OFF position.
2) Disconnect connectors of all control modules
communicating by means of CAN.
3) Check CAN communication circuit between control
modules for open, short and high resistance.
Is each CAN communication circuit in good condition?Substitute a known-
good keyless start
control module and
recheck.Repair circuit. Step Action Yes No
5V5V 5V5V5V 12V
1 2 3 4 5 6 7 8 9 10 11 14 15 16
36 34 33 32 30 29 24 23 37 18 19 20
12
4
5
7 6
[A]8
3
G16
9
WHT/RED
WHTREDG16-18G16-19WHTREDG241-10G241-7
WHT/REDG241-32
WHT/REDG146-6
G146-3G146-7G146-8
G146-1
G146-2G146-5
G146-4WHT/RED
WHT/RED
G16-20G16-29G16-30BLK/YELBRN/YELBRN
G16-14
G16-34
BLU/YEL
ORN
BLK/ORNG16-9
G16-15
G16-10
G16-11BLU/WHT
WHT/RED
RED/BLK
I7RW01A50005-01
[A]: Keyless start control module connector (viewed from harness side) 5. Steering lock solenoid
1. Keyless start control module 6. Key reminder switch
2. Combination meter 7. Ignition knob switch
3. Key indicator light 8. CAN junction connector
4. Steering lock unit 9. Ignition knob switch signal circuit
Page 1544 of 1556

Downloaded from www.Manualslib.com manuals search engine 10E-22 Keyless Start System:

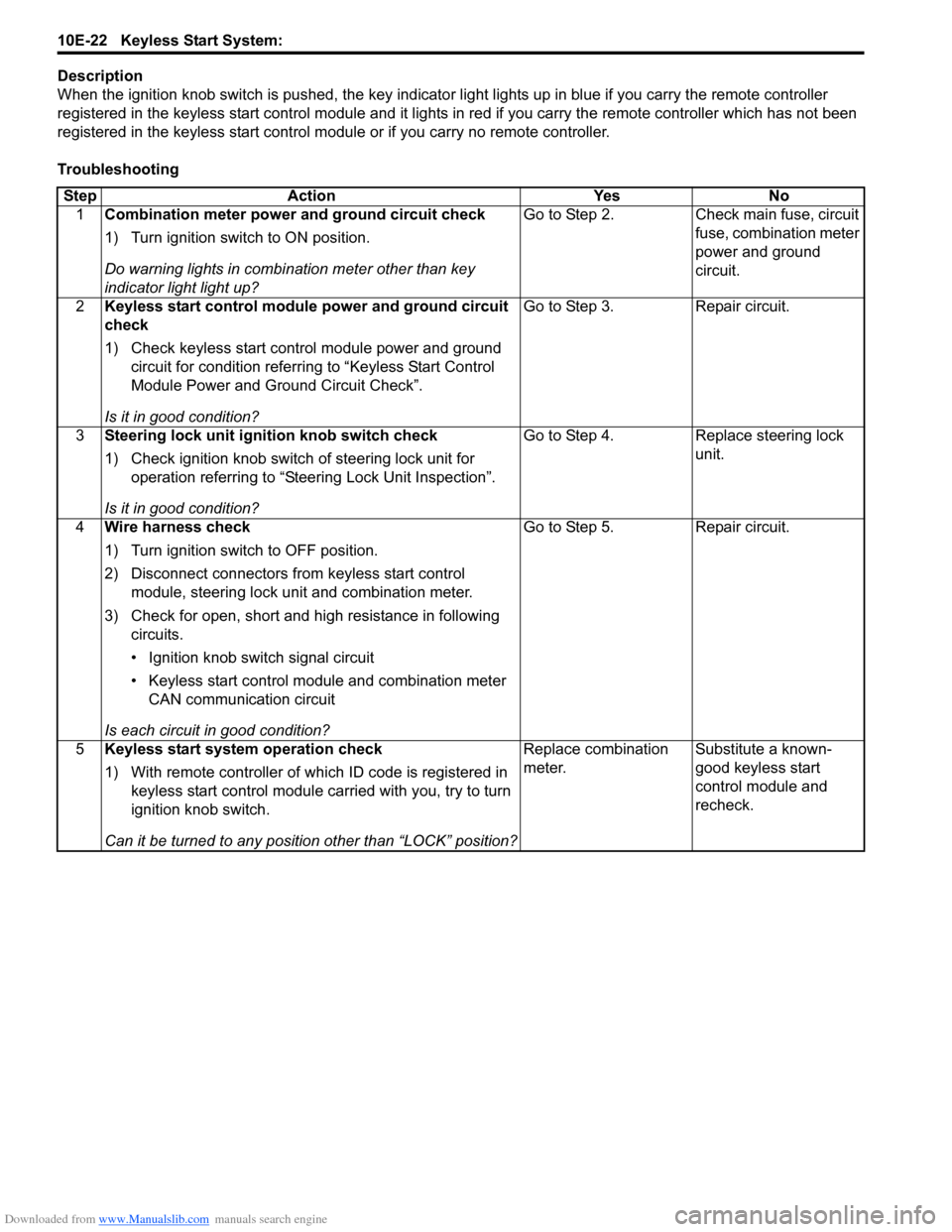

Description
When the ignition knob switch is pushed, the key indicator light lights up in blue if you carry the remote controller
registered in the keyless start control module and it lights in red if you carry the remote controller which has not been
registered in the keyless start control module or if you carry no remote controller.
Troubleshooting
Step Action Yes No
1Combination meter power and ground circuit check
1) Turn ignition switch to ON position.
Do warning lights in combination meter other than key
indicator light light up?Go to Step 2. Check main fuse, circuit
fuse, combination meter
power and ground
circuit.
2Keyless start control module power and ground circuit
check
1) Check keyless start control module power and ground
circuit for condition referring to “Keyless Start Control
Module Power and Ground Circuit Check”.
Is it in good condition?Go to Step 3. Repair circuit.
3Steering lock unit ignition knob switch check
1) Check ignition knob switch of steering lock unit for
operation referring to “Steering Lock Unit Inspection”.
Is it in good condition?Go to Step 4. Replace steering lock
unit.
4Wire harness check
1) Turn ignition switch to OFF position.
2) Disconnect connectors from keyless start control
module, steering lock unit and combination meter.
3) Check for open, short and high resistance in following
circuits.
• Ignition knob switch signal circuit
• Keyless start control module and combination meter
CAN communication circuit
Is each circuit in good condition?Go to Step 5. Repair circuit.
5Keyless start system operation check
1) With remote controller of which ID code is registered in
keyless start control module carried with you, try to turn
ignition knob switch.
Can it be turned to any position other than “LOCK” position?Replace combination
meter.Substitute a known-
good keyless start
control module and
recheck.
Page 1551 of 1556

Downloaded from www.Manualslib.com manuals search engine Keyless Start System: 10E-29

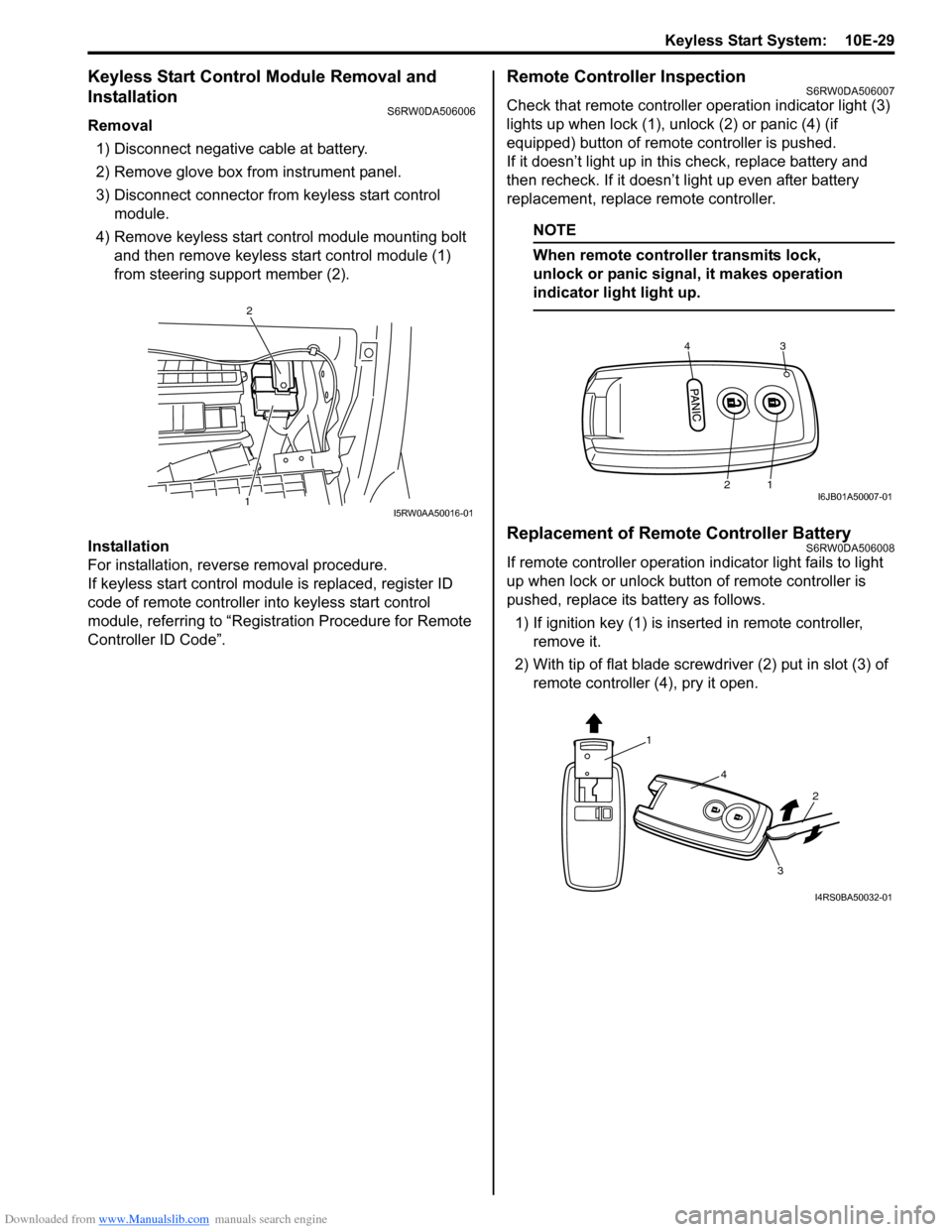

Keyless Start Control Module Removal and
Installation
S6RW0DA506006
Removal
1) Disconnect negative cable at battery.
2) Remove glove box from instrument panel.
3) Disconnect connector from keyless start control
module.
4) Remove keyless start control module mounting bolt
and then remove keyless start control module (1)
from steering support member (2).
Installation
For installation, reverse removal procedure.
If keyless start control module is replaced, register ID
code of remote controller into keyless start control
module, referring to “Registration Procedure for Remote
Controller ID Code”.
Remote Controller InspectionS6RW0DA506007
Check that remote controller operation indicator light (3)
lights up when lock (1), unlock (2) or panic (4) (if
equipped) button of remote controller is pushed.
If it doesn’t light up in this check, replace battery and
then recheck. If it doesn’t light up even after battery
replacement, replace remote controller.
NOTE
When remote controller transmits lock,
unlock or panic signal, it makes operation
indicator light light up.
Replacement of Remote Controller BatteryS6RW0DA506008
If remote controller operation indicator light fails to light
up when lock or unlock button of remote controller is
pushed, replace its battery as follows.
1) If ignition key (1) is inserted in remote controller,
remove it.
2) With tip of flat blade screwdriver (2) put in slot (3) of
remote controller (4), pry it open.
1
2
I5RW0AA50016-01
43
21I6JB01A50007-01
1
4
2
3
I4RS0BA50032-01
