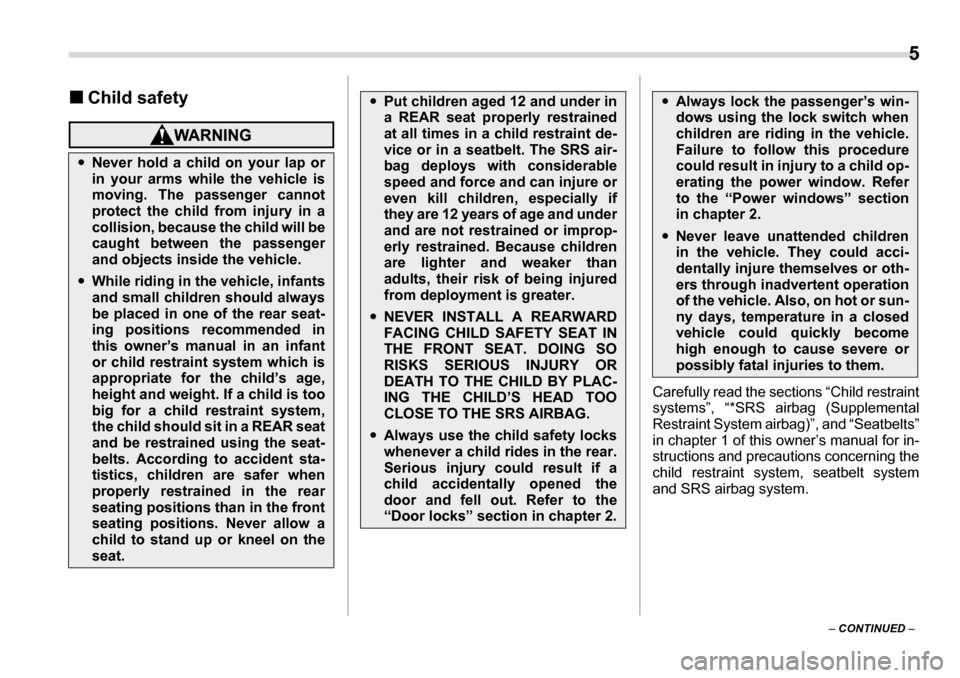

2006 SUBARU TRIBECA height

5
– CONTINUED –
„
Child safety
Carefully read the sections “Child restraint
systems”, “*SRS airbag (Supplemental
Restraint System airbag)”, and “Seatbelts”
in chapter 1 of this owner’s manual for in-
structions and precautions concerning the
child restraint system, seatbelt system
and SRS airbag system.
yNever hold a child on your lap or
in your arms while the vehicle is
moving. The passenger cannot
protect the child from injury in a
collision, because the child will be
caught between the passenger
and objects inside the vehicle.
yWhile riding in the vehicle, infants
and small children should always
be placed in one of the rear seat-
ing positions recommended in
this owner’s manual in an infant
or child restraint system which is
appropriate for the child’s age,
height and weight. If a child is too
big for a child restraint system,
the child should sit in a REAR seat
and be restrained using the seat-
belts. According to accident sta-
tistics, children are safer when
properly restrained in the rear
seating positions than in the front
seating positions. Never allow a
child to stand up or kneel on the
seat.
yPut children aged 12 and under in
a REAR seat properly restrained
at all times in a child restraint de-
vice or in a seatbelt. The SRS air-
bag deploys with considerable
speed and force and can injure or
even kill children, especially if
they are 12 years of age and under
and are not restrained or improp-
erly restrained. Because children
are lighter and weaker than
adults, their risk of being injured
from deployment is greater.
yNEVER INSTALL A REARWARD
FACING CHILD SAFETY SEAT IN
THE FRONT SEAT. DOING SORISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY PLAC-
ING THE CHILD’S HEAD TOO
CLOSE TO THE SRS AIRBAG.
yAlways use the child safety locks
whenever a child rides in the rear.
Serious injury could result if a
child accidentally opened the
door and fell out. Refer to the
“Door locks” section in chapter 2.
yAlways lock the passenger’s win-
dows using the lock switch when
children are riding in the vehicle.Failure to follow this procedure
could result in injury to a child op-
erating the power window. Refer
to the “Power windows” section
in chapter 2.
yNever leave unattended children
in the vehicle. They could acci-
dentally injure themselves or oth-
ers through inadvertent operation
of the vehicle. Also, on hot or sun-
ny days, temperature in a closed
vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to them.

1-2 Seat, seatbelt and SRS airbags
Seat, seatbelt and SRS airbagsFront seats
yNever adjust the seat while driv-
ing to avoid the possibility of loss
of vehicle control and of personal
injury.
yBefore adjusting the seat, make
sure the hands and feet of rear
seat passengers are clear of the
adjusting mechanism.
ySeatbelts provide maximum re-
straint when the occupant sits
well back and upright in the seat.
To reduce the risk of sliding under
the seatbelt in a collision, the
front seatbacks should be always used in the upright position while
the vehicle is running. If the front
seatbacks are not used in the up-
right position in a collision, the
risk of sliding under the lap belt
and of the lap belt sliding up over
the abdomen will increase, and
both can result in serious internal
injury or death.
yThe SRS airbags deploy with con-
siderable speed and force. Occu-
pants who are out of proper posi-
tion when the SRS airbag deploys
could suffer very serious injuries.
Because the SRS airbag needs
enough space for deployment, the
driver should always sit upright
and well back in the seat as far
from the steering wheel as practi-
cal while still maintaining full ve-
hicle control and the front passen-
ger should move the seat as far
back as possible and sit upright
and well back in the seat.
100350
Put children aged 12 and under in a
rear seat properly restrained at all
times. The SRS airbag deploys with
considerable speed and force and
can injure or even kill children, es-
pecially if they are 12 years of age
and under and are not restrained or
improperly restrained. Because chil-
dren are lighter and weaker than
adults, their risk of being injured
from deployment is greater. Conse-
quently, we strongly recommend
that ALL children (including those in
child seats and those that have out-
grown child restraint devices) sit in
a REAR seat properly restrained at
all times in a child restraint device or
in a seatbelt, whichever is appropri-
ate for the child’s age, height and
weight.
Always secure ALL types of child re-
straint devices (including forward
facing child seats) in one of the rear
seating positions recommended in
this owner’s manual.

Seat, seatbelt and SRS airbags 1-3
– CONTINUED –
„
Power seat
T Fore and aft adjustment To adjust the seat forward or backward,
move the control switch forward or back-
ward.
NOTE
During backward-forward adjustment
of the seat, you cannot adjust the seat
cushion angle or seat height. „
Reclining the seatback
To adjust the angle of the seatback, move
the control switch.
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUSINJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD
TOO CLOSE TO THE SRS AIRBAG.
According to accident statistics,
children are safer when properly re-
strained in the rear seating posi-
tions than in the front seating posi-
tions. For instructions and precau-
tions concerning child restraint sys-
tems, see the “Child restraint sys-
tems” section in this chapter.
100351
100085
To prevent the passenger from slid-
ing under the seatbelt in the event of
a collision, always put the seatback
in the upright position while the ve-
hicle is in motion. Also, do not place
objects such as cushions between
the passenger and the seatback. If
you do so, the risk of sliding under
the lap belt and of the lap belt sliding
up over the abdomen will increase,
and both can result in serious inter-
nal injury or death.
100354

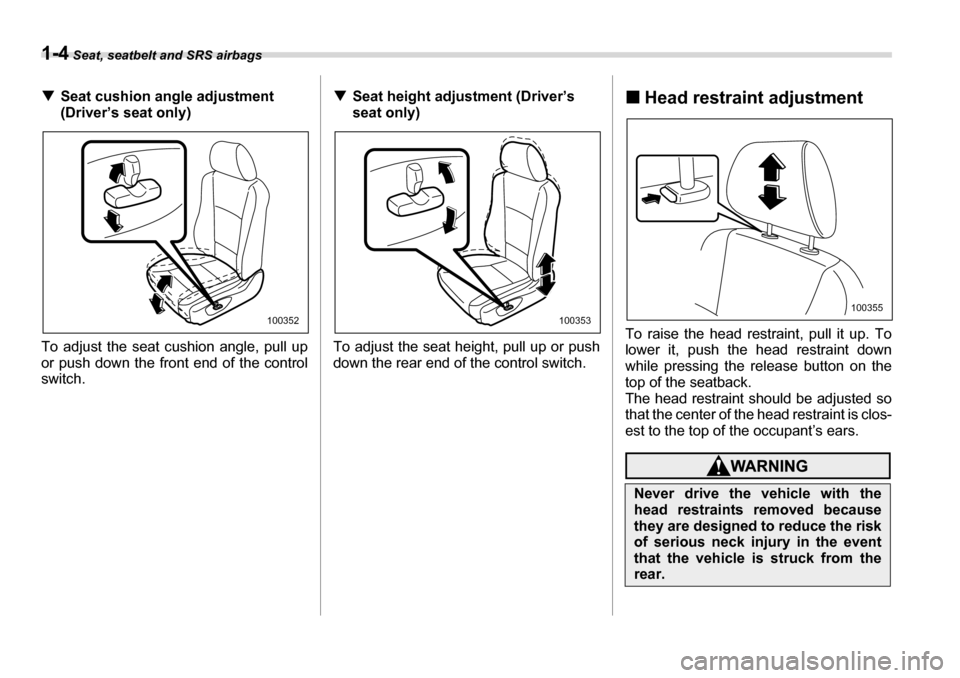

1-4 Seat, seatbelt and SRS airbags
TSeat cushion angle adjustment
(Driver’s seat only)
To adjust the seat cushion angle, pull up
or push down the front end of the controlswitch. T
Seat height adjustment (Driver’s
seat only)
To adjust the seat height, pull up or push
down the rear end of the control switch. „
Head restraint adjustment
To raise the head restraint, pull it up. To
lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
The head restraint should be adjusted so
that the center of the head restraint is clos-
est to the top of the occupant’s ears.
100352100353
Never drive the vehicle with the
head restraints removed because
they are designed to reduce the risk
of serious neck injury in the event
that the vehicle is struck from the
rear.
100355

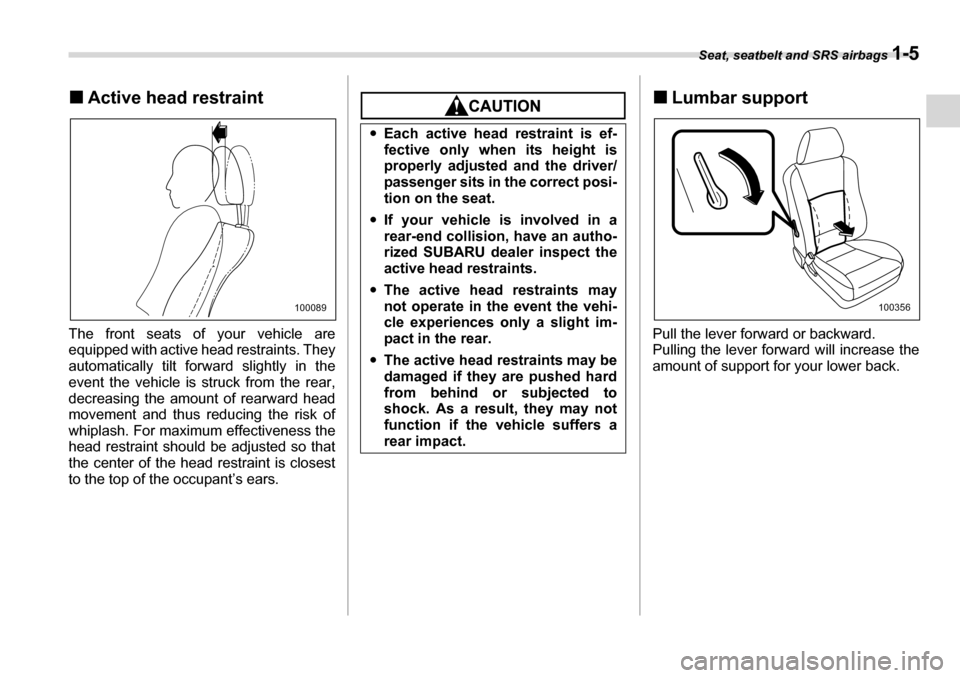

Seat, seatbelt and SRS airbags 1-5
„Active head restraint
The front seats of your vehicle are
equipped with active head restraints. They
automatically tilt forward slightly in the
event the vehicle is struck from the rear,
decreasing the amount of rearward head
movement and thus reducing the risk of
whiplash. For maximum effectiveness the
head restraint should be adjusted so that
the center of the head restraint is closest
to the top of the occupant’s ears.„ Lumbar support
Pull the lever forward or backward.
Pulling the lever forward will increase the
amount of support for your lower back.
100089
y Each active head restraint is ef-
fective only when its height is
properly adjusted and the driver/
passenger sits in the correct posi-
tion on the seat.
y If your vehicle is involved in a
rear-end collision, have an autho-
rized SUBARU dealer inspect the
active head restraints.
y The active head restraints may
not operate in the event the vehi-
cle experiences only a slight im-
pact in the rear.
y The active head restraints may be
damaged if they are pushed hard
from behind or subjected to
shock. As a result, they may not
function if the vehicle suffers a
rear impact.
100356

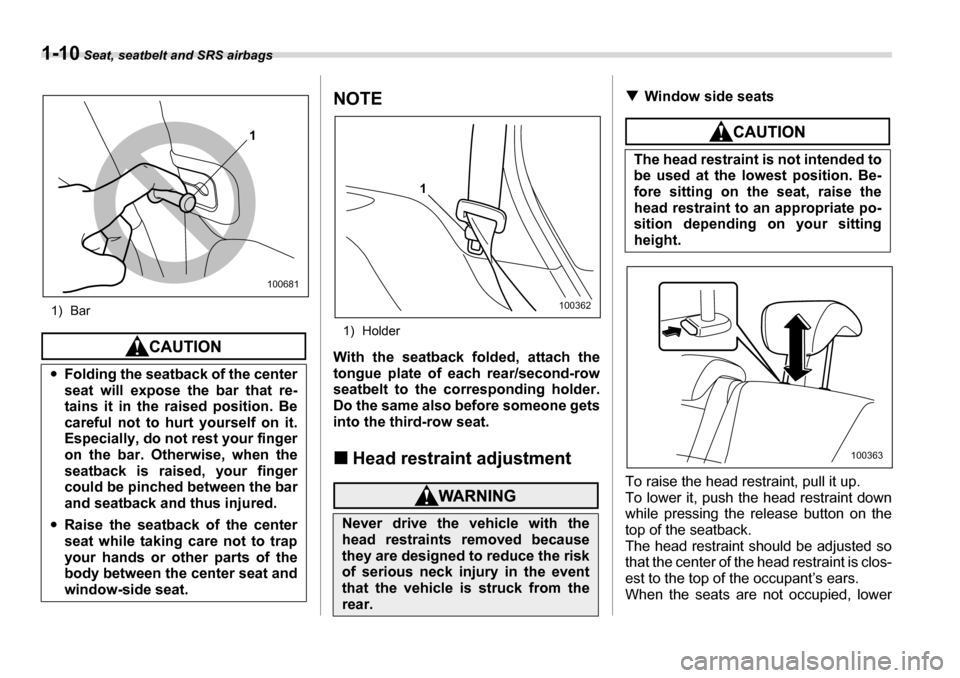

1-10 Seat, seatbelt and SRS airbags
1) Bar
NOTE
1) Holder
With the seatback folded, attach the
tongue plate of each rear/second-row
seatbelt to the corresponding holder.
Do the same also before someone gets
into the third-row seat. „ Head restraint adjustmentTWindow side seats
To raise the head restraint, pull it up.
To lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
The head restraint should be adjusted so
that the center of the head restraint is clos-
est to the top of the occupant’s ears.
When the seats are not occupied, lower
y
Folding the seatback of the center
seat will expose the bar that re-
tains it in the raised position. Be
careful not to hurt yourself on it.
Especially, do not rest your finger
on the bar. Otherwise, when the
seatback is raised, your finger
could be pinched between the bar
and seatback and thus injured.
y Raise the seatback of the center
seat while taking care not to trap
your hands or other parts of the
body between the center seat and
window-side seat.
1
100681
Never drive the vehicle with the
head restraints removed because
they are designed to reduce the risk
of serious neck injury in the event
that the vehicle is struck from the
rear.
1
100362
The head restraint is not intended to
be used at the lowest position. Be- fore sitting on the seat, raise the
head restraint to an appropriate po-
sition depending on your sitting
height.
100363

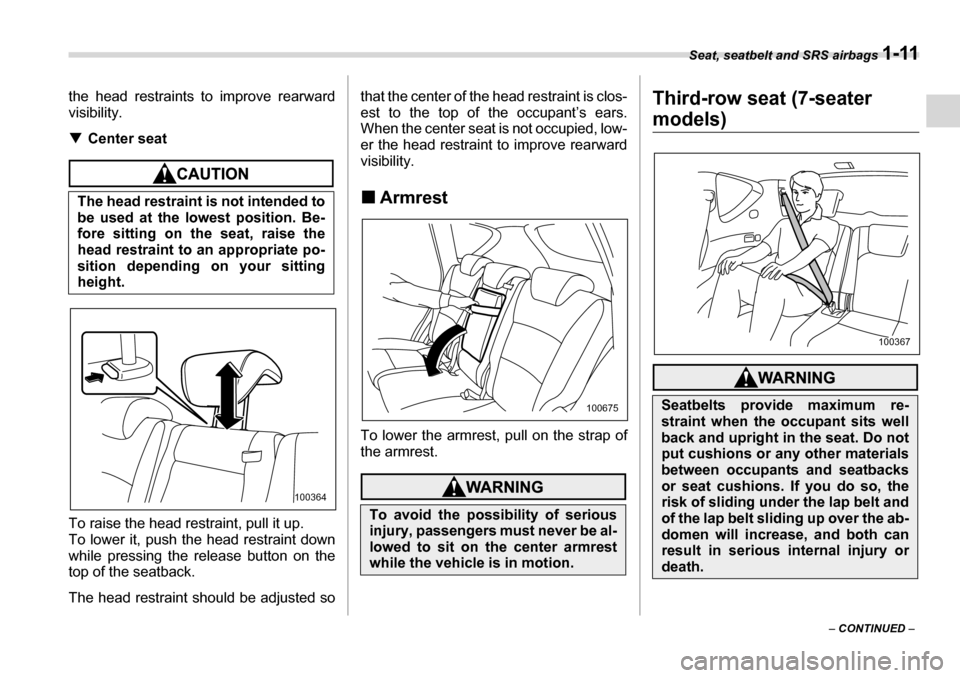

Seat, seatbelt and SRS airbags 1-11
– CONTINUED –
the head restraints to improve rearward
visibility. T
Center seat
To raise the head restraint, pull it up.
To lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
The head restraint should be adjusted so that the center of the head restraint is clos-
est to the top of the occupant’s ears.
When the center seat is not occupied, low-
er the head restraint to improve rearward visibility. „
Armrest
To lower the armrest, pull on the strap of the armrest.
Third-row seat (7-seater
models)
The head restraint is not intended to
be used at the lowest position. Be-
fore sitting on the seat, raise the
head restraint to an appropriate po-
sition depending on your sitting
height.
100364
To avoid the possibility of serious
injury, passengers must never be al-
lowed to sit on the center armrest
while the vehicle is in motion.
100675Seatbelts provide maximum re-
straint when the occupant sits well
back and upright in the seat. Do not
put cushions or any other materials
between occupants and seatbacks
or seat cushions. If you do so, the
risk of sliding under the lap belt and
of the lap belt sliding up over the ab-
domen will increase, and both can
result in serious internal injury or
death.
100367

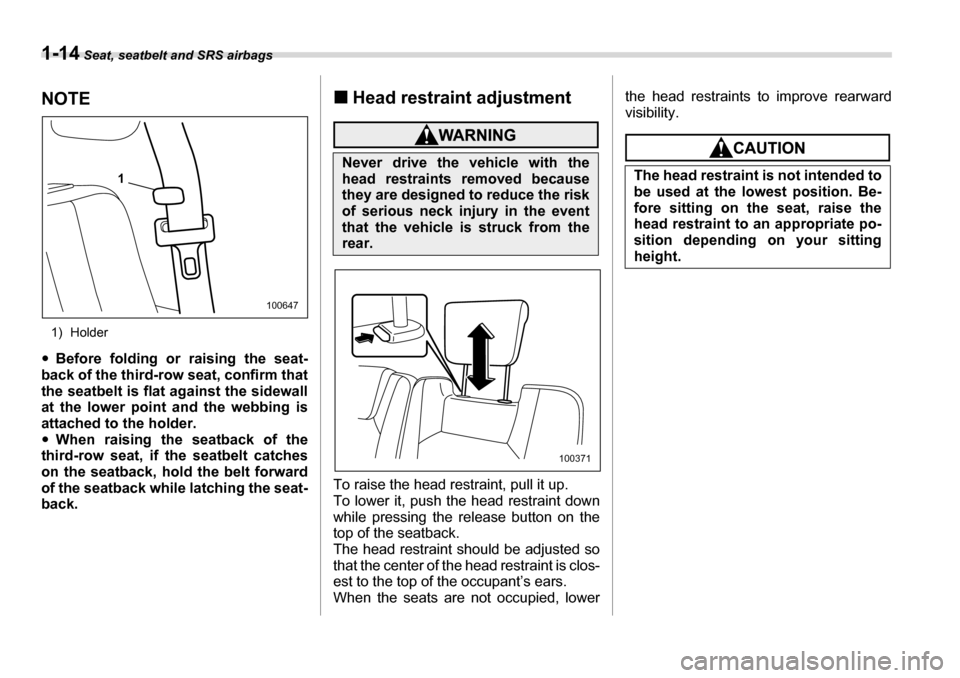

1-14 Seat, seatbelt and SRS airbags
NOTE
1) Holder
y Before folding or raising the seat-
back of the third-row seat, confirm that
the seatbelt is flat against the sidewall
at the lower point and the webbing is
attached to the holder. y When raising the seatback of the
third-row seat, if the seatbelt catches
on the seatback, hold the belt forward
of the seatback while latching the seat-
back. „
Head restraint adjustment
To raise the head restraint, pull it up.
To lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
The head restraint should be adjusted so
that the center of the head restraint is clos-
est to the top of the occupant’s ears.
When the seats are not occupied, lower the head restraints to improve rearward visibility.
1
100647
Never drive the vehicle with the
head restraints removed because
they are designed to reduce the risk
of serious neck injury in the event
that the vehicle is struck from the
rear.
100371
The head restraint is not intended to
be used at the lowest position. Be-fore sitting on the seat, raise the
head restraint to an appropriate po-
sition depending on your sitting
height.
