Seat, seatbelt and SRS airbags 1-51
– CONTINUED –
TDriver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a
dual stage inflator. The inflator operates in
different ways depending on the severity
of impact, backward-forward adjustment
of the driver’s seat position and whether or
not he/she is wearing the seatbelt.
The backward-forward adjustment of the
driver’s seat position is monitored by the
driver’s seat position sensor under the driver’s seat.
Whether or not the driver is wearing the
seatbelt is monitored by the seatbelt buck-le switch.
Observe the following precautions. Failure
to do so may cause the seatbelt buckle
switch and/or the seat position sensor to
malfunction, preventing the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or causing the system to fail. y
Do not place articles/metal objects or in-
stall any accessory other than a genuine
SUBARU accessory under the driver’s
seat. Do not allow the rear seat occupant
to kick the driver’s seat or push up its bot-
tom surface with his/her feet. y Do not place a magnet near the seatbelt
buckle or under the driver’s seat.
If the seatbelt buckle switch and/or the
driver’s seat position sensor have failed,
the SRS airbag system warning light will il-
luminate. Although the driver’s SRS fron-
tal airbag can deploy regardless of the
backward-forward adjustment of the driv-
er’s seat position even when the warning
light is on, have the system inspected by
your SUBARU dealer immediately if the
SRS airbag system warning light comes
on.
NOTE The driver’s SRS side airbag, SRS cur-
tain airbag and seatbelt pretensioner
are not controlled by the Subaru ad-
vanced frontal airbag system. T Front passenger’s SRS frontal air-
bag
The front passenger’s SRS frontal airbag
uses a dual stage inflator. The inflator op-
erates in different ways depending on the
severity of impact.
The total load on the seat is monitored by
the occupant detection system’s weight
sensor located under the seat.
The system has another sensor that mon-
itors the tension of the front passenger
seatbelt. Using the total seat load and
seatbelt tension data from the sensors,
the occupant detection system deter-
mines whether the front passenger’s SRS
frontal airbag should or should not be in-
flated.
The occupant detection system may not
inflate the front passenger’s SRS frontal
airbag even when the driver’s SRS frontal
airbag deploys. This is normal.
Observe the following precautions. Failure
to do so may prevent the Subaru ad-
vanced frontal airbag system from func-
tioning correctly or cause the system to fail.
Do not attach accessories to the
windshield, or fit an extra-wide mir-
ror over the rear view mirror. If the
SRS airbag deploys, those objects
could become projectiles that could
seriously injure vehicle occupants.
100532

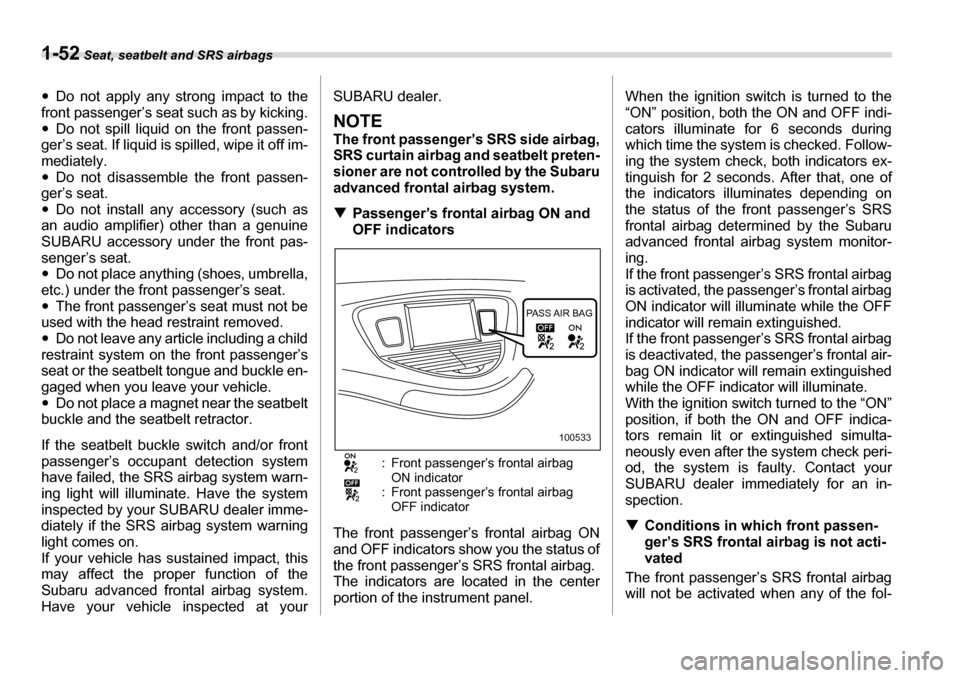

1-52 Seat, seatbelt and SRS airbags
yDo not apply any strong impact to the
front passenger’s seat such as by kicking. y Do not spill liquid on the front passen-
ger’s seat. If liquid is spilled, wipe it off im-
mediately. y Do not disassemble the front passen-
ger’s seat. y Do not install any accessory (such as
an audio amplifier) other than a genuine
SUBARU accessory under the front pas-
senger’s seat. y Do not place anything (shoes, umbrella,
etc.) under the front passenger’s seat. y The front passenger’s seat must not be
used with the head restraint removed. y Do not leave any article including a child
restraint system on the front passenger’s
seat or the seatbelt tongue and buckle en-
gaged when you leave your vehicle.y Do not place a magnet near the seatbelt
buckle and the seatbelt retractor.
If the seatbelt buckle switch and/or front
passenger’s occupant detection system
have failed, the SRS airbag system warn-
ing light will illuminate. Have the system
inspected by your SUBARU dealer imme-
diately if the SRS airbag system warning
light comes on.
If your vehicle has sustained impact, this
may affect the proper function of the
Subaru advanced frontal airbag system.
Have your vehicle inspected at your SUBARU dealer.
NOTE
The front passenger’s SRS side airbag,
SRS curtain airbag and seatbelt preten-
sioner are not controlled by the Subaru
advanced frontal airbag system. T
Passenger’s frontal airbag ON and
OFF indicators
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF indicator
The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag.
The indicators are located in the center
portion of the instrument panel. When the ignition switch is turned to the
“ON” position, both the ON and OFF indi-
cators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. After that, one of
the indicators illuminates depending on
the status of the front passenger’s SRS
frontal airbag determined by the Subaru
advanced frontal airbag system monitor-
ing.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain extinguished.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal air-
bag ON indicator will remain extinguished
while the OFF indicator will illuminate.
With the ignition switch turned to the “ON”
position, if both the ON and OFF indica-
tors remain lit or extinguished simulta-
neously even after the system check peri-
od, the system is faulty. Contact your
SUBARU dealer immediately for an in-
spection. T
Conditions in which front passen-
ger’s SRS frontal airbag is not acti-vated
The front passenger’s SRS frontal airbag
will not be activated when any of the fol-
PASS AIR BAG
100533

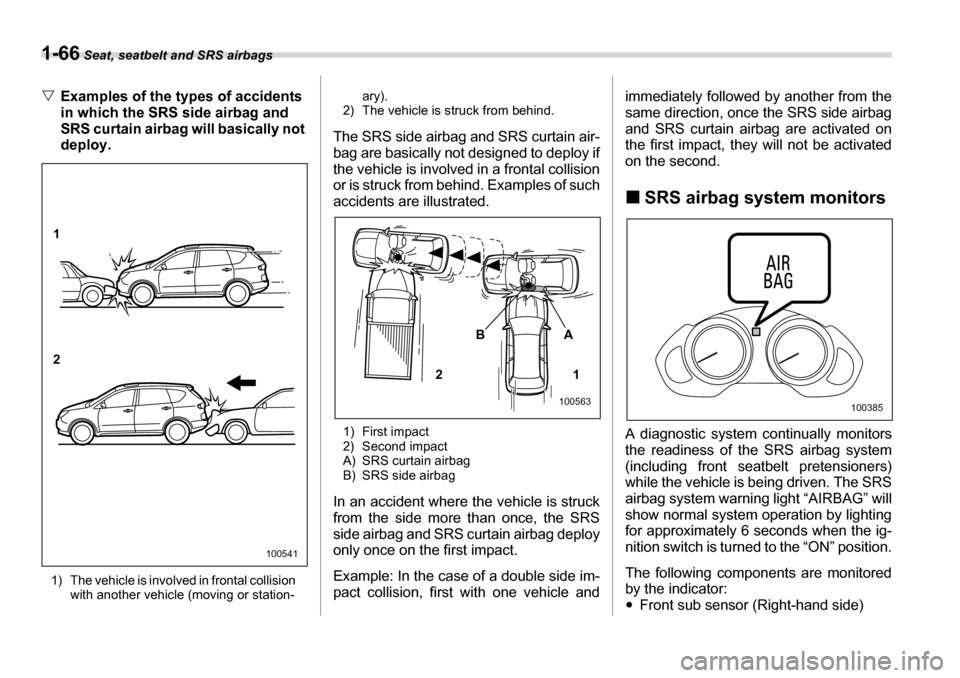

1-66 Seat, seatbelt and SRS airbags
VExamples of the types of accidents
in which the SRS side airbag and
SRS curtain airbag will basically not
deploy.
1) The vehicle is involved in frontal collision with another vehicle (moving or station- ary).
2) The vehicle is struck from behind.
The SRS side airbag and SRS curtain air-
bag are basically not designed to deploy if
the vehicle is involved in a frontal collision
or is struck from behind. Examples of such
accidents are illustrated.
1) First impact
2) Second impact
A) SRS curtain airbag
B) SRS side airbag
In an accident where the vehicle is struck
from the side more than once, the SRS
side airbag and SRS curtain airbag deploy
only once on the first impact.
Example: In the case of a double side im-
pact collision, first with one vehicle and immediately followed by another from the
same direction, once the SRS side airbag
and SRS curtain airbag are activated on
the first impact, they will not be activated
on the second. „
SRS airbag system monitors
A diagnostic system continually monitors
the readiness of the SRS airbag system
(including front seatbelt pretensioners)
while the vehicle is being driven. The SRS
airbag system warning light “AIRBAG” will
show normal system operation by lighting
for approximately 6 seconds when the ig-
nition switch is turned to the “ON” position.
The following components are monitored
by the indicator: y Front sub sensor (Right-hand side)
1 2
100541
1
A
B
2
100563100385

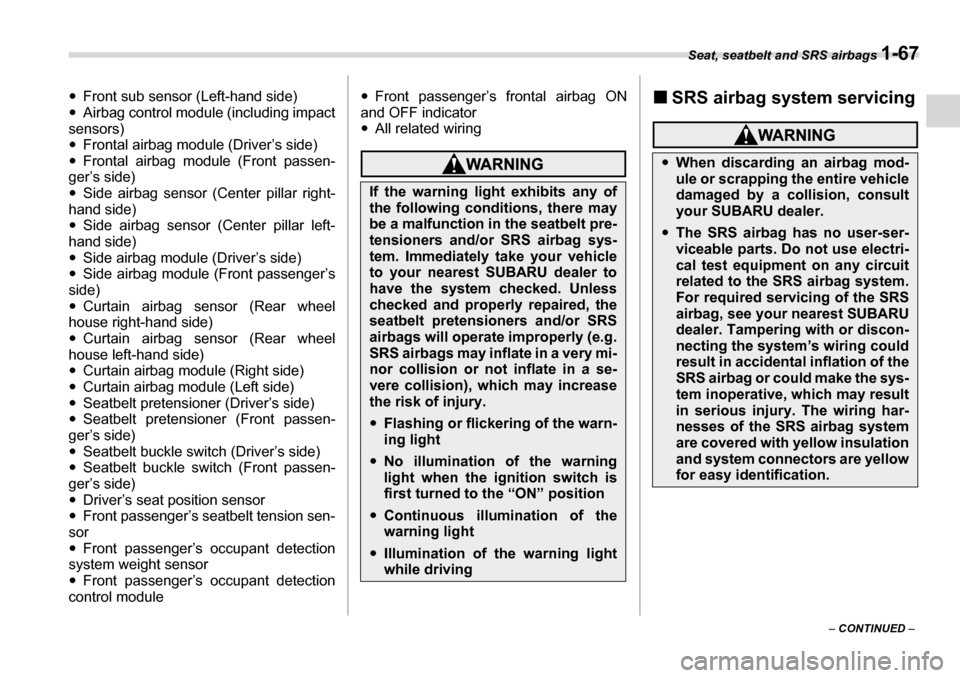

Seat, seatbelt and SRS airbags 1-67
– CONTINUED –
y
Front sub sensor (Left-hand side)
y Airbag control module (including impact
sensors) y Frontal airbag module (Driver’s side)
y Frontal airbag module (Front passen-
ger’s side)y Side airbag sensor (Center pillar right-
hand side)y Side airbag sensor (Center pillar left-
hand side) y Side airbag module (Driver’s side)
y Side airbag module (Front passenger’s
side)y Curtain airbag sensor (Rear wheel
house right-hand side) y Curtain airbag sensor (Rear wheel
house left-hand side)y Curtain airbag module (Right side)
y Curtain airbag module (Left side)
y Seatbelt pretensioner (Driver’s side)
y Seatbelt pretensioner (Front passen-
ger’s side)y Seatbelt buckle switch (Driver’s side)
y Seatbelt buckle switch (Front passen-
ger’s side)y Driver’s seat position sensor
y Front passenger’s seatbelt tension sen-
sory Front passenger’s occupant detection
system weight sensory Front passenger’s occupant detection
control module y
Front passenger’s frontal airbag ON
and OFF indicatory All related wiring
„ SRS airbag system servicing
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt pre-
tensioners and/or SRS airbag sys-
tem. Immediately take your vehicle
to your nearest SUBARU dealer to
have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g.
SRS airbags may inflate in a very mi-
nor collision or not inflate in a se-
vere collision), which may increase
the risk of injury.
yFlashing or flickering of the warn-
ing light
yNo illumination of the warning
light when the ignition switch is
first turned to the “ON” position
yContinuous illumination of the
warning light
yIllumination of the warning light
while driving
yWhen discarding an airbag mod-
ule or scrapping the entire vehicle
damaged by a collision, consult
your SUBARU dealer.
yThe SRS airbag has no user-ser-
viceable parts. Do not use electri-
cal test equipment on any circuit
related to the SRS airbag system.
For required servicing of the SRS
airbag, see your nearest SUBARU
dealer. Tampering with or discon-
necting the system’s wiring could
result in accidental inflation of the
SRS airbag or could make the sys-
tem inoperative, which may result
in serious injury. The wiring har-
nesses of the SRS airbag system
are covered with yellow insulation
and system connectors are yellow
for easy identification.

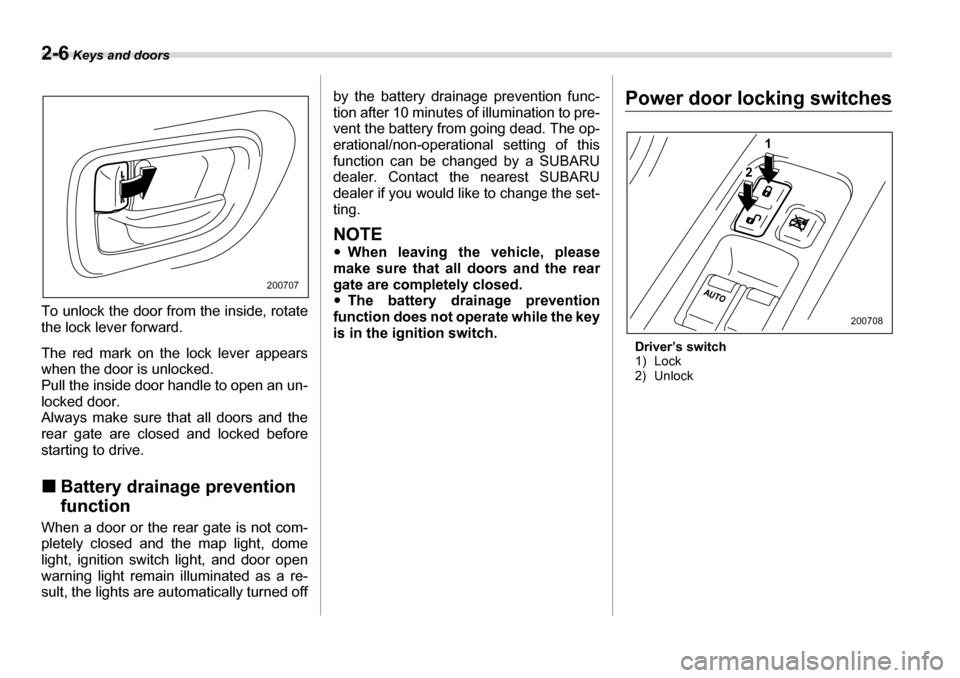

2-6 Keys and doors
To unlock the door from the inside, rotate
the lock lever forward.
The red mark on the lock lever appears
when the door is unlocked.
Pull the inside door handle to open an un-
locked door.
Always make sure that all doors and the
rear gate are closed and locked before
starting to drive. „Battery drainage prevention
function
When a door or the rear gate is not com-
pletely closed and the map light, dome
light, ignition switch light, and door open
warning light remain illuminated as a re-
sult, the lights are automatically turned off by the battery drainage prevention func-
tion after 10 minutes of illumination to pre-
vent the battery from going dead. The op-
erational/non-operational setting of this
function can be changed by a SUBARU
dealer. Contact the nearest SUBARU
dealer if you would like to change the set-
ting.
NOTE y
When leaving the vehicle, please
make sure that all doors and the rear
gate are completely closed.y The battery drainage prevention
function does not operate while the key
is in the ignition switch.
Power door locking switches
Driver’s switch
1) Lock
2) Unlock
200707
1
2
200708

3
Instruments and controls
Ignition switch .................................................... 3-3 LOCK ....................................................................... 3-3
ACC .......................................................................... 3-3
ON ............................................................................ 3-4
START ...................................................................... 3-4
Key reminder chime ............................................... 3-4
Ignition switch light ................................................ 3-4
Hazard warning flasher ...................................... 3-5
Meters and gauges ............................................. 3-5 Combination meter illumination ............................ 3-5
Canceling the function for meter needle/gauge movement and combination meter sequential
illumination upon turning on the ignition
switch .................................................................... 3-5
Speedometer ........................................................... 3-6
Odometer ................................................................. 3-6
Double trip meter .................................................... 3-7
Tachometer ............................................................. 3-7
Fuel gauge ............................................................... 3-8
Temperature gauge ................................................ 3-8
Warning and indicator lights ............................. 3-9 Seatbelt warning light and chime .......................... 3-10
SRS airbag system warning light .......................... 3-11
Front passenger’s frontal airbag ON and OFF indicators .............................................................. 3-12
CHECK ENGINE warning light/Malfunction
indicator lamp ....................................................... 3-12
Charge warning light ............................................... 3-13
Oil pressure warning light ..................................... 3-13
AT OIL TEMPerature warning light ....................... 3-13 Rear differential oil temperature warning light .... 3-14
Low tire pressure warning light ............................ 3-14
ABS warning light ................................................... 3-15
Brake system warning light ................................... 3-16
Low fuel warning light ..................................... 3-17
Door open warning light ........................................ 3-17
Windshield washer fluid warning light ................. 3-17
All-Wheel Drive warning light ................................ 3-17
Vehicle Dynamics Control operation indicator
light ........................................................................ 3-18
Vehicle Dynamics Control warning light/Traction Control system OFF indicator light .................... 3-18
Security indicator light ........................................... 3-19
SPORT mode indicator light .................................. 3-19
Selector lever/Gear position indicator .................. 3-20
Turn signal indicator lights .................................... 3-20
High beam indicator light ....................................... 3-20
Cruise control indicator light ................................. 3-20
Cruise control set indicator light .......................... 3-20
Headlight indicator light ......................................... 3-20
Front fog light indicator light ................................. 3-20
Clock .................................................................... 3-21
Outside temperature indication ........................ 3-21
Multi function display (Vehicle without Navigation System) ......................................... 3-23Current fuel consumption ...................................... 3-23
Average fuel consumption ..................................... 3-23
Driving range on remaining fuel ............................ 3-24
Journey time ........................................................... 3-25

Instruments and controls 3-5
– CONTINUED –
Hazard warning flasher
The hazard warning flasher is used to
warn other drivers when you have to park
your vehicle under emergency conditions.
The hazard warning flasher works with the
ignition switch in any position.
To turn on the hazard warning flasher,
push the hazard warning button on the in-
strument panel. To turn off the flasher,
push the button again.
NOTE
When the hazard warning flasher is on,
the turn signals do not work.
Meters and gauges
NOTE
Liquid-crystal displays are used in
some of the meters and gauges in the
combination meter. You will find their
indications hard to see if you wear po-
larized glasses. „Combination meter illumina- tion
When the ignition switch is turned to the
“ON” position, the various parts of the
combination meter are illuminated in the
following sequence:
1. Warning lights, indicator lights, meter
rims, meter needles, odometer, trip meter,
and gauge back lights illuminate.
2. Meter needles and gauges each show
MAX reading.
3. Meter needles and gauges each show
MIN reading.
4. Meter and gauge dials illuminate.
5. Regular illumination (for driving) be-
gins. „
Canceling the function for
meter needle/gauge move-
ment and combination meter
sequential illumination upon
turning on the ignition switch
It is possible to activate or deactivate the
movement of the meter needles and
gauges and sequential illumination of the
combination meter that takes place when
the ignition switch is turned to the “ON” po- sition.
Turn the ignition switch to the “ACC” posi-
tion. With the A trip meter indication se-
lected, briefly press the trip knob twice.
You can now establish the activated/deac-
tivated setting for movement of the meter
needles and gauges when the ignition
switch is turned to the “ON” position. To
300504
300185

3-6 Instruments and controls
change the current setting, press the trip
knob for at least two seconds.
: Activated : Deactivated
With the function deactivated, the combi-
nation meter illuminates as follows:
1. Warning lights, indicator lights, meter
rims, meter needles, odometer, trip meter,
and gauge back lights illuminate.
2. Meter and gauge dials illuminate.
3. Regular illumination (for driving) be-
gins.
Briefly press the trip knob again. You can
now establish the activated/deactivated
setting for sequential illumination of the
combination meter when the ignition
switch is turned to the “ON” position. To change the current setting, press the trip
knob for at least two seconds.
: Activated : Deactivated
Briefly press the knob to return to the A trip
meter indication.
If you turn the ignition switch to the
“LOCK” position, turn the ignition switch to
the “ON” position, or open and close the
driver’s door during the setting procedure,
the new setting will be canceled.
Also, if you do not press the trip knob for a
period of 10 seconds, the new setting will
be canceled.
NOTE y It is not possible to cancel sequential
illumination of the combination meter
while sequential illumination is actual-
ly taking place. Cancel sequential illu-
mination when regular illumination (for
driving) has begun.y When you open the driver’s door
with the ignition switch in the “LOCK”
position, the meters’ needles and rims
are lit. The illumination stops working
when you shut the driver’s door or au-
tomatically after 30 seconds. „
Speedometer
The speedometer shows the vehicle
speed. „ Odometer
This meter displays the odometer when
the ignition switch is in the “LOCK”, “ACC”
or “ON” position.
The odometer shows the total distance
that the vehicle has been driven.
If you press the trip knob when the ignition
switch is in the “LOCK” or “ACC” position,
the odometer/trip meter will light up. If you
do not press the trip knob within 10 sec-
onds of illumination of the odometer/trip
meter, the odometer/trip meter will go off.
The odometer/trip meter will also go off if
300543
300261
