Climate control 4-9
– CONTINUED –
T

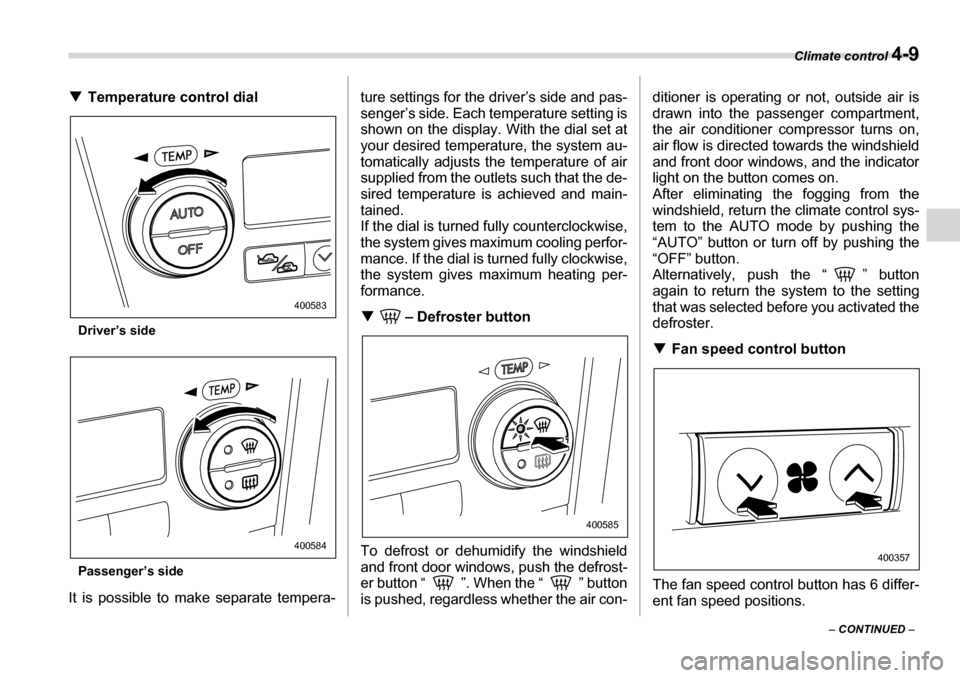

Temperature control dial
Driver’s side
Passenger’s side
It is possible to make separate tempera- ture settings for the driver’s side and pas-
senger’s side. Each temperature setting is
shown on the display. With the dial set atyour desired temperature, the system au-
tomatically adjusts the temperature of air
supplied from the outlets such that the de-
sired temperature is achieved and main-
tained.
If the dial is turned
fully counterclockwise,
the system gives maximum cooling perfor-
mance. If the dial is turned fully clockwise,
the system gives ma ximum heating per-
formance. T – Defroster button
To defrost or dehumidify the windshield
and front door windows, push the defrost-
er button “ ”. When the “ ” button
is pushed, regardless whether the air con- ditioner is operating or not, outside air is
drawn into the passenger compartment,
the air conditioner compressor turns on,
air flow is directed towards the windshield
and front door windows, and the indicator
light on the button comes on.
After eliminating the fogging from the
windshield, return t
he climate control sys-
tem to the AUTO mode by pushing the
“AUTO” button or turn off by pushing the “OFF” button.
Alternatively, push the “ ” button
again to return the system to the setting
that was selected before you activated the
defroster. T Fan speed control button
The fan speed control button has 6 differ-
ent fan speed positions.
400583
400584
400585
400357

4-10 Climate control
The fan speed is shown by the display. TA/C – Air conditioner button
If the windshield starts to fog when the cli-
mate control system is operated in the
AUTO mode, push the air conditioner but-
ton “A/C” to defog and dehumidify.
When this button is pushed, the air condi-
tioner compressor turns on and the indica-
tor light “A/C” on the display comes on. Af-
ter eliminating the fogging from the wind-
shield, set the syst em back to the AUTO
mode by pushing the “AUTO” button.
NOTE
The air conditioner compressor does
not operate when the outside air tem-
perature is below 32 °F (0 °C). T
Air flow mode selection button
Select the desired air flow mode by push-
ing the air flow mode selection button. The
selected air flow mode is shown by thedisplay. (Ventilation): Air flows through the in-
strument panel outlets.
(Bi-level): Air flows through the instru-
ment panel outlets a nd the foot outlets.
(Heat): Air flows through the instru-
ment panel outlets, the foot outlets, and
some through the windshield defroster
outlets.
(Heat-def): Air flows through the instru-
ment panel outlets, the windshield defrost- er outlets, and the foot outlets. T
Air inlet selection button
Select air flow by pushing the air inlet se-
lection button “ / ”.
The selected air inlet setting is shown on
the control panel. (Recirculation): In terior air recircu-
lates inside the passenger compartment.
Use this position when quickly cooling
down the passenger compartment or to
prevent outside air from entering the pas-
senger compartment. When the recircula-
tion mode is selected, a “ ” indicator
light appears on the display.
(Outside air): Outside air is drawn
into the passenger compartment. When
the climate control sy stem is operated in
the “AUTO” mode, this position is selected
400586
400587
400588

Climate control 4-11
automatically. (There is one exception:
When the temperature control dial is
turned fully counterclockwise, the recircu-
lation mode is automatically selected.)
When the outside air mode is selected, a
“ ” indicator light appears on the display.
NOTE
When driving on a dusty road or be-
hind a vehicle that emits unpleasant
exhaust gases, set the air inlet selec-
tion button to the “ ” position. From time to time, return the air inlet
selection button to the “ ” posi-
tion to draw outsid e air into the pas-
senger compartment. „
Temperature sensors
1) Solar sensor
2) Interior air temperature sensor
The automatic climate control system em-
ploys several sensors. These sensors are
delicate. If they are treated incorrectly and
become damaged, the system may not be
able to control the interior temperature
correctly. To avoid damaging the sensors,
observe the following precautions:
– Do not subject the sensors to impact.
– Keep water away from the sensors.
– Do not cover the sensors.
The sensors are located as follows:
– Solar sensor: beside windshield de-
froster grille
– Interior air temperature sensor: on the side of the driver-si
de part of the center
panel
– Outside temperature sensor: behind
front grille.
Continued operation in the “ ”
position may fog up the windows.
Switch to the “ ” position as
soon as the outside dusty condition
clears.
1
2
400589

5-8 Audio
TTuning
V Manual tuning
Press the “ ” side of the TUNE/TRACK
button to increase the tuning frequency
and press the “ ” side of the button to
decrease it.
Each time the button is pressed, the fre-
quency interval can be changed between
10 kHz in the AM mode and 0.2 MHz in the
FM mode.
If you hold down the “ ” side of the but-
ton, the tuning frequency will increase
continuously, and if you hold down the
“ ” side of the button, the tuning fre-
quency will decrease continuously. Re-
lease the button when your desired fre-
quency is reached.NOTE
While you are holding down either side
of the TUNE/TRACK button, the tuning
frequency will not stop changing even
if the frequency of a receivable station
is reached. V Seek tuning
If you press the “ ” or “ ” side of the
SEEK/SCAN button and release it within
1.5 second, the radio will automatically
search for a receivable station and stop at
the first one it finds. This function may not
be available, however, when radio signals
are weak. In such a situation, perform
manual tuning to sele ct the desired sta-
tion. V
Automatic tuning (SCAN)
If you press the “ ” or “ ” side of the
SEEK/SCAN button for 1.5 second or
longer, the radio will switch to scan mode.
In this mode, the radio scans through the
radio band until a station is found. The ra-
dio will stop at the st ation for five seconds
while displaying the frequency, after which
scanning will continue until the entire band
has been scanned.
Press the “ ” or “ ” side of the button
again to cancel the scan mode and to stop
on any displayed frequency.
If you hold down the “ ” side of the but-
ton, the radio will scan up the frequency
band (from low frequencies to high fre-
quencies). If you hold down the “ ” side
of the button, the radio will scan down the
frequency band (from high frequencies to
TUNE
TRACK
500049
SEEK
SCAN
500232
SEEK
SCAN
500232

Audio 5-9
– CONTINUED –
low frequencies).
Automatic tuning may not function proper-
ly if the station re
ception is weakened by
distance from the station or proximity to
tall buildings and hills. T Selecting preset stations
Presetting a station with a “preset button”
allows you to select that station in a single
operation. Up to six, AM, FM1 and FM2
stations each may be preset. T How to preset stations
1. Press the “FM” or “AM” button to select
FM1, FM2, or AM reception.
2. Press the “ ” or “ ” side of the but-
ton or tune the radio manually until the de-
sired station frequency is displayed.
3. Press one of the preset buttons for more than 1.5 seconds to store the fre-
quency. If the button is pressed for less
than 1.5 seconds, the preceding selection
will remain in memory.
NOTE y
If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the pre-
set buttons are cleare d. If this occurs,
it is necessary to reset the preset but- tons. y If a cell phone is placed near the ra-
dio, it may cause the radio to emit
noise when it receives calls. This noise
does not indicate a radio fault.
„ Compact disc player opera- tion
T To playback a compact disc
V When CD is not in the player
Hold a disc with a finger in the center hole
while gripping the edge of the disc, then
insert it in to the slot (with the label side
up) and the player will automatically pull the disc into position.
NOTE y DO NOT INSERT TWO DISCS INTO
THE DISC INSERTION SLOT AT A TIME. y
Be sure to always insert a disc with
the label side up. If a disc is inserted
with the label side down, it might be
ejected or the player might shut off. y After the last song finishes, the play-
er will automatically return to track 1
(the first song on the disc).y If you insert a disc that the player
cannot read, the player will eject the
disc and revert to its previous mode. y The player is designed to be able to
play music CD-Rs and music CD-RWs,
but it may not be able to play certain
ones. V When CD is in the player
When the “CD” button is pressed, the
player will start playback.
123 456
500233
FMAM
CD
500234

Audio 5-17
– CONTINUED –
T
Tuning
V Manual tuning
Push the “ ” side of the TUNE/TRACK
button to increase the tuning frequency
and press the “ ” side of the button to
decrease it.
Each time the button is pressed, the fre-
quency interval can be changed between
10 KHz in the AM mode and 0.2 MHz in
the FM mode.
If you hold down the “ ” side of the but-
ton, the tuning frequency will increase
continuously, and if you hold down the
“ ” side of the button, the tuning fre-
quency will decrease continuously. Re-
lease the button when your desired fre-
quency is reached.
NOTE
While you are holding down either side
of the TUNE/TRACK button, the tuning
frequency will not stop changing even
if the frequency of a receivable station
is reached. V Seek tuning
If you press the “ ” or “ ” side of the
SEEK/SCAN button and release it within
1.5 second, the radio will automatically
search for a receivable station and stop at
the first one it finds. This function may not
be available, however, when radio signals
are weak. In such a situation, perform
manual tuning to select the desired sta- tion. V
Automatic tuning (SCAN)
If you press the “ ” or “ ” side of the
SEEK/SCAN button for 1.5 second or
longer, the radio will switch to scan mode.
In this mode, the radio scans through the
radio band until a station is found. The ra-
dio will stop at the station for five seconds
while displaying the frequency, after which
scanning will continue until the entire band
has been scanned from the low end to the
high end.
Press the “ ” or “ ” side of the button
again to cancel the scan mode and to stop
on any displayed frequency.
If you hold down the “ ” side of the but-
ton, the radio will scan up the frequency
band (from low frequencies to high fre-
quencies). If you hold down the “ ” side
of the button, the radio will scan down the
TUNE
TRACK
500049
SEEK
SCAN
500232
SEEK
SCAN
500232

5-18 Audio
frequency band (from high frequencies to
low frequencies).
Automatic tuning may not function proper-
ly if the station reception is weakened by
distance from the st ation or proximity to
tall buildings and hills. T Selecting preset stations
Presetting a station wi th a preset button
allows you to select that station in a single
operation. Up to six AM, FM1 and FM2
stations each may be preset. T How to preset stations
1. Press the “FM” or “AM” selection but-
ton to select AM, FM1 or FM2 reception.
2. Press the “ ” or “ ” side of the but-
ton or tune the radio manually until the de-
sired station frequency is displayed. 3. Press one of the preset buttons for
at
least 1.5 seconds to store the frequency.
The frequency of the station will flash
once on the display at this time. If the but-
ton is pressed for less than 1.5 seconds,
the preceding selection will remain inmemory.
NOTE y If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the pre-
set buttons are cleared. If this occurs,
it is necessary to reset the preset but- tons. y If a cell phone is placed near the ra-
dio, it may cause the radio to emit
noise when it receives calls. This noise
does not indicate a radio fault. „ Built-in CD changer opera- tion
NOTE yMake sure to always insert a disc
with the label side up. If a disc is insert-
ed with the label side down, it might be
ejected or the player might shut off. y The player is designed to be able to
play music CD-Rs and music CD-RWs,
but it may not be able to play certain ones. T
How to insert a CD(s)
V Inserting a CD
0
1. Briefly press the “LOAD” button. If the
magazine in the player has an idle posi-
tion where you can insert a disc, the disc
number indicator associated with the idle
position will blink.
If no indicator blinks, it means that there is
no idle position in the magazine.
2. When the “LOAD” indicator flashes, in-
sert the disc. Once you have inserted the
disc, the “LOAD” indicator will go off. The
disc will then be automatically drawn in,
and the player will begin to play the first
track on the disc. y To insert more discs in succession, re-
123 456
500233
LOAD
500239

5-22 Audio
TRepeat playback
V To repeat the currently playing track
To repeat a track, press the “RPT” button
while the track is playing. The display will
show “RPT”, and the track will be repeat-
ed.
To cancel the track-repeat-play mode,
press the “RPT” button twice. The “RPT”
indication will go off, and the normal play-
back mode will be resumed.
NOTE y Each time you press the button, the
mode will change to the next one in the
following sequence. If you accidentally press the button
and cancel the track-repeat-play mode,
press it again to reselect the repeat
play mode. y
If you perform a fast-forward or fast-
reverse operation while the player is in
repeat-play mode, the repeat-play
mode will remain active even after you
skip tracks.y If you perform a forward-direction or
backward-direction skip operation
while the player is in repeat-play mode,
the player will jump to the following/
previous track but the repeat-play
mode will remain active.y The repeat-play mode will be can-
celled if you perform any of the follow-
ing steps:
yPress the “ ” or “ ” side of
the SEEK/SCAN button y Press the “RPT” button.
y Press the “RDM” button
y Press the “ ” button
y Press the disc select button
y Select the radio mode
y Turn off the power of the audio
equipment. y Turn the ignition switch to the
“OFF” position. V
To repeat the currently playing disc
To repeat the currently playing CD, press
the “RPT” button twice while a track is
playing. The display will show “D-RPT”,
and the CD will be played repeatedly.
To cancel the disc repeat-play mode,
press the “RPT” button once more. The
“D-RPT” indication will go off, and the nor-
mal playback mode will be resumed.
NOTE y Each time you briefly press the but-
ton, the mode will change to the next
one in the following sequence.
If you accidentally press the button
RPT
500235
RPT D-RPT CANCEL
RPT
500235
RPT D-RPT CANCEL
