2006 SUBARU LEGACY trunk release

5
– CONTINUED –
„
Child safety
yNever hold a child on your lap or
in your arms while the vehicle is
moving. The passenger cannot
protect the child from injury in a
collision, because the child will be
caught between the passenger
and objects inside the vehicle.
yWhile riding in the vehicle, infants
and small children should always
be placed in the REAR seat in an
infant or child restraint system
which is appropriate for the
child’s age, height and weight. If a
child is too big for a child restraint
system, the child should sit in the
REAR seat and be restrained us-
ing the seatbelts. According to ac-
cident statistics, children are saf-
er when properly restrained in the
rear seating positions than in the
front seating positions. Never al-
low a child to stand up or kneel on
the seat.
y Put children aged 12 and under in
the REAR seat properly restrained
at all times in a child restraint de-
vice or in a seatbelt. The SRS air-
bag deploys with considerable
speed and force and can injure or
even kill children, especially if
they are 12 years of age and under
and are not restrained or improp-
erly restrained. Because children
are lighter and weaker than
adults, their risk of being injured
from deployment is greater.
yNEVER INSTALL A REARWARD
FACING CHILD SAFETY SEAT IN
THE FRONT SEAT. DOING SORISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY PLAC-
ING THE CHILD’S HEAD TOO
CLOSE TO THE SRS AIRBAG.
yAlways use the child safety locks
whenever a child rides in the rear
seat. Serious injury could result if
a child accidentally opened the
door and fell out. Refer to the
“Door locks” section in chapter 2.
yAlways lock the passenger’s win-
dows using the lock switch when
children are riding in the vehicle.
Failure to follow this procedure
could result in injury to a child op-
erating the power window. Refer
to the “Power windows” section
in chapter 2.
y Never leave unattended children
in the vehicle. They could acci-
dentally injure themselves or oth-
ers through inadvertent operation
of the vehicle. Also, on hot or sun-
ny days, temperature in a closed
vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to them.
y Help prevent young children from
locking themselves in the trunk.
When leaving the vehicle, either
close all windows and lock all
doors or cancel the inside trunk
lid release. Also make certain that
the trunk is closed. On hot or sun-
ny days, the temperature in a
trunk could quickly become high
enough to cause death or serious
heat-related injuries including
brain damage to anyone locked
inside, particularly for small chil-
dren.

Seat, seatbelt and SRS airbags 1-37
– CONTINUED –
T

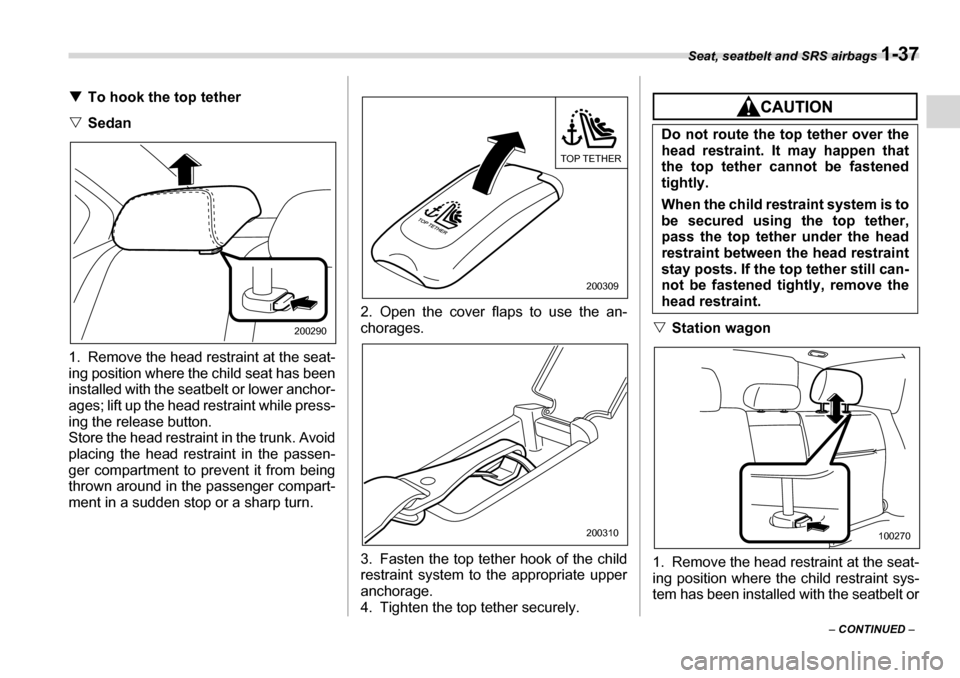

To hook the top tether
V Sedan
1. Remove the head restraint at the seat-
ing position where the child seat has been
installed with the seatbelt or lower anchor-
ages; lift up the head restraint while press-
ing the release button.
Store the head restraint in the trunk. Avoid
placing the head restraint in the passen-
ger compartment to prevent it from being
thrown around in the passenger compart-
ment in a sudden stop or a sharp turn. 2. Open the cover flaps to use the an-
chorages.
3. Fasten the top tether hook of the child
restraint system to the appropriate upper
anchorage.
4. Tighten the top tether securely.
V
Station wagon0
1. Remove the head restraint at the seat-
ing position where the child restraint sys-
tem has been installed with the seatbelt or
200290
TOP TETHER
200309
200310
Do not route the top tether over the
head restraint. It may happen that
the top tether cannot be fastened tightly.
When the child restraint system is to
be secured using the top tether,
pass the top tether under the head
restraint between the head restraint
stay posts. If the top tether still can-
not be fastened ti ghtly, remove the
head restraint.
100270

2
Keys and doors
Keys ..................................................................... 2-2 Key number ............................................................. 2-2
Immobilizer ......................................................... 2-3 Security ID plate ..................................................... 2-3
Security indicator light ........................................... 2-4
Key replacement ........ ....................................... ...... 2-4
Door locks ........................................................... 2-4 Locking and unlocking from the outside ............. 2-4
Locking and unlocking from the inside ................ 2-5
Battery drainage prevention function ................... 2-6
Power door locking switches ............................ 2-6 Key lock-in prevention function ............................ 2-7
Remote keyless entry system ........................... 2-7 Locking the doors .................................................. 2-8
Unlocking the doors ............................................... 2-9
Unlocking the trunk lid/rear gate ........................... 2-9
Illuminated entry ..................................................... 2-9
Vehicle finder function ........................................... 2-9
Sounding a panic alarm ......................................... 2-10
Selecting audible signal operation ....................... 2-10
Replacing the battery ............................................. 2-10
Replacing lost transmitters ................................... 2-11
Alarm system ...................................................... 2-14 System alarm operation ......................................... 2-14
Activating and deactivating the alarm system ..... 2-14
If you have accidentally triggered the alarm system ................................................................... 2-15
Arming the system ................................................. 2-15
Disarming the system ............................................ 2-16 Valet mode ............................................................... 2-16
Passive arming ....................................................... 2-17
Tripped sensor identification ................................ 2-18
Shock sensors (dealer option) .............................. 2-18
Child safety locks ........... .................................... 2-18
Windows ................... ....................................... .... 2-19
Power windows ....................................................... 2-19
Trunk lid (Sedan) ............... ................................. 2-21
To open and close the trunk lid from outside ...... 2-21
To open the trunk lid from inside .......................... 2-22
To lock and unlock the trunk lid release lever ..... 2-22
Internal trunk lid release hand le ..................... ....... 2-22
Rear gate (Station wagon) ................................. 2-24
Moonroof (if equipped) ..... ................................. 2-25
Tilting/sliding moonroof (Sedan) .......................... 2-26
Moonroof (Station wagon) ..................................... 2-27

2-2 Keys and doors
Keys and doorsKeys
1) Master key
2) Submaster key
3) Valet key
4) Key number plate
5) Security ID plate
Three types of keys are provided for your
vehicle.
Master key, submaste r key and valet key.
The master key and submaster key fit all
locks on your vehicle.y Ignition switch
y Driver’s door
y Glove box
y Trunk lid release lever
The valet key fits only the ignition switch and door locks. You can keep the trunk
and glove box locked when you leave your
vehicle and valet key at a parking facility.
„
Key number
1) Key number plate
2) Security ID plate
The key number is stamped on the key number plate attached to the key set.
Write down the key number and keep it in
another safe place, not in the vehicle. This
number is needed to make a replacement
key if you lose your key or lock it inside the
vehicle.
For information on making replacement
keys for vehicles with the immobilizer sys-
tem, refer to the “Immobilizer” section in
this chapter.
4
5
3
2
1
200700
Do not attach a large key holder or
key case to either key. If it bangs
against your knees while you are
driving, it could turn the ignitionswitch from the ON position to the
ACC or OFF position, thereby stop-
ping the engine.
12
200701

Keys and doors 2-21
– CONTINUED –
T
Passengers’ side switches
Front passenger’s window switch
1) Open
2) Close
To open the window, push the switch
down and hold it until the window reaches
the desired position. Rear passengers’ window switches
1) Open
2) Close
To close the window, pull the switch up
and hold it until the window reaches the
desired position.
When the lock switch on the power win-
dow switch cluster, located on the driver’s
side door, is in the “LOCK” position, the
passengers’ windows cannot be operated
with the passengers’ switches.
Trunk lid (Sedan)
„ To open and close the trunk
lid from outside
The trunk lid can be opened using the re-
mote keyless entry system. Refer to “Re-
mote keyless entry system” section in this chapter.
To close the trunk lid, lightly press the
2
1
200848
1 2
200849
y
To prevent dangerous exhaust
gas from entering the vehicle, al-
ways keep the trunk lid closed
while driving.
yHelp prevent young children from
locking themselves in the trunk.
When leaving the vehicle, either
close all windows and lock all
doors or cancel the inside trunk
lid release. Also make certain that
the trunk is closed. On hot or sun-
ny days, the temperature in the
trunk could quickly become high
enough to cause death or serious
heat-related injuries including
brain damage to anyone locked
inside, particularly for small chil-
dren.

2-22 Keys and doors
trunk lid down until the latch engages.
NOTE
Do not leave your valuables in the
trunk when you leave your vehicle. „To open the trunk lid from in- side
Pull the trunk lid release lever upward. „
To lock and unlock the trunk
lid release lever
When you entrust your vehicle key to an-
other person, you can lock the trunk lid re-
lease lever to prevent luggage in the trunk
from being stolen. To lock the trunk lid re-
lease lever, insert the master key or sub
key into the key cylinder at the rear of the
release lever and turn it counterclockwise.
To unlock the trunk lid release lever, turn
the key clockwise. „ Internal trunk lid release han- dle
The internal trunk lid release handle is a
device designed to open the trunk lid from
inside the trunk. In the event children or adults become locked inside the trunk, the
handle allows them to open the lid. The
handle is located on the inside of the trunklid.
To open the trunk lid from inside the trunk,
press the yellow handle downward as indi-
cated by the arrow on the handle. This op-
eration unlocks the tr
unk lid. Then, push
up the lid.
The handle is made of material that re-
mains luminescent for approximately an
hour in the dark trunk space after it is ex-
posed to ambient light even for a short
time.
LOCK
200850
200851
200852

Keys and doors 2-23
– CONTINUED –
TInspection
Perform the following steps at least twice
a year to check the release handle for cor-
rect operation.
1. Open the trunk lid.
2. Use a screwdriver with a thin blade.
Slide the screwdriver blade from the slit
aperture of the lock assembly fully to the
end until you hear a click. This places the latch in the locked posi- tion.
3. Move the release handle, from outside
the vehicle, in the direction of the arrow to
check if the latch is released.
If the latch is not released, contact your
Never allow any child to get in the
trunk and play with the release han-
dle. If the driver starts the vehicle
without knowing that a child is in-
side the trunk and the child opens
the lid using the release handle, the
child could fall out and be killed or
seriously injured. y
Do not close the lid while gripping
the release handle. The handle
may be damaged.
y Do not use the handle as a hook to
fasten straps or ropes to secure
your cargo in the trunk. Such use
may result in damage of the han-
dle.
y Load the trunk so that cargo can
not strike the release handle. If the
cargo hits the handle while the ve-
hicle is being driven, the handle
may be pushed down and the
trunk lid may open. That may
cause cargo to fall out of the
trunk, which could create a traffic
safety hazard.
200853
200854
200855

2-24 Keys and doors
SUBARU dealer.
In that case, use th e key to release the
latch, then close the trunk lid.
Also, if the movement of the release han-
dle feels restricted or not entirely smooth
during operation, or the handle and/or
handle base is cracked, contact your
SUBARU dealer.Rear gate (Station wagon)
The rear gate can be locked and unlocked
using either the keyless entry system or
the power door locking switch.
Refer to the “Power door locking switches”
and “Remote keyless entry system” sec-
tions in this chapter.
To open the rear gate, first unlock the rear
gate lock then pull the outside handle up. To close the rear gate, lower it slowly and
push down firmly until the latch engages.
The rear gate can be lowered easily if you
pull it down holding the recessed grip.
200260
y
To prevent dangerous exhaust
gas from entering the vehicle, al-
ways keep the rear gate closed
while driving.
yDo not attempt to shut the rear
gate while holding the recessed
grip. Also avoid closing the rear
gate by pulling on the recessed
grip from inside the cargo space.
There is a danger of your hand be-
ing caught and injured.
200401
