12-8 Specifications

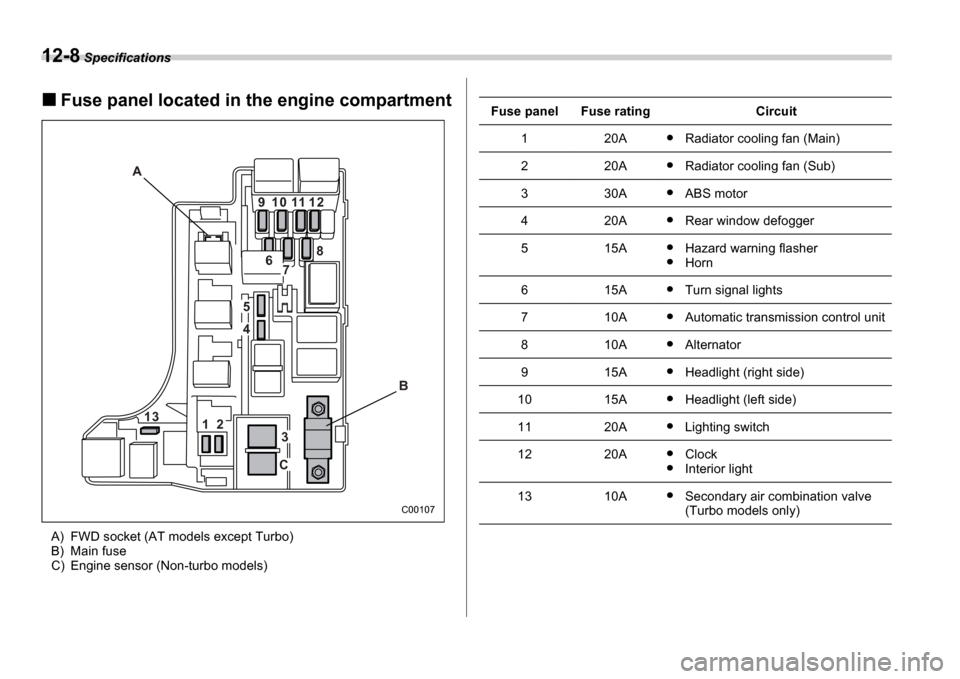

Fuse panel located in the engine compartment
A) FWD socket (AT models except Turbo)
B) Main fuse
C) Engine sensor (Non-turbo models)
1 3
A
B
9
6
5
7
C
312
4 8
1 0 11 1 2
C00107
Fuse panelFuse ratingCircuit
120ARadiator cooling fan (Main)
220ARadiator cooling fan (Sub)
330AABS motor
420ARear window defogger
515AHazard warning flasher
Horn
615ATurn signal lights
710AAutomatic transmission control unit
810AAlternator
915AHeadlight (right side)
1015AHeadlight (left side)
1120ALighting switch
1220AClock
Interior light
1310ASecondary air combination valve
(Turbo models only)
