2006 Seat Toledo COMMUNICATION SYSTEM

Communication15
Example for entering a PIN code
A running dialogue can be cancelled at any time with a press of the talk
button .
Note
•If the PIN code is more than 8 digits long, the system will decline and give
the cue .
•If the specified PIN code is incorrect, the system will decline and give the
cue .
•If the wrong PIN code is entered three times, the SIM card will be blocked.
The SIM card can be unblocked with the PUK (personal unblock key). The
personal unblock key (PUK) can only be entered via the phone keypad and
not via the speech control system .
Speech commandConditionSystem cueEffect
ENTER PIN CODEThe SIM card is installed, the tele-
phone is on and fitted to the adapter.Dialogue
for example, ZERO, ONE, TWO, THREEDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command back, delete, or specify additional
digits>Dialogue
STOREDialogue
End of dialogue

Communication
16
Dial number
A telephone number can be vocally specified to the system and then dialled.
– Press the talk button . Activation of the system is confirmed
with by a tone.
– After the tone, say the command DIAL NUMBER.
After this command the system will then request that you specify a telephone
number. A connection will then be established to the specified number. The
telephone number can be specified all at once, in blocks of digits (separated
by a brief pause), or as single digits. You can specify the digits from zero to nine
. After each block of digits you specify (separated by a brief pause) the
system will repeat the digits. The system can only recognise single digits
(two, three, etc.), and not combinations of digits (e.g. twenty-three).
Notes on specifying telephone numbers:•If the telephone number has more than 20 digits, the system will decline
and give the cue .
•A Plus (+) can also be placed ahead of the 20 digits.
Example for entering a telephone number:
A running dialogue can be cancelled at any time with a press of the talk
button .
.
Speech commandConditionSystem cueEffect
DIAL NUMBERPhone switched onDialogue
for example, ZERO, SEVEN, THREE,
ONEDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command correct or specify additional digits>Dialogue
THREE, NINE, TWODialogue
DIALDialogue -The telephone number
0731492 will be dialled
End of dialogue

Communication17
Redial
– Press the talk button .
– After the tone, say the command REDIAL.After giving the command the last number dialled via the hands-free system
will be dialled again.
Example for the REDIAL command:
A running dialogue can be cancelled at any time with a press of the talk
button .
To record names in the phone book
You can store names along with a telephone number in the internal telephone book.
– Press the talk button . The beep tone indicates that the system is ready.
– After the tone, say the command STORE NAME.
After giving the command the system will request you to specify a name and
telephone number to store in the internal telephone book. The telephone book has enough memory for 50 names and numbers. You can specify the
digits from
zero to nine .
The telephone number can be specified all at once, in blocks of digits (sepa-
rated by a brief pause), or as single digits. After each block of digits you
specify (separated by a brief pause) the system will repeat the digits. The
system can only recognise single digits (two, three, etc.), and not combina-
tions of digits (e.g. twenty-three).
Say STORE to store the entry into the telephone book.
.
Speech commandConditionSystem cueEffect
REDIALPhone switched onDialogue
End of dialogue

.
Speech commandConditionSystem cueEffect
STORE NAMETelephone book is not fullDialogue
COMPANY XYZDialogue

Communication
18
A running dialogue can be cancelled at any time with a press of the talk
button .
Note
•If the telephone number has more than 20 digits, the system will decline
and give the cue .
•A Plus (+) can also be placed ahead of the 20 digits.
•Say the command Delete or Back to delete or correct the corresponding
block of digits.
•Say Repeat to have all the digits that have been recognised up to that
point repeated.
•If two or more names sound alike, it is better to save the names including
the first name or some other distinguishing entry.
•A running dialogue can be cancelled at any time with a press of the talk
button .
•The telephone book works only in conjunction with the hands-free speech
control system; the entries are not stored on the phone's SIM card.
COMPANY XYZDialogue
ZERO, ONE, TWO, THREEDialogue
FOUR, FIVE, SIXDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command back, delete, or specify additional
digits>Dialogue
STOREDialogue - The name COMPANY XYZ
with the telephone number 0123456
will be stored
End of dialogue

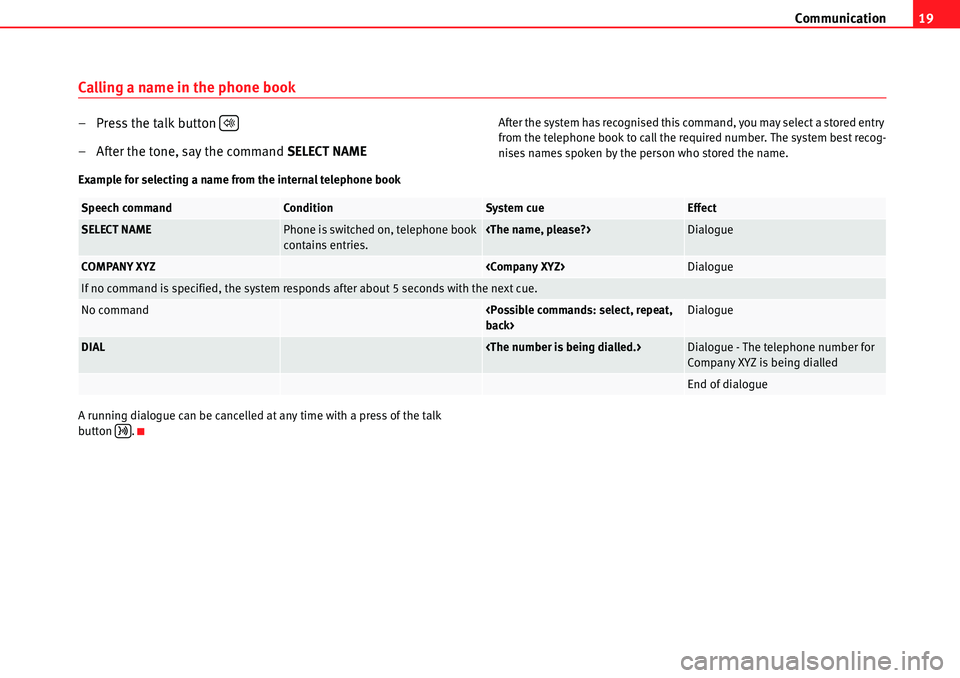

Communication19
Calling a name in the phone book
– Press the talk button
– After the tone, say the command SELECT NAMEAfter the system has recognised this command, you may select a stored entry
from the telephone book to call the required number. The system best recog-
nises names spoken by the person who stored the name.
Example for selecting a name from the internal telephone book
A running dialogue can be cancelled at any time with a press of the talk
button ..
Speech commandConditionSystem cueEffect
SELECT NAMEPhone is switched on, telephone book
contains entries.Dialogue
COMPANY XYZDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command back>Dialogue
DIALDialogue - The telephone number for
Company XYZ is being dialled
End of dialogue

Communication
20
Listening to the phone book
You can have the entries stored in the internal telephone book read out to you.
– Press the talk button . The beep tone indicates that the
system is ready.
– Say the command PLAY PHONE BOOK.After giving the command the system will read out the entries stored in the
phone book. Press the talk button as an entry is being read to dial the
telephone number for that entry. Once the dialogue is complete and the
system is reactivated, you can also select an entry to call by specifying the
stored name.
Example for the PLAY PHONE BOOK command:
Example for selecting an entry:
To erase names from the phone book
You can delete entries from the internal telephone book.
– Press the talk button . The beep tone indicates that the system is ready.
– After the tone, say the command DELETE NAME.After giving this command you can delete a stored entry from the internal tele-
phone book.
.
Speech commandConditionSystem cueEffect
PLAY PHONE BOOKThe telephone book contains entries.The telephone book will then be read
out.
End of dialogue
Speech commandConditionSystem cueEffect
PLAY PHONE BOOKThe telephone book contains entries;
the talk button is pressed as the
entry is being read out.The selected name will be repeated.
The telephone number will be dialled.
End of dialogue

.

Communication21
Example for deleting single names from the internal telephone book:
A running dialogue can be cancelled at any time with a press of the talk
button .
Note
•Say the command Repeat, if you would like to have the specified name
repeated by the system.
•If you then say No, the system will answer with and the dialogue
will be ended.
To erase the phone book
You can delete the entire phone book or single entries.
– Press the talk button .
– After the tone, say the command DELETE PHONE BOOK.
After giving this command you can delete the entire internal phone book or
single entries as desired.
Speech commandConditionSystem cueEffect
DELETE NAMEThe telephone book contains entries.Dialogue
COMPANY XYZ pany XYZ?>Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.Dialogue
No command back>Dialogue
YESDialogue
End of dialogue

.

Communication
22
Example for deleting the entire internal telephone book:
Example for deleting single names from the internal telephone book:
Speech commandConditionSystem cueEffect
DELETE PHONE BOOKThe telephone book contains entries. phone book?>Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.Dialogue
No commandDialogue
YESDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.Dialogue
No commandDialogue
YESAll entries in the phone book will be
deleted.
End of dialogue
Speech commandConditionSystem cueEffect
DELETE PHONE BOOKThe telephone book contains entries. phone book?>Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.Dialogue
No commandDialogue
NOThe telephone book will then be read
out.
No commandTalk button pressed as the entry to
be deleted is read out. (name)?>Dialogue
If no command is specified, the system responds after about 5 seconds with the next cue.Dialogue
