2006 Seat Ibiza 5D Owner's manual

If and when215
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Xenon headlights
10)
Dipped beam 12V/35W (D1S)
11)
Full beam 12V/55W (H7)
Turn signals 12V/PY21W
Position lights 12V/W5W
Fog lights*
Fog lights 12V/55W (H3)
Registration plate light
Registration plate light - C5W
Caution
•
The halogen lamps (H3, H7...) are pressurised and might explode on
changing them.
•
Therefore protective gloves and glasses should be worn when changing a
halogen lamp.Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, we shall explain how to change these
lamps, except for the xenon lights*.
Main headlight lamps
Dipped headlights
Main beam headlights
10)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.11)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
Fig. 148 Main headlight
lampsFig. 149 Main headlight
lamps
AAAB
ibiza_angles_0706_DEF Seite 215 Freitag, 1. September 2006 1:18 13

If and when
216
Side lights
Indicator lights
Dipped headlight lamp
–Raise the bonnet.
– Remove the loops ⇒fig. 150 outwards in the direction of the
arrow and remove the cover.
– Remove the lamp cable connector ⇒fig. 151 .
– Undo the retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the connector.
– Fit the plastic cover and replace the loops ⇒fig. 150.
– Check the headlight adjustment.
ACAD
Fig. 150 Dipped head-
light lamp
Fig. 151 Dipped head-
light lamp
A2
AA
A2
ibiza_angles_0706_DEF Seite 216 Freitag, 1. September 2006 1:18 13

If and when217
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

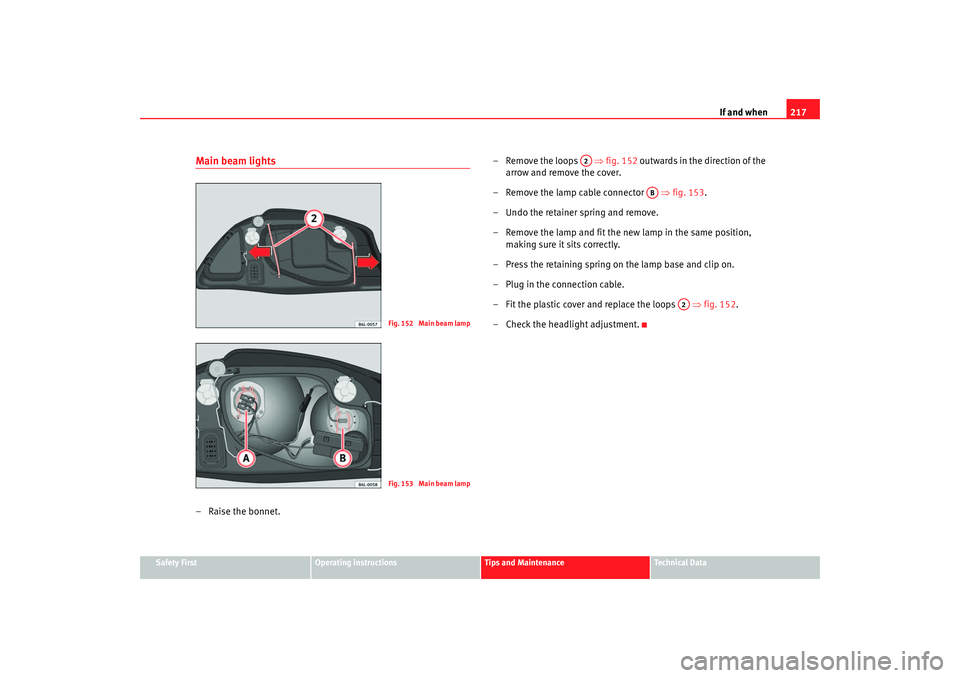

Main beam lights–Raise the bonnet. – Remove the loops
⇒fig. 152 outwards in the direction of the
arrow and remove the cover.
– Remove the lamp cable connector ⇒fig. 153.
– Undo the retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the connection cable.
– Fit the plastic cover and replace the loops ⇒fig. 152 .
– Check the headlight adjustment.
Fig. 152 Main beam lampFig. 153 Main beam lamp
A2
AB
A2
ibiza_angles_0706_DEF Seite 217 Freitag, 1. September 2006 1:18 13

If and when
218Side beam lights– Raise the bonnet. – Remove the loops
⇒fig. 154 in the direction of the arrow and
remove the cover.
– Pull on the cables to release the lamp holder from the casing ⇒fig. 155.
–Pull on the lamp and replace.
– To assemble proceed in reverse order.
– Fit the plastic cover and secure the loop.
Fig. 154 Side lightsFig. 155 Side lights
A1
AC
ibiza_angles_0706_DEF Seite 218 Freitag, 1. September 2006 1:18 13

If and when219
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Turn indicator lamps–Raise the bonnet. – Remove the loops
⇒fig. 156 in the direction of the arrow and
remove the cover.
– Turn the lamp holder to the left and remove it from the casing ⇒fig. 157 .
– Installation is done in the reverse order.
– Fit the plastic cover and secure the loop.
Fig. 156 Indicator lightsFig. 157 Indicator lights
A1
AD
ibiza_angles_0706_DEF Seite 219 Freitag, 1. September 2006 1:18 13

If and when
220Fog lights– Remove the grille, taking out the bolt ⇒fig. 158, carefully
pull the grille on the side of the screw and release the cover. – Undo the two fastening bolts
⇒fig. 158 and when released
unplug the connector.
– Release the headlight cover.
– Unplug the lamp cable.
– Undo the lamp retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the lamp cable.
– The assembly of the cover and the headlamp is carried out in reverse order.
Fig. 158 Fog lightsFig. 159 Fog lights
AA
AF
ibiza_angles_0706_DEF Seite 220 Freitag, 1. September 2006 1:18 13

If and when221
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Side indicator lamps– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First fit the indicator in the opening in the chassis, fastening the tabs ⇒fig. 160 , and then fit in the lamp as shown by the
arrow ⇒fig. 160.
Rear lights on the tailgate: Accessing the rear lightsSide light 1/ Fog light/ reverse light
–Open the tailgate.
Fig. 160 Side indicators
A1A2
Fig. 161 Rear light on
tailgateFig. 162 Rear light on
tailgate
ibiza_angles_0706_DEF Seite 221 Freitag, 1. September 2006 1:18 13

If and when
222
– Remove the plastic cover ⇒page 221, fig. 161 and the
plastic caps ⇒page 221, fig. 161 carefully levering with the
flat part of a screwdriver and taking special care not to scratch
the paintwork.
– Extract the bolts ⇒page 221, fig. 162 and disconnect the
connector.
– Remove the rear light from its housing.Rear lights on the tailgate: Accessing the lamp
Side light 1/ Fog light/ reverse light
– Unscrew the bolts ⇒fig. 164 and take the lamp holder out.
– Press and rotate the large lamp holder to the left. For the small lamp, rotate and extract the lamp holder and pull on the lamp.
– Remove lamp and replace.
– Fit the lamp holder and fit.
– Fit the caps and the plastic cover ⇒fig. 163.
NoteEnsure that all of the joints, sealing components and the plastic caps are
correctly fitted.
AA
AB
AC
Fig. 163 Rear light on
tailgate
Fig. 164 Access to the
lamp
AD
AB
AA
AB
