Unlocking and locking 94
WARNING
•Never leave children or disabled persons in the vehicle; in case of emer-
gency they may not be able to leave the vehicle or look after themselves.
•Always take you car keys with you when you leave the vehicle . Misuse
of the keys, for example, by children, may result in serious damage and
accident.
−The engine may accidentally be started and be out of control.
−If the ignition is switched on, the electric equipment could be acti-
vated with risk of injury, for example, in the electric windows.
−The doors can be locked using the remote control key. This could
result in people being trapped in the vehicle in an emergency.
−Always take the key with you when you leave the vehicle.
•Never remove the key from the ignition if the vehicle is in motion. Risk
of accident. The steering lock could engage suddenly, and you would not be
able to steer the vehicle.
Note
•An Authorised SEAT Service Centre can programme the individual
opening of doors. In this case, when the unlock button on the remote
control is pressed once, only the driver's door is unlocked Ÿpage 88. When
the button is pressed once more, all doors and the tailgate will be unlocked.
Seat Service will be happy to provide more information on the activation of
this function.
•The remote control transmitter and the batteries are integrated in the
remote control. The receiver is in the interior of the vehicle. Obstacles
between the remote control and the vehicle, bad weather conditions and
discharged batteries can considerably reduce the range of the remote control
.
•The remote control only locks and unlocks the vehicle when it is used
within range.
•The vehicle will be locked again automatically if you do not open one of
the doors or the tailgate 30 seconds after unlocking the car. This function
prevents the vehicle from remaining unlocked if the unlocking button is
pressed by mistake.
•If it is not possible to open or close the vehicle using the remote control,
this should be re-synchronised Ÿpage 94 or change the battery Ÿpage 95.
•The working of the remote control may be momentarily affected if there is
transmitter using the same waveband (e.g. radiotelephone, mobile tele-
phone, etc) in the vicinity of the vehicle.
Synchronising the remote control key
Synchronising the remote control key
– Briefly press the open button Ÿpage 93, fig. 61 once.
– Then open or close the vehicle using the key bit within one
minute Ÿpage 88.
The vehicle can no longer be opened and closed with the remote control if you
press button Ÿpage 93, fig. 61 a long way outside the effective range
of the radio wave remote control. The remote control key will have to be resyn-
chronised.
Spare remote control keys are available from SEAT Service. They must be
matched to the locking system.
Up to four remote control keys can be used.0
0A1
0A1

Unlocking and locking95
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Replacing the battery
If the battery indicator on the remote control Ÿpage 93, fig. 61 does not
flash when the buttons are pushed, the battery must be replaced.
We recommend having the batteries changed by a qualified workshop if
required.
Caution
Use of inappropriate batteries may damage the remote control. For this
reason, always replace the dead battery with another of the same size and
power.
For the sake of the environment
The flat batteries must be disposed of in accordance with regulations
governing the protection of the environment.
Anti-theft alarm system
Description of anti-theft alarm system
The anti-theft alarm triggers an alarm if unauthorised move-
ments are detected around the vehicle.
Activating the anti-theft alarm
– Blocking the engine.
Deactivating the alarm
– Unblock the vehicle using the unlock button on the remote
control or switch on ignition.
Opening the doors mechanically (emergency opening)
– If the remote control function fails, you will have to use the key to
unlock the car. This is done as follows:
A4
Fig. 62 Interior moni-
toring system sensor

Unlocking and locking 96
– Press button Ÿpage 93, fig. 61 to fold out the key bit.
– Use the lock on the driver door to unlock the vehicle. The anti-
theft alarm system remains active, but an alarm is not triggered
immediately.
– Switch on the ignition within 15 seconds. When the ignition is
switched on, the electronic immobiliser recognises a valid
vehicle key and deactivates the anti-theft alarm system. If you do
not switch on the ignition within 15 seconds, the alarm is trig-
gered.
The anti-theft alarm makes it more difficult to break into the vehicle or steal
it. Audible and visible alarms 13) are triggered if the car is opened using the
mechanical key, or if unauthorised access is gained to the vehicle.
When does the system trigger an alarm?
The system triggers an alarm if the following unauthorised actions are carried
out when the car is locked:
•Opening of vehicle using mechanical key without switching on ignition
within the next 15 seconds
•Opening a door
•Opening the bonnet
•Opening the tailgate
•Switching on the ignition
•Movement inside the vehicle (in vehicles with interior monitoring).
The horn sounds and the indicators flash for approx. 30 seconds.Interior monitoring system
The sensors for the interior monitoring system are located at the top of the
door post between the front and rear door Ÿpage 95, fig. 62 . The sensors
must not be covered, as they will otherwise not be able to function properly.
The windows must be closed when the interior monitoring system is active as
the anti-theft alarm could be triggered by a draft of air.
Note
•If, after the alarm goes off, access is gained to a second secured zone
(e.g. the tailgate is opened after a door has been opened), the warning signal
is triggered again.
•Vehicle monitoring remains active even if the battery is disconnected or
not working for any reason.
13)Optional equipment
A3

Unlocking and locking97
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a

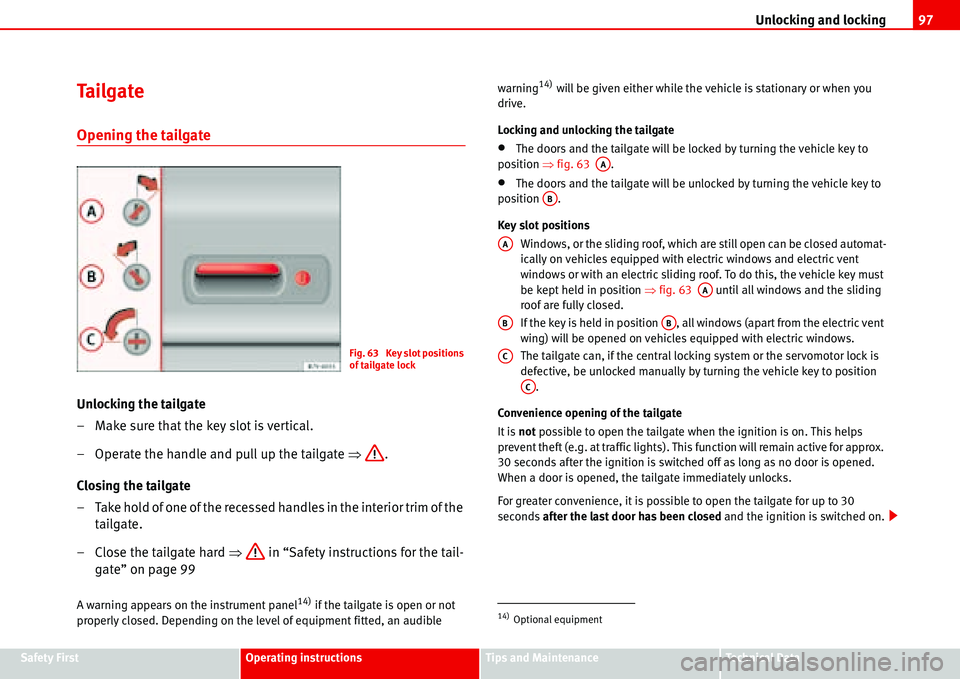

Ta i l g a t e
Opening the tailgate
Unlocking the tailgate
– Make sure that the key slot is vertical.
– Operate the handle and pull up the tailgate Ÿ.
Closing the tailgate
– Take hold of one of the recessed handles in the interior trim of the
tailgate.
–Close the tailgate hard Ÿ in “Safety instructions for the tail-
gate” on page 99
A warning appears on the instrument panel14) if the tailgate is open or not
properly closed. Depending on the level of equipment fitted, an audible warning
14) will be given either while the vehicle is stationary or when you
drive.
Locking and unlocking the tailgate
•The doors and the tailgate will be locked by turning the vehicle key to
position Ÿfig. 63 .
•The doors and the tailgate will be unlocked by turning the vehicle key to
position .
Key slot positions
Windows, or the sliding roof, which are still open can be closed automat-
ically on vehicles equipped with electric windows and electric vent
windows or with an electric sliding roof. To do this, the vehicle key must
be kept held in position Ÿfig. 63 until all windows and the sliding
roof are fully closed.
If the key is held in position , all windows (apart from the electric vent
wing) will be opened on vehicles equipped with electric windows.
The tailgate can, if the central locking system or the servomotor lock is
defective, be unlocked manually by turning the vehicle key to position
.
Convenience opening of the tailgate
It is not possible to open the tailgate when the ignition is on. This helps
prevent theft (e.g. at traffic lights). This function will remain active for approx.
30 seconds after the ignition is switched off as long as no door is opened.
When a door is opened, the tailgate immediately unlocks.
For greater convenience, it is possible to open the tailgate for up to 30
seconds after the last door has been closed and the ignition is switched on.
Fig. 63 Key slot positions
of tailgate lock
14)Optional equipment
AA
AB
AA
AA
ABAB
AC
AC

Unlocking and locking 98
Driving with the tailgate open
If the tailgate is open or incorrectly closed, the following warning may be
appear on the display
14). Please note that theft of your cargo is more likely if
the tailgate is open.
WARNING
If you have to drive with the tailgate open, please observe the following
warnings:
•Observe the following points to reduce the danger of poisoning from
exhaust fumes entering the vehicle interior:
−Close all windows.
−Close the sliding/tilting roof,
−Switch off air recirculation.
−Open the air outlets in the dash panel,
−Set the fresh air blower to the highest speed.
•Drive particularly carefully and think ahead. If possible, avoid sudden
braking and driving manoeuvres as this could cause the open tailgate to
move unpredictably. Risk of injury.
•When carrying objects that protrude from the boot, the correct signals
should be used; otherwise there is a risk of accident. Observe legal require-
ments when doing so.
•Always secure objects in the boot. Loose items could fall out of the
vehicle and injure other road users.
•If a baggage rack is fitted on the tailgate, it should be removed before
travelling with the tailgate open.
•Read and always observe the safety information concerning the use of
the tailgate Ÿpage 99.
Closing the tailgate
Before closing the tailgate, make sure that the key has not been left
inside the boot.
Closing the tailgate
– Take hold of the grip in the inside trim of the tailgate Ÿ and
pull the tailgate down.
– Pull hard.
A display appears in the combi-instrument panel if the tailgate is not properly
closed15).
WARNING
Always close the tailgate properly. Risk of accident or injury.
•Do not close the tailgate by pushing it down with your hand on the
window. The glass could shatter. Risk of injury!
•Ensure the tailgate is locked after closing. If not, it may open unexpect-
edly while driving.
•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year. This could cause serious injuries/illness. It could even
have fatal consequences. Close and lock both the tailgate and all the other
doors when you are not using the vehicle.
•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and others. Make sure that no
one is in the path of the tailgate.
15)Optional equipment

Unlocking and locking 100
Windows
Opening and closing the windows electrically
All electric windows can be operated using the controls in the
driver door. The other doors each have a switch for their own
window.
Opening and closing the windows
– Press button Ÿfig. 64 , , or to open the corre-
sponding window.
– Pull button to close a window Ÿ.
Always close the windows fully if you park the vehicle or leave it unattended
Ÿ.You can use the electric windows for approx. 10 minutes after switching off
the ignition if neither the driver door nor the front passenger door has been
opened.
Buttons in the driver door
Button for the left front door window with one-touch opening and closing
Ÿpage 101
Button for the right front door window with one-touch opening and
closing Ÿpage 101
Safety switch
16) for deactivating the electric window buttons in the rear
doors
Button for window in rear left door
16)
Button for window in rear right door16)
Safety switch 1
Safety switch Ÿfig. 64 in the driver door can be used to disable the elec-
tric window buttons in the rear doors.
Safety switch not pushed in: the buttons in the rear doors are enabled.
Safety switch pushed in: the buttons in the rear doors are disabled.
WARNING
Incorrect use of the electric windows can result in injury.
•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and others. Make sure that no
one is in the path of a window.
•Always take the vehicle key with you when you leave the vehicle.
•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Misuse of the keys, for example, by children,
may result in serious damage and accident.
−The engine may accidentally be started and be out of control.
Fig. 64 Detail of the
driver door: front and rear
electric window controls
A1A2A4A5
0
16)Optional equipment
A1
A2
A3
A4
A5
A3

Unlocking and locking101
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a −If the ignition is switched on, the electric equipment could be acti-
vated with risk of injury, for example, in the electric windows.
−The doors can be locked using the remote control key. This could
result in people being trapped in the vehicle in an emergency.
−Always take the key with you when you leave the vehicle.
•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.
•If necessary, use the safety switch to disable the rear electric windows.
Make sure that they have been disabled.
Note
If the window is not able to close because it is stiff or because of an obstruc-
tion, the window will automatically open again Ÿpage 102. If this happens,
check why the window could not be closed before attempting to close it
again.
One-touch closing and opening
One-touch opening and closing means you do not have to
hold down the button.
The one-touch closing and opening of the electric windows can only
be controlled with the switches on the driver's door. The buttons
Ÿpage 100, fig. 64 and have two levels for opening the
front windows and two for closing. This makes it easier to open or
close windows to the desired position.One-touch closing
– Pull up the button for the window briefly to the second position.
The window closes fully.
One-touch opening
– Push down the button for the window briefly to the second posi-
tion. The window opens fully.
Restoring one-touch opening and closing
– The one-touch opening and closing function is not active after
the vehicle battery has been disconnected or is empty and will
have to be reset.
– Close all windows and doors.
– Use the key to lock the vehicle from outside and hold the key in
the lock position for at least one second. The one-touch function
is now ready for operation.
If you push (or pull) a button to the first stage, the window will open (or close)
until you release the button. If you push or lift the button briefly to the second
stage, the window will open (one-touch opening) or close (one-touch closing)
automatically. If you operate the button while the window is opening or
closing, it stops at this position.
The one-touch opening and closing function will not function once the igni-
tion has been switched off.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.
WARNING (continued)
A1A2

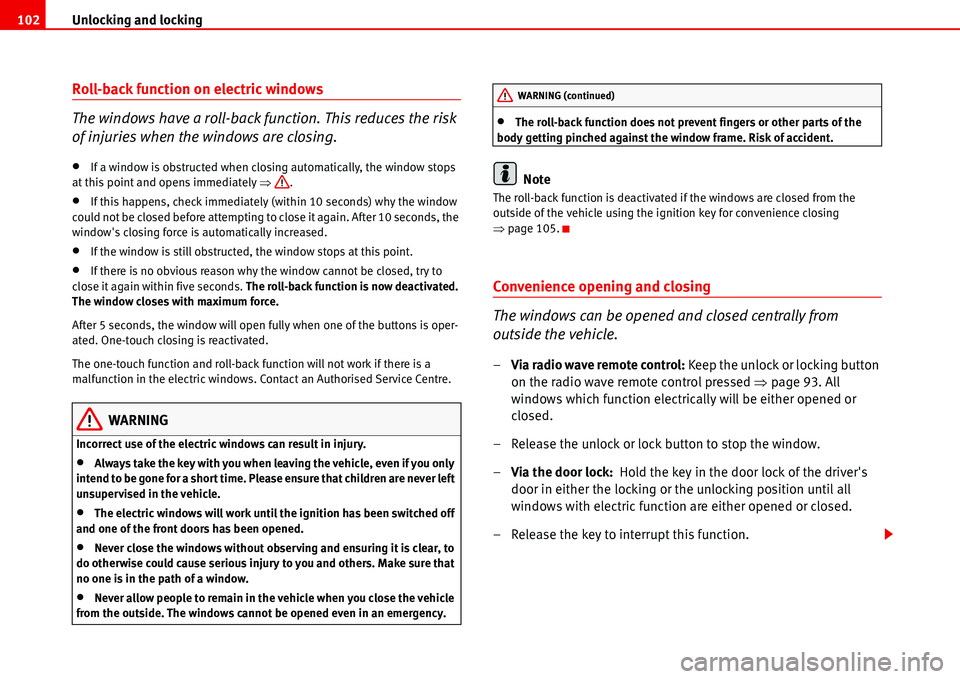

Unlocking and locking 102
Roll-back function on electric windows
The windows have a roll-back function. This reduces the risk
of injuries when the windows are closing.
•If a window is obstructed when closing automatically, the window stops
at this point and opens immediately Ÿ.
•If this happens, check immediately (within 10 seconds) why the window
could not be closed before attempting to close it again. After 10 seconds, the
window's closing force is automatically increased.
•If the window is still obstructed, the window stops at this point.
•If there is no obvious reason why the window cannot be closed, try to
close it again within five seconds. The roll-back function is now deactivated.
The window closes with maximum force.
After 5 seconds, the window will open fully when one of the buttons is oper-
ated. One-touch closing is reactivated.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.
WARNING
Incorrect use of the electric windows can result in injury.
•Always take the key with you when leaving the vehicle, even if you only
intend to be gone for a short time. Please ensure that children are never left
unsupervised in the vehicle.
•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.
•Never close the windows without observing and ensuring it is clear, to
do otherwise could cause serious injury to you and others. Make sure that
no one is in the path of a window.
•Never allow people to remain in the vehicle when you close the vehicle
from the outside. The windows cannot be opened even in an emergency.
•The roll-back function does not prevent fingers or other parts of the
body getting pinched against the window frame. Risk of accident.
Note
The roll-back function is deactivated if the windows are closed from the
outside of the vehicle using the ignition key for convenience closing
Ÿpage 105.
Convenience opening and closing
The windows can be opened and closed centrally from
outside the vehicle.
–Via radio wave remote control: Keep the unlock or locking button
on the radio wave remote control pressed Ÿ page 93. All
windows which function electrically will be either opened or
closed.
– Release the unlock or lock button to stop the window.
–Via the door lock: Hold the key in the door lock of the driver's
door in either the locking or the unlocking position until all
windows with electric function are either opened or closed.
– Release the key to interrupt this function.
WARNING (continued)
