2006 PONTIAC VIBE windshield wipers

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-6
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-7
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-8
Windshield Washer.........................................3-9
Rear Window Wiper/Washer...........................3-10
Cruise Control..............................................3-10
Exterior Lamps.............................................3-13
Headlamps on Reminder................................3-14
Daytime Running Lamps (DRL).......................3-14
Automatic Headlamp System..........................3-14
Fog Lamps..................................................3-15
Instrument Panel Brightness...........................3-15
Interior Lamps Control...................................3-15
Entry Lighting...............................................3-16
Reading Lamps............................................3-16
Accessory Power Outlet(s).............................3-16
Power Outlet 115 Volt Alternating Current........3-17
Ashtray(s) and Cigarette Lighter......................3-18Climate Controls............................................3-18
Climate Control System.................................3-18
Outlet Adjustment.........................................3-21
Passenger Compartment Air Filter...................3-22
Warning Lights, Gages, and Indicators............3-24
Instrument Panel Cluster................................3-25
Speedometer and Odometer...........................3-26
Trip Odometers............................................3-26
Tachometer.................................................3-27
Safety Belt Reminder Light.............................3-27
Airbag Readiness Light..................................3-28
Passenger Airbag Status Indicator...................3-29
Charging System Light..................................3-31
Brake System Warning Light..........................3-32
Anti-Lock Brake System Warning Light.............3-33
Low Tire Pressure Warning Light....................3-33
Traction Control System (TCS)
Warning Light...........................................3-34
StabiliTrak
®Indicator Light..............................3-34
Engine Coolant Temperature Gage..................3-35
Malfunction Indicator Lamp.............................3-35
Oil Pressure Light.........................................3-38
Lights On Reminder......................................3-39
Taillamp Indicator Light..................................3-39
Cruise Control Light......................................3-39
Section 3 Instrument Panel
3-1

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-21.
B. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-25.
C. Climate Control System. SeeClimate Control
System on page 3-18.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.
E. Audio System. SeeAudio System(s) on page 3-42.
F. Rear Window Defogger Button. See “Rear Window
Defogger” underClimate Control System on
page 3-18.
G. Passenger Airbag Status Indicator. SeePassenger
Airbag Status Indicator on page 3-29. Front
Passenger Safety Belt Reminder Light. SeeSafety
Belt Reminder Light on page 3-27.
H. Power Remote Control Mirror Button. SeeOutside
Remote Control Mirrors on page 2-31.
I. Instrument Panel Brightness Control. SeeInstrument
Panel Brightness on page 3-15.
J. Rear Liftglass Release Button. SeeLiftgate/Liftglass
on page 2-9.
K. Tire Pressure Monitor Reset Button. SeeTire
Pressure Monitor System on page 5-60.
L. Coinholder. SeeCoinholder(s) on page 2-34.
M. TRAC OFF Button. SeeTraction Control System
(TCS) on page 4-9.N. Content Theft-Deterrent Security Light. SeeContent
Theft-Deterrent on page 2-12.
O. Storage Compartment. SeeInstrument Panel
Storage Area on page 2-34.
P. Turn Signal/Multifunction Lever and Exterior Lamp
Stalk. SeeTurn Signal/Multifunction Lever on
page 3-7andExterior Lamps on page 3-13.
Q. Hood Release. SeeHood Release on page 5-11.
R. Tilt Lever. SeeTilt Wheel on page 3-6.
S. Horn. SeeHorn on page 3-6.
T. Cruise Control Lever (Option). SeeCruise Control
on page 3-10.
U. Ignition Switch. SeeIgnition Positions on page 2-15.
V. Windshield Wiper Lever. SeeWindshield Wipers
on page 3-8.
W. Cigarette Lighter or Accessory Power Outlet. See
Ashtray(s) and Cigarette Lighter on page 3-18
orAccessory Power Outlet(s) on page 3-16.
X. Shift Lever. SeeAutomatic Transaxle Operation on
page 2-18.
Y. Power Outlet. SeePower Outlet 115 Volt Alternating
Current on page 3-17.
Z. Parking Brake. SeeParking Brake on page 2-24.
AA. Center Console Storage Area. SeeCenter Console
Storage Area on page 2-34.
AB. Glove Box. SeeGlove Box on page 2-34.
3-5

Headlamp High/Low-Beam Changer
The headlamps must be on for this feature to work.
For high beams, push the turn signal lever away
from you.
When the high beams are
on, this light on the
instrument panel cluster
also will be on.
It will go off when you switch to the low beams. To
switch back to low beams, pull the lever toward you.
Flash-to-Pass
With the lever in the low-beam position, pull the lever
toward you to momentarily switch to high beams
(to signal that you are going to pass). If you have the
headlamps on when you release the lever, they will
return to the low beams.
Windshield Wipers
The lever on the right side of the steering column
controls the windshield wipers and washer.
The available positions are the following:
MIST:For a single wiping cycle, move the lever to
MIST. Hold it there until the wipers start, then let go. The
wipers will stop after one wipe.
OFF:The wipers are off.
3-8

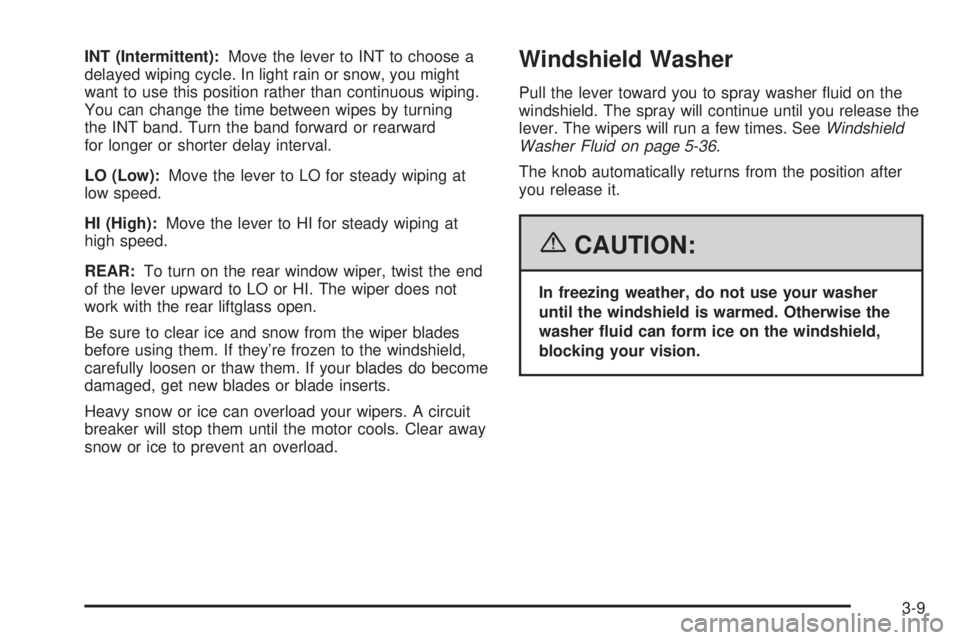

INT (Intermittent):Move the lever to INT to choose a
delayed wiping cycle. In light rain or snow, you might
want to use this position rather than continuous wiping.
You can change the time between wipes by turning
the INT band. Turn the band forward or rearward
for longer or shorter delay interval.
LO (Low):Move the lever to LO for steady wiping at
low speed.
HI (High):Move the lever to HI for steady wiping at
high speed.
REAR:To turn on the rear window wiper, twist the end
of the lever upward to LO or HI. The wiper does not
work with the rear liftglass open.
Be sure to clear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
carefully loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers. A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.Windshield Washer
Pull the lever toward you to spray washer uid on the
windshield. The spray will continue until you release the
lever. The wipers will run a few times. SeeWindshield
Washer Fluid on page 5-36.
The knob automatically returns from the position after
you release it.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
3-9

Instrument Panel Fuse Block
The fuse block is located underneath the instrument
panel on the driver’s side of the vehicle.
Fuses Usage
TAILFront Parking Lamps, Taillamps,
License Plate Lamps, Instrument
Panel Lights, Engine Control System
OBD On-Board Diagnostic System
Empty Not Used
P/W Power Windows
WIPER Windshield Wipers
AM2Charging System, Air Bag System,
Starter System, Engine Control
STOPStop Lamps, CHMSL, Engine
Control System, Anti-lock Brakes,
Cruise Control
DOOR Power Door Locks, Liftglass Lock
AM1Cigarette Lighter, Gauge, ECU-IG,
Wiper, Rear Wiper, Washer Fuses
5-92

Windshield
Backglass, and Wiper Blades, Cleaning..........5-86
Washer........................................................ 3-9
Washer Fluid..............................................5-36
Wiper Blade Replacement.............................5-51
Wiper Fuses...............................................5-90
Wipers......................................................... 3-8
Windshield, Rear Washer/Wiper........................3-10
Winter Driving................................................4-26X
XM™ Satellite Radio Antenna System................3-78
Y
Your Vehicle and the Environment....................... 6-2
