2006 PONTIAC VIBE Owners Manual

{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward,
it could seriously injure you. Safety belts help
keep you in position for airbag ination before
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults,
CAUTION: (Continued)
CAUTION: (Continued)
but not for young children and infants. Neither
the vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-26orInfants and
Young Children on page 1-28.
There is an airbag
readiness light on the
instrument panel, which
shows the airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-28
for more information.
1-51

Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
1-52

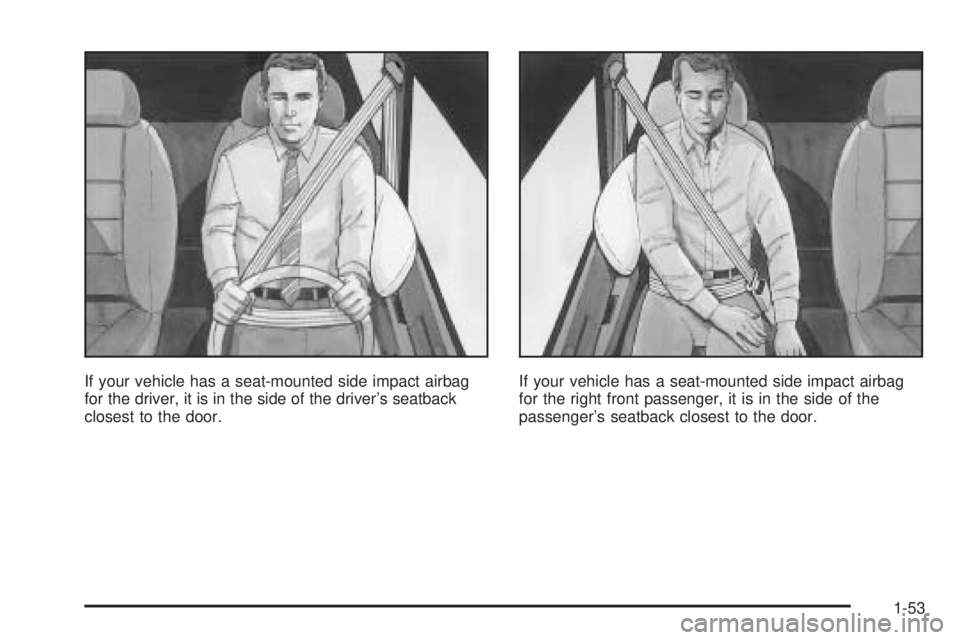

If your vehicle has a seat-mounted side impact airbag
for the driver, it is in the side of the driver’s seatback
closest to the door.If your vehicle has a seat-mounted side impact airbag
for the right front passenger, it is in the side of the
passenger’s seatback closest to the door.
1-53

If your vehicle has a roof-mounted side impact airbag
for the driver and the passenger seated directly
behind the driver, it is in the ceiling above the side
windows.If your vehicle has a roof-mounted side impact airbag
for the right front passenger and the passenger
seated directly behind that passenger, it is in the ceiling
above the side windows.
1-54

{CAUTION:
If something is between an occupant and an
airbag, the airbag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. If your vehicle has
roof-mounted side impact airbags, never secure
anything to the roof of your vehicle by routing
the rope or tie-down through any door or
window opening. If you do, the path of an
inating airbag will be blocked. Do not let seat
covers block the ination path of a side impact
airbag. The path of an inating airbag must be
kept clear.
When Should an Airbag Inate?
The driver’s and right front passenger’s frontal airbags
are designed to inate in moderate to severe frontal
or near-frontal crashes. But they are designed to inate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to inate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with electronic frontal sensors,
which help the sensing system distinguish between a
moderate frontal impact and a more severe frontal
impact. For moderate frontal impacts, these airbags
inate at a level less than full deployment. For more
severe frontal impacts, full deployment occurs.
1-55

Frontal airbags may inate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could inate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole) the
airbags could inate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbags could inate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags for the driver and right front
passenger may also deploy if a serious impact occurs to
the underside of your vehicle such as hitting a curb,
falling into a deep hole, or landing hard.
The frontal airbags (driver and right front passenger)
are not intended to inate during vehicle rollovers,
rear impacts, or in many side impacts.The side impact airbags are intended to inate in
moderate to severe side crashes. A side impact airbag
will inate if the crash severity is above the system’s
designed “threshold level.” The threshold level can vary
with specic vehicle design. Side impact airbags are
not intended to inate in frontal or near-frontal impacts,
rollovers or rear impacts. Your vehicle has sensors
which detect side impacts. These sensors signal
the appropriate side airbag to inate. A side impact
airbag is intended to deploy on the side of the vehicle
that is struck.
It is possible that, in a crash involving the front of your
vehicle, only one of the two frontal airbags in your vehicle
will deploy. This is rare, but it can happen in a crash just
severe enough to make a frontal airbag inate.
In any particular crash, no one can say whether an
airbag should have inated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, ination is determined by
what the vehicle hits, the angle of the impact, and
how quickly the vehicle slows down in frontal and
near-frontal impacts. For side impact airbags, ination is
determined by the location and severity of the impact.
1-56

What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash.
The sensing system triggers a release of gas from the
inator, which inates the airbag. The inator, airbag and
related hardware are all part of the airbag modules.
Frontal airbag modules are located inside the steering
wheel and the instrument panel. For vehicles with
seat-mounted side impact airbags, there are also airbag
modules in the side of the front seatbacks closest to
the door. For vehicles with roof-mounted side impact
airbags, there are also airbag modules in the ceiling of
the vehicle, near the side window.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. Airbags supplement the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But a
frontal airbag would not help you in many types of
collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward a frontal airbag. A side impact airbag
would not help you in many types of collisions,
including many frontal or near frontal collisions, and rear
impacts, primarily because an occupant’s motion is
not toward a side airbag. Airbags should never be
regarded as anything more than a supplement to safety
belts, and then only in moderate to severe frontal or
near-frontal collisions for frontal airbags, and only
in moderate to severe side collisions for side impact
airbags.
1-57

What Will You See After an
Airbag Inates?
After the frontal airbags and seat-mounted side impact
airbags inate, they quickly deate, so quickly that
some people may not even realize the airbags inated.
Roof-mounted side impact airbags deate more
slowly and may still be at least partially inated minutes
after the vehicle comes to rest. Some components of
the airbag module — the steering wheel hub for
the driver’s airbag, the instrument panel for the right
front passenger’s bag, the side of the seatback closest
to the door for the seat-mounted side impact airbags
(if equipped) and the area along the ceiling of your
vehicle near the side windows for the roof–mounted side
impact airbags (if equipped) — may be hot for a short
time. The parts of the bag that come into contact
with you may be warm, but not too hot to touch.
There will be some smoke and dust coming from the
vents in the deated airbags. Airbag ination does
not prevent the driver from seeing out of the windshield
or being able to steer the vehicle, nor does it stop
people from leaving the vehicle.
{CAUTION:
When an airbag inates, there is dust in the air.
This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in the
vehicle should get out as soon as it is safe to
do so. If you have breathing problems but
cannot get out of the vehicle after an airbag
inates, then get fresh air by opening a window
or a door. If you experience breathing problems
following an airbag deployment, you should
seek medical attention.
1-58
