2006 PONTIAC TORRENT Owners Manual

Center Console Storage Area
Your vehicle has a center console armrest with storage
area. Use the lever on the front of the console to
open it. There is a removable coinholder and tissue
holder inside. The coinholder can be removed by
pulling it up from the console.
Luggage Carrier
{CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier — like paneling, plywood, a mattress
and so forth — the wind can catch it as you
drive along. This can cause you to lose
control. What you are carrying could be
violently torn off, and this could cause you or
other drivers to have a collision, and of course
damage your vehicle. You may be able to carry
something like this inside. But, never carry
something longer or wider than the luggage
carrier on top of your vehicle.A luggage carrier allows you to load things on top of
your vehicle. The luggage carrier has side rails attached
to the roof, sliding crossrails (if equipped) and places
to use for tying things down. These let you load
some things on top of your vehicle, as long as they
are not wider or longer than the luggage carrier.
The roof rack crossrails lock in any position along the
straight section of the side rail.
Press the levers down until the locking mechanisms
fully engage to the side rail. Make sure each lever is
in the down position. The crossrail will not slide
when properly engaged.
2-35

To reposition the crossrail, pull up on the end levers
on each side of the crossrail to the upright position.
This will release the locking mechanism from the
siderail. Lift and place the crossrail into the new position.
Press the levers down until the locking mechanisms
fully engage to the side rail. Make sure each lever is
in the down position. The crossrail will not slide
when properly engaged.
Notice:Loading cargo on the luggage carrier
that weighs more than 220 lbs (100 kg) or
hangs over the rear or sides of the vehicle may
damage your vehicle. When loading cargo,
tie it to the crossrail and against the siderail.Lock the crossrails to the far forward and backward
location to make sure the load is evenly distributed
on the luggage carrier.
Do not stand on the plastic lower body panel when
loading cargo on the luggage carrier.
Loading cargo on the luggage carrier will make the
center of vehicle gravity higher. Avoid high speeds,
sudden starts, sharp turns, sudden braking or abrupt
maneuvers. This could result in loss of control of
the vehicle.
Do not exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, seeLoading Your Vehicle on
page 4-31
To prevent damage or loss of cargo as you are driving,
check now and then to make sure the luggage carrier
crossrails are locked and cargo is still securely fastened.
When the luggage carrier is not in use, store the
crossrail inside the vehicle. If not possible, lock one
crossrail at the rear most position on the siderails and
lock the other crossrail above the opening of the
rear door to reduce wind noise.
2-36

Rear Compartment Storage
Panel/Cover
Your vehicle may be equipped with an adjustable
panel/cargo cover feature. The panel/cargo cover
can be adjusted into three positions.
There is a ip panel towards the front of the cargo
cover. You may have to ip this panel upward in
order to gain access to the cargo cover.To use the panel in the lower position, do the following:
1. Insert the front corners of the panel into the
lower guides.
2. Slide the panel forward.
3. Press down on the back of the panel to lock it
in place.
The panel can be used in this position if you need
additional space above the panel. Place the cargo
on top of the panel in this position.
2-37

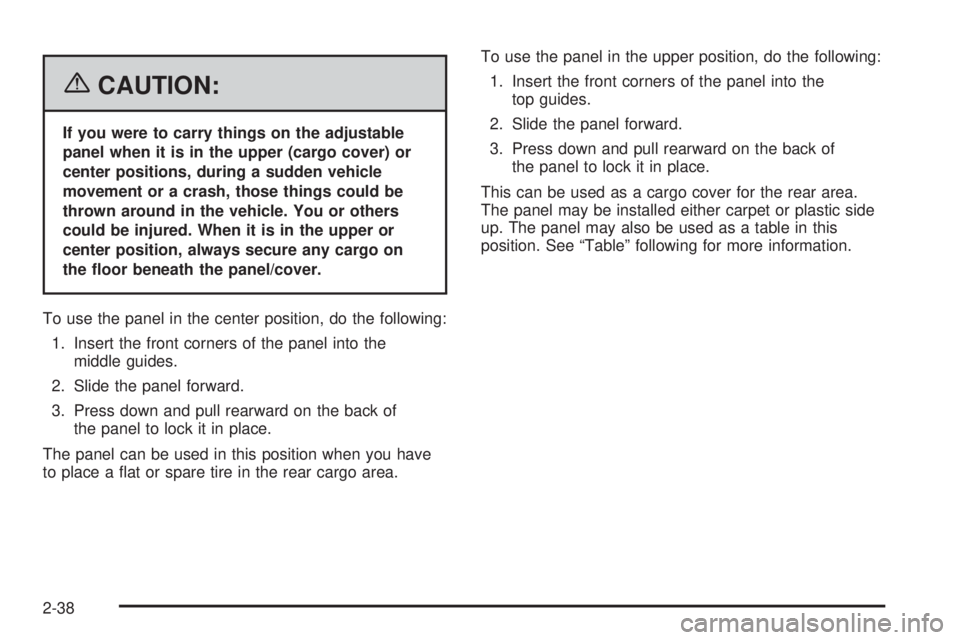

{CAUTION:
If you were to carry things on the adjustable
panel when it is in the upper (cargo cover) or
center positions, during a sudden vehicle
movement or a crash, those things could be
thrown around in the vehicle. You or others
could be injured. When it is in the upper or
center position, always secure any cargo on
the oor beneath the panel/cover.
To use the panel in the center position, do the following:
1. Insert the front corners of the panel into the
middle guides.
2. Slide the panel forward.
3. Press down and pull rearward on the back of
the panel to lock it in place.
The panel can be used in this position when you have
to place a at or spare tire in the rear cargo area.To use the panel in the upper position, do the following:
1. Insert the front corners of the panel into the
top guides.
2. Slide the panel forward.
3. Press down and pull rearward on the back of
the panel to lock it in place.
This can be used as a cargo cover for the rear area.
The panel may be installed either carpet or plastic side
up. The panel may also be used as a table in this
position. See “Table” following for more information.
2-38

Table
Your vehicle may have an adjustable panel that also
functions as a table. The maximum load for the table
is 100 lbs. distributed (45 kg).To set up the table, do the following:
1. With the adjustable panel in the upper position
pull rearward to position it for use as a table.
The plastic side should be up.
2. Rotate the knob to release the leg from the plastic
side of the table and rotate the leg outward.
3. Set the table leg onto the liftgate lock striker at
the rear edge of the vehicle.
Make sure to place the table leg securely onto the
liftgate lock striker.
Notice:Driving with the panel extended into
the table position could damage your vehicle.
Always have the panel in the stored position
while you are driving.
Notice:Placing hot items on the surface of the
table could damage it. Always be sure that the
items that are placed on the surface of the table
are of moderate temperature.
There are four hooks located on the table that can
be used for grocery bags.
2-39

Convenience Net
Your vehicle may have a rear compartment net
to prevent items from rolling under the rear seat.
There may also be four convenience net tie-downs.
Two tie-downs are located on the side trim just
behind the rear seat and the other two are located
on the oor at the rear of the cargo area.
Sunroof
If the vehicle has an express-open sunroof, the controls
to operate it are located on the headliner above the
rearview mirror. The ignition must be in RUN or ACC
to operate the sunroof.To express-open the
sunroof glass panel and
sunshade, press the switch
rearward and release it.
To stop the sunroof before it is completely open, press
the switch rearward again. The sunshade cannot be
closed with the sunroof open. To close the sunroof,
press forward and hold the switch until the sunroof
stops, lifts and seals at the back of the sunroof glass.
To put the sunroof in the vent position, pull down on the
front of the switch. Push up on the front of the switch
to close it.
2-40

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-8
Windshield Washer.......................................3-10
Rear Window Wiper/Washer...........................3-10
Cruise Control..............................................3-11
Headlamps..................................................3-14
Headlamps on Reminder................................3-14
Daytime Running Lamps (DRL).......................3-14
Automatic Headlamp System..........................3-15
Fog Lamps..................................................3-15
Instrument Panel Brightness...........................3-16
Dome Lamp.................................................3-16
Entry Lighting...............................................3-17
Map Lamps.................................................3-17
Cargo Lamp.................................................3-17
Battery Run-Down Protection..........................3-18
Accessory Power Outlet(s).............................3-18
Ashtray(s) and Cigarette Lighter......................3-19Climate Controls............................................3-19
Climate Control System.................................3-19
Outlet Adjustment.........................................3-22
Passenger Compartment Air Filter...................3-22
Warning Lights, Gages, and Indicators............3-23
Instrument Panel Cluster................................3-24
Speedometer and Odometer...........................3-25
Trip Odometer..............................................3-25
Tachometer.................................................3-25
Safety Belt Reminder Light.............................3-26
Airbag Readiness Light..................................3-26
Battery Warning Light....................................3-27
Brake System Warning Light..........................3-28
Anti-Lock Brake System Warning Light.............3-29
Traction Control System (TCS) Warning Light . . .3-30
Low Traction Light........................................3-30
Engine Coolant Temperature Warning Light......3-31
Engine Coolant Temperature Gage..................3-31
Malfunction Indicator Lamp.............................3-32
Oil Pressure Light.........................................3-35
Change Engine Oil Light................................3-36
Security Light...............................................3-36
Reduced Engine Power Light.........................3-36
Highbeam On Light.......................................3-37
Daytime Running Lamps (DRL)
Indicator Light...........................................3-37
Section 3 Instrument Panel
3-1

Gate Ajar Light.............................................3-37
Fuel Gage...................................................3-37
Low Fuel Warning Light.................................3-38
Audio System(s).............................................3-38
Setting the Time...........................................3-40
Radio with CD (Base Level)...........................3-40
Radio with CD (MP3)....................................3-50
Radio with Six-Disc CD.................................3-65Theft-Deterrent Feature..................................3-79
Audio Steering Wheel Controls.......................3-79
Radio Reception...........................................3-80
Care of Your CDs.........................................3-80
Care of the CD Player...................................3-81
Fixed Mast Antenna......................................3-81
XM™ Satellite Radio Antenna System.............3-81
Chime Level Adjustment................................3-81
Section 3 Instrument Panel
3-2
