Fuses Usage
12 Emission
13 Air Conditioning Clutch
14 Oxygen Sensor
15 Powertrain Control Module
16Powertrain Control Module/Electronic
Throttle Control
17 Electronic Throttle Control
18 Display
19 Anti-lock Brake Solenoid
20 Fuel Injection
21 Transmission Solenoid
22 Fuel Pump
23 Anti-lock Brakes
24 Electronic Ignition
26 Battery Main 1
27 Battery Main 2
28 Battery Main 3
29 Fan 1
30 Battery Main 4
31 Anti-lock Brake Motor
32 Fan 2
33 Starter
56 Air PumpRelays Usage
34 High-Beam Headlamps
35 Low-Beam Headlamps
36 Fog Lamps (Option)
37 Ignition 1
38 Air Conditioner Compressor
39 Horn
40 Powertrain
41 Fuel Pump
42 Fan 1
43 Fan 3
44 Windshield Wiper/High
45 Windshield Wiper
46 Fan 2
48 Crank
49 Spare Fuse
50 Spare Fuse
51 Spare Fuse
52 Blank
53 Blank
54 Blank
55 Fuse Puller
§Air Conditioning Clutch
5-115

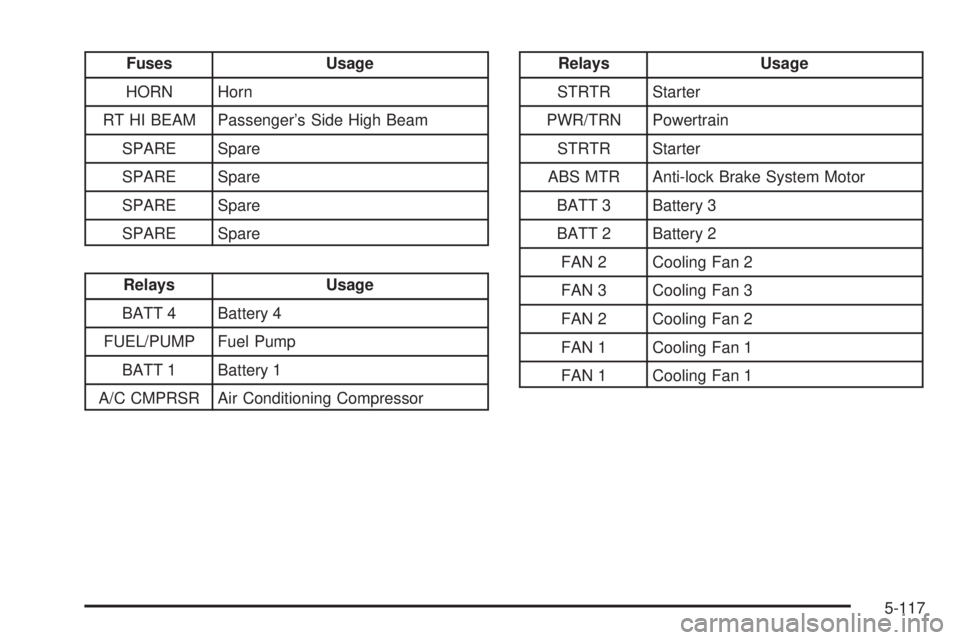

Fuses Usage
HORN Horn
RT HI BEAM Passenger’s Side High Beam
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
Relays Usage
BATT 4 Battery 4
FUEL/PUMP Fuel Pump
BATT 1 Battery 1
A/C CMPRSR Air Conditioning Compressor
Relays Usage
STRTR Starter
PWR/TRN Powertrain
STRTR Starter
ABS MTR Anti-lock Brake System Motor
BATT 3 Battery 3
BATT 2 Battery 2
FAN 2 Cooling Fan 2
FAN 3 Cooling Fan 3
FAN 2 Cooling Fan 2
FAN 1 Cooling Fan 1
FAN 1 Cooling Fan 1
5-117
