2006 Peugeot 407 Owner's Manual

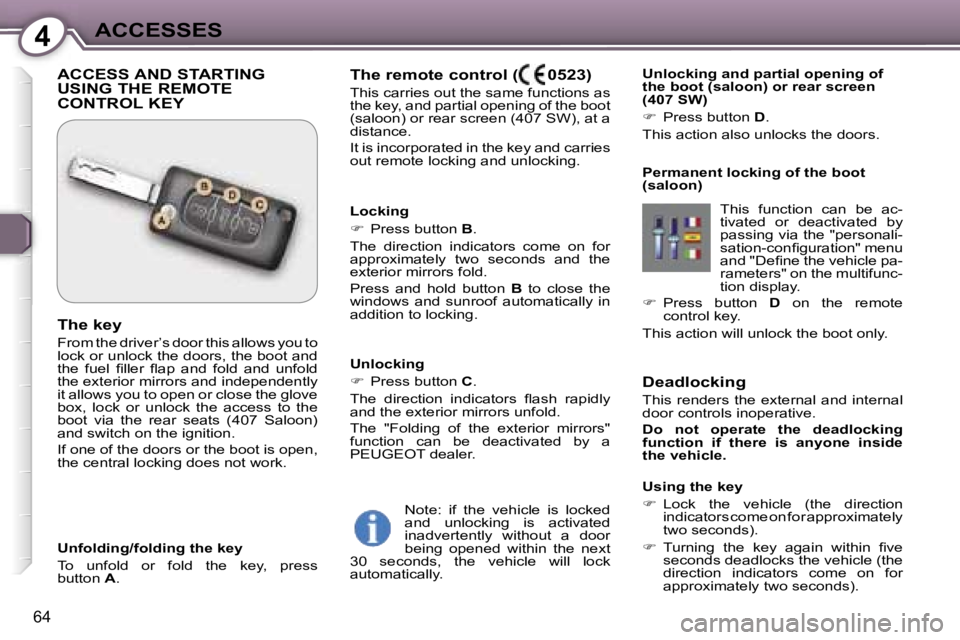

4ACCESSES
64
Deadlocking
This renders the external and internal
door controls inoperative.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
ACCESS AND STARTING
USING THE REMOTE
CONTROL KEY
The key
From the driver’s door this allows you to
lock or unlock the doors, the boot and
the fuel filler flap and fold and unfold
the exterior mirrors and independently
it allows you to open or close the glove
box, lock or unlock the access to the
boot via the rear seats (407 Saloon)
and switch on the ignition.
If one of the doors or the boot is open,
the central locking does not work.Unlocking

Press button C.
The direction indicators flash rapidly
and the exterior mirrors unfold.
The "Folding of the exterior mirrors"
function can be deactivated by a
PEUGEOT dealer.
Unfolding/folding the key
To unfold or fold the key, press
button A.
The remote control ( 0523)
This carries out the same functions as
the key, and partial opening of the boot
(saloon) or rear screen (407 SW), at a
distance.
It is incorporated in the key and carries
out remote locking and unlocking.
Locking
 Press button B.
The direction indicators come on for
approximately two seconds and the
exterior mirrors fold.
Press and hold button B to close the
windows and sunroof automatically in
addition to locking. Unlocking and partial opening of
the boot (saloon) or rear screen
(407 SW)

Press button D.
This action also unlocks the doors.
Permanent locking of the boot
(saloon)
This function can be ac-
tivated or deactivated by
passing via the "personali-
sation-configuration" menu
and "Define the vehicle pa-
rameters" on the multifunc-
tion display.
 Press button D on the remote
control key.
This action will unlock the boot only.
Using the key
 Lock the vehicle (the direction
indicators come on for approximately
two seconds).
 Turning the key again within five
seconds deadlocks the vehicle (the
direction indicators come on for
approximately two seconds).
Note: if the vehicle is locked
and unlocking is activated
inadvertently without a door
being opened within the next
30 seconds, the vehicle will lock
automatically.

4ACCESSES
65

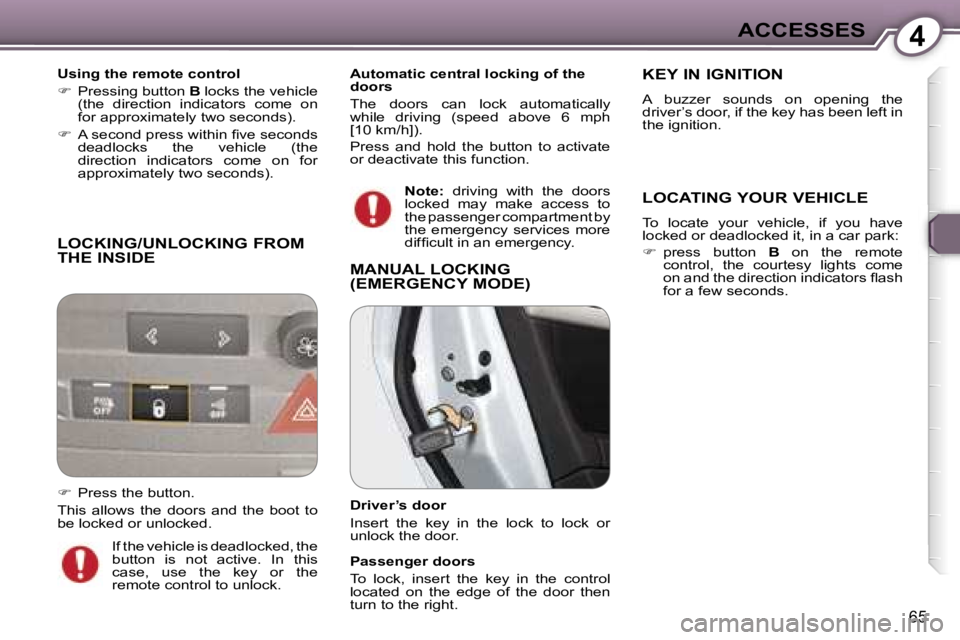

LOCKING/UNLOCKING FROM
THE INSIDE
Using the remote control
 Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
 A second press within five seconds
deadlocks the vehicle (the
direction indicators come on for
approximately two seconds).
MANUAL LOCKING
(EMERGENCY MODE)
Automatic central locking of the
doors
The doors can lock automatically
while driving (speed above 6 mph
[10 km/h]).
Press and hold the button to activate
or deactivate this function.KEY IN IGNITION
A buzzer sounds on opening the
driver’s door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
 press button B on the remote
control, the courtesy lights come
on and the direction indicators flash
for a few seconds.
Note:
driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
difficult in an emergency.
If the vehicle is deadlocked, the
button is not active. In this
case, use the key or the
remote control to unlock.

Press the button.
This allows the doors and the boot to
be locked or unlocked. Driver’s door
Insert the key in the lock to lock or
unlock the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.

4ACCESSES
66

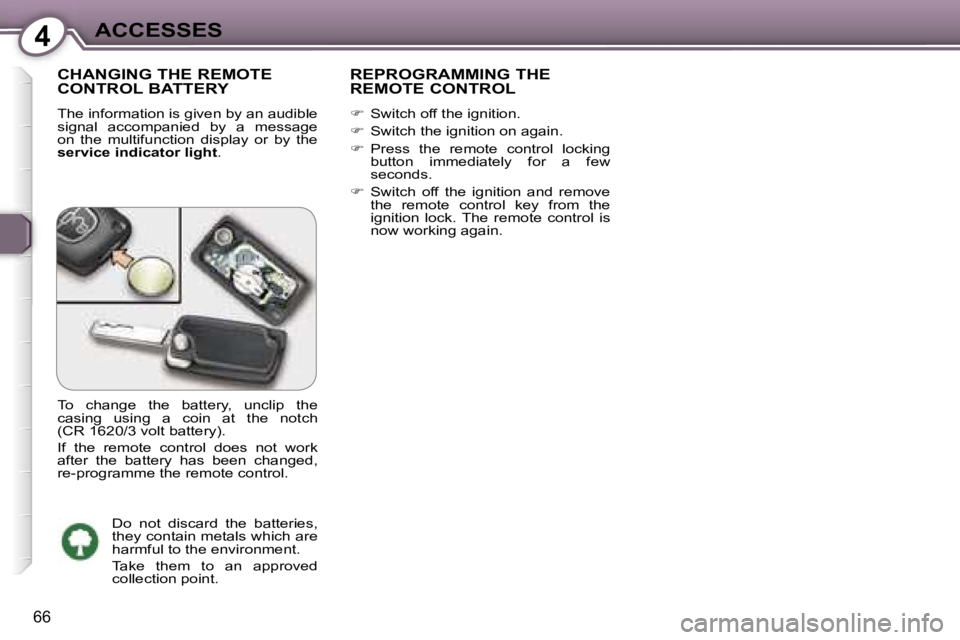

CHANGING THE REMOTE
CONTROL BATTERY
The information is given by an audible
signal accompanied by a message
on the multifunction display or by the
service indicator light.
REPROGRAMMING THE
REMOTE CONTROL
 Switch off the ignition.
 Switch the ignition on again.
 Press the remote control locking
button immediately for a few
seconds.
 Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control is
now working again.
To change the battery, unclip the
casing using a coin at the notch
(CR 1620/3 volt battery).
If the remote control does not work
after the battery has been changed,
re-programme the remote control. Do not discard the batteries,
they contain metals which are
harmful to the environment.
Take them to an approved
collection point.

4ACCESSES
67

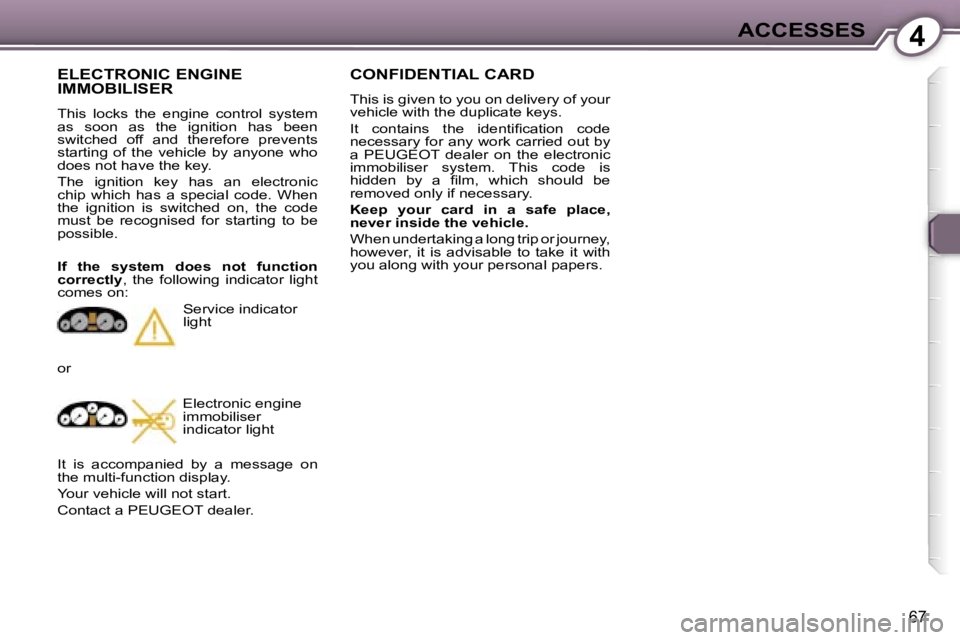

CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code
necessary for any work carried out by
a PEUGEOT dealer on the electronic
immobiliser system. This code is
hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with
you along with your personal papers.
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
If the system does not function
correctly, the following indicator light
comes on:
Service indicator
light
Electronic engine
immobiliser
indicator light
or
It is accompanied by a message on
the multi-function display.
Your vehicle will not start.
Contact a PEUGEOT dealer.

4ACCESSES
68
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not
operate it while it is in your pocket
as there is a possibility that it may
unlock your vehicle, without you
being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle. Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more difficult in an
emergency.
As a safety precaution (with children
on board), remove the ignition key
when you leave the vehicle, even
for a short time.
Do not repeatedly press the button
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle:
- ensure that you are given the
confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Do not make any modifications to
the electronic engine immobiliser
system.

4ACCESSES
65
LOCKING/UNLOCKING FROM
THE INSIDE
Using the remote control
 Pressing button B locks the vehicle
(the direction indicators come on
for approximately two seconds).
 A second press within five seconds
deadlocks the vehicle (the
direction indicators come on for
approximately two seconds).
MANUAL LOCKING
(EMERGENCY MODE)
Automatic central locking of the
doors
The doors can lock automatically
while driving (speed above 6 mph
[10 km/h]).
Press and hold the button to activate
or deactivate this function.KEY IN IGNITION
A buzzer sounds on opening the
driver’s door, if the key has been left in
the ignition.
LOCATING YOUR VEHICLE
To locate your vehicle, if you have
locked or deadlocked it, in a car park:
 press button B on the remote
control, the courtesy lights come
on and the direction indicators flash
for a few seconds.
Note:
driving with the doors
locked may make access to
the passenger compartment by
the emergency services more
difficult in an emergency.
If the vehicle is deadlocked, the
button is not active. In this
case, use the key or the
remote control to unlock.

Press the button.
This allows the doors and the boot to
be locked or unlocked. Driver’s door
Insert the key in the lock to lock or
unlock the door.
Passenger doors
To lock, insert the key in the control
located on the edge of the door then
turn to the right.

4ACCESSES
67
CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code
necessary for any work carried out by
a PEUGEOT dealer on the electronic
immobiliser system. This code is
hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with
you along with your personal papers.
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system
as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
If the system does not function
correctly, the following indicator light
comes on:
Service indicator
light
Electronic engine
immobiliser
indicator light
or
It is accompanied by a message on
the multi-function display.
Your vehicle will not start.
Contact a PEUGEOT dealer.

4ACCESSES
68
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not
operate it while it is in your pocket
as there is a possibility that it may
unlock your vehicle, without you
being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle. Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more difficult in an
emergency.
As a safety precaution (with children
on board), remove the ignition key
when you leave the vehicle, even
for a short time.
Do not repeatedly press the button
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle:
- ensure that you are given the
confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Do not make any modifications to
the electronic engine immobiliser
system.
