2006 PEUGEOT 206 Owners Manual

57
-Audio equipment and telematics
Services*
Press button E to dis-play the "Services"menu and select one of the following services:
Emergency call*
In an emergency, press but-ton V until a signal is heard and a call validation/deletion screen is displayed (delay of 6 seconds) or enter 112 di-rectly.
Make an emergency call if you are involved in a situa-tion which leads you to fear serious consequences (injuries, ...) for those who are exposed to it (if you witness or are involved in an accident result-ing in injuries, an attack, ...).
Before making a call of this kind, the audio/telephone must detect a cellu-lar network.
If you have not signed the specific PEUGEOT contract, the parameters of the SOS button are set so that a call is made to 112 - unique number made available by the worldwide GSM net-work, reserved for emergency calls.
No security mode is required and, depending on the network or country, you do not need to insert your SIM card or enter your PIN.
If you have signed the specific PEUGEOT contract, your call will be located and you will be put in contact with a PEUGEOT assistance team.
For further details, refer to the gen-eral conditions of your contract.
"PEUGEOT Assistance"/Emergency call
During a connection to "PEUGEOT Assistance" or an emergency call, it is not possible to send or receive calls or SMS text messages; these will be transferred to your voice mail.
In this case, a green diode flashes on the RT3 GPS audio/telephone panel, when the emergency call or "PEUGEOT Assistance" call pro-cedure begins, then lights continu-ously when the call is taken by the services concerned.
* If option and service available.
"Customer Contact Centre" which enables you to contact the PEUGEOT Customer Contact Centre directly and access the services offered (this type of call is suspended if an emer-gency or breakown call is made).
"PEUGEOT Assistance" which en-ables you to contact the call centre which controls the PEUGEOT break-down service directly and receive rapid assistance (you have 6 seconds within which to cancel the call when it is made). During the breakdown call phase it is not possible to make any other calls with the exception of emer-gency calls. If you have signed the specific PEUGEOT contract, your call will be located.
"Operator services" which gives access to the list of services spe-cific to your operator (e.g.: customer service, consumption monitoring, news, stock market, weather, travel, games, etc) if they are available.

58 -Audio equipment and telematics
The Directory
General
The directory can contain up to 396 files divided into 4 independent sub-directories ("User 1", "User 2", "User 3" and "User 4").
When the system is delivered, the default current directory is "User 4".
A file can contain:
- an address,- 5 telephone numbers,- 5 e-mails,- a note,- a voice description which can be used for a voice command.The address is entered by indicating the town and the street.
Note: if you enter the address in the absence of the navigation CD ROM, you will not be able to use this ad-dress for navigation.
To modify an existing file, select it us-ing the "Consult or modify a file"function of the "Management of di-rectory files" menu then make the modifications.
Note: when the address is entered, the navigation CD-Rom must be present in order to obtain guidance to this destination.

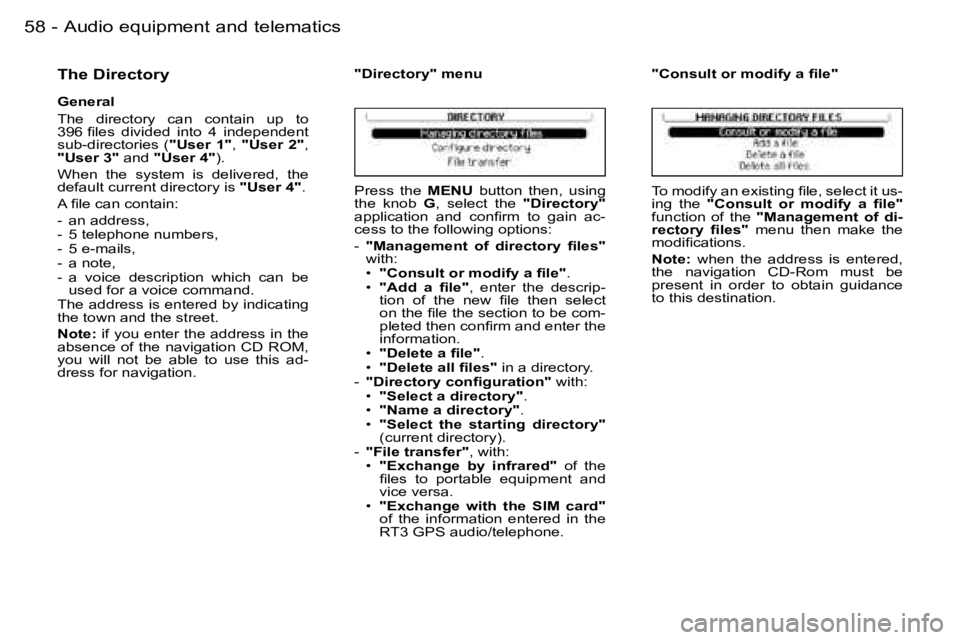

"Directory" menu
Press the MENU button then, using the knob G, select the "Directory"application and confirm to gain ac-cess to the following options:
- "Management of directory files"with:• "Consult or modify a file".• "Add a file", enter the descrip-tion of the new file then select on the file the section to be com-pleted then confirm and enter the information.• "Delete a file".• "Delete all files" in a directory.- "Directory configuration" with:• "Select a directory".• "Name a directory".• "Select the starting directory"(current directory).- "File transfer", with:• "Exchange by infrared" of the files to portable equipment and vice versa.• "Exchange with the SIM card"of the information entered in the RT3 GPS audio/telephone.
"Consult or modify a file"

59
-Audio equipment and telematics
Description of a directory file
When a description is linked to a di-rectory file, you can record the de-scription vocally so that it can be used subsequently for direct access by voice commands (e.g.: "Call""[Name of the voice description]"or "Guide to" "[Name of the voice description]").
Select "Consult or modify the file" from the "Management of directory files" menu to access the screen which permits entering and recording of the description.
TMC (Traffic Message Channel) RDS Traffic Information
You can access information regard-ing the traffic conditions from the "Navigation - Traffic Info" menu, then from the "TMC Traffic Informa-tion" function (see section "Satellite navigation system").

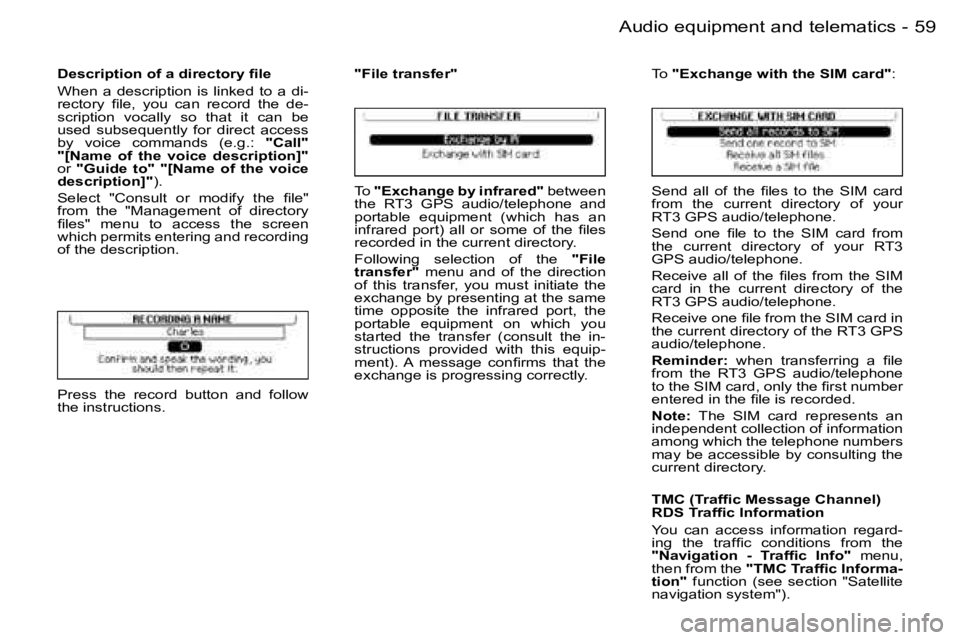

"File transfer"
Press the record button and follow the instructions.
Send all of the files to the SIM card from the current directory of your RT3 GPS audio/telephone.
Send one file to the SIM card from the current directory of your RT3 GPS audio/telephone.
Receive all of the files from the SIM card in the current directory of the RT3 GPS audio/telephone.
Receive one file from the SIM card in the current directory of the RT3 GPS audio/telephone.
Reminder: when transferring a file from the RT3 GPS audio/telephone to the SIM card, only the first number entered in the file is recorded.
Note: The SIM card represents an independent collection of information among which the telephone numbers may be accessible by consulting the current directory.
To "Exchange by infrared" between the RT3 GPS audio/telephone and portable equipment (which has an infrared port) all or some of the files recorded in the current directory.
Following selection of the "File transfer" menu and of the direction of this transfer, you must initiate the exchange by presenting at the same time opposite the infrared port, the portable equipment on which you started the transfer (consult the in-structions provided with this equip-ment). A message confirms that the exchange is progressing correctly.
To "Exchange with the SIM card":

60 -Audio equipment and telematics
VOICE COMMANDS
The voice commands make it pos-sible to use pre-recorded words or phrases to control a certain number of functions of the RT3 GPS audio/telephone.
They are organised in three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes the level 2 com-mands available; when you say a level 2 command, the system makes the level 3 commands available.
Pressing the "MENU" button for more than 2 seconds permits access to the "list of voice commands".

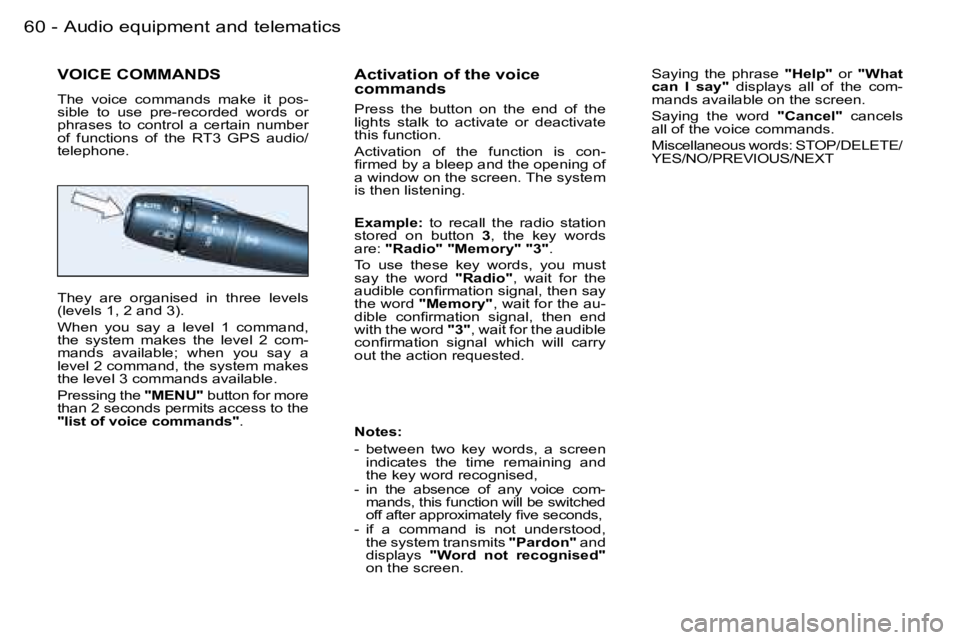

Activation of the voice commands
Press the button on the end of the lights stalk to activate or deactivate this function.
Activation of the function is con-firmed by a bleep and the opening of a window on the screen. The system is then listening.
Example: to recall the radio station stored on button 3, the key words are: "Radio" "Memory" "3".
To use these key words, you must say the word "Radio", wait for the audible confirmation signal, then say the word "Memory", wait for the au-dible confirmation signal, then end with the word "3", wait for the audible confirmation signal which will carry out the action requested.
Saying the phrase "Help" or "What can I say" displays all of the com-mands available on the screen.
Saying the word "Cancel" cancels all of the voice commands.
Miscellaneous words: STOP/DELETE/YES/NO/PREVIOUS/NEXT
Notes:
- between two key words, a screen indicates the time remaining and the key word recognised,- in the absence of any voice com-mands, this function will be switched off after approximately five seconds,- if a command is not understood, the system transmits "Pardon" and displays "Word not recognised"on the screen.

61
-Audio equipment and telematics
Level 1Level 2Level 3
RADIO
PREVIOUS
NEXT
MEMORY1 ... 6
AUTOSTORE
LIST
CD PLAYER
PREVIOUS TRACK
NEXT TRACK
TRACK NUMBER1 ... 20
RANDOM
SCAN
REPEAT
LIST
CHANGER
PREVIOUS TRACK
NEXT TRACK
TRACK NUMBER1 ... 20
PREVIOUS DISC
NEXT DISC
DISC NUMBER1 ... 6
RANDOM
SCAN
REPEAT
LIST
Level 1Level 2Level 3
TELEPHONE
LAST NUMBER
DIRECTORYDESCRIPTION
SERVICES
VOICE BOX
VOICE MAIL
SMS/MESSAGEDISPLAY
READ
TRAFFIC INFODISPLAY
READ
NAVIGATION/GUIDANCE
STOP
RESUME
DIRECTORYDESCRIPTION
ZOOM IN
ZOOM OUT
SHOWDESTINATION
VEHICLE
DISPLAY
AUDIO
TELEPHONE
NAVIGATION
TRIP COMPUTER
GUIDANCE
CALLDESCRIPTION
GUIDE TODESCRIPTION

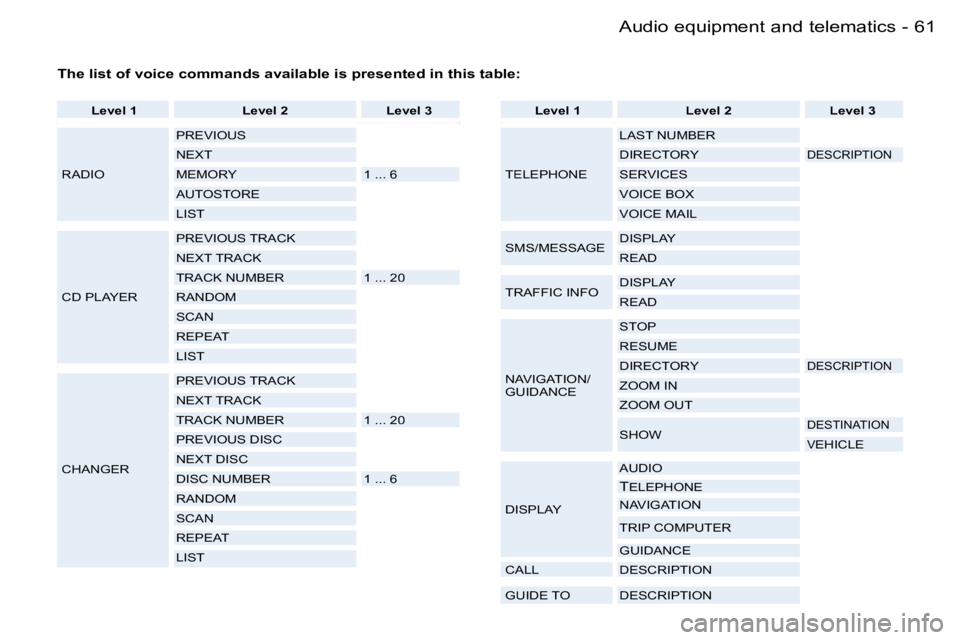

The list of voice commands available is presented in th
is table:

62 -Audio equipment and telematics
SATELLITE NAVIGATION
SYSTEM
Initialisation
When the navigation is used for the first time, or if the battery is discon-nected, the navigation system must be initialised.
To do this, park the vehicle in the open so that it can make contact with a satellite then turn the ignition key to the Running position for fifteen minutes.
Certain functions or services de-scribed may vary depending on the version of CD ROM or the country where the vehicle is sold.
For safety reasons, the in-putting of navigation infor-mation by the driver must be carried out when the vehicle is stationary.

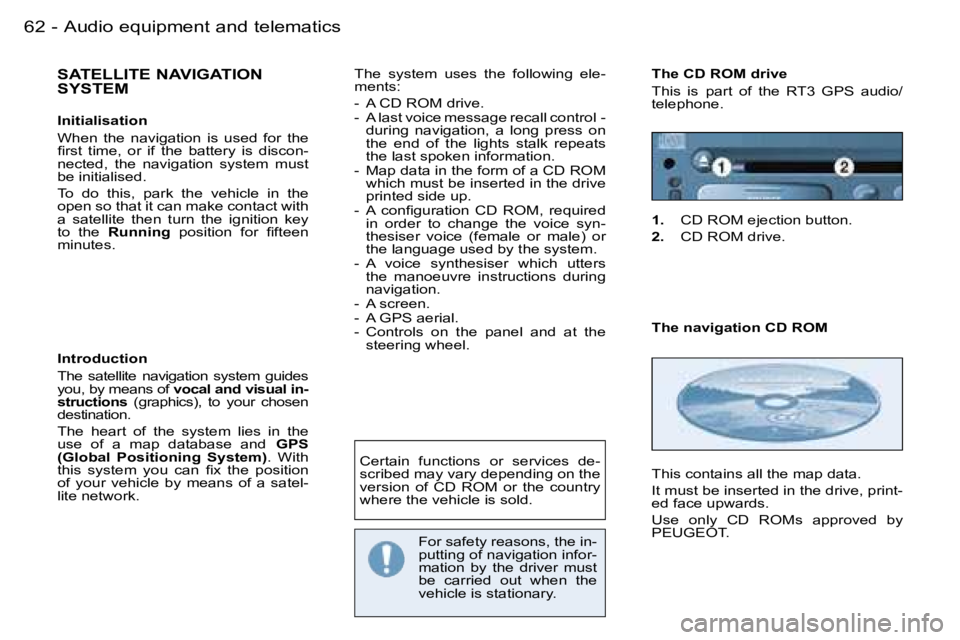

The CD ROM drive
This ispart of the RT3 GPS audio/telephone.
1. CD ROM ejection button.
2. CD ROM drive.
This contains all the map data.
It must be inserted in the drive, print-ed face upwards.
Use only CD ROMs approved by PEUGEOT.
The navigation CD ROM
The system uses the following ele-ments:
- A CD ROM drive.- A last voice message recall control - during navigation, a long press on the end of the lights stalk repeats the last spoken information.- Map data in the form of a CD ROM which must be inserted in the drive printed side up.- A configuration CD ROM, required in order to change the voice syn-thesiser voice (female or male) or the language used by the system.- A voice synthesiser which utters the manoeuvre instructions during navigation.- A screen.- A GPS aerial.- Controls on the panel and at the steering wheel.Introduction
The satellite navigation system guides you, by means of vocal and visual in-structions (graphics), to your chosen destination.
The heart of the system lies in the use of a map database andGPS (Global Positioning System). With this system you can fix the position of your vehicle by means of a satel-lite network.

63
-Audio equipment and telematics

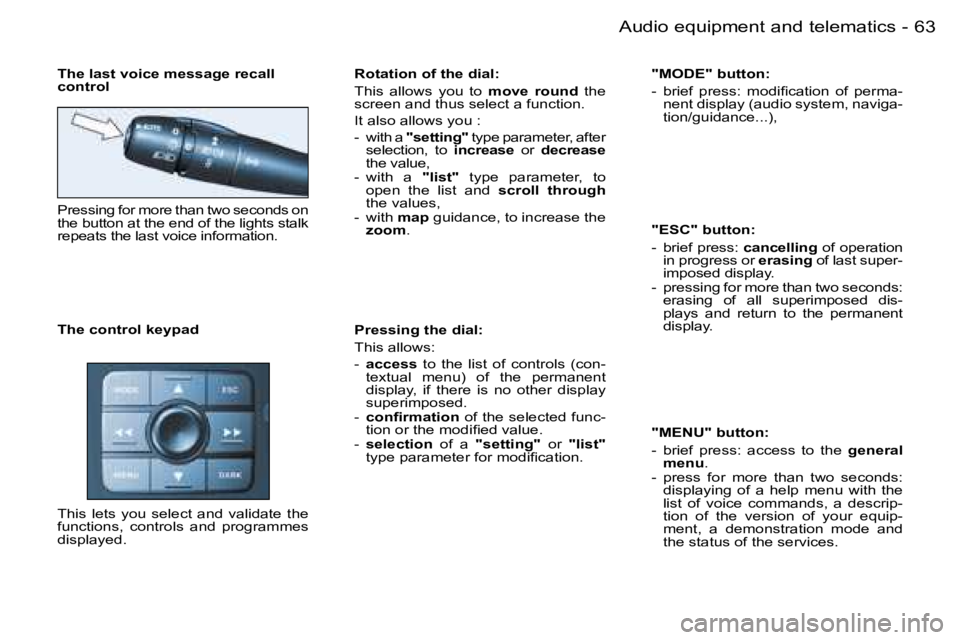

The last voice message recall control
Pressing for more than two seconds on the button at the end of the lights stalk repeats the last voice information.
The control keypad
Rotation of the dial:
This allows you to move round the screen and thus select a function.
It also allows you:
- with a "setting" type parameter, after selection, to increase or decreaseororthe value,- with a "list" type parameter, to open the list and scroll throughthe values,- with map guidance, to increase the zoom.
Pressing the dial:
This allows:
- access to the list of controls (con-textual menu) of the permanent display, if there is no other display superimposed.- confirmation of the selected func-tion or the modified value.- selection of a "setting" or "list" typeparameter for modification.
"MENU" button:
- brief press: access to the general menu.- press for more than two seconds: displaying of a help menu with the list of voice commands, a descrip-tion of the version of your equip-ment, a demonstration mode and the status of the services.
"MODE" button:
- brief press: modification of perma-nent display (audio system, naviga-tion/guidance...),
"ESC" button:
- brief press: cancelling of operation in progress or erasing of last super-imposed display.- pressing for more than two seconds: erasing of all superimposed dis-plays and return to the permanent display.
This lets you select and validate the functions, controls and programmes displayed.

64 -Audio equipment and telematics

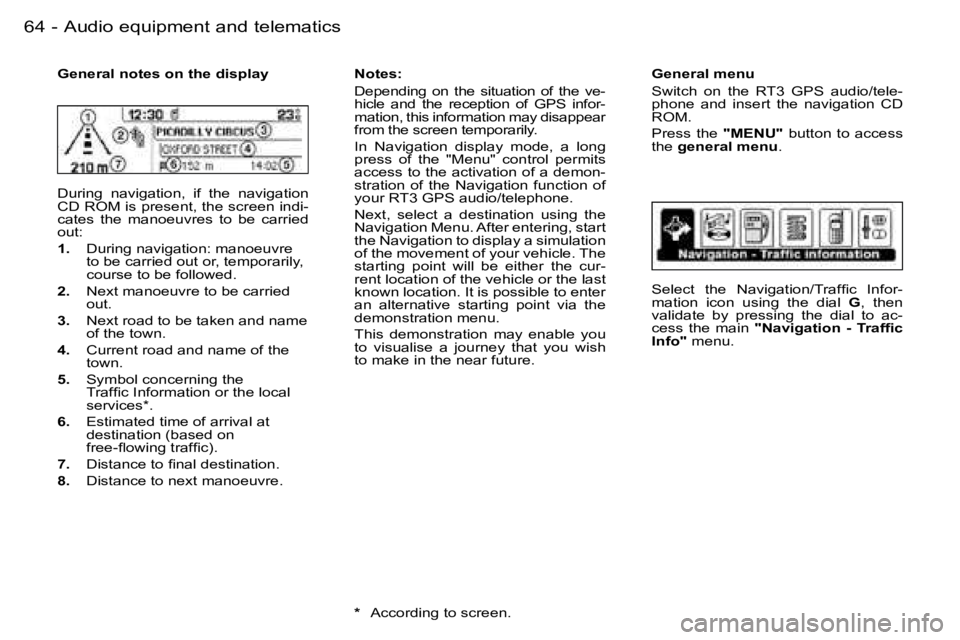

General notes on the display
During navigation, if the navigation CD ROM is present, the screen indi-cates the manoeuvres to be carried out:
1. During navigation: manoeuvre to be carried out or, temporarily, course to be followed.
2. Next manoeuvre to be carried out.
3. Next road to be taken and name of the town.
4. Current road and name of the town.
5. Symbol concerning the Traffic Information or the local services*.
6. Estimated time of arrival at destination (based onfree-flowing traffic).
7. Distance to final destination.
8. Distance to next manoeuvre.
General menu
Switch on the RT3 GPS audio/tele-phone and insert the navigation CD ROM.
Press the "MENU" button to access the general menu.
Select the Navigation/Traffic Infor-mation icon using the dial G, thenvalidate by pressing the dial to ac-cess the main "Navigation - Traffic Info" menu.
Notes:
Depending on the situation of the ve-hicle and the reception of GPS infor-mation, this information may disappear from the screen temporarily.
In Navigation display mode, a long press of the "Menu" control permits access to the activation of a demon-stration of the Navigation function of your RT3 GPS audio/telephone.
Next, select a destination using the Navigation Menu. After entering, start the Navigation to display a simulation of the movement of your vehicle. The starting point will be either the cur-rent location of the vehicle or the last known location. It is possible to enter an alternative starting point via the demonstration menu.
This demonstration may enable you to visualise a journey that you wish to make in the near future.
* According to screen.
