FOLDING DOWN THE REAR SEATS
To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
Remove the head restraints and close the tonneau
sub cover (if so equipped).
Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
Sh ift_style

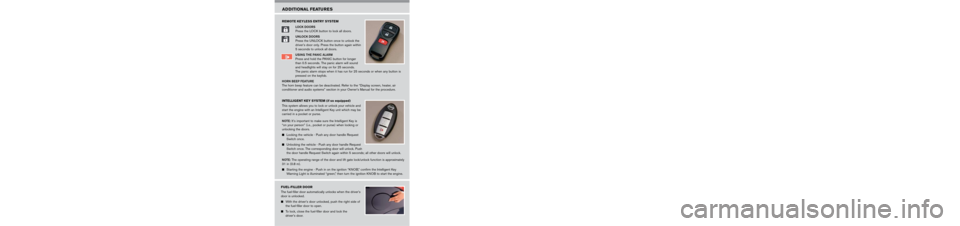

REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the LOCK button to lock all doors.
UNLOCK DOORS
Press the UNLOCK button once to unlock the
driver’s door only. Press the button again within
5 seconds to unlock all doors.
USING THE PANIC ALARM
Press and hold the PANIC button for longer
than 0.5 seconds. The panic alarm will sound
and headlights will stay on for 25 seconds.
The panic alarm stops when it has run for 25 seconds or when any button is
pressed on the keyfob.
HORN BEEP FEATURE
The horn beep feature can be deactivated. Refer to the “Display screen, heater, air
conditioner and audio systems” section in your Owner’s Manual for the procedure.
I NTELLIGENT KEY SYSTEM
(if so equipped)
This system allows you to lock or unlock your vehicle and
start the engine with an Intelligent Key unit which may be
carried in a pocket or purse.
NOTE : It’s important to make sure the Intelligent Key is
“on your person” (i.e., pocket or purse) when locking or
unlocking the doors.
Locking the vehicle - Push any door handle Request
Switch once.
Unlocking the vehicle - Push any door handle Request
Switch once. The corresponding door will unlock. Push
the door handle Request Switch again within 5 seconds; all other doors will unlock.
NOTE : The operating range of the door and lift gate lock/unlock function is approximately
31 in (0.8 m).
Starting the engine - Push in on the ignition “KNOB,” confirm the Intelligent Key
Warning Light is illuminated “green,” then turn the ignition KNOB to start the engine.
REAR VIEW MONITOR (with Navigation, if so
equipped)
When the automatic transmission lever is moved to the R (Reverse) position, the monitor display will automatically change to show the area behind the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
Red 1.5 feet
Yellow 3 feet
AD D ITIONAL FEATU R E S (continued)
POWER SEAT AND PEDAL ADJUSTMENTS
(if so equipped)
PEDAL POSITION ADjUSTMENT (if so equipped) Push the switch forward or backward to move the brake and accelerator pedal to the desired position. Only adjust the pedals when the automatic transmission selector lever is in P (Park.) 01
SEAT POSITION ADjUSTMENT Move the control forward or backward to adjust the seat cushion forward or backward. 02
Pull up to raise the seat cushion; press down to lower the cushion. 02
SEAT RECLINING A DjUSTMENT Push the switch forward to move the seatback forward; push it back to move the seatback backward. 03
LUMBAR SUPPORT (if so equipped for driver’s seat) Push each side of the switch 04 to adjust the lumbar support.
2006
M U RANO
Q U I C K R E F E R E N C E G U I D E

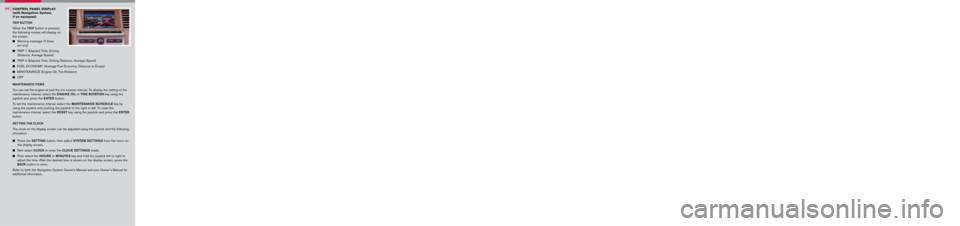

CONTROL PANEL DISPLAY
(with Navigation System,
if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on
the screen:
Warning message (if there
are any)
TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE (Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the
maintenance interval, select the RESET key using the joystick and press the ENTER
button.
SETTING THE CLOCK
The clock on the display screen can be adjusted using the joystick and the following
procedure.
Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
08
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment. The
indicator light on the button will come on when the system is activated.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the defrost
position.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button will
come on.
Turn the driver’s side temperature control dial 07 left for cold air or right for hot air to
set the desired temperature. To set the defroster on high, turn the manual fan speed
control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will come
on. Push the switch again to manually turn off the defrost. NOTE : The rear window
defroster automatically turns off in approximately 15 minutes.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The driver’s
temperature control dial adjusts the temperature for both driver and passenger when the
DUAL button is not activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from the
driver’s side control.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
05
04
03
02
01
06
07
09
08
09
010203040506
07
08
09
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
To lock, close the fuel-filler door and lock the
driver’s door.
AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:
Memory storage function.
Entry/exit function.
MEMORY STOR AGE FUNCTION
Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the automatic transmission lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, accelerator and brake pedals, and outside
mirrors to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or 2) for at least 1 second until the indicator light illuminates. The position is now stored in memory.
LINK TO KEYFOB Within 5 seconds of setting the memory position (indicator light is on and ignition is on), press the button on the remote. A keyfob can be linked to each memory button. If memory positioning is re-set to a new location, it will be necessary to re-link the keyfob.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD With the ignition on and automatic transmission lever in the P (Park) position, press the position button (1 or 2) for at least 1 second.
FROM THE KEYFOB
If properly linked, operation of the button will automatically return the driver’s seat, accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat more easily. The driver’s seat slides backward when:
The driver’s door is opened with the key turned to LOCK. The key is turned from ACC to LOCK with the driver’s door open and the automatic transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
The key is inserted into the ignition switch. The driver’s door is closed with the key turned to LOCK. The key is turned from ACC to ON while the automatic transmission lever is in the P (Park) position.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch to the 01 position. If the roof is open, it will automatically close and then tilt up.
To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will automatically tilt down and then open.
To close the roof, slide the switch to the 04 position.
The position of the sliding roof lid can be chosen by the position of the sliding switch.
To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
010203
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on pressure detected on the passenger seat and how the seat belt is used, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.
TIRE PRESSURE MONITORING SYSTEM (if so equipped)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light comes on, check the tire pressure in all four tires. Adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. The light will remain on after the 60
seconds. Have the system checked by a NISSAN dealer.
04
Green 7 and 10 feet
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
P (Park)
R (Reverse) – Use for backing up.
N (Neutral) – Neither forward or reverse is engaged.
D (Drive) – Use for normal forward driving.
S (Second) – Use for improved acceleration and engine braking.
L (Low) – Use for maximum engine braking.
The transmission in your Murano requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exacting requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE (if so equipped)
When the transmission lever is shifted from D (Drive) to the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the meter.
When shifting up, move the transmission lever to the + (up) side. (Shifts to higher gear.)
When shifting down, move the transmission lever to the - (down) side. (Shifts to lower gear.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before the vehicle comes to a stop. When accelerating again, it is necessary to shift to the desired gear.
When canceling the manual shift mode, return the transmission selector lever to the D (Drive) position. The transmission returns to the normal driving mode.
Page 7 of 13
FOLDING DOWN THE REAR SEATS
To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
Remove the head restraints and close the tonneau
sub cover (if so equipped).
Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
Sh ift_style
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the LOCK button to lock all doors.
UNLOCK DOORS
Press the UNLOCK button once to unlock the
driver’s door only. Press the button again within
5 seconds to unlock all doors.
USING THE PANIC ALARM
Press and hold the PANIC button for longer
than 0.5 seconds. The panic alarm will sound
and headlights will stay on for 25 seconds.
The panic alarm stops when it has run for 25 seconds or when any button is
pressed on the keyfob.
HORN BEEP FEATURE
The horn beep feature can be deactivated. Refer to the “Display screen, heater, air
conditioner and audio systems” section in your Owner’s Manual for the procedure.
I NTELLIGENT KEY SYSTEM
(if so equipped)
This system allows you to lock or unlock your vehicle and
start the engine with an Intelligent Key unit which may be
carried in a pocket or purse.
NOTE : It’s important to make sure the Intelligent Key is
“on your person” (i.e., pocket or purse) when locking or
unlocking the doors.
Locking the vehicle - Push any door handle Request
Switch once.
Unlocking the vehicle - Push any door handle Request
Switch once. The corresponding door will unlock. Push
the door handle Request Switch again within 5 seconds; all other doors will unlock.
NOTE : The operating range of the door and lift gate lock/unlock function is approximately
31 in (0.8 m).
Starting the engine - Push in on the ignition “KNOB,” confirm the Intelligent Key
Warning Light is illuminated “green,” then turn the ignition KNOB to start the engine.
REAR VIEW MONITOR (with Navigation, if so
equipped)
When the automatic transmission lever is moved to the R (Reverse) position, the monitor display will automatically change to show the area behind the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
Red 1.5 feet
Yellow 3 feet
AD D ITIONAL FEATU R E S (continued)
POWER SEAT AND PEDAL ADJUSTMENTS
(if so equipped)
PEDAL POSITION ADjUSTMENT (if so equipped) Push the switch forward or backward to move the brake and accelerator pedal to the desired position. Only adjust the pedals when the automatic transmission selector lever is in P (Park.) 01
SEAT POSITION ADjUSTMENT Move the control forward or backward to adjust the seat cushion forward or backward. 02
Pull up to raise the seat cushion; press down to lower the cushion. 02
SEAT RECLINING A DjUSTMENT Push the switch forward to move the seatback forward; push it back to move the seatback backward. 03
LUMBAR SUPPORT (if so equipped for driver’s seat) Push each side of the switch 04 to adjust the lumbar support.
2006
M U RANO
Q U I C K R E F E R E N C E G U I D E
CONTROL PANEL DISPLAY
(with Navigation System,
if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on
the screen:
Warning message (if there
are any)
TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE (Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the
maintenance interval, select the RESET key using the joystick and press the ENTER
button.
SETTING THE CLOCK
The clock on the display screen can be adjusted using the joystick and the following
procedure.
Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
08
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment. The
indicator light on the button will come on when the system is activated.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the defrost
position.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button will
come on.
Turn the driver’s side temperature control dial 07 left for cold air or right for hot air to
set the desired temperature. To set the defroster on high, turn the manual fan speed
control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will come
on. Push the switch again to manually turn off the defrost. NOTE : The rear window
defroster automatically turns off in approximately 15 minutes.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The driver’s
temperature control dial adjusts the temperature for both driver and passenger when the
DUAL button is not activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from the
driver’s side control.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
05
04
03
02
01
06
07
09
08
09
010203040506
07
08
09
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
To lock, close the fuel-filler door and lock the
driver’s door.
AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:
Memory storage function.
Entry/exit function.
MEMORY STOR AGE FUNCTION
Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the automatic transmission lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, accelerator and brake pedals, and outside
mirrors to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or 2) for at least 1 second until the indicator light illuminates. The position is now stored in memory.
LINK TO KEYFOB Within 5 seconds of setting the memory position (indicator light is on and ignition is on), press the button on the remote. A keyfob can be linked to each memory button. If memory positioning is re-set to a new location, it will be necessary to re-link the keyfob.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD With the ignition on and automatic transmission lever in the P (Park) position, press the position button (1 or 2) for at least 1 second.
FROM THE KEYFOB
If properly linked, operation of the button will automatically return the driver’s seat, accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat more easily. The driver’s seat slides backward when:
The driver’s door is opened with the key turned to LOCK. The key is turned from ACC to LOCK with the driver’s door open and the automatic transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
The key is inserted into the ignition switch. The driver’s door is closed with the key turned to LOCK. The key is turned from ACC to ON while the automatic transmission lever is in the P (Park) position.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch to the 01 position. If the roof is open, it will automatically close and then tilt up.
To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will automatically tilt down and then open.
To close the roof, slide the switch to the 04 position.
The position of the sliding roof lid can be chosen by the position of the sliding switch.
To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
010203
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on pressure detected on the passenger seat and how the seat belt is used, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.
TIRE PRESSURE MONITORING SYSTEM (if so equipped)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light comes on, check the tire pressure in all four tires. Adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. The light will remain on after the 60
seconds. Have the system checked by a NISSAN dealer.
04
Green 7 and 10 feet
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
P (Park)
R (Reverse) – Use for backing up.
N (Neutral) – Neither forward or reverse is engaged.
D (Drive) – Use for normal forward driving.
S (Second) – Use for improved acceleration and engine braking.
L (Low) – Use for maximum engine braking.
The transmission in your Murano requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exacting requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE (if so equipped)
When the transmission lever is shifted from D (Drive) to the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the meter.
When shifting up, move the transmission lever to the + (up) side. (Shifts to higher gear.)
When shifting down, move the transmission lever to the - (down) side. (Shifts to lower gear.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before the vehicle comes to a stop. When accelerating again, it is necessary to shift to the desired gear.
When canceling the manual shift mode, return the transmission selector lever to the D (Drive) position. The transmission returns to the normal driving mode.
Page 8 of 13
FOLDING DOWN THE REAR SEATS
To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
Remove the head restraints and close the tonneau
sub cover (if so equipped).
Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
Sh ift_style
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the LOCK button to lock all doors.
UNLOCK DOORS
Press the UNLOCK button once to unlock the
driver’s door only. Press the button again within
5 seconds to unlock all doors.
USING THE PANIC ALARM
Press and hold the PANIC button for longer
than 0.5 seconds. The panic alarm will sound
and headlights will stay on for 25 seconds.
The panic alarm stops when it has run for 25 seconds or when any button is
pressed on the keyfob.
HORN BEEP FEATURE
The horn beep feature can be deactivated. Refer to the “Display screen, heater, air
conditioner and audio systems” section in your Owner’s Manual for the procedure.
I NTELLIGENT KEY SYSTEM
(if so equipped)
This system allows you to lock or unlock your vehicle and
start the engine with an Intelligent Key unit which may be
carried in a pocket or purse.
NOTE : It’s important to make sure the Intelligent Key is
“on your person” (i.e., pocket or purse) when locking or
unlocking the doors.
Locking the vehicle - Push any door handle Request
Switch once.
Unlocking the vehicle - Push any door handle Request
Switch once. The corresponding door will unlock. Push
the door handle Request Switch again within 5 seconds; all other doors will unlock.
NOTE : The operating range of the door and lift gate lock/unlock function is approximately
31 in (0.8 m).
Starting the engine - Push in on the ignition “KNOB,” confirm the Intelligent Key
Warning Light is illuminated “green,” then turn the ignition KNOB to start the engine.
REAR VIEW MONITOR (with Navigation, if so
equipped)
When the automatic transmission lever is moved to the R (Reverse) position, the monitor display will automatically change to show the area behind the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
Red 1.5 feet
Yellow 3 feet
AD D ITIONAL FEATU R E S (continued)
POWER SEAT AND PEDAL ADJUSTMENTS
(if so equipped)
PEDAL POSITION ADjUSTMENT (if so equipped) Push the switch forward or backward to move the brake and accelerator pedal to the desired position. Only adjust the pedals when the automatic transmission selector lever is in P (Park.) 01
SEAT POSITION ADjUSTMENT Move the control forward or backward to adjust the seat cushion forward or backward. 02
Pull up to raise the seat cushion; press down to lower the cushion. 02
SEAT RECLINING A DjUSTMENT Push the switch forward to move the seatback forward; push it back to move the seatback backward. 03
LUMBAR SUPPORT (if so equipped for driver’s seat) Push each side of the switch 04 to adjust the lumbar support.
2006
M U RANO
Q U I C K R E F E R E N C E G U I D E
CONTROL PANEL DISPLAY
(with Navigation System,
if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on
the screen:
Warning message (if there
are any)
TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE (Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the
maintenance interval, select the RESET key using the joystick and press the ENTER
button.
SETTING THE CLOCK
The clock on the display screen can be adjusted using the joystick and the following
procedure.
Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
08
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment. The
indicator light on the button will come on when the system is activated.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the defrost
position.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button will
come on.
Turn the driver’s side temperature control dial 07 left for cold air or right for hot air to
set the desired temperature. To set the defroster on high, turn the manual fan speed
control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will come
on. Push the switch again to manually turn off the defrost. NOTE : The rear window
defroster automatically turns off in approximately 15 minutes.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The driver’s
temperature control dial adjusts the temperature for both driver and passenger when the
DUAL button is not activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from the
driver’s side control.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
05
04
03
02
01
06
07
09
08
09
010203040506
07
08
09
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
To lock, close the fuel-filler door and lock the
driver’s door.
AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:
Memory storage function.
Entry/exit function.
MEMORY STOR AGE FUNCTION
Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the automatic transmission lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, accelerator and brake pedals, and outside
mirrors to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or 2) for at least 1 second until the indicator light illuminates. The position is now stored in memory.
LINK TO KEYFOB Within 5 seconds of setting the memory position (indicator light is on and ignition is on), press the button on the remote. A keyfob can be linked to each memory button. If memory positioning is re-set to a new location, it will be necessary to re-link the keyfob.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD With the ignition on and automatic transmission lever in the P (Park) position, press the position button (1 or 2) for at least 1 second.
FROM THE KEYFOB
If properly linked, operation of the button will automatically return the driver’s seat, accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat more easily. The driver’s seat slides backward when:
The driver’s door is opened with the key turned to LOCK. The key is turned from ACC to LOCK with the driver’s door open and the automatic transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
The key is inserted into the ignition switch. The driver’s door is closed with the key turned to LOCK. The key is turned from ACC to ON while the automatic transmission lever is in the P (Park) position.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch to the 01 position. If the roof is open, it will automatically close and then tilt up.
To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will automatically tilt down and then open.
To close the roof, slide the switch to the 04 position.
The position of the sliding roof lid can be chosen by the position of the sliding switch.
To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
010203
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on pressure detected on the passenger seat and how the seat belt is used, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.
TIRE PRESSURE MONITORING SYSTEM (if so equipped)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light comes on, check the tire pressure in all four tires. Adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. The light will remain on after the 60
seconds. Have the system checked by a NISSAN dealer.
04
Green 7 and 10 feet
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
P (Park)
R (Reverse) – Use for backing up.
N (Neutral) – Neither forward or reverse is engaged.
D (Drive) – Use for normal forward driving.
S (Second) – Use for improved acceleration and engine braking.
L (Low) – Use for maximum engine braking.
The transmission in your Murano requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exacting requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE (if so equipped)
When the transmission lever is shifted from D (Drive) to the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the meter.
When shifting up, move the transmission lever to the + (up) side. (Shifts to higher gear.)
When shifting down, move the transmission lever to the - (down) side. (Shifts to lower gear.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before the vehicle comes to a stop. When accelerating again, it is necessary to shift to the desired gear.
When canceling the manual shift mode, return the transmission selector lever to the D (Drive) position. The transmission returns to the normal driving mode.
Page 9 of 13
FOLDING DOWN THE REAR SEATS
To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
Remove the head restraints and close the tonneau
sub cover (if so equipped).
Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
Sh ift_style
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the LOCK button to lock all doors.
UNLOCK DOORS
Press the UNLOCK button once to unlock the
driver’s door only. Press the button again within
5 seconds to unlock all doors.
USING THE PANIC ALARM
Press and hold the PANIC button for longer
than 0.5 seconds. The panic alarm will sound
and headlights will stay on for 25 seconds.
The panic alarm stops when it has run for 25 seconds or when any button is
pressed on the keyfob.
HORN BEEP FEATURE
The horn beep feature can be deactivated. Refer to the “Display screen, heater, air
conditioner and audio systems” section in your Owner’s Manual for the procedure.
I NTELLIGENT KEY SYSTEM
(if so equipped)
This system allows you to lock or unlock your vehicle and
start the engine with an Intelligent Key unit which may be
carried in a pocket or purse.
NOTE : It’s important to make sure the Intelligent Key is
“on your person” (i.e., pocket or purse) when locking or
unlocking the doors.
Locking the vehicle - Push any door handle Request
Switch once.
Unlocking the vehicle - Push any door handle Request
Switch once. The corresponding door will unlock. Push
the door handle Request Switch again within 5 seconds; all other doors will unlock.
NOTE : The operating range of the door and lift gate lock/unlock function is approximately
31 in (0.8 m).
Starting the engine - Push in on the ignition “KNOB,” confirm the Intelligent Key
Warning Light is illuminated “green,” then turn the ignition KNOB to start the engine.
REAR VIEW MONITOR (with Navigation, if so
equipped)
When the automatic transmission lever is moved to the R (Reverse) position, the monitor display will automatically change to show the area behind the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
Red 1.5 feet
Yellow 3 feet
AD D ITIONAL FEATU R E S (continued)
POWER SEAT AND PEDAL ADJUSTMENTS
(if so equipped)
PEDAL POSITION ADjUSTMENT (if so equipped) Push the switch forward or backward to move the brake and accelerator pedal to the desired position. Only adjust the pedals when the automatic transmission selector lever is in P (Park.) 01
SEAT POSITION ADjUSTMENT Move the control forward or backward to adjust the seat cushion forward or backward. 02
Pull up to raise the seat cushion; press down to lower the cushion. 02
SEAT RECLINING A DjUSTMENT Push the switch forward to move the seatback forward; push it back to move the seatback backward. 03
LUMBAR SUPPORT (if so equipped for driver’s seat) Push each side of the switch 04 to adjust the lumbar support.
2006
M U RANO
Q U I C K R E F E R E N C E G U I D E
CONTROL PANEL DISPLAY
(with Navigation System,
if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on
the screen:
Warning message (if there
are any)
TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE (Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the
maintenance interval, select the RESET key using the joystick and press the ENTER
button.
SETTING THE CLOCK
The clock on the display screen can be adjusted using the joystick and the following
procedure.
Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
08
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment. The
indicator light on the button will come on when the system is activated.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the defrost
position.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button will
come on.
Turn the driver’s side temperature control dial 07 left for cold air or right for hot air to
set the desired temperature. To set the defroster on high, turn the manual fan speed
control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will come
on. Push the switch again to manually turn off the defrost. NOTE : The rear window
defroster automatically turns off in approximately 15 minutes.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The driver’s
temperature control dial adjusts the temperature for both driver and passenger when the
DUAL button is not activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from the
driver’s side control.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
05
04
03
02
01
06
07
09
08
09
010203040506
07
08
09
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
To lock, close the fuel-filler door and lock the
driver’s door.
AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:
Memory storage function.
Entry/exit function.
MEMORY STOR AGE FUNCTION
Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the automatic transmission lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, accelerator and brake pedals, and outside
mirrors to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or 2) for at least 1 second until the indicator light illuminates. The position is now stored in memory.
LINK TO KEYFOB Within 5 seconds of setting the memory position (indicator light is on and ignition is on), press the button on the remote. A keyfob can be linked to each memory button. If memory positioning is re-set to a new location, it will be necessary to re-link the keyfob.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD With the ignition on and automatic transmission lever in the P (Park) position, press the position button (1 or 2) for at least 1 second.
FROM THE KEYFOB
If properly linked, operation of the button will automatically return the driver’s seat, accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat more easily. The driver’s seat slides backward when:
The driver’s door is opened with the key turned to LOCK. The key is turned from ACC to LOCK with the driver’s door open and the automatic transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
The key is inserted into the ignition switch. The driver’s door is closed with the key turned to LOCK. The key is turned from ACC to ON while the automatic transmission lever is in the P (Park) position.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch to the 01 position. If the roof is open, it will automatically close and then tilt up.
To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will automatically tilt down and then open.
To close the roof, slide the switch to the 04 position.
The position of the sliding roof lid can be chosen by the position of the sliding switch.
To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
010203
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on pressure detected on the passenger seat and how the seat belt is used, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.
TIRE PRESSURE MONITORING SYSTEM (if so equipped)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light comes on, check the tire pressure in all four tires. Adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. The light will remain on after the 60
seconds. Have the system checked by a NISSAN dealer.
04
Green 7 and 10 feet
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
P (Park)
R (Reverse) – Use for backing up.
N (Neutral) – Neither forward or reverse is engaged.
D (Drive) – Use for normal forward driving.
S (Second) – Use for improved acceleration and engine braking.
L (Low) – Use for maximum engine braking.
The transmission in your Murano requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exacting requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE (if so equipped)
When the transmission lever is shifted from D (Drive) to the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the meter.
When shifting up, move the transmission lever to the + (up) side. (Shifts to higher gear.)
When shifting down, move the transmission lever to the - (down) side. (Shifts to lower gear.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before the vehicle comes to a stop. When accelerating again, it is necessary to shift to the desired gear.
When canceling the manual shift mode, return the transmission selector lever to the D (Drive) position. The transmission returns to the normal driving mode.
Page 10 of 13
FOLDING DOWN THE REAR SEATS
To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
Remove the head restraints and close the tonneau
sub cover (if so equipped).
Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
Sh ift_style
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the LOCK button to lock all doors.
UNLOCK DOORS
Press the UNLOCK button once to unlock the
driver’s door only. Press the button again within
5 seconds to unlock all doors.
USING THE PANIC ALARM
Press and hold the PANIC button for longer
than 0.5 seconds. The panic alarm will sound
and headlights will stay on for 25 seconds.
The panic alarm stops when it has run for 25 seconds or when any button is
pressed on the keyfob.
HORN BEEP FEATURE
The horn beep feature can be deactivated. Refer to the “Display screen, heater, air
conditioner and audio systems” section in your Owner’s Manual for the procedure.
I NTELLIGENT KEY SYSTEM
(if so equipped)
This system allows you to lock or unlock your vehicle and
start the engine with an Intelligent Key unit which may be
carried in a pocket or purse.
NOTE : It’s important to make sure the Intelligent Key is
“on your person” (i.e., pocket or purse) when locking or
unlocking the doors.
Locking the vehicle - Push any door handle Request
Switch once.
Unlocking the vehicle - Push any door handle Request
Switch once. The corresponding door will unlock. Push
the door handle Request Switch again within 5 seconds; all other doors will unlock.
NOTE : The operating range of the door and lift gate lock/unlock function is approximately
31 in (0.8 m).
Starting the engine - Push in on the ignition “KNOB,” confirm the Intelligent Key
Warning Light is illuminated “green,” then turn the ignition KNOB to start the engine.
REAR VIEW MONITOR (with Navigation, if so
equipped)
When the automatic transmission lever is moved to the R (Reverse) position, the monitor display will automatically change to show the area behind the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
Red 1.5 feet
Yellow 3 feet
AD D ITIONAL FEATU R E S (continued)
POWER SEAT AND PEDAL ADJUSTMENTS
(if so equipped)
PEDAL POSITION ADjUSTMENT (if so equipped) Push the switch forward or backward to move the brake and accelerator pedal to the desired position. Only adjust the pedals when the automatic transmission selector lever is in P (Park.) 01
SEAT POSITION ADjUSTMENT Move the control forward or backward to adjust the seat cushion forward or backward. 02
Pull up to raise the seat cushion; press down to lower the cushion. 02
SEAT RECLINING A DjUSTMENT Push the switch forward to move the seatback forward; push it back to move the seatback backward. 03
LUMBAR SUPPORT (if so equipped for driver’s seat) Push each side of the switch 04 to adjust the lumbar support.
2006
M U RANO
Q U I C K R E F E R E N C E G U I D E
CONTROL PANEL DISPLAY
(with Navigation System,
if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on
the screen:
Warning message (if there
are any)
TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE (Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the
maintenance interval, select the RESET key using the joystick and press the ENTER
button.
SETTING THE CLOCK
The clock on the display screen can be adjusted using the joystick and the following
procedure.
Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
08
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment. The
indicator light on the button will come on when the system is activated.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the defrost
position.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button will
come on.
Turn the driver’s side temperature control dial 07 left for cold air or right for hot air to
set the desired temperature. To set the defroster on high, turn the manual fan speed
control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will come
on. Push the switch again to manually turn off the defrost. NOTE : The rear window
defroster automatically turns off in approximately 15 minutes.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The driver’s
temperature control dial adjusts the temperature for both driver and passenger when the
DUAL button is not activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from the
driver’s side control.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
05
04
03
02
01
06
07
09
08
09
010203040506
07
08
09
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
To lock, close the fuel-filler door and lock the
driver’s door.
AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:
Memory storage function.
Entry/exit function.
MEMORY STOR AGE FUNCTION
Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the automatic transmission lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, accelerator and brake pedals, and outside
mirrors to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or 2) for at least 1 second until the indicator light illuminates. The position is now stored in memory.
LINK TO KEYFOB Within 5 seconds of setting the memory position (indicator light is on and ignition is on), press the button on the remote. A keyfob can be linked to each memory button. If memory positioning is re-set to a new location, it will be necessary to re-link the keyfob.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD With the ignition on and automatic transmission lever in the P (Park) position, press the position button (1 or 2) for at least 1 second.
FROM THE KEYFOB
If properly linked, operation of the button will automatically return the driver’s seat, accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat more easily. The driver’s seat slides backward when:
The driver’s door is opened with the key turned to LOCK. The key is turned from ACC to LOCK with the driver’s door open and the automatic transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
The key is inserted into the ignition switch. The driver’s door is closed with the key turned to LOCK. The key is turned from ACC to ON while the automatic transmission lever is in the P (Park) position.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch to the 01 position. If the roof is open, it will automatically close and then tilt up.
To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will automatically tilt down and then open.
To close the roof, slide the switch to the 04 position.
The position of the sliding roof lid can be chosen by the position of the sliding switch.
To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
010203
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on pressure detected on the passenger seat and how the seat belt is used, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.
TIRE PRESSURE MONITORING SYSTEM (if so equipped)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light comes on, check the tire pressure in all four tires. Adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. The light will remain on after the 60
seconds. Have the system checked by a NISSAN dealer.
04
Green 7 and 10 feet
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
P (Park)
R (Reverse) – Use for backing up.
N (Neutral) – Neither forward or reverse is engaged.
D (Drive) – Use for normal forward driving.
S (Second) – Use for improved acceleration and engine braking.
L (Low) – Use for maximum engine braking.
The transmission in your Murano requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exacting requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE (if so equipped)
When the transmission lever is shifted from D (Drive) to the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the meter.
When shifting up, move the transmission lever to the + (up) side. (Shifts to higher gear.)
When shifting down, move the transmission lever to the - (down) side. (Shifts to lower gear.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before the vehicle comes to a stop. When accelerating again, it is necessary to shift to the desired gear.
When canceling the manual shift mode, return the transmission selector lever to the D (Drive) position. The transmission returns to the normal driving mode.
Page 11 of 13
FOLDING DOWN THE REAR SEATS
To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
Remove the head restraints and close the tonneau
sub cover (if so equipped).
Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
Sh ift_style
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the LOCK button to lock all doors.
UNLOCK DOORS
Press the UNLOCK button once to unlock the
driver’s door only. Press the button again within
5 seconds to unlock all doors.
USING THE PANIC ALARM
Press and hold the PANIC button for longer
than 0.5 seconds. The panic alarm will sound
and headlights will stay on for 25 seconds.
The panic alarm stops when it has run for 25 seconds or when any button is
pressed on the keyfob.
HORN BEEP FEATURE
The horn beep feature can be deactivated. Refer to the “Display screen, heater, air
conditioner and audio systems” section in your Owner’s Manual for the procedure.
I NTELLIGENT KEY SYSTEM
(if so equipped)
This system allows you to lock or unlock your vehicle and
start the engine with an Intelligent Key unit which may be
carried in a pocket or purse.
NOTE : It’s important to make sure the Intelligent Key is
“on your person” (i.e., pocket or purse) when locking or
unlocking the doors.
Locking the vehicle - Push any door handle Request
Switch once.
Unlocking the vehicle - Push any door handle Request
Switch once. The corresponding door will unlock. Push
the door handle Request Switch again within 5 seconds; all other doors will unlock.
NOTE : The operating range of the door and lift gate lock/unlock function is approximately
31 in (0.8 m).
Starting the engine - Push in on the ignition “KNOB,” confirm the Intelligent Key
Warning Light is illuminated “green,” then turn the ignition KNOB to start the engine.
REAR VIEW MONITOR (with Navigation, if so
equipped)
When the automatic transmission lever is moved to the R (Reverse) position, the monitor display will automatically change to show the area behind the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
Red 1.5 feet
Yellow 3 feet
AD D ITIONAL FEATU R E S (continued)
POWER SEAT AND PEDAL ADJUSTMENTS
(if so equipped)
PEDAL POSITION ADjUSTMENT (if so equipped) Push the switch forward or backward to move the brake and accelerator pedal to the desired position. Only adjust the pedals when the automatic transmission selector lever is in P (Park.) 01
SEAT POSITION ADjUSTMENT Move the control forward or backward to adjust the seat cushion forward or backward. 02
Pull up to raise the seat cushion; press down to lower the cushion. 02
SEAT RECLINING A DjUSTMENT Push the switch forward to move the seatback forward; push it back to move the seatback backward. 03
LUMBAR SUPPORT (if so equipped for driver’s seat) Push each side of the switch 04 to adjust the lumbar support.
2006
M U RANO
Q U I C K R E F E R E N C E G U I D E
CONTROL PANEL DISPLAY
(with Navigation System,
if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on
the screen:
Warning message (if there
are any)
TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE (Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the
maintenance interval, select the RESET key using the joystick and press the ENTER
button.
SETTING THE CLOCK
The clock on the display screen can be adjusted using the joystick and the following
procedure.
Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
08
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment. The
indicator light on the button will come on when the system is activated.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the defrost
position.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button will
come on.
Turn the driver’s side temperature control dial 07 left for cold air or right for hot air to
set the desired temperature. To set the defroster on high, turn the manual fan speed
control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will come
on. Push the switch again to manually turn off the defrost. NOTE : The rear window
defroster automatically turns off in approximately 15 minutes.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The driver’s
temperature control dial adjusts the temperature for both driver and passenger when the
DUAL button is not activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from the
driver’s side control.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
05
04
03
02
01
06
07
09
08
09
010203040506
07
08
09
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
To lock, close the fuel-filler door and lock the
driver’s door.
AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:
Memory storage function.
Entry/exit function.
MEMORY STOR AGE FUNCTION
Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the automatic transmission lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, accelerator and brake pedals, and outside
mirrors to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or 2) for at least 1 second until the indicator light illuminates. The position is now stored in memory.
LINK TO KEYFOB Within 5 seconds of setting the memory position (indicator light is on and ignition is on), press the button on the remote. A keyfob can be linked to each memory button. If memory positioning is re-set to a new location, it will be necessary to re-link the keyfob.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD With the ignition on and automatic transmission lever in the P (Park) position, press the position button (1 or 2) for at least 1 second.
FROM THE KEYFOB
If properly linked, operation of the button will automatically return the driver’s seat, accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat more easily. The driver’s seat slides backward when:
The driver’s door is opened with the key turned to LOCK. The key is turned from ACC to LOCK with the driver’s door open and the automatic transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
The key is inserted into the ignition switch. The driver’s door is closed with the key turned to LOCK. The key is turned from ACC to ON while the automatic transmission lever is in the P (Park) position.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch to the 01 position. If the roof is open, it will automatically close and then tilt up.
To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will automatically tilt down and then open.
To close the roof, slide the switch to the 04 position.
The position of the sliding roof lid can be chosen by the position of the sliding switch.
To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
010203
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on pressure detected on the passenger seat and how the seat belt is used, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.
TIRE PRESSURE MONITORING SYSTEM (if so equipped)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light comes on, check the tire pressure in all four tires. Adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. The light will remain on after the 60
seconds. Have the system checked by a NISSAN dealer.
04
Green 7 and 10 feet
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
P (Park)
R (Reverse) – Use for backing up.
N (Neutral) – Neither forward or reverse is engaged.
D (Drive) – Use for normal forward driving.
S (Second) – Use for improved acceleration and engine braking.
L (Low) – Use for maximum engine braking.
The transmission in your Murano requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exacting requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE (if so equipped)
When the transmission lever is shifted from D (Drive) to the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the meter.
When shifting up, move the transmission lever to the + (up) side. (Shifts to higher gear.)
When shifting down, move the transmission lever to the - (down) side. (Shifts to lower gear.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before the vehicle comes to a stop. When accelerating again, it is necessary to shift to the desired gear.
When canceling the manual shift mode, return the transmission selector lever to the D (Drive) position. The transmission returns to the normal driving mode.
Page 12 of 13
FOLDING DOWN THE REAR SEATS
To fold the seats flat, disconnect and secure the
center seat belt and tongues from the retractor base.
Remove the head restraints and close the tonneau
sub cover (if so equipped).
Fold the seatback forward by either using the pull
strap located on the outside edge of the rear seat or
pulling on the release lever beside the cargo area.
Sh ift_style
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORS
Press the LOCK button to lock all doors.
UNLOCK DOORS
Press the UNLOCK button once to unlock the
driver’s door only. Press the button again within
5 seconds to unlock all doors.
USING THE PANIC ALARM
Press and hold the PANIC button for longer
than 0.5 seconds. The panic alarm will sound
and headlights will stay on for 25 seconds.
The panic alarm stops when it has run for 25 seconds or when any button is
pressed on the keyfob.
HORN BEEP FEATURE
The horn beep feature can be deactivated. Refer to the “Display screen, heater, air
conditioner and audio systems” section in your Owner’s Manual for the procedure.
I NTELLIGENT KEY SYSTEM
(if so equipped)
This system allows you to lock or unlock your vehicle and
start the engine with an Intelligent Key unit which may be
carried in a pocket or purse.
NOTE : It’s important to make sure the Intelligent Key is
“on your person” (i.e., pocket or purse) when locking or
unlocking the doors.
Locking the vehicle - Push any door handle Request
Switch once.
Unlocking the vehicle - Push any door handle Request
Switch once. The corresponding door will unlock. Push
the door handle Request Switch again within 5 seconds; all other doors will unlock.
NOTE : The operating range of the door and lift gate lock/unlock function is approximately
31 in (0.8 m).
Starting the engine - Push in on the ignition “KNOB,” confirm the Intelligent Key
Warning Light is illuminated “green,” then turn the ignition KNOB to start the engine.
REAR VIEW MONITOR (with Navigation, if so
equipped)
When the automatic transmission lever is moved to the R (Reverse) position, the monitor display will automatically change to show the area behind the vehicle.
The colored lines on the display screen indicate approximate distances to objects.
Red 1.5 feet
Yellow 3 feet
AD D ITIONAL FEATU R E S (continued)
POWER SEAT AND PEDAL ADJUSTMENTS
(if so equipped)
PEDAL POSITION ADjUSTMENT (if so equipped) Push the switch forward or backward to move the brake and accelerator pedal to the desired position. Only adjust the pedals when the automatic transmission selector lever is in P (Park.) 01
SEAT POSITION ADjUSTMENT Move the control forward or backward to adjust the seat cushion forward or backward. 02
Pull up to raise the seat cushion; press down to lower the cushion. 02
SEAT RECLINING A DjUSTMENT Push the switch forward to move the seatback forward; push it back to move the seatback backward. 03
LUMBAR SUPPORT (if so equipped for driver’s seat) Push each side of the switch 04 to adjust the lumbar support.
2006
M U RANO
Q U I C K R E F E R E N C E G U I D E
CONTROL PANEL DISPLAY
(with Navigation System,
if so equipped)
TRIP BUTTON
When the TRIP button is pressed,
the following modes will display on
the screen:
Warning message (if there
are any)
TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
TRIP 2 (Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE (Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by
using the joystick and pushing the joystick to the right or left. To reset the
maintenance interval, select the RESET key using the joystick and press the ENTER
button.
SETTING THE CLOCK
The clock on the display screen can be adjusted using the joystick and the following
procedure.
Press the SETTING button, then select SYSTEM SETTINGS from the menu on
the display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for
additional information.
08
AUTOMATIC C LIMATE CONTROL
AUTO BUTTON
Press the AUTO button 01 for automatic cooling and/or dehumidified heating. The
indicator light on the button will come on when the system is activated.
FRESH AIR BUTTON
Press the fresh air button to draw outside air into the passenger compartment. The
indicator light on the button will come on when the system is activated.
AIR RECIRCULATION BUTTON
Press the air recirculation buttonto recirculate air inside the vehicle.
Press the air recirculation buttonagain to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow control dial is in the defrost
position.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
Push the front window defroster switch on. The indicator light on the button will
come on.
Turn the driver’s side temperature control dial 07 left for cold air or right for hot air to
set the desired temperature. To set the defroster on high, turn the manual fan speed
control dial to set fan speed to maximum.
DEFROSTING/DEFOGGING REAR WINDOW
Push the rear window defroster switch on. The indicator light on the button will come
on. Push the switch again to manually turn off the defrost. NOTE : The rear window
defroster automatically turns off in approximately 15 minutes.
MODE BUTTON
The MODE button allows you to select the air flow outlets.
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
DRIVER’S TEMPERATURE CONTROL DIAL
Turn the driver’s temperature control dial left for cold air or right for hot air. The driver’s
temperature control dial adjusts the temperature for both driver and passenger when the
DUAL button is not activated.
DUAL TEMPERATURE CONTROL ON/OFF BUTTON
Press the DUAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from the
driver’s side control.
PASSENGER’S TEMPERATURE CONTROL DIAL
Turn the passenger’s side air control dial to the left for cold air or right for hot air.
05
04
03
02
01
06
07
09
08
09
010203040506
07
08
09
FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when the driver’s
door is unlocked.
With the driver’s door unlocked, push the right side of
the fuel-filler door to open.
To lock, close the fuel-filler door and lock the
driver’s door.
AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:
Memory storage function.
Entry/exit function.
MEMORY STOR AGE FUNCTION
Two positions for the driver’s seat, accelerator and brake pedals, and outside mirrors can be stored in the automatic driver positioner memory. Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
1. Set the automatic transmission lever to the P (Park) position.
2. Turn the ignition on and adjust the driver’s seat, accelerator and brake pedals, and outside
mirrors to the desired positions.
3. Press the
SET (memory) button and within 5 seconds press the position button (1 or 2) for at least 1 second until the indicator light illuminates. The position is now stored in memory.
LINK TO KEYFOB Within 5 seconds of setting the memory position (indicator light is on and ignition is on), press the button on the remote. A keyfob can be linked to each memory button. If memory positioning is re-set to a new location, it will be necessary to re-link the keyfob.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD With the ignition on and automatic transmission lever in the P (Park) position, press the position button (1 or 2) for at least 1 second.
FROM THE KEYFOB
If properly linked, operation of the button will automatically return the driver’s seat, accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat more easily. The driver’s seat slides backward when:
The driver’s door is opened with the key turned to LOCK. The key is turned from ACC to LOCK with the driver’s door open and the automatic transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
The key is inserted into the ignition switch. The driver’s door is closed with the key turned to LOCK. The key is turned from ACC to ON while the automatic transmission lever is in the P (Park) position.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF
To tilt the sunroof up, push the tilt switch to the 01 position. If the roof is open, it will automatically close and then tilt up.
To tilt the sunroof down, push the tilt switch to the
02 position.
SLIDING THE SUNROOF
To open the roof, slide the switch to the 03 position. If the roof is tilted up, it will automatically tilt down and then open.
To close the roof, slide the switch to the 04 position.
The position of the sliding roof lid can be chosen by the position of the sliding switch.
To fully open or close the roof, move the switch completely to the or position.
01
04
03
02
010203
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag system. Under some conditions, depending on pressure detected on the passenger seat and how the seat belt is used, the front-passenger air bag is designed to automatically turn OFF. When the front-passenger air bag is OFF, the front-passenger air bag status light will illuminate*. For example:
When the system detects that the front-passenger’s seat is occupied by a small adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
When the front-passenger’s seat is occupied and the passenger meets the conditions outlined in the Owner’s Manual, the will not illuminate to indicate that the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the passenger air bag status light will not illuminate even though the front-passenger air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air Bag System.
TIRE PRESSURE MONITORING SYSTEM (if so equipped)
This system monitors tire pressure. Please remember, this system does not detect a sudden drop in tire pressure (for example, a blowout while driving). It also does not monitor the air pressure in the spare tire.
Tire pressure is affected by temperature. Low outside temperature causes lower tire pressure. This may cause the low tire pressure warning light to illuminate.
If the low tire pressure warning light comes on, check the tire pressure in all four tires. Adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label to turn the low tire pressure warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 60 seconds when the key is turned on. The light will remain on after the 60
seconds. Have the system checked by a NISSAN dealer.
04
Green 7 and 10 feet
XTRONIC CONTINUOUSL Y VARIABLE
T RANSMISSION
(CVT) ™
The Xtronic CVT™ does not produce a gear change sensation like traditional automatic transmissions.
P (Park)
R (Reverse) – Use for backing up.
N (Neutral) – Neither forward or reverse is engaged.
D (Drive) – Use for normal forward driving.
S (Second) – Use for improved acceleration and engine braking.
L (Low) – Use for maximum engine braking.
The transmission in your Murano requires a special fluid (NS-2) available only at your NISSAN dealer. No other fluid will meet the exacting requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE (if so equipped)
When the transmission lever is shifted from D (Drive) to the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the meter.
When shifting up, move the transmission lever to the + (up) side. (Shifts to higher gear.)
When shifting down, move the transmission lever to the - (down) side. (Shifts to lower gear.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before the vehicle comes to a stop. When accelerating again, it is necessary to shift to the desired gear.
When canceling the manual shift mode, return the transmission selector lever to the D (Drive) position. The transmission returns to the normal driving mode.
