2006 NISSAN MURANO technical specifications

CHANGING ENGINE OILChange the engine oil and filter according to the
maintenance log shown in the Service and Main-
tenance Guide.1. Park the vehicle on a level surface and apply
the parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn the engine off andwait more than 10
minutes.
4. Place a large drain pan under the drain plug
A
(under the body).
5. Remove the oil filler cap
B(inside the engine
compartment).
6. Remove the drain plug
Awith a wrench and
completely drain the oil.
If oil filter is to be changed, remove and
replace it at this time. See later in “Engine oil”
for changing engine oil filter.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.

Waste oil must be disposed of properly.

Check your local regulations.
7. Clean and re-install the drain plug with a newwasher. Securely tighten the drain plug with a
wrench.
Drain plug tightening torque:
22 to 29 ft-lb (29 to 39 N⋅m)
Do not use excessive force.
8. Refill engine with recommended oil and in-
stall the cap securely.
CAUTION
Never pull out the oil level gauge while
filling engine oil.
See “Capacities and recommended
fuel/lubricants” in the “9. Technical and con-
sumer information” section for drain and refill
capacity. The drain and refill capacity de-
pends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine the
proper amount of oil in the engine.
9. Start the engine.
Check for leakage around the drain plug.
Correct as required.
10. Turn the engine off andwait more than 10
minutes. Check the oil level with the dip-
SDI1763
8-10
Maintenance and do-it-yourself


05.8.26/Z50-D/V5.0


9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-3
Engine oil and oil filter recommendation.................... 9-5
Recommended SAE viscosity number ....................... 9-6
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-6
Specifications.......................................................................... 9-8
Engine ................................................................................. 9-8
Wheels and tires .............................................................. 9-9
Dimensions and weights ................................................ 9-9
When traveling or registering your vehicle in another
country.................................................................................... 9-10
Vehicle identification ........................................................... 9-10
Vehicle identification number (VIN) plate ................ 9-10
Vehicle identification number (Chassis number) ... 9-10
Engine serial number .................................................... 9-11
F.M.V.S.S. certification label ....................................... 9-11
Emission control information label ............................ 9-11
Tire and loading information label ............................. 9-12
Air conditioner specification label ............................. 9-12Installing front license plate .............................................. 9-13
Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Vehicle load capacity.................................................... 9-14
Loading tips .................................................................... 9-16
Payload weight capacity .............................................. 9-17
Measurement of weights ............................................. 9-17
Towing a trailer .................................................................... 9-18
Maximum load limits ...................................................... 9-18
Towing load/specification chart ................................. 9-20
Towing safety.................................................................. 9-20
Flat towing ....................................................................... 9-23
Uniform tire quality grading............................................... 9-24
Emission control system warranty ................................... 9-25
Reporting safety defects (US only) ................................ 9-25
Readiness for inspection/maintenance (I/M) test
(US only) ................................................................................ 9-26
Event data recorders ......................................................... 9-27
Owner’s Manual/Service Manual order information ... 9-27
In the event of a collision ............................................ 9-27


05.8.26/Z50-D/V5.0


The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended
specifications US
measureImp
measureLiter
Fuel 21-5/8 gal 18 gal 82 Unleaded gasoline with an octane rating of at least 87 AKI (RON 91)*1
Engine oil*6
Drain and refill
With oil filter change 4-1/4 qt 3-1/2 qt 4.0
API Certification Mark*2, *3

API grade SG/SH, Energy ConservingI&IIorAPIgradeSJorSL,Energy Conserving*2, *3

ILSAC grade GF-I, GF-II & GF-III*2, *3 Without oil filter change 3-7/8 qt 3-1/4 qt 3.7
Cooling system
With reservoir 10-1/8 qt 8-1/2 qt 9.6
Genuine NISSAN Long Life Antifreeze/Coolant or equivalent
Reservoir 7/8 qt 3/5 qt 0.8
Differential gear oil — — — API GL-5, Viscosity SAE 80W-90*4
CVT fluid — — — Genuine NISSAN CVT Fluid NS-2*5
Transfer oil — — — API GL-5, Viscosity SAE 80W-90
Power steering fluid (PSF)
Refill to the proper oil level according to the instructions in
the “8. Maintenance and do-it-yourself” section.Genuine NISSAN PSF or equivalent*7
Brake fluidGenuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*9
Air conditioning system lubricants — — —NISSAN A/C System Oil
Type S or exact equivalent
Windshield washer fluidGenuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1: For additional information, see later in this paragraph for fuel recommendation.
*2: For additional information, see later in this paragraph for engine oil and oil filter recommendation.
*3: For additional information, see later in this paragraph for recommended SAE viscosity number.
*4: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0°C (32°F).
*5:Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT transmission,
which is not covered by the Nissan new vehicle limited warranty.
*6: For additional information, see “Engine oil” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*7: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TMIII/MERCON
TMor equivalent ATF may also be used.
*8: Available in mainland U.S.A. through a NISSAN dealer.
*9: For additional information, see “Vehicle identification” in this section for air conditioner specification label.
CAPACITIES AND
RECOMMENDED
FUEL/LUBRICANTS9-2
Technical and consumer information


05.8.26/Z50-D/V5.0


FUEL RECOMMENDATIONUse unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).
For improved vehicle performance,
NISSAN recommends the use of unleaded
premium gasoline with an octane rating of
at least 91 AKI number (Research octane
number 96).
CAUTION

Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect
the warranty coverage.

Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cata-
lyst.

Do not use E-85 fuel in your vehicle.
Your vehicle is not designed to run
on E-85 fuel. Using E-85 fuel can
damage the fuel system components
and is not covered by the NISSANvehicle limited warranty.
Gasoline specificationsNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifi-
cations where it is available. Many of the auto-
mobile manufacturers developed this specifica-
tion to improve the emission control system and
vehicle performance. Ask your service station
manager if the gasoline meets the WWFC
specifications.Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for a NISSAN cannot be readily deter-mined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.

The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.

If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in NISSAN vehicles.
If any undesirable driveability problems such as
Technical and consumer information
9-3


05.8.26/Z50-D/V5.0


ENGINEModelVQ35DE
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore x Stroke in (mm) 3.760 x 3.205 (95.5 x 81.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order 1-2-3-4-5-6*
Idle speed rpm
See the emission control label on the
underside of the hood. Ignition timing (B.T.D.C.) degree/rpm
CO percentage at idle speed [No air] %
Spark plugStandard PLFR5A-11
Service option PLFR4A-11 (Hot), PLFR6A-11 (Cold)
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
The spark ignition system of this vehicle
meets all requirements of the Canadian
Interference-Causing Equipment Regula-
tions.
TI1009-A
SPECIFICATIONS9-8
Technical and consumer information


05.8.26/Z50-D/V5.0


When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded engine gaso-
line. Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(Chassis number)The number is stamped under the passenger’s
seat as shown.
STI0334
STI0374
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-10
Technical and consumer information


05.8.26/Z50-D/V5.0

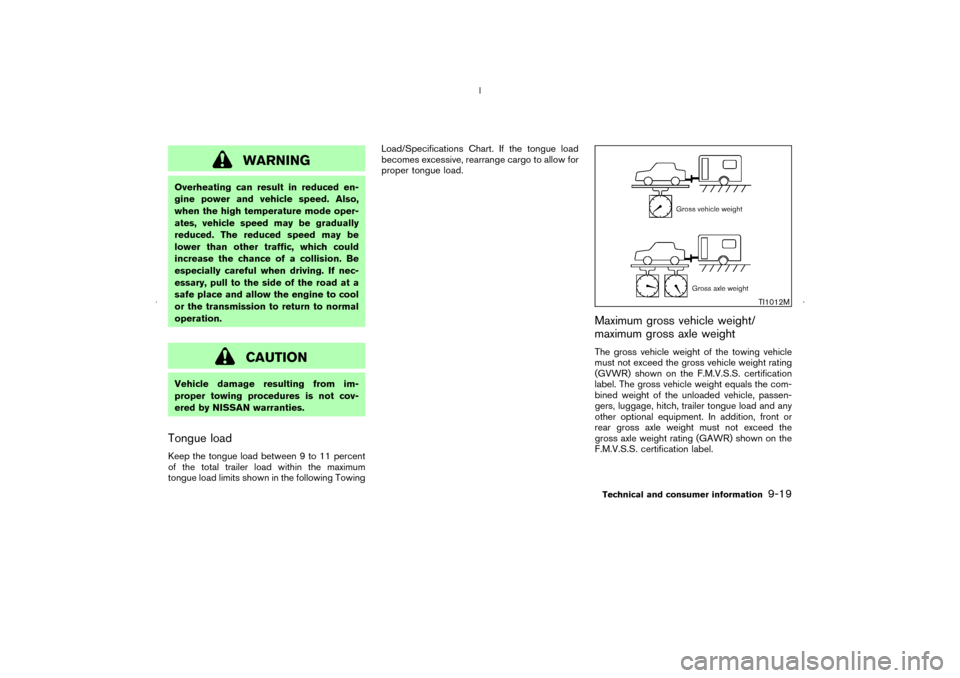

WARNING
Overheating can result in reduced en-
gine power and vehicle speed. Also,
when the high temperature mode oper-
ates, vehicle speed may be gradually
reduced. The reduced speed may be
lower than other traffic, which could
increase the chance of a collision. Be
especially careful when driving. If nec-
essary, pull to the side of the road at a
safe place and allow the engine to cool
or the transmission to return to normal
operation.
CAUTION
Vehicle damage resulting from im-
proper towing procedures is not cov-
ered by NISSAN warranties.Tongue loadKeep the tongue load between 9 to 11 percent
of the total trailer load within the maximum
tongue load limits shown in the following TowingLoad/Specifications Chart. If the tongue load
becomes excessive, rearrange cargo to allow for
proper tongue load.
Maximum gross vehicle weight/
maximum gross axle weightThe gross vehicle weight of the towing vehicle
must not exceed the gross vehicle weight rating
(GVWR) shown on the F.M.V.S.S. certification
label. The gross vehicle weight equals the com-
bined weight of the unloaded vehicle, passen-
gers, luggage, hitch, trailer tongue load and any
other optional equipment. In addition, front or
rear gross axle weight must not exceed the
gross axle weight rating (GAWR) shown on the
F.M.V.S.S. certification label.
TI1012M
Technical and consumer information
9-19


05.8.26/Z50-D/V5.0


Class I hitchClass I trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow trailers
of a maximum weight of 2,000 lb(909 kg).
You may add Class I trailer hitch equipment to
the vehicle that has a 2,000 lb(909 kg) maxi-
mum weight rating, but your vehicle is only
capable of towing the maximum trailer weights
shown in the Towing Load/Specification Chart
earlier in this section.

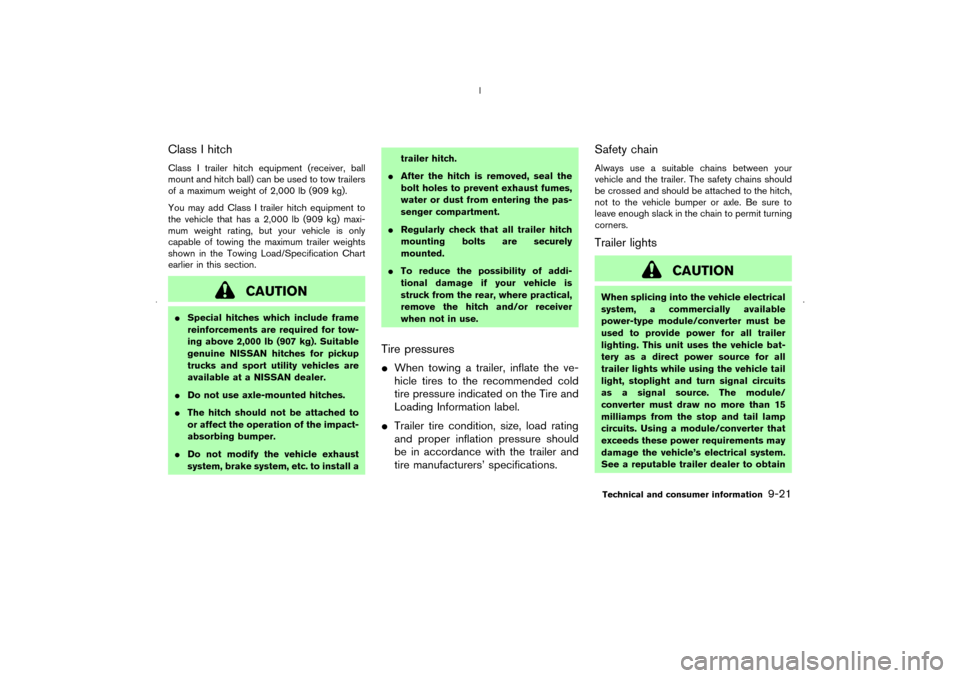

CAUTION

Special hitches which include frame
reinforcements are required for tow-
ing above 2,000 lb (907 kg). Suitable
genuine NISSAN hitches for pickup
trucks and sport utility vehicles are
available at a NISSAN dealer.

Do not use axle-mounted hitches.

The hitch should not be attached to
or affect the operation of the impact-
absorbing bumper.

Do not modify the vehicle exhaust
system, brake system, etc. to install atrailer hitch.

After the hitch is removed, seal the
bolt holes to prevent exhaust fumes,
water or dust from entering the pas-
senger compartment.

Regularly check that all trailer hitch
mounting bolts are securely
mounted.

To reduce the possibility of addi-
tional damage if your vehicle is
struck from the rear, where practical,
remove the hitch and/or receiver
when not in use.
Tire pressures
When towing a trailer, inflate the ve-
hicle tires to the recommended cold
tire pressure indicated on the Tire and
Loading Information label.

Trailer tire condition, size, load rating
and proper inflation pressure should
be in accordance with the trailer and
tire manufacturers’ specifications.
Safety chainAlways use a suitable chains between your
vehicle and the trailer. The safety chains should
be crossed and should be attached to the hitch,
not to the vehicle bumper or axle. Be sure to
leave enough slack in the chain to permit turning
corners.Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available
power-type module/converter must be
used to provide power for all trailer
lighting. This unit uses the vehicle bat-
tery as a direct power source for all
trailer lights while using the vehicle tail
light, stoplight and turn signal circuits
as a signal source. The module/
converter must draw no more than 15
milliamps from the stop and tail lamp
circuits. Using a module/converter that
exceeds these power requirements may
damage the vehicle’s electrical system.
See a reputable trailer dealer to obtainTechnical and consumer information
9-21


05.8.26/Z50-D/V5.0
