2006 NISSAN MURANO clock

1. Headlight, fog light* and turn signal switch
(P.2-22)
2. Trip odometer reset button (P.2-4)
3. Instrument brightness control switch
(P.2-26)
4. Meters/gauges (P.2-3)
5. Windshield (P.2-20)/rear window (P.2-21)
wiper and washer switch
6. Hazard warning flasher switch (P.2-27)
7. Center ventilator (P.4-19)
8. Audio control (P.4-27)
9. Display (P.4-2)/clock (P.4-4)
10. Rear window defroster and Heated outside
mirror* switch (P.2-22)
11. Display screen control (P.4-2) and/or Navi-
gation system*1
12. Passenger supplemental air bag (P.1-39)
13. Side ventilator (P.4-19)
14. Headlight aiming control switch* (P.2-25)
15. VDC (Vehicle dynamic control) off switch*
(P.2-29) or Headlight aiming control*
(P.2-25)
16. Steering switch for audio control* (P.4-43)
17. Fuse box cover (P.8-23)
18. Tilting steering wheel lock lever (P.3-28)
19. Driver supplemental air bag (P.1-39)/Horn
(P.2-28)
20. Cruise control main/set switch (P.5-21)
21. Ignition switch/steering lock (P.5-9)
(P.5-10)
22. Heater/air conditioner control (P.4-23)
SSI0176
INSTRUMENT PANEL
Illustrated table of contents
0-5


05.8.26/Z50-D/V5.0


1. Headlight, fog light* and turn signal switch
2. Trip odometer reset button
3. Instrument brightness control switch
4. Meters/gauges
5. Windshield/rear window wiper and washer
switch
6. Hazard warning flasher switch
7. Center ventilator
8. Audio control
9. Display/clock
10. Rear window defroster and Heated outside
mirror* switch
11. Display screen control and/or Navigation
system*1
12. Passenger supplemental air bag
13. Side ventilator
14. Headlight aiming control switch*
15. VDC (Vehicle dynamic control) off switch*
or Headlight aiming control*
16. Steering switch for audio control*
17. Fuse box cover
18. Tilting steering wheel lock lever
19. Driver supplemental air bag/Horn
20. Cruise control main/set switch
21. Ignition switch/steering lock
22. Heater/air conditioner control
23. Coin box
24. Outside mirror remote control
25. Cellular phone holder
26. AWD lock switch (AWD models)
27. Heated seat switch*
28. Power outlet cover
29. Glove box
*: if so equipped
SSI0176
INSTRUMENT PANEL2-2
Instruments and controls


05.8.26/Z50-D/V5.0


The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.

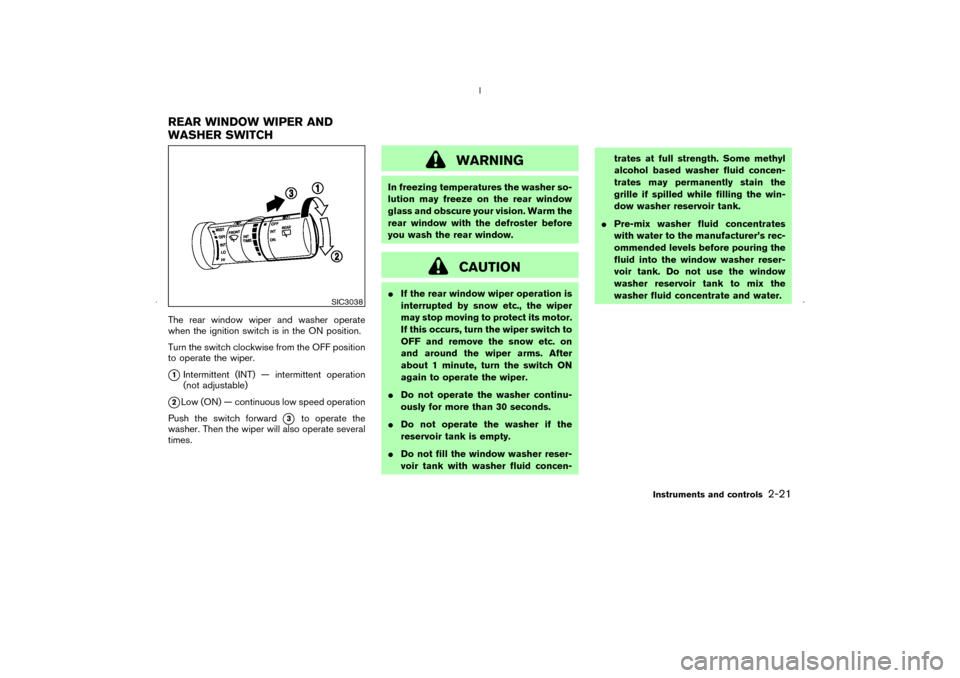

WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window with the defroster before
you wash the rear window.
CAUTION

If the rear window wiper operation is
interrupted by snow etc., the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow etc. on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.

Do not fill the window washer reser-
voir tank with washer fluid concen-trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.

Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
SIC3038
REAR WINDOW WIPER AND
WASHER SWITCH
Instruments and controls
2-21


05.8.26/Z50-D/V5.0


OPEN THE FUEL-FILLER DOORTo open the fuel-filler door, unlock it using one of
the following operations, then push the right-
hand side of the lid
A.

Push the unlock button on the remote keyless
entry once.

Insert the key into the door lock cylinder and
turn the door key clockwise twice.

Push the power door lock switch to the
unlock side.

Push the driver’s side door handle requestswitch once (Intelligent Key equipped
model).

Push the passenger side door handle request
switch or lift gate request switch twice (Intel-
ligent Key equipped model).
To lock, close the fuel-filler door and lock the
doors.
SPA1580
FUEL-FILLER DOOR3-26
Pre-driving checks and adjustments


05.8.26/Z50-D/V5.0


FUEL-FILLER CAPThe fuel-filler cap is a ratcheting type. Turn the
cap counterclockwise
A
to remove.
To tighten, turn the cap clockwise until ratchet-
ing clicks are heard.
Put the fuel-filler cap on the cap holder
Bwhile
refueling.
WARNING

Gasoline is extremely flammable andhighly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames
or sparks near the vehicle when refu-
eling.

Fuel may be under pressure. Turn the
cap a third of a turn, and wait for any
“hissing sound” to stop to prevent
fuel from spraying out and possibly
causing personal injury. Then remove
the cap.
Do not attempt to top off the fuel
tank after the fuel pump nozzle shuts
off automatically.
Continued refueling may cause fuel
overflow, resulting in fuel spray and
possibly a fire.

Use only an original equipment type
fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious
malfunction and possible injury. It
could also cause the
malfunc-
tion indicator lamp to come on.

Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
— Always place the container on the
ground when filling.
— Do not use electronic devices
SPA1581A
Pre-driving checks and adjustments
3-27


05.8.26/Z50-D/V5.0


4 Display screen, heater, air conditioner and
audio systemsSafety note .............................................................................. 4-2
Control panel buttons — without navigation system .... 4-2
How to use joystick and “ENTER” button ................. 4-3
How to use “BACK” button .......................................... 4-3
How to use “TRIP” button ............................................. 4-3
How to use “FUEL ECON” button .............................. 4-3
Clock ................................................................................... 4-4
How to use “E/M” button .............................................. 4-4
How to use “MAINT” (Maintenance) button ............. 4-4
Maintenance notice ......................................................... 4-5
How to use “SETTING” button .................................... 4-6
“DAY/NIGHT” button.................................................... 4-10
Control panel buttons — with navigation system ....... 4-11
How to use joystick and “ENTER” button .............. 4-11
How to use “BACK” button........................................ 4-11
Setting up the start-up screen................................... 4-12
How to use the “TRIP” button ................................... 4-12
Maintenance notice ....................................................... 4-14
How to use the “SETTING” button .......................... 4-15
“DAY/NIGHT” button.................................................... 4-19
Rear view monitor (if so equipped) ................................ 4-19
How to read the displayed lines................................ 4-20Rear view monitor setting............................................ 4-20
Operating tips................................................................. 4-20
Ventilators .............................................................................. 4-21
Heater and air conditioner (Automatic) ......................... 4-23
Automatic operation ...................................................... 4-24
Manual operation ........................................................... 4-25
Operating tips................................................................. 4-25
In-cabin microfilter ......................................................... 4-26
Servicing air conditioner .................................................... 4-26
Audio system ........................................................................ 4-27
FM radio reception ........................................................ 4-27
AM radio reception ....................................................... 4-28
Satellite radio reception ............................................... 4-28
Audio operation precautions....................................... 4-28
FM-AM-SAT radio with CD player .......................... 4-33
FM-AM-SAT radio with cassette player and CD
changer ............................................................................ 4-37
CD care and cleaning .................................................. 4-42
Steering switch for audio control (if so
equipped)......................................................................... 4-43
Antenna ............................................................................ 4-44
Car phone or CB radio .................................................... 4-44


05.8.26/Z50-D/V5.0


WARNING

Positioning of the heating or air con-
ditioning controls and display con-
trols should not be done while driv-
ing, in order that full attention may
be given to the driving operation.

Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electrical shock.

Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.

In case you notice any foreign object
in the system hardware, spill liquid
on it, or notice smoke or smell com-
ing from it, stop using the system
immediately and contact a NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire, or electrical
shock.1. “TRIP” button
2. “FUEL ECON” button
3. Clock adjust button
4. “TRIP RESET” button5. “E/M” button
6. “DAY/NIGHT” button
7. “BACK” button
8. JOYSTICK and “ENTER” button
SAA1352
SAFETY NOTE
CONTROL PANEL BUTTONS —
WITHOUT NAVIGATION SYSTEM4-2
Display screen, heater, air conditioner and audio systems


05.8.26/Z50-D/V5.0


CLOCKThe digital clock displays time when the ignition
switch is in ACC or ON.
If the battery cable is disconnected, the
clock will not indicate the correct time.
Readjust the time.Adjusting the timeTo adjust the time, push the “H” or “M” button for
more than approximately 1.5 seconds. The time
indicator will flash.
Push theHbutton to adjust the hour.
Push theMbutton to adjust the minute.To finish the adjusting, push the “BACK” button
or the screen will return to normal after 10
seconds.
The clock can be adjusted on the setting display.
See the “HOW TO USE “SETTING” BUTTON”
later in this section.
HOW TO USE “E/M” BUTTONYou can change the unit as follows using the
“E/M” (English/Metric) button.
Unit: US — Mile, °F, MPG
Metric — km, °C, L/100 km
HOW TO USE “MAINT”
(Maintenance) BUTTONMaintenance and tire pressure information (if so
equipped) will be displayed when the “MAINT”
button is pushed.
To display the setting of the maintenance inter-
val, select the “Engine Oil” or “Tire Rotation” key
using the joystick and push the “ENTER” button.
To set the maintenance interval, select the
“Maintenance Schedule” key by using the joy-
stick and move the joystick to the right or left.
To reset the maintenance interval, select the
SAA1353
SAA1319
4-4
Display screen, heater, air conditioner and audio systems


05.8.26/Z50-D/V5.0
