2006 NISSAN MURANO ECO mode

system as soon as possible.Accelerator downshift
— In D position —For rapid passing or hill climbing, fully depress
the accelerator pedal to the floor. This shifts the
transmission down into lower range, depending
on the vehicle speed.High fluid temperature protection
modeThis transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the vehicle may not accelerate above
approximately 40 to 50 MPH (65 to 80 km/h).Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the fail-safe
system may be activated. The MIL may
come on to indicate the fail-safe mode is
activated, see “Malfunction indicator lamp(MIL)” in the “2. Instrument and controls”
section. This will occur even if all electrical
circuits are functioning properly. In this
case, turn the ignition switch to the OFF
position and wait for 10 seconds. Then turn
the switch back to the ONposition. The
vehicle should return to its normal operat-
ing condition. If it does not return to its
normal operating condition, have a
NISSAN dealer check the transmission and
repair if necessary.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. The reduced speed may be lower
than other traffic, which could increase
the chance of a collision. Be especially
careful when driving. If necessary, pull
to the side of the road at a safe place
and allow the transmission to return to
normal operation, or have it repaired if
necessary.
M-CVT (CVT with Manual shift mode)
Gate type shift with manual modeThe M-CVT in your vehicle is electronically con-
trolled by a transmission control module to pro-
duce maximum power and smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum ve-
hicle performance and driving enjoyment.Starting the vehicleAfter starting the engine, fully depress the foot
brake pedal before shifting the selector lever to
the R (Reverse), N (Neutral), D (Drive) or manual
shift mode position. Be sure the vehicle is fully
stopped before attempting to shift the selector
lever.
This M-CVT is designed so that the foot
brake pedal MUST be depressed before
shifting from P (Park) to any drive position
while the ignition switch is ON.
The selector lever cannot be moved out of
P (Park) and into any of the other gear
positions if the ignition switch is turned to
the LOCK, OFF or ACC position or if the
key is removed from the ignition switch.
1. Keep the foot brake pedal depressed and
5-16
Starting and driving


05.8.26/Z50-D/V5.0


M4 (Fourth), M3 (Third) and M2 (Second):
Use for hill climbing or engine braking on down-
hill grades.
M1 (First):
Use this position when climbing steep hills
slowly or driving slowly through deep snow,
sand or mud, or for maximum engine braking on
steep downhill grades.

Remember not to drive at high speeds for
extended periods of time in lower than M6
range. This reduces fuel economy.

When shifting up, move the selector lever to
the + (up) side. (Shifts to higher range.)

When shifting down, move the selector lever
to the − (down) side. (Shifts to lower range.)

Moving the selector lever to the same side
twice will shift the ranges in succession.
However, if this motion is rapidly done, the
second shifting may not be completed prop-
erly.

In the manual shift mode, the transmis-
sion automatically shifts down to M1
(First) before the vehicle comes to a
stop. When accelerating again, it is nec-
essary to shift up to the desired range.

When canceling the manual shift mode, re-
turn the selector lever to the D position. Thetransmission returns to the normal driving
mode.

In the manual shift mode, the transmis-
sion may not shift to the selected gear.
This helps maintain driving performance
and reduces the chance of vehicle dam-
age or loss of control.

When the CVT fluid temperature is extremely
low, the manual shift mode may not work and
automatically shift as a drive mode. This is not
a malfunction. In this case, return the selector
lever to D range and drive for a while and then
shift to the manual shift mode.

When the CVT fluid temperature is high, the
shift range may upshift in lower rpm than
usual. This is not a malfunction.
Shift lock releaseIf the battery is discharged, the selector lever
may not be moved from the P (Park) position
even with the brake pedal depressed.
To move the selector lever, push the shift lock
release button while depressing the foot brake
and applying the parking brake. The selector
lever can be moved to N (Neutral). This allows
the vehicle to be moved if the battery is dis-
charged, after releasing the parking brake.
If the battery is discharged in N (Neutral), D
(Drive) or Manual shift mode, the selector lever
may not be moved to the P (Park) position.
SSD0352
Starting and driving
5-19


05.8.26/Z50-D/V5.0


If it is necessary to park the vehicle, push the
shift lock release button, then move the selector
lever to the P (Park).
To push the shift lock release button, follow the
procedure as illustrated.
If the lever cannot be moved out of P (Park), have
a NISSAN dealer check the CVT system as soon
as possible.
WARNING

If the selector lever cannot be moved
from the P (Park) position while the
engine is running and the brake
pedal is depressed, the stop lights
may not work. Malfunctioning stop
lights could cause an accident injur-
ing yourself and others.

Do not park the vehicle without shift-
ing to the P (Park) position.Accelerator downshift
— In D position —For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into the lower gear, depend-ing on the vehicle speed.
High fluid temperature protection
modeThis transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the vehicle may not accelerate above
approximately 40 to 50 MPH (65 to 80 km/h).Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the fail-safe
system may be activated. The MIL may
come on to indicate the fail-safe mode is
activated, see “Malfunction indicator lamp
(MIL)” in the “2. Instrument and controls”
section. This will occur even if all electrical
circuits are functioning properly. In this
case, turn the ignition switch to the OFF
position and wait for 10 seconds. Then turn
the switch back to the ONposition. The
vehicle should return to its normal operat-ing condition. If it does not return to its
normal operating condition, have a
NISSAN dealer check the transmission and
repair if necessary.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. The reduced speed may be lower
than other traffic, which could increase
the chance of a collision. Be especially
careful when driving. If necessary, pull
to the side of the road at a safe place
and allow the transmission to return to
normal operation, or have it repaired if
necessary.
5-20
Starting and driving


05.8.26/Z50-D/V5.0


Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.

Drive at moderate speeds on the highway.
Driving at high speed will lower fuel economy.

Avoid unnecessary stopping and braking.
Maintain a safe distance behind other ve-
hicles.

Use a proper gear range which suits road
conditions. On level roads, shift into high gear
as soon as possible.

Avoid unnecessary engine idling.

Keep your engine tuned up.

Follow the recommended periodic mainte-
nance schedule.

Keep the tires inflated at the correct pres-
sure. Low pressure will increase tire wear and
waste fuel.

Keep the front wheels in correct alignment.
Improper alignment will cause not only tire
wear but also lower fuel economy.

Air conditioner operation lowers fuel
economy. Use the air conditioner only when
necessary.

When cruising at highway speeds, it is more
economical to use the air conditioner andleave the windows closed to reduce drag.

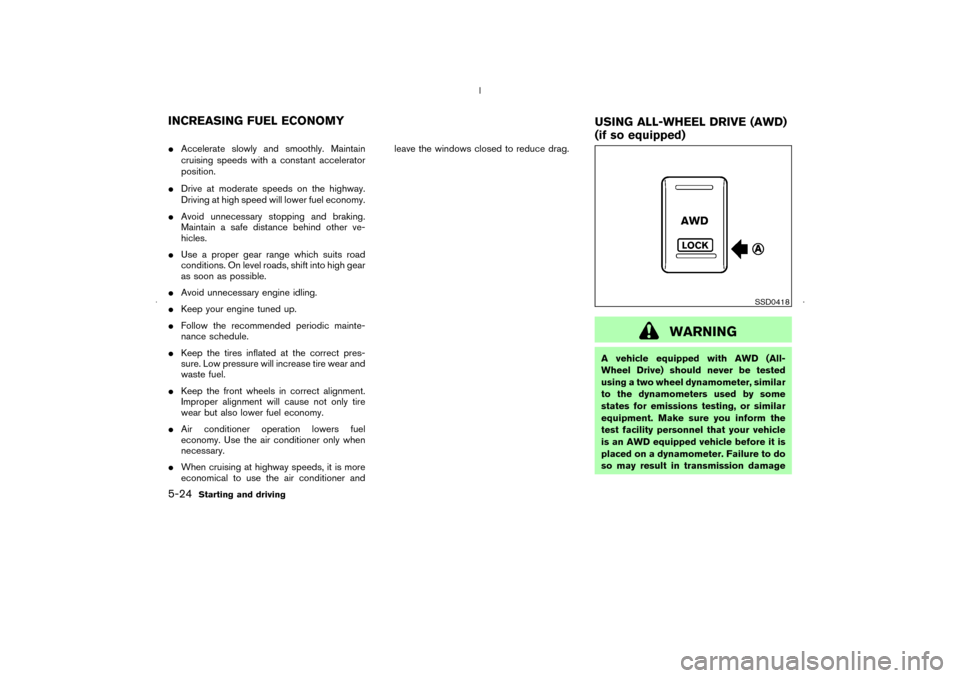

WARNING
A vehicle equipped with AWD (All-
Wheel Drive) should never be tested
using a two wheel dynamometer, similar
to the dynamometers used by some
states for emissions testing, or similar
equipment. Make sure you inform the
test facility personnel that your vehicle
is an AWD equipped vehicle before it is
placed on a dynamometer. Failure to do
so may result in transmission damage
SSD0418
INCREASING FUEL ECONOMY
USING ALL-WHEEL DRIVE (AWD)
(if so equipped)5-24
Starting and driving


05.8.26/Z50-D/V5.0


a braking effect. This is a normal
condition of the AWD model.
AWD WARNING LIGHTThe AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is turned to ON. It turns off soon
after the engine is started.If any malfunction occurs in the AWD system
when the ignition switch is ON, the warning light
will remain illuminated.
High-temperature power-train oil due to continu-
ous operation of the vehicle to free a stuck
vehicle makes the warning light blink rapidly
(about twice per second). The driving mode may
change to 2 wheel drive condition. AUTO mode
may change to LOCK mode before the warning
light blinks. This is normal. If the warning light
blinks rapidly during operation, stop the vehicle
with the engine idling in a safe place immedi-
ately. Then if the light goes off after a while, you
can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning light
blink slowly (about once per two seconds). Pull
off the road in a safe area, and idle the engine.
Check that all tire sizes are the same, tire
pressure is correct and tires are not worn.
WARNING
Do not attempt to test an AWD
equipped vehicle with two wheels on a
two wheel dynamometer and the other
two wheels raised. Doing so may result
SSD0314A
Starting and driving
5-27


05.8.26/Z50-D/V5.0


Installing the spare tireThe spare tire is designed for emergency
use. See specific instructions under the
heading “Wheels and tires” in the “Main-
tenance and do-it-yourself ” section of this
manual.
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and tighten the
wheel nuts finger tight.
3. With the wheel nut wrench, tighten wheel
nuts alternately and evenly as illustrated until
they are tight.4. Lower the vehicle slowly until the tire touches
the ground. Then, with the wheel nut wrench,
tighten the wheel nuts securely in the se-
quence illustrated (
1,2,3,4,5).
Lower the vehicle completely.

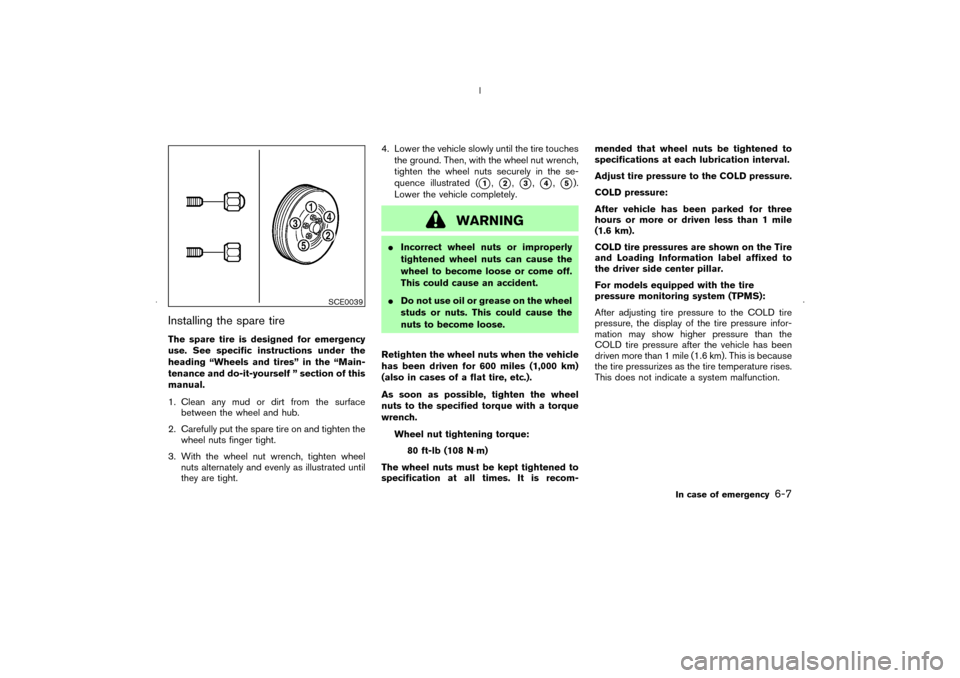

WARNING

Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

Do not use oil or grease on the wheel
studs or nuts. This could cause the
nuts to become loose.
Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.).
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench.
Wheel nut tightening torque:
80 ft-lb (108 N⋅m)
The wheel nuts must be kept tightened to
specification at all times. It is recom-mended that wheel nuts be tightened to
specifications at each lubrication interval.
Adjust tire pressure to the COLD pressure.
COLD pressure:
After vehicle has been parked for three
hours or more or driven less than 1 mile
(1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to
the driver side center pillar.
For models equipped with the tire
pressure monitoring system (TPMS):
After adjusting tire pressure to the COLD tire
pressure, the display of the tire pressure infor-
mation may show higher pressure than the
COLD tire pressure after the vehicle has been
driven more than 1 mile (1.6 km). This is because
the tire pressurizes as the tire temperature rises.
This does not indicate a system malfunction.
SCE0039
In case of emergency
6-7


05.8.26/Z50-D/V5.0

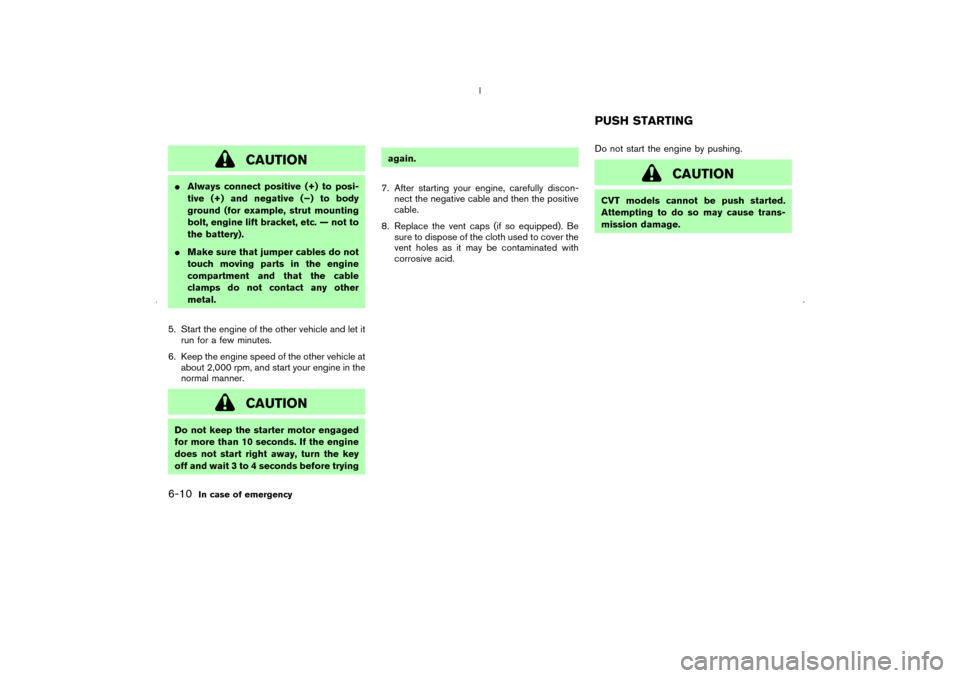

CAUTION

Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (for example, strut mounting
bolt, engine lift bracket, etc. — not to
the battery).

Make sure that jumper cables do not
touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.
5. Start the engine of the other vehicle and let it
run for a few minutes.
6. Keep the engine speed of the other vehicle at
about 2,000 rpm, and start your engine in the
normal manner.
CAUTION
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, turn the key
off and wait 3 to 4 seconds before tryingagain.
7. After starting your engine, carefully discon-
nect the negative cable and then the positive
cable.
8. Replace the vent caps (if so equipped). Be
sure to dispose of the cloth used to cover the
vent holes as it may be contaminated with
corrosive acid.Do not start the engine by pushing.
CAUTION
CVT models cannot be push started.
Attempting to do so may cause trans-
mission damage.PUSH STARTING
6-10
In case of emergency


05.8.26/Z50-D/V5.0


TOWING RECOMMENDED BY
NISSAN
Two wheel drive modelsNISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flat bed truck as
illustrated.

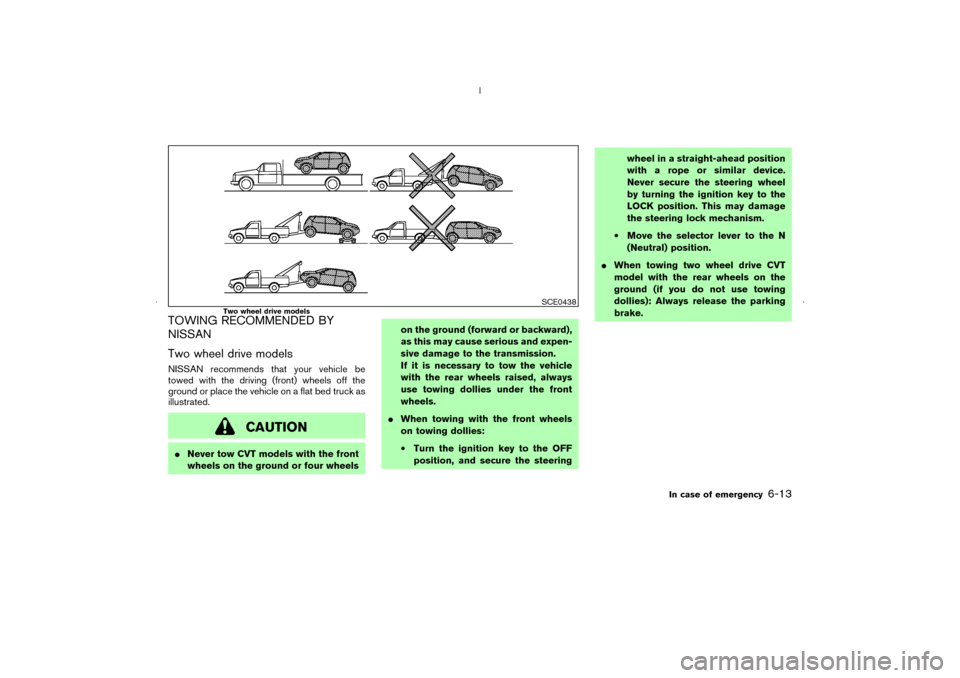

CAUTION

Never tow CVT models with the front
wheels on the ground or four wheelson the ground (forward or backward),
as this may cause serious and expen-
sive damage to the transmission.
If it is necessary to tow the vehicle
with the rear wheels raised, always
use towing dollies under the front
wheels.

When towing with the front wheels
on towing dollies:
•Turn the ignition key to the OFF
position, and secure the steeringwheel in a straight-ahead position
with a rope or similar device.
Never secure the steering wheel
by turning the ignition key to the
LOCK position. This may damage
the steering lock mechanism.
•Move the selector lever to the N
(Neutral) position.

When towing two wheel drive CVT
model with the rear wheels on the
ground (if you do not use towing
dollies): Always release the parking
brake.
SCE0438
Two wheel drive models
In case of emergency
6-13


05.8.26/Z50-D/V5.0
