2006 NISSAN MURANO warning

CHILD RESTRAINT INSTALLATION
ON REAR SEAT OUTBOARD OR
CENTER POSITIONS

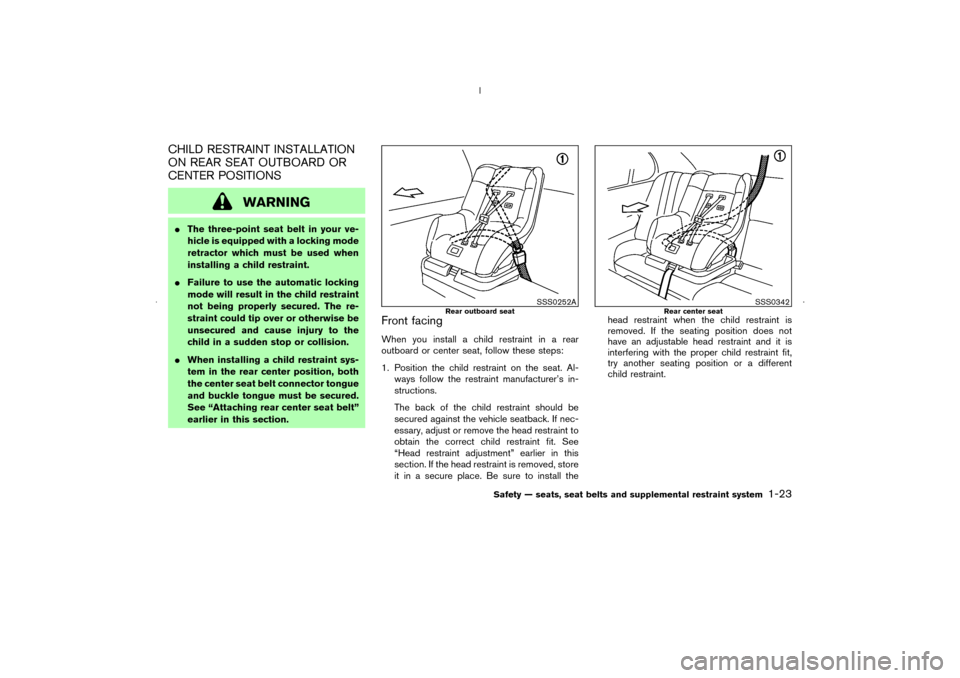

WARNING

The three-point seat belt in your ve-
hicle is equipped with a locking mode
retractor which must be used when
installing a child restraint.

Failure to use the automatic locking
mode will result in the child restraint
not being properly secured. The re-
straint could tip over or otherwise be
unsecured and cause injury to the
child in a sudden stop or collision.

When installing a child restraint sys-
tem in the rear center position, both
the center seat belt connector tongue
and buckle tongue must be secured.
See “Attaching rear center seat belt”
earlier in this section.
Front facingWhen you install a child restraint in a rear
outboard or center seat, follow these steps:
1. Position the child restraint on the seat. Al-
ways follow the restraint manufacturer’s in-
structions.
The back of the child restraint should be
secured against the vehicle seatback. If nec-
essary, adjust or remove the head restraint to
obtain the correct child restraint fit. See
“Head restraint adjustment” earlier in this
section. If the head restraint is removed, store
it in a secure place. Be sure to install thehead restraint when the child restraint is
removed. If the seating position does not
have an adjustable head restraint and it is
interfering with the proper child restraint fit,
try another seating position or a different
child restraint.
SSS0252A
Rear outboard seat
SSS0342
Rear center seat
Safety — seats, seat belts and supplemental restraint system
1-23


05.8.26/Z50-D/V5.0


LATCH (LOWER ANCHORS AND
TETHERS FOR CHILDREN)
SYSTEM1. LATCH lower anchor points (right)
2. LATCH lower anchor points (left)
3. LATCH label
The LATCH (Lower Anchors and Tethers for
CHildren) anchor points are located in the seat
cushions of the rear outboard seating positions
only. Do not attempt to install a child restraint in
the center position using the LATCH anchors.
The LATCH system anchors are located at the
rear of the seat cushion near the seatback. Alabel is attached to the seatback to help you
locate the LATCH system anchors.

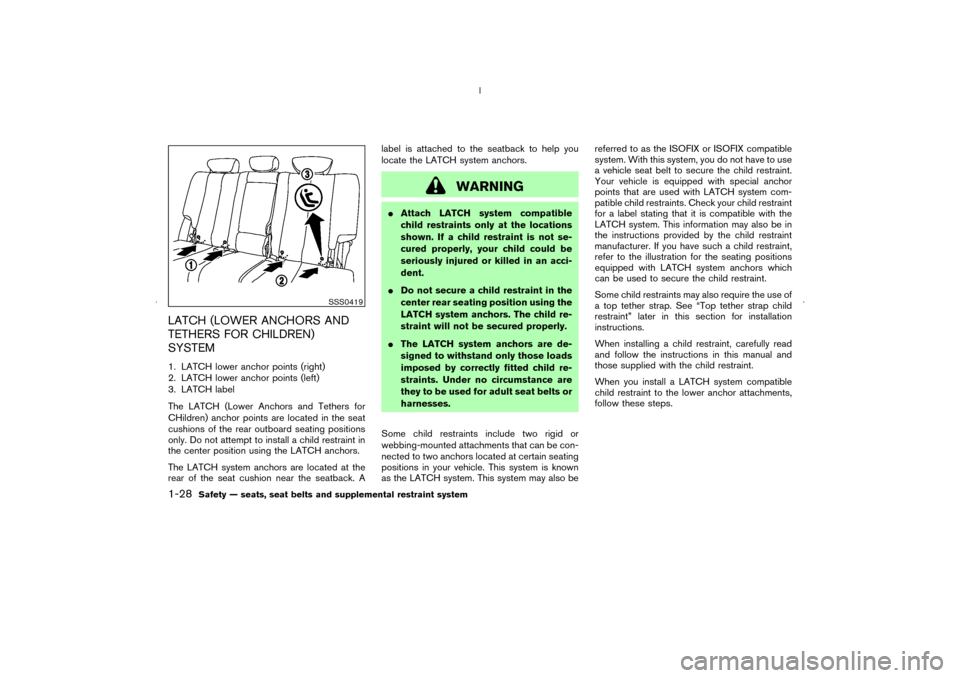

WARNING

Attach LATCH system compatible
child restraints only at the locations
shown. If a child restraint is not se-
cured properly, your child could be
seriously injured or killed in an acci-
dent.

Do not secure a child restraint in the
center rear seating position using the
LATCH system anchors. The child re-
straint will not be secured properly.

The LATCH system anchors are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstance are
they to be used for adult seat belts or
harnesses.
Some child restraints include two rigid or
webbing-mounted attachments that can be con-
nected to two anchors located at certain seating
positions in your vehicle. This system is known
as the LATCH system. This system may also bereferred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint.
Your vehicle is equipped with special anchor
points that are used with LATCH system com-
patible child restraints. Check your child restraint
for a label stating that it is compatible with the
LATCH system. This information may also be in
the instructions provided by the child restraint
manufacturer. If you have such a child restraint,
refer to the illustration for the seating positions
equipped with LATCH system anchors which
can be used to secure the child restraint.
Some child restraints may also require the use of
a top tether strap. See “Top tether strap child
restraint” later in this section for installation
instructions.
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
When you install a LATCH system compatible
child restraint to the lower anchor attachments,
follow these steps.
SSS0419
1-28
Safety — seats, seat belts and supplemental restraint system


05.8.26/Z50-D/V5.0


WARNING
Inspect the lower anchors by inserting
your fingers into the lower anchor area
and feeling to make sure there are no
obstructions over the LATCH system an-
chors, such as seat belt webbing or seat
cushion material. The child restraint will
not be secured properly if the LATCH
system anchors are obstructed.
1. To install the LATCH system compatible child
restraint, adjust the height of the child re-
straint LATCH system anchor attachments to
the anchor points on the rear seat.
2. Insert the anchor attachments into the anchor
points. If the child restraint is equipped with a
top tether, see “Top tether strap child re-
straint” later in this section for installation
instructions.
3. After attaching the child restraint and before
placing the child in it, use force to push the
child restraint from side to side and tug it
forward to make sure that the child restraint is
securely held in place. It should not move
more than 1 inch (25 mm).
4. Check to make sure that the child restraint is
properly secured prior to each use.
TOP TETHER STRAP CHILD
RESTRAINT
WARNING

Child restraint anchor points are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used for adult seat belts or
harnesses.

After removing a rear seat head re-
straint for top tether installation,
store it securely to prevent it from
causing injury to passengers or dam-
age to the vehicle in case of sudden
braking or an accident. Always re-
place it and adjust properly when top
tether is no longer in use.

The child restraint top tether strap
may be damaged by contact with the
tonneau cover or items in the cargo
area. Remove the tonneau cover from
the vehicle or secure it and any cargo.
Your child could be seriously injured
or killed in a collision if the top tetherstrap is damaged.
If your child restraint has a top tether strap, it
must be secured to the anchor point provided
behind its position.
First, adjust the seatback so that it is upright.
Then secure the child restraint with the rear seat
belt or the LATCH system (outboard positions),
as applicable. For the center position
C, re-
move the anchor cover from the anchor point as
illustrated. Keep the removed cover in a secure
place to prevent loss or damage.
Remove the head restraint from the seatback.
Store it in a secure place. Position the top tether
strap over the top of the seatback and secure it
to the tether anchor bracket that provides the
straightest installation. Tighten the tether strap
according to the manufacturer’s instruction to
remove any slack.
For best child restraint fit, see the child restraint
installation instructions in this section and the
child restraint manufacturer’s instructions.
Safety — seats, seat belts and supplemental restraint system
1-29


05.8.26/Z50-D/V5.0


Anchor point locations

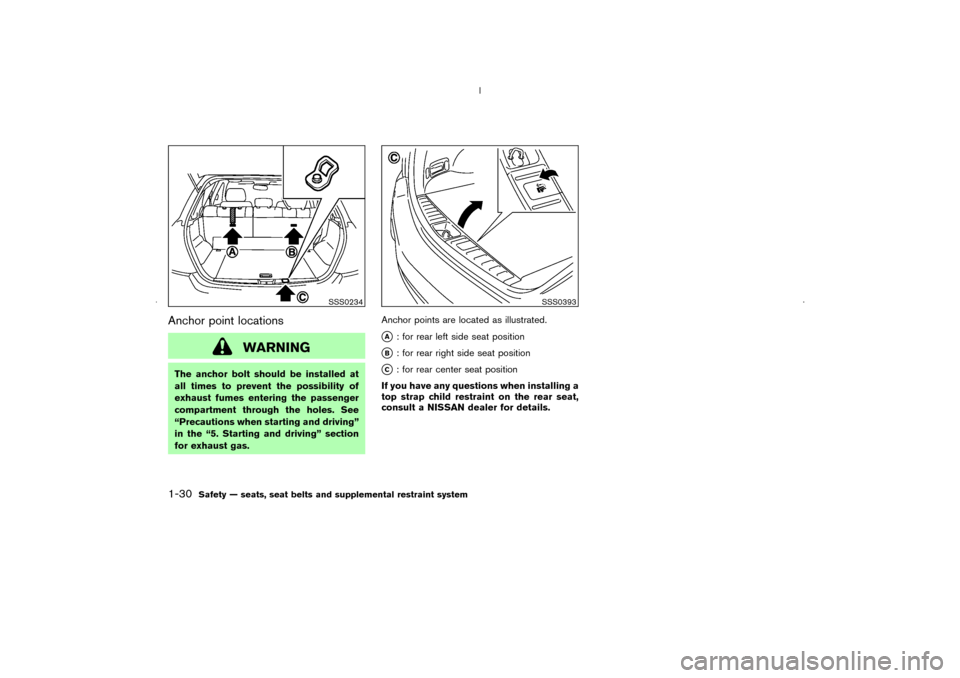

WARNING
The anchor bolt should be installed at
all times to prevent the possibility of
exhaust fumes entering the passenger
compartment through the holes. See
“Precautions when starting and driving”
in the “5. Starting and driving” section
for exhaust gas.Anchor points are located as illustrated.
A
: for rear left side seat position
B
: for rear right side seat position
C
: for rear center seat position
If you have any questions when installing a
top strap child restraint on the rear seat,
consult a NISSAN dealer for details.
SSS0234
SSS0393
1-30
Safety — seats, seat belts and supplemental restraint system


05.8.26/Z50-D/V5.0


INSTALLATION ON FRONT
PASSENGER SEAT
WARNING

Never install a rear-facing child re-
straint in the front passenger seat.
Supplemental front air bags inflate
with great force. A rear-facing child
restraint could be struck by the
supplemental front air bag in a crash
and could seriously injure or kill yourchild.

NISSAN recommends that child re-
straints be installed in the rear seat.
However, if you must install a front
facing child restraint in the front pas-
senger seat, move the passenger
seat to the rearmost position. Also,
be sure the front passenger air bag
status light is illuminated to indicate
the passenger air bag is OFF. See
“Front passenger air bag and status
light” later in this section for details.
A child restraint with a top tether
strap should not be used in the front
passenger seat.

The three-point seat belt in your ve-
hicle is equipped with an automatic
locking mode retractor which must
be used when installing a child re-
straint.

Failure to use the retractor’s locking
mode will result in the child restraint
not being properly secured. The re-
straint could tip over or otherwise be
unsecured and cause injury to the
child in a sudden stop or collision.
Also, it can change the operation of
the front passenger air bag. See
“Front passenger air bag and status
light” later in this section.
SSS0300A
Safety — seats, seat belts and supplemental restraint system
1-31


05.8.26/Z50-D/V5.0


webbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the lap
belt is not locked, repeat steps 3 through 6.
8. Turn the ignition switch to the ON position.
The passenger air bag status light
should illuminate. If this light is not
illuminated, see “Front passenger air bag and
status light” later in this section.Move the
child restraint to another seating posi-
tion.Have the system checked by a NISSAN
dealer.
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) will be canceled.
PRECAUTIONS ON BOOSTER
SEATS
WARNING

Infants and small children should al-
ways be placed in an appropriate
child restraint while riding in the ve-
hicle. Failure to use a child restraint
or booster seat can result in serious
injury or death.

Infants and small children should
never be carried on your lap. It is not
possible for even the strongest adult
to resist the forces of a severe acci-
dent. The child could be crushed be-
tween the adult and parts of the ve-
hicle. Also, do not put the same seat
belt around both your child and your-
self.

NISSAN recommends that the
booster seat be installed in the rear
seat. According to accident statistics,
children are safer when properly re-
strained in the rear seat than in the
front seat.
A booster seat must only be installed
in a seating position that has a
lap/shoulder belt. Failure to use a
three-point type seat belt with a
booster seat can result in a serious
injury in sudden stop or collision.

An improperly installed booster seat
could lead to serious injury or death
in an accident.BOOSTER SEATS
1-34
Safety — seats, seat belts and supplemental restraint system


05.8.26/Z50-D/V5.0


WARNING
Do not use towels, books, pillows or
other items in place of a booster seat.
Items such as these may move during
normal driving or a collision and result
in serious injury or death. Booster seats
are designed to be used with a
lap/shoulder belt. Booster seats are de-
signed to properly route the lap and
shoulder portions of the seat belt over
the strongest portions of a child’s bodyto provide the maximum protection dur-
ing a collision.
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:

Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.

Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
LRS0455
SSS0387
Safety — seats, seat belts and supplemental restraint system
1-35


05.8.26/Z50-D/V5.0


Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1
is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
2
should be used.

If the booster seat is compatible with your
vehicle, place your child in the booster seat
and check the various adjustments to be sure
the booster seat is compatible with your
child. Always follow all recommended proce-
dures.All U.S. states and provinces of Canada
require that infants and small children be
restrained in an approved child restraint at
all times while the vehicle is being oper-
ated.
WARNING

Improper use of a booster seat can
increase the risk or severity of injury
for both the child and other occu-
pants of the vehicle.

Follow all of the booster seat manu-
facturer’s instructions for installation
and use. When purchasing a booster
seat, be sure to select one which will
fit your child and vehicle. It may not
be possible to properly install some
types of booster seats in your ve-
hicle.

If the booster seat and seat belt are
not used properly, the risk of a child
being injured in a collision or a sud-
den stop greatly increases.
Adjustable seatbacks should be po-
sitioned to fit the booster seat, but as
upright as possible.

After placing the child in the booster
seat and fastening the seat belt,
make sure the shoulder portion of
the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the abdomen.

Do not put the shoulder belt behind
the child or under the child’s arm. If
you must install a booster seat in the
front seat, see “Booster seat instal-
lation on front passenger seat” later
in this section.

When your booster seat is not in use,
keep it secured with a seat belt to
prevent it from being thrown around
in case of a sudden stop or accident.
SSS0388
1-36
Safety — seats, seat belts and supplemental restraint system


05.8.26/Z50-D/V5.0
