The Intelligent Key uses coded radio signals to
communicate with the vehicle. When the Intelli-
gent Key is near the vehicle, such as when
standing near the vehicle with the Intelligent Key
in your pocket or purse, it allows the vehicle to
be locked or unlocked. And, when you are inside
the vehicle while carrying the Intelligent Key with
you, it allows the engine to be started without
inserting the key to the ignition switch. It is also
possible to use the remote keyless entry func-
tion.
CAUTION

Be sure to carry the Intelligent Key
with you.

Do not leave the vehicle with the
Intelligent Key inside.

The Intelligent Key may not function
correctly depending on the environment
or operating conditions. It could also
malfunction if you do not use it cor-
rectly.

The Intelligent Key transmits faint radio
waves.
In the following situations, the Intelli-
gent Key and remote keyless entry func-tions may not operate correctly, and you
may have to use the metal key (me-
chanical key or valet key):
•when there are strong signals com-
ing from a television tower, power
station or broadcasting station.
•when you have wireless equipment
or a cellular phone with you.
•when the Intelligent Key is in contact
with or covered by a metallic mate-
rial.
•when radio wave-type remote control
entry is used nearby.
•when the Intelligent Key is placed
near an electric appliance such as a
personal computer.

The Intelligent Key continually con-
sumes battery power as the key receives
a signal to communicate with the ve-
hicle. Battery life of the Intelligent Key is
about 2 years, although it varies de-
pending on the operating conditions.
When the battery of the Intelligent Key
is low, the green blinking key warning
light goes out about 30 seconds after
the ignition switch is turned to ON. If the
battery runs down, replace it with a new
one.
If the Intelligent Key receives strong
signal over an extended period of time,
the battery of the Intelligent Key could
quickly run down. Do not place the In-
telligent Key near an electric appliance
such as a television set or personal
computer.

Because the ignition switch is electroni-
cally controlled, if the vehicle battery is
completely discharged when the igni-
tion switch is in the LOCK position, the
steering lock cannot be released or the
ignition switch cannot be turned (not by
the mechanical key either).

In case the vehicle battery is completely
discharged, make sure to recharge the
vehicle battery immediately.INTELLIGENT KEY SYSTEM (if so
equipped)
Pre-driving checks and adjustments
3-9


05.8.26/Z50-D/V5.0


the vehicle, doors can be locked with an-
other Intelligent Key.
Unlocking doors and fuel-filler door1. Push the door handle request switch or lift
gate request switch once.
Driver’s side:

The driver door and fuel-filler door unlock.
Front passenger side or lift gate:

Only corresponding door unlocks.
2. The hazard indicator flashes once and out-
side buzzer sounds once if all doors are
completely closed with the ignition key in any
position except the ON position.
3. Push the door handle request switch or lift
gate request switch again within 5 seconds.

All doors and the fuel-filler door unlock.

The hazard indicator flashes once and out-
side buzzer sounds once if all doors are
completely closed.
All doors will be locked automatically after push-
ing the door handle request switch or lift gate
request switch unless one of the following op-
erations is performed within 1 minute.

any door is opened
the ignition switch is pushed

the mechanical key or the valet key is inserted
into the ignition switch
Re-lock time can be adjusted or cancelled with
the vehicle electronic systems on the monitor
(see “4. Display screen, heater, air conditioner
and audio systems”).
The room light will come on for 30 seconds
when the door is unlocked using the request
switch.
The room light can be turned off without waiting
for 30 seconds by turning the ignition switch to
the ON position or by locking the doors.
OPERATING THE ENGINE
Ignition switch positionsPush in the ignition switch in the range (
A
to
B) when you turn it.
LOCK (Normal parking position)
A:
The ignition switch can only be locked in the
A
position.
The ignition switch will be unlocked when it is
pushed in, and turned to the ACC position
C
while carrying the Intelligent Key.
SSD0417
Pre-driving checks and adjustments
3-13


05.8.26/Z50-D/V5.0


ACC (Accessories)
C:
This position activates electrical accessories
such as the radio, when the engine is not
running.
ON(Normal operating position)
D:
This position turns on the ignition system and
electrical accessories.
START
E:
This position starts the engine. As soon as the
engine has started, release the switch immedi-
ately. It will automatically return to the ON posi-
tion.
For important safety information, see “Ignition
switch” in the “5. Starting and driving” section.
The ignition switch cannot be turned back to the
LOCK position unless the selector lever is in P
position. (It can be turned to only
B.) If the
ignition switch cannot be turned back to the
LOCK position after shifting the selector lever to
the P position, turn the ignition switch to the
ACC position once and turn back to the LOCK
position.
CAUTION
Do not leave the vehicle with the igni-
tion switch in ACC or ONpositions when
the engine is not running for an ex-
tended period. This can discharge the
battery.
Starting the engineWhen driving the vehicle, be sure to carry the
Intelligent Key with you.
1. Securely depress the brake pedal.
2. Slowly push the ignition switch in.
When the Intelligent Key warning light
A
in
the instrument panel comes on in green, the
ignition switch can be turned.
3. Turn the ignition switch to the START posi-
tion and the engine will be started.
4. When the engine starts, release the ignition
switch.
SPA2174
3-14
Pre-driving checks and adjustments


05.8.26/Z50-D/V5.0

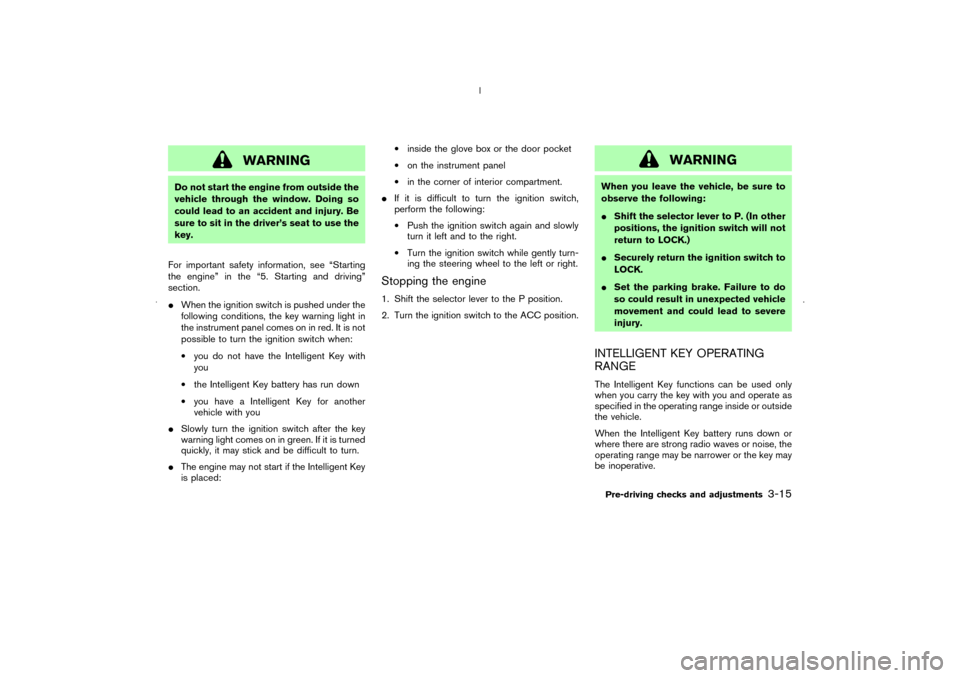

WARNING
Do not start the engine from outside the
vehicle through the window. Doing so
could lead to an accident and injury. Be
sure to sit in the driver’s seat to use the
key.
For important safety information, see “Starting
the engine” in the “5. Starting and driving”
section.

When the ignition switch is pushed under the
following conditions, the key warning light in
the instrument panel comes on in red. It is not
possible to turn the ignition switch when:
•you do not have the Intelligent Key with
you
•the Intelligent Key battery has run down
•you have a Intelligent Key for another
vehicle with you

Slowly turn the ignition switch after the key
warning light comes on in green. If it is turned
quickly, it may stick and be difficult to turn.

The engine may not start if the Intelligent Key
is placed:•inside the glove box or the door pocket
•on the instrument panel
•in the corner of interior compartment.

If it is difficult to turn the ignition switch,
perform the following:
•Push the ignition switch again and slowly
turn it left and to the right.
•Turn the ignition switch while gently turn-
ing the steering wheel to the left or right.
Stopping the engine1. Shift the selector lever to the P position.
2. Turn the ignition switch to the ACC position.
WARNING
When you leave the vehicle, be sure to
observe the following:

Shift the selector lever to P. (In other
positions, the ignition switch will not
return to LOCK.)

Securely return the ignition switch to
LOCK.

Set the parking brake. Failure to do
so could result in unexpected vehicle
movement and could lead to severe
injury.INTELLIGENT KEY OPERATING
RANGEThe Intelligent Key functions can be used only
when you carry the key with you and operate as
specified in the operating range inside or outside
the vehicle.
When the Intelligent Key battery runs down or
where there are strong radio waves or noise, the
operating range may be narrower or the key may
be inoperative.Pre-driving checks and adjustments
3-15


05.8.26/Z50-D/V5.0


WARNING SIGNALSTo help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelli-
gent Key or to help prevent the vehicle from
being stolen, a chime or buzzer sounds from
inside and outside the vehicle and a warning
light comes on in the instrument panel.
When a chime or beep sounds or the warning
light comes on, be sure to check the vehicle and
Intelligent Key.Audible reminder and warning when
locking the doorsWhen the chime or buzzer sounds from inside
and outside the vehicle, check for the following:

The ignition switch is turned to the LOCK
position.

The Intelligent Key is not left inside the
vehicle.

Doors are closed securely.

The selector lever is in the P position.
Audible reminder and warning when
the engine stopsWhen the P position selecting warning light
B
in the instrument panel blinks in red:

Make sure the selector lever is in the P
position.
When the chime sounds intermittently:

Make sure the selector lever is in the P
position and the ignition switch is turned to
the LOCK position.
If the chime sounds continuously when the
driver’s door is opened, check the following:
The selector lever is in the P position and the
ignition switch is turned to the LOCK posi-
tion.

The mechanical key or the valet key is not
inserted into the ignition switch.

The warning chime may stop when one of the
following is performed.
•Returning the ignition switch to the LOCK
position.
•Removing the mechanical key or the valet
key.
•Closing the doors.
Alarm and warning when the engine
startsWhen the key warning light
A
is blinking in red
and the outside buzzer sounds, make sure the
Intelligent Key is inside the vehicle.
Warning for low battery power
This warning is to let you know that the
battery of the Intelligent Key will run down
soon. Replace it with a new one. Refer to the
“8. Maintenance and do-it-yourself” section
for battery replacement.
•The green blinking key warning light
A
goes out about 30 seconds after the
SPA2175
Pre-driving checks and adjustments
3-17


05.8.26/Z50-D/V5.0


TROUBLE-SHOOTING GUIDE
Symptom Possible Cause Remedy
When pushing the door
handle request switch or the
lift gate request switchThe outside buzzer sounds for approxi-
mately 2 seconds.The doors cannot be locked.Take out the Intelligent Key from the vehicle
and push the door handle request switch or
the lift gate request switch.
Turn the ignition switch to the LOCK posi-
tion and push the door handle request
switch or the lift gate request switch while
carrying the Intelligent Key with you.
Close all the doors securely and push the
door handle request switch or the lift gate
request switch while carrying the Intelligent
Key with you.
When closing the doorsThe outside buzzer sounds for approxi-
mately 10 seconds.The ignition switch is not turned to the
LOCK position.Turn the ignition switch to the LOCK posi-
tion.
The key warning light in the instrument
panel blinks in red and the outside
buzzer sounds 3 times.The Intelligent Key is not in the vehicle. Be sure to carry the Intelligent Key with you.
The outside buzzer sounds for approxi-
mately 3 seconds and all doors unlock.The Intelligent Key has been left in the ve-
hicle.Take out the Intelligent Key from the vehicle
and close the door.
When locking the doorsThe outside buzzer sounds for approxi-
mately 3 seconds and all doors unlock.The Intelligent Key has been left in the trunk
room.Take out the Intelligent Key from the vehicle
and close the door.
When opening the driver’s
doorA warning chime sounds continuously.The ignition switch is not in the LOCK posi-
tion, or the mechanical key or valet key is
inserted into the ignition switch.Turn the ignition switch to the LOCK posi-
tion.
Remove the mechanical key or valet key
from the ignition switch.
When stopping the engineThe P position warning light in the in-
strument panel blinks in red.The selector lever is not in the P position.Make sure that the selector lever is in the P
position.
When turning the ignition
switchA warning chime sounds continuously.The ignition switch is not turned to the
LOCK position.Turn the ignition switch to the LOCK posi-
tion.
When starting the engineThe key warning light in the instrument
panel blinks in green.The battery charge is low.Replace the battery with a new one. See
“BATTERY REPLACEMENT” on page 8-24.
When pushing the ignition
switchThe key warning light in the instrument
panel comes on in red.The Intelligent Key is not in the vehicle.If the key warning light comes on in red
even while you are carrying the Intelligent
Key, the battery is completely discharged.
Replace the battery with a new one. See
“BATTERY REPLACEMENT” on page 8-24.
Pre-driving checks and adjustments
3-19


05.8.26/Z50-D/V5.0


1. Pull the hood lock release handle
1
located
below the instrument panel; the hood will
then spring up slightly.
2. Move the lever
2
at the front of the hood
with your fingertips and raise the hood.
3. When closing the hood, slowly close the
hood and make sure it locks into place.
WARNING

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
The power door lock system allows you to
lock or unlock all doors including the lift gate
simultaneously.

Push the opener switch and pull up the lift
gate to open.
WARNING
Do not drive with the lift gate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. See “Precau-
tions when starting and driving”
SPA1578
SPA1947
HOODLIFT GATE3-24
Pre-driving checks and adjustments


05.8.26/Z50-D/V5.0


section and “Pedal position adjustment” and
“Outside mirrors” earlier in this section.
3. Turn the ignition ON.
4. Push the SET switch and, within 5 seconds,
push the memory switch (1 or 2) fully for at
least 1 second.
The indicator light for the pushed memory
switch will come on and stay on for approxi-
mately 5 seconds after pushing the switch.
After the indicator light goes off, the selected
positions are stored in the selected memory
(1 or 2).
If memory is stored in the same memory switch,
the previous memory will be deleted.
Linking a remote keyless entry to a
stored memory positionA remote keyless entry can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memory posi-
tion.
2. While the indicator light for the memory
switch being set is illuminated for 5 seconds,
push the unlock button on the remote keyless
entry. The indicator light will blink. After the
indicator light goes off, the remote keyless
entry is linked to that memory setting.With the key removed from the ignition switch,
push the unlock button on the keyfob. The
driver’s seat, pedals (Brake and Accelerator)
and outside mirrors will move to the memorized
position.
Confirming memory storage
Turn the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored the position,
the indicator light will stay on for approxi-
mately 5 seconds.Selecting the memorized position1. Set the sift selector lever to the P (Park)
position.
2. Turn the ignition ON.
3. Push the memory switch (1 or 2) fully for at
least 1 second.
The driver’s seat, pedals (Brake and Accel-
erator) and outside mirrors will move to the
memorized position with the indicator light
flashing, and then the light will stay on for
approximately 5 seconds.SYSTEM OPERATIONThe automatic drive positioner system will notwork or will stop operating under the following
conditions:

when the vehicle speed is above 4 MPH (7
km/h).

when any two or more of the memory
switches and the SET switch is simulta-
neously pushed while the automatic drive
positioner is operating.

when the adjusting switch for the driver’s
seat, pedals and outside mirror are operated
while the automatic drive positioner is oper-
ating.

when the memory switch (1 or 2) and the
SET switch is not pushed for at least 1
second.

when the seat has been already moved to the
memorized position.

when no seat position is stored in the
memory switch.

when the engine is started while moving the
automatic drive positioner.

when the shift selector lever is moved from
the P position to any other position (However,
it will not be cancelled if the switch is pushed
while the seat is returning to the previous
positions (entry/exit function).).
3-34
Pre-driving checks and adjustments


05.8.26/Z50-D/V5.0
