2006 NISSAN MURANO warning

3 Pre-driving checks and adjustmentsKeys ........................................................................................... 3-2
NISSAN Vehicle Immobilizer System (NVIS)
keys ...................................................................................... 3-2
Doors......................................................................................... 3-3
Locking with key ............................................................... 3-3
Locking with inside lock knob...................................... 3-4
Locking with power door lock switch ......................... 3-4
Child safety rear door lock ............................................ 3-5
Remote keyless entry system (models without
Intelligent Key system) .......................................................... 3-5
How to use remote keyless entry system.................. 3-6
Intelligent Key system (if so equipped) ............................ 3-9
Door locks/unlocks precaution ................................. 3-11
Intelligent Key operation .............................................. 3-12
Operating the engine.................................................... 3-13
Intelligent Key operating range ................................. 3-15
Warning signals ............................................................. 3-17
Trouble-shooting guide ................................................ 3-19
Operation with intelligent remote keyless entry
system .............................................................................. 3-20Operation with the mechanical key and valet
key ..................................................................................... 3-23
Hood ....................................................................................... 3-24
Lift gate .................................................................................. 3-24
Fuel-filler door ...................................................................... 3-26
Open the fuel-filler door .............................................. 3-26
Fuel-filler cap .................................................................. 3-27
Steering wheel ..................................................................... 3-28
Tilt operation ................................................................... 3-28
Pedal position adjustment (if so equipped).................. 3-29
Sun visors.............................................................................. 3-30
Mirrors .................................................................................... 3-30
Inside mirror .................................................................... 3-30
Automatic anti-glare inside mirror (if so
equipped)......................................................................... 3-31
Outside mirrors .............................................................. 3-32
Automatic drive positioner (if so equipped) ................. 3-33
Entry/exit function .......................................................... 3-33
Memory storage ............................................................. 3-33
System operation ........................................................... 3-34


05.8.26/Z50-D/V5.0


Immobilizer System keys. A NISSAN dealer can
duplicate it. As many as 5 NVIS keys can be
used with one vehicle. You should bring all NVIS
keys that you have to a NISSAN dealer for
registration. This is because the registration
process will erase the memory of all key codes
previously registered into the NISSAN Vehicle
Immobilizer System. After the registration pro-
cess, these components will only recognize keys
coded into the NISSAN Vehicle Immobilizer
System (NVIS) during registration. Any key that
is not given to your dealer at the time of regis-
tration will no longer be able to start your vehicle.
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with salt water. This
could affect system function.
WARNING

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.

Before opening any door, always
look for and avoid oncoming traffic.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
LOCKING WITH KEY
PowerThe power door lock system allows you to lock
or unlock all doors simultaneously.

Turning the driver’s door key to the front of
the vehicle
1
will lock all doors (including
the lift gate) and fuel-filler door.

Turning the driver’s door key one time to the
rear of the vehicle2
will unlock the driver’s
door. From that position, returning the key to
neutral (where the key can only be removed
and inserted) and turning it to the rear again
within 5 seconds will unlock all doors and
SPA1575A
DOORS
Pre-driving checks and adjustments
3-3


05.8.26/Z50-D/V5.0


When the LOCK button is pushed with all
doors and fuel-filler door locked, the hazard
indicator flashes twice and the horn chirps
once as a reminder that the doors and fuel-
filler door are already locked.
*1: Doors and fuel-filler door lock with the key-
fobwhile a key is in the ignition switch.
However, the panic alarm will not activate
when the key is in the ignition switch.
*2: Doors and fuel-filler door lock with the key-
fobwhile any door is open. However, hazard
indicator and horn mode will not function.Unlocking doors1. Push the UNLOCK button
B
on the keyfob
once.

The driver’s door and fuel-filler door unlocks

The hazard indicator flashes once if all doors
and fuel-filler door are completely closed with
the ignition switch in any position except the
ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR position with the ignition switch
in any position except the ON position.
2. Push the UNLOCK button
B
on the keyfob
again within 5 seconds.
All doors unlock

The hazard indicator flashes once if all doors
are completely closed.
If the following operation is not carried out
within 1 minute after pushing the
UNLOCK button, all doors will be locked
automatically. (if so equipped)

any door is opened.

the ignition switch is turned to the ON
position
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Opening the front windowPush the UNLOCK button
B
on the keyfob.
The driver’s door will unlock.
Continue to push the UNLOCK button for 3
seconds. The driver’s and front passenger’s
windows will be lowered.
Continue to push the UNLOCK button until
windows are fully open.
To stop lowering the windows, release the UN-
LOCK button.To start lowering the windows, push the UN-
LOCK button again for 3 more seconds.
This function will operate after the ignition switch
is off and 45 seconds passed or either the front
door is opened.
Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
Cbutton on the keyfob for
longer than 0.5 seconds.
2. The theft warning alarm and headlights will
stay on for 30 seconds.
3. The panic alarm stops when:

It has run for 30 seconds, or

The LOCK or the UNLOCK button is pushed,
or

The panic button is pushed on the keyfob for
more than 0.5 seconds.
Battery replacementSee the “8. Maintenance and do-it-yourself”
section for battery replacement.
3-8
Pre-driving checks and adjustments


05.8.26/Z50-D/V5.0


The Intelligent Key uses coded radio signals to
communicate with the vehicle. When the Intelli-
gent Key is near the vehicle, such as when
standing near the vehicle with the Intelligent Key
in your pocket or purse, it allows the vehicle to
be locked or unlocked. And, when you are inside
the vehicle while carrying the Intelligent Key with
you, it allows the engine to be started without
inserting the key to the ignition switch. It is also
possible to use the remote keyless entry func-
tion.
CAUTION

Be sure to carry the Intelligent Key
with you.

Do not leave the vehicle with the
Intelligent Key inside.

The Intelligent Key may not function
correctly depending on the environment
or operating conditions. It could also
malfunction if you do not use it cor-
rectly.

The Intelligent Key transmits faint radio
waves.
In the following situations, the Intelli-
gent Key and remote keyless entry func-tions may not operate correctly, and you
may have to use the metal key (me-
chanical key or valet key):
•when there are strong signals com-
ing from a television tower, power
station or broadcasting station.
•when you have wireless equipment
or a cellular phone with you.
•when the Intelligent Key is in contact
with or covered by a metallic mate-
rial.
•when radio wave-type remote control
entry is used nearby.
•when the Intelligent Key is placed
near an electric appliance such as a
personal computer.

The Intelligent Key continually con-
sumes battery power as the key receives
a signal to communicate with the ve-
hicle. Battery life of the Intelligent Key is
about 2 years, although it varies de-
pending on the operating conditions.
When the battery of the Intelligent Key
is low, the green blinking key warning
light goes out about 30 seconds after
the ignition switch is turned to ON. If the
battery runs down, replace it with a new
one.
If the Intelligent Key receives strong
signal over an extended period of time,
the battery of the Intelligent Key could
quickly run down. Do not place the In-
telligent Key near an electric appliance
such as a television set or personal
computer.

Because the ignition switch is electroni-
cally controlled, if the vehicle battery is
completely discharged when the igni-
tion switch is in the LOCK position, the
steering lock cannot be released or the
ignition switch cannot be turned (not by
the mechanical key either).

In case the vehicle battery is completely
discharged, make sure to recharge the
vehicle battery immediately.INTELLIGENT KEY SYSTEM (if so
equipped)
Pre-driving checks and adjustments
3-9


05.8.26/Z50-D/V5.0


1. Intelligent Key 2 sets
2. Mechanical key (metal key)*1*2 2 sets
3. Valet key (with built-in transponder chip)*1
4. Key number plate
*1 The mechanical key and valet key are
equipped with Nissan Vehicle ImmobilizerSystem. Refer to “Nissan Vehicle Immobilizer
System (NVIS) keys” earlier in this section.
*2 Mechanical key is included in the Intelligent
Key. Refer to “Operation with the mechanical
key” later in this section for how to remove
the mechanical key from the Intelligent Key.

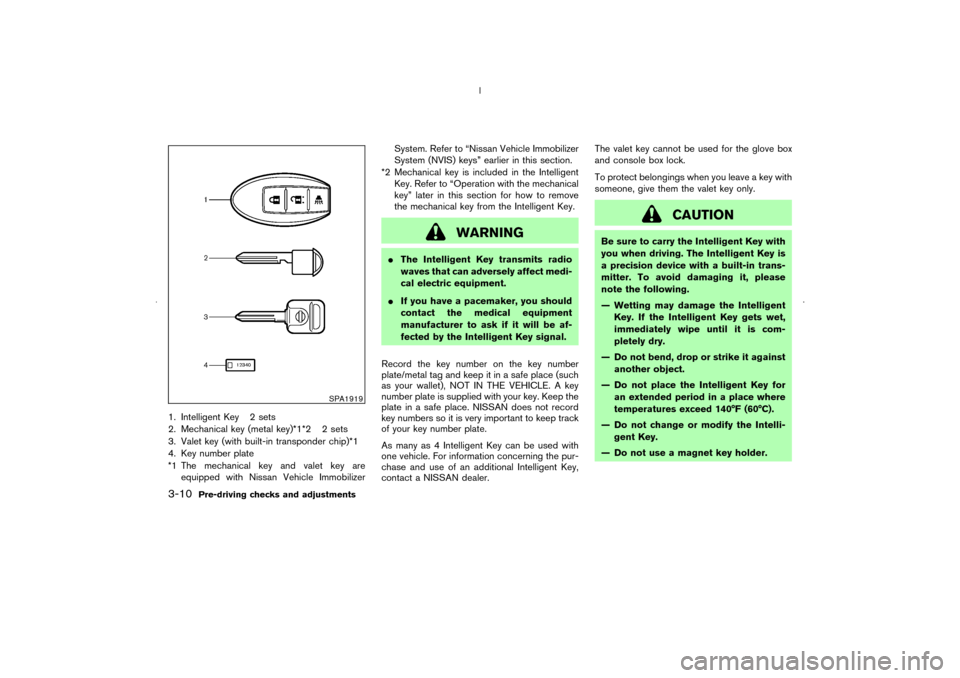

WARNING

The Intelligent Key transmits radio
waves that can adversely affect medi-
cal electric equipment.

If you have a pacemaker, you should
contact the medical equipment
manufacturer to ask if it will be af-
fected by the Intelligent Key signal.
Record the key number on the key number
plate/metal tag and keep it in a safe place (such
as your wallet), NOT IN THE VEHICLE. A key
number plate is supplied with your key. Keep the
plate in a safe place. NISSAN does not record
key numbers so it is very important to keep track
of your key number plate.
As many as 4 Intelligent Key can be used with
one vehicle. For information concerning the pur-
chase and use of an additional Intelligent Key,
contact a NISSAN dealer.The valet key cannot be used for the glove box
and console box lock.
To protect belongings when you leave a key with
someone, give them the valet key only.
CAUTION
Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is
a precision device with a built-in trans-
mitter. To avoid damaging it, please
note the following.
— Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
— Do not bend, drop or strike it against
another object.
— Do not place the Intelligent Key for
an extended period in a place where
temperatures exceed 140°F (60°C).
— Do not change or modify the Intelli-
gent Key.
— Do not use a magnet key holder.
SPA1919
3-10
Pre-driving checks and adjustments


05.8.26/Z50-D/V5.0


ACC (Accessories)
C:
This position activates electrical accessories
such as the radio, when the engine is not
running.
ON(Normal operating position)
D:
This position turns on the ignition system and
electrical accessories.
START
E:
This position starts the engine. As soon as the
engine has started, release the switch immedi-
ately. It will automatically return to the ON posi-
tion.
For important safety information, see “Ignition
switch” in the “5. Starting and driving” section.
The ignition switch cannot be turned back to the
LOCK position unless the selector lever is in P
position. (It can be turned to only
B.) If the
ignition switch cannot be turned back to the
LOCK position after shifting the selector lever to
the P position, turn the ignition switch to the
ACC position once and turn back to the LOCK
position.
CAUTION
Do not leave the vehicle with the igni-
tion switch in ACC or ONpositions when
the engine is not running for an ex-
tended period. This can discharge the
battery.
Starting the engineWhen driving the vehicle, be sure to carry the
Intelligent Key with you.
1. Securely depress the brake pedal.
2. Slowly push the ignition switch in.
When the Intelligent Key warning light
A
in
the instrument panel comes on in green, the
ignition switch can be turned.
3. Turn the ignition switch to the START posi-
tion and the engine will be started.
4. When the engine starts, release the ignition
switch.
SPA2174
3-14
Pre-driving checks and adjustments


05.8.26/Z50-D/V5.0


WARNING
Do not start the engine from outside the
vehicle through the window. Doing so
could lead to an accident and injury. Be
sure to sit in the driver’s seat to use the
key.
For important safety information, see “Starting
the engine” in the “5. Starting and driving”
section.

When the ignition switch is pushed under the
following conditions, the key warning light in
the instrument panel comes on in red. It is not
possible to turn the ignition switch when:
•you do not have the Intelligent Key with
you
•the Intelligent Key battery has run down
•you have a Intelligent Key for another
vehicle with you

Slowly turn the ignition switch after the key
warning light comes on in green. If it is turned
quickly, it may stick and be difficult to turn.

The engine may not start if the Intelligent Key
is placed:•inside the glove box or the door pocket
•on the instrument panel
•in the corner of interior compartment.

If it is difficult to turn the ignition switch,
perform the following:
•Push the ignition switch again and slowly
turn it left and to the right.
•Turn the ignition switch while gently turn-
ing the steering wheel to the left or right.
Stopping the engine1. Shift the selector lever to the P position.
2. Turn the ignition switch to the ACC position.
WARNING
When you leave the vehicle, be sure to
observe the following:

Shift the selector lever to P. (In other
positions, the ignition switch will not
return to LOCK.)

Securely return the ignition switch to
LOCK.

Set the parking brake. Failure to do
so could result in unexpected vehicle
movement and could lead to severe
injury.INTELLIGENT KEY OPERATING
RANGEThe Intelligent Key functions can be used only
when you carry the key with you and operate as
specified in the operating range inside or outside
the vehicle.
When the Intelligent Key battery runs down or
where there are strong radio waves or noise, the
operating range may be narrower or the key may
be inoperative.Pre-driving checks and adjustments
3-15


05.8.26/Z50-D/V5.0


WARNING SIGNALSTo help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelli-
gent Key or to help prevent the vehicle from
being stolen, a chime or buzzer sounds from
inside and outside the vehicle and a warning
light comes on in the instrument panel.
When a chime or beep sounds or the warning
light comes on, be sure to check the vehicle and
Intelligent Key.Audible reminder and warning when
locking the doorsWhen the chime or buzzer sounds from inside
and outside the vehicle, check for the following:

The ignition switch is turned to the LOCK
position.

The Intelligent Key is not left inside the
vehicle.

Doors are closed securely.

The selector lever is in the P position.
Audible reminder and warning when
the engine stopsWhen the P position selecting warning light
B
in the instrument panel blinks in red:

Make sure the selector lever is in the P
position.
When the chime sounds intermittently:

Make sure the selector lever is in the P
position and the ignition switch is turned to
the LOCK position.
If the chime sounds continuously when the
driver’s door is opened, check the following:
The selector lever is in the P position and the
ignition switch is turned to the LOCK posi-
tion.

The mechanical key or the valet key is not
inserted into the ignition switch.

The warning chime may stop when one of the
following is performed.
•Returning the ignition switch to the LOCK
position.
•Removing the mechanical key or the valet
key.
•Closing the doors.
Alarm and warning when the engine
startsWhen the key warning light
A
is blinking in red
and the outside buzzer sounds, make sure the
Intelligent Key is inside the vehicle.
Warning for low battery power
This warning is to let you know that the
battery of the Intelligent Key will run down
soon. Replace it with a new one. Refer to the
“8. Maintenance and do-it-yourself” section
for battery replacement.
•The green blinking key warning light
A
goes out about 30 seconds after the
SPA2175
Pre-driving checks and adjustments
3-17


05.8.26/Z50-D/V5.0
