2006 NISSAN 350Z tow

04
N I SSAN 350Z I N STR U M E NT PAN E L FEATU R E S
TRACTION CONTROL SYSTEM(TCS) OFF SWITCH
01
05
QR6E-0Z33U0 Printing: August 2005 (09)
Nissan, the Nissan Brand Symbol, “SHIFT_ “ tagline, Z and Nissan model names are Nissan trademarks.
©2005 Nissan North America, Inc.
Sh ift_
LOAD BUT TON
To insert a CD in the CD changer, press the LOAD button, select a slot (1-6) and load the CD. To
insert 6 CDs in the CD changer in succession, press the LOAD button for more than 1.5 seconds.
R ADIO BAND SELECT
Press the RADIO band select button to change the band as follows:
n Without satellite radio: AM FM1 FM2 AM
n With satellite radio: AM FM1 FM2 SAT1 SAT2 AM
SCAN BUT TON
To scan quickly through each broadcasting station, press the SCAN button. The tuner will
pause for 5 seconds on each broadcasting station. When the SCAN tuning button is pushed
while a CD is being played, the beginning of all the tracks of the CD will be played for 10
seconds in sequence.
PT Y ( Program) BUT TON
Use the PTY (Program) button to search for certain program types such as ROCK,
COUNTRY, JAZZ, CLASSICAL, etc.
SEEK / TR ACK BUT TON
To find the next broadcasting station, press the SEEK/TRACK button. To skip from one track
to another on a CD, press the SEEK/TRACK button. Each time the button is pressed, the CD
will advance or skip back one track.
DISP ( Display) BUT TON
Pressing the DISP button will display additional information (for example: Title, Artist name).
TUNE /REW/FF BUT TON
To fast forward or rewind a CD track, press the REW/FF button. The CD will play at an
altered speed until the button is released. To manually tune the radio, press the TUNE button.
RPT BUT TON
n To adjust the digital clock display, press the RPT button for more than 1.5 seconds until
the clock display starts to flash. Press the SEEK/TRACK button to adjust the hour. Press
the TUNE button to adjust the minutes.
n To change the play pattern of the CD, press the RPT button.
STATION AND CD SELECT BUT TONS
To store a radio station preset you must first tune to the desired station. Then press the
desired station select button until a beep is heard. The channel indicator will come on,

indicating memorization is complete.
AUDIO BUT TON
Adjust the BASS, TREBLE, FADE, BALANCE and AUDIO PILOT by pressing the AUDIO button until the desired mode appears in the display.
MP3 PL AYBACK (if so equipped)
In addition to playing audio CDs, this audio system can play MP3 files recorded on CD-ROM,
CD-R, and CD-RW discs. Each disc can have a maximum of 8 folder levels and 255 folders.
A total of up to 512 MP3 files can be played back. During MP3 playback, some recorded ID3
tag information can be displayed by pressing the
DISP button.
05
04
03
02
01
06
07
08
09
10
FUEL-FILLER DOOR OPENER SWITCH
01HEADLIGHT AND TURN SIGNAL CONTROL
INSTRUMENT BRIGHTNESS CONTROL
02
SOFT TOP OPERATING SWITCH (ROADSTER MODELS)
05TRIP COMPUTER MODE/SETTING BUTTONS
06WINDSHIELD WIPER/WASHER CONTROLS
07CONTROL PANEL DISPLAY
08AUDIO SYSTEM
09CLIMATE CONTROLS
04CRUISE CONTROL
HEADLIGHT AND TURN SIGNAL CONTROL
HE ADLIGHT SWITCH
n Turn the headlight switch to theposition to
turn on the front parking, side marker, tail, license
plate and instrument panel lights.
n Turn the headlight switch to theposition to
turn on the headlights. All other lights remain on.
HIGH BE AM
n Push the headlight switch forward to select the high beam function. The blue indicator light illuminates. Pull the headlight switch back to the original
position to select the low beam. The blueindicator light goes off.
n Pull and release the headlight switch to flash the headlight high beams on
and off.
TURN SIGNAL SWITCH
n Move the headlight control switch up or down to signal the turning direction.
When the turn is completed, the turn signals cancel automatically.
n To signal a lane change, move the headlight control switch up or down to the
point where the indicator light begins to flash, but the headlight control switch
does not latch.
03STEERING WHEEL SWITCHES FOR AUDIO
CONTROL (if so equipped)
n With the ignition switch turned to the ACC or
ON position, push the
PWR (Power) on/off
switch to turn the audio system on or off.
n Push the MODE select switch to change
the mode.
• Without satellite radio: AM, FM1, FM2, and
CD or CD changer.
• With satellite radio: AM, FM1, FM2, SAT1, SAT2 and CD changer.
n The SEEK switch can be used to perform the following:
• Radio memory change – Push the

< >
switch for less than 1.5 seconds to
change the radio frequency.
CRUISE CONTROL
n To initiate cruise control, press
ON. (The CRUISE indicator light will illuminate.)
n To establish a cruising speed, accelerate to the
desired speed, press
COAST/SET and release.
(The
SET indicator light will illuminate.)
n To establish a faster or slower cruising speed,
press on the brake or accelerator to the desired
speed, press
COAST/SET and release.
n To resume a preset speed, press ACCEL/RES and release.
n To turn cruise control off, press CANCEL , tap the brake pedal or turn the
main switch off. If you press
CANCEL or tap the brake pedal, the SET light
will go out; if you turn off the main switch, the
CRUISE light goes out.
TRIP COMPUTER
The trip computer may be used to check items such
as speed, outside air temperature, distance to empty
(fuel), average mileage and speed, elapsed time and
distance traveled, and tire pressure (if so equipped). It
also has a stop-watch function. Additionally, it is used
to operate the RPM shift feature (REV) (Manual

transmission only).
To operate the Trip Computer:
Turn the ignition switch on. Then press the side of
the buttons.
n Press the button 01 toward the left to scroll
through each mode.
n Press the button 02 toward the left to reset or
adjust the various mode selections.

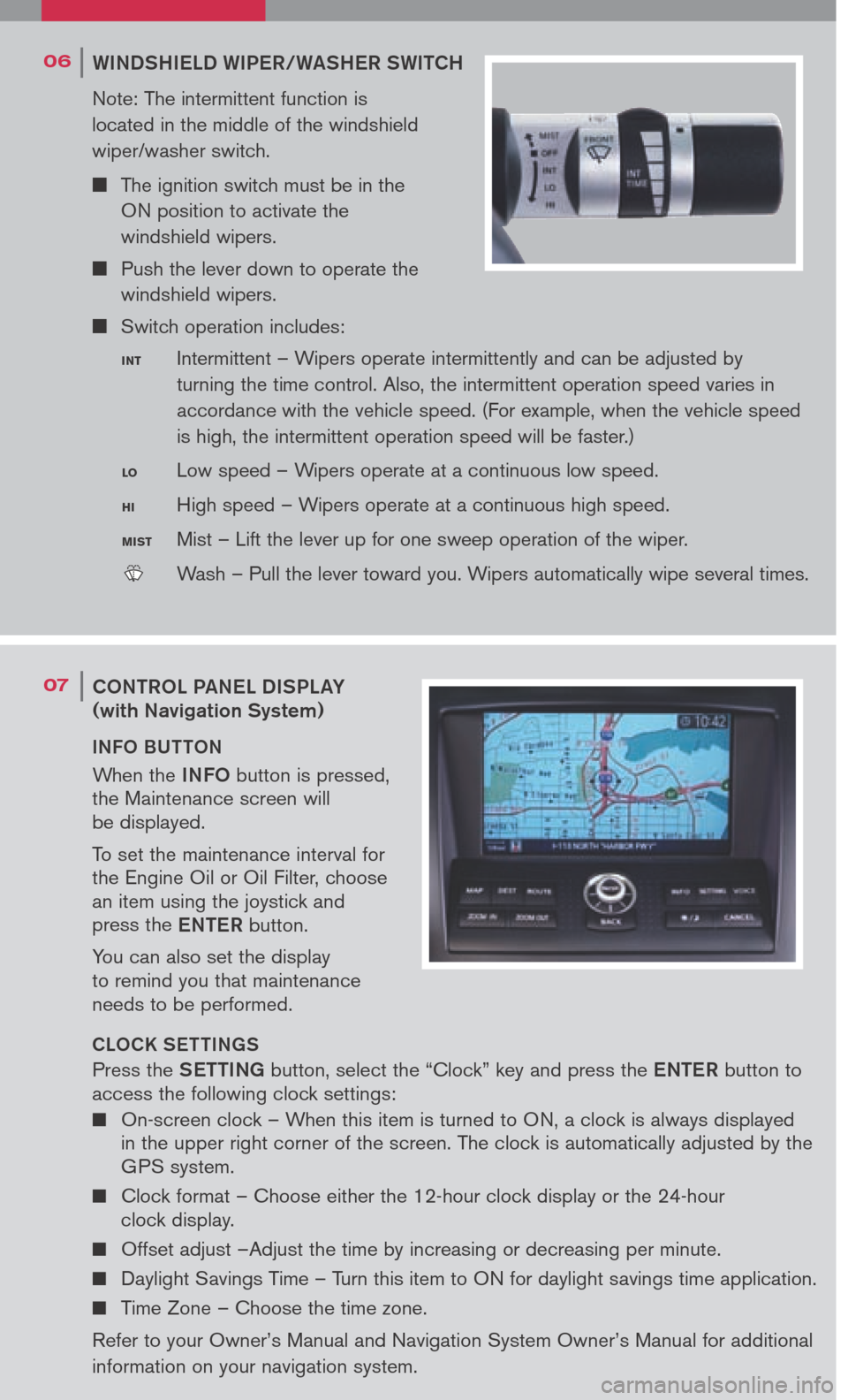

06WINDSHIELD WIPER/WASHER SWITCH
Note: The intermittent function is

located in the middle of the windshield

wiper/washer switch.
 The ignition switch must be in the
ON position to activate the

windshield wipers.
 Push the lever down to operate the
windshield wipers.
 Switch operation includes:
Intermittent – Wipers operate intermittently and can be adjusted by
turning the time control. Also, the intermittent operation speed varies in
accordance with the vehicle speed. (For example, when the vehicle speed
is high, the intermittent operation speed will be faster.)
Low speed – Wipers operate at a continuous low speed.
High speed – Wipers operate at a continuous high speed.
Mist – Lift the lever up for one sweep operation of the wiper.
Wash – Pull the lever toward you. Wipers automatically wipe several times.
INT
LO
HI
MIST
LCN0042
07CONTROL PANEL DISPLAY
(with Navigation System)
INFO BUT TON
When the INFO button is pressed,
the Maintenance screen will
be displayed.
To set the maintenance interval for
the Engine Oil or Oil Filter, choose
an item using the joystick and
press the
ENTER button.
You can also set the display

to remind you that maintenance
needs to be performed.
CLOCK SET TINGS
Press the SETTING button, select the “Clock” key and press the ENTER button to
access the following clock settings:
n On-screen clock – When this item is turned to ON, a clock is always displayed
in the upper right corner of the screen. The clock is automatically adjusted by the
GPS system.
n Clock format – Choose either the 12-hour clock display or the 24-hour
clock display.
n Offset adjust –Adjust the time by increasing or decreasing per minute.
n Daylight Savings Time – Turn this item to ON for daylight savings time application.
n Time Zone – Choose the time zone.
Refer to your Owner’s Manual and Navigation System Owner’s Manual for additional
information on your navigation system.
08FM / AM / SAT RADIO WITH COMPACT DISC (CD) CHANGER (if so equipped)
0910
0705
01
08
03
06
04
02
02TRACTION CONTROL SYSTEM (TCS) OFF
SWITCH (if so equipped)
The vehicle should be driven with the Traction Control
System (TCS) on for most driving conditions. When
the vehicle is stuck in mud or snow, TCS reduces
the engine output to reduce wheel spin. The engine
speed will be reduced even if the accelerator is
depressed to the floor. If maximum engine power is
needed to free a stuck vehicle, turn the TCS off.
 To turn off the TCS, push the TCS OFF switch. The indicator light will come on.
 Push the switch again or restart the engine and the system will operate normally.
• Radio tuning – Push the
< >
switch for more than 1.5 seconds to seek the
next or previous radio station.
• CD or CD changer track change – Push the

< >
switch for less than 1.5
seconds to return to the beginning of a CD track or skip to the next track.
• CD or CD changer disc change – Push the tuning switch up or down for

more than 1.5 seconds to change the playing disc up or down.
• MP3 folder change – Push the tuning switch up or down for more than

1.5 seconds to change the folders (if folders exist).
03STEERING WHEEL SWITCHES FOR AUDIO CONTROL
01
02
This easy-to-use Quick Reference Guide is intended to help you more fully appreciate
some of the unique features and functions of your new vehicle. However, it is not intended
to replace your Owner’s Manual. The Owner’s Manual contains more detailed information
to help you better understand the important safety warnings, features, operation, and
maintenance of your vehicle.

04
05

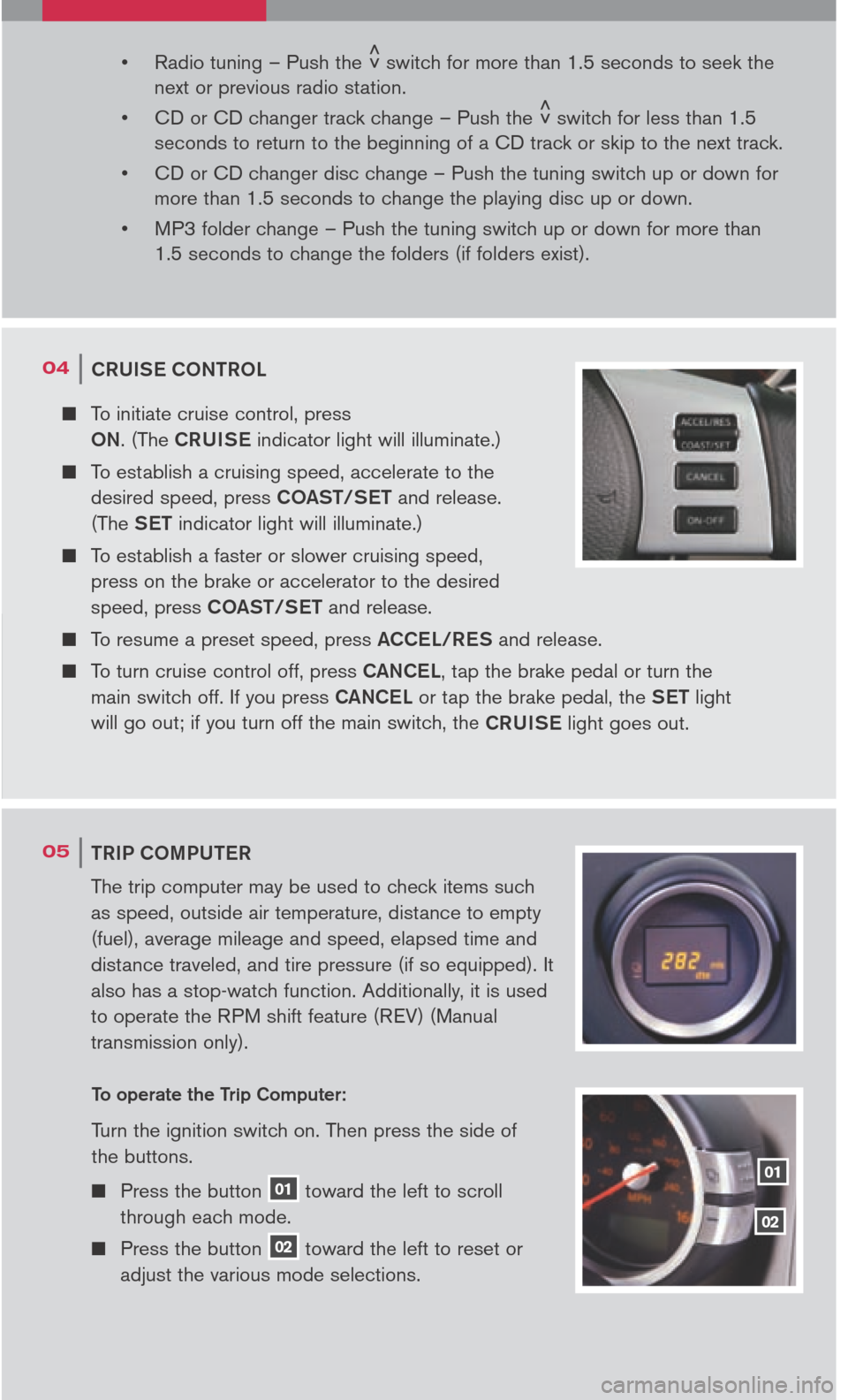

CRUISE CONTROL
 To initiate cruise control, press
ON. (The CRUISE indicator light will illuminate.)
 To establish a cruising speed, accelerate to the
desired speed, press
COAST/SET and release.
(The
SET indicator light will illuminate.)
 To establish a faster or slower cruising speed,
press on the brake or accelerator to the desired
speed, press
COAST/SET and release.
 To resume a preset speed, press ACCEL/RES and release.
 To turn cruise control off, press CANCEL , tap the brake pedal or turn the
main switch off. If you press
CANCEL or tap the brake pedal, the SET light
will go out; if you turn off the main switch, the
CRUISE light goes out.
TRIP COMPUTER
The trip computer may be used to check items such
as speed, outside air temperature, distance to empty
(fuel), average mileage and speed, elapsed time and
distance traveled, and tire pressure (if so equipped). It
also has a stop-watch function. Additionally, it is used
to operate the RPM shift feature (REV) (Manual

transmission only).
To operate the Trip Computer:
Turn the ignition switch on. Then press the side of
the buttons.
 Press the button 01 toward the left to scroll
through each mode.
 Press the button 02 toward the left to reset or
adjust the various mode selections.
• Radio tuning – Push the
< >
switch for more than 1.5 seconds to seek the
next or previous radio station.
• CD or CD changer track change – Push the

< >
switch for less than 1.5
seconds to return to the beginning of a CD track or skip to the next track.
• CD or CD changer disc change – Push the tuning switch up or down for

more than 1.5 seconds to change the playing disc up or down.
• MP3 folder change – Push the tuning switch up or down for more than

1.5 seconds to change the folders (if folders exist).
01
02

06WINDSHIELD WIPER/WASHER SWITCH
Note: The intermittent function is

located in the middle of the windshield

wiper/washer switch.
 The ignition switch must be in the
ON position to activate the

windshield wipers.
 Push the lever down to operate the
windshield wipers.
 Switch operation includes:
Intermittent – Wipers operate intermittently and can be adjusted by
turning the time control. Also, the intermittent operation speed varies in
accordance with the vehicle speed. (For example, when the vehicle speed
is high, the intermittent operation speed will be faster.)
Low speed – Wipers operate at a continuous low speed.
High speed – Wipers operate at a continuous high speed.
Mist – Lift the lever up for one sweep operation of the wiper.
Wash – Pull the lever toward you. Wipers automatically wipe several times.
INT
LO
HI
MIST
LCN0042
07CONTROL PANEL DISPLAY
(with Navigation System)
INFO BUT TON
When the INFO button is pressed,
the Maintenance screen will
be displayed.
To set the maintenance interval for
the Engine Oil or Oil Filter, choose
an item using the joystick and
press the
ENTER button.
You can also set the display

to remind you that maintenance
needs to be performed.
CLOCK SET TINGS
Press the SETTING button, select the “Clock” key and press the ENTER button to
access the following clock settings:
 On-screen clock – When this item is turned to ON, a clock is always displayed
in the upper right corner of the screen. The clock is automatically adjusted by the
GPS system.
 Clock format – Choose either the 12-hour clock display or the 24-hour
clock display.
 Offset adjust –Adjust the time by increasing or decreasing per minute.
 Daylight Savings Time – Turn this item to ON for daylight savings time application.
 Time Zone – Choose the time zone.
Refer to your Owner’s Manual and Navigation System Owner’s Manual for additional
information on your navigation system.

N I SSAN 350Z ADDITIONAL FEATU R E S
MIRROR ADJUSTMENT
The rear view mirror has two pivot points for adjustments.
Adjust the rear view mirror height at the rear pivot and tilt
the mirror at the front pivot. Position the mirror to provide
the best visibility through the rear window.

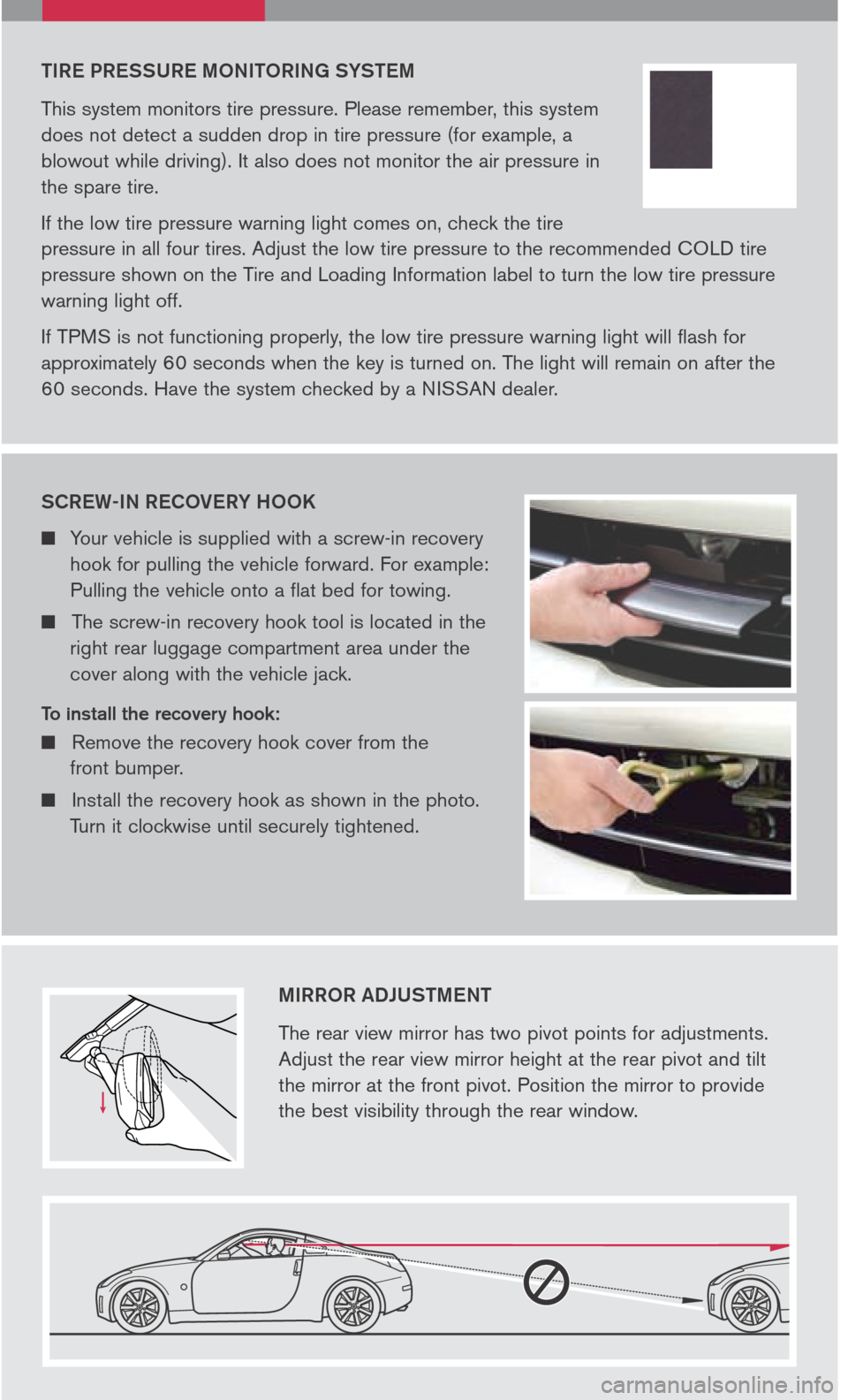

TIRE PRESSURE MONITORING SYSTEM
This system monitors tire pressure. Please remember, this system
does not detect a sudden drop in tire pressure (for example, a
blowout while driving). It also does not monitor the air pressure in
the spare tire.
If the low tire pressure warning light comes on, check the tire
pressure in all four tires. Adjust the low tire pressure to the recommended COLD tire
pressure shown on the Tire and Loading Information label to turn the low tire pressure
warning light off.
If TPMS is not functioning properly, the low tire pressure warning light will flash for
approximately 60 seconds when the key is turned on. The light will remain on after the
60 seconds. Have the system checked by a NISSAN dealer.
SCREW-IN RECOVERY HOOK
 Your vehicle is supplied with a screw-in recovery
hook for pulling the vehicle forward. For example:
Pulling the vehicle onto a flat bed for towing.
 The screw-in recovery hook tool is located in the
right rear luggage compartment area under the
cover along with the vehicle jack.
To install the recovery hook:

Remove the recovery hook cover from the
front bumper.
 Install the recovery hook as shown in the photo.
Turn it clockwise until securely tightened.

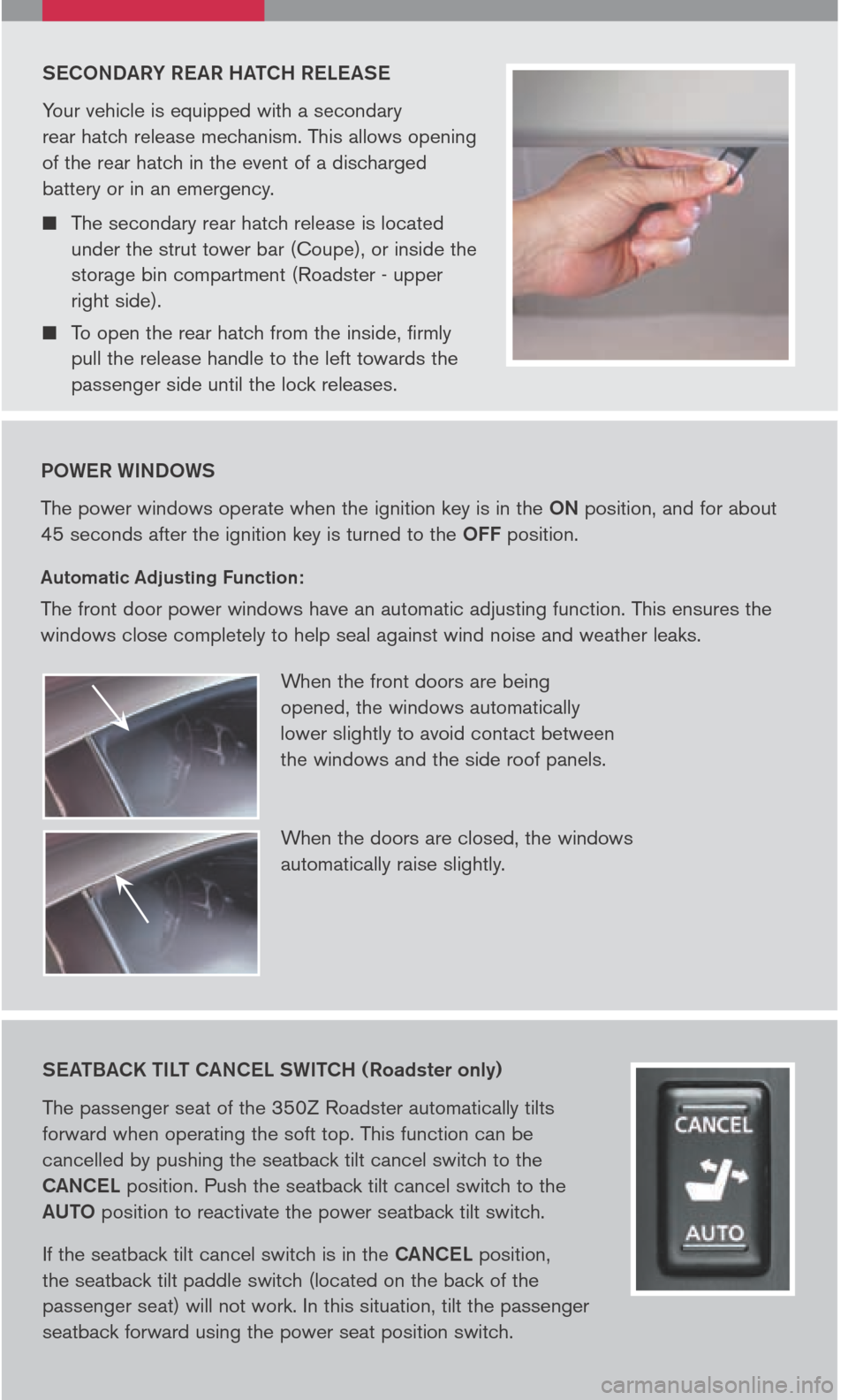

SECONDARY REAR HATCH RELEASE
Your vehicle is equipped with a secondary

rear hatch release mechanism. This allows opening
of the rear hatch in the event of a discharged
battery or in an emergency.
 The secondary rear hatch release is located
under the strut tower bar (Coupe), or inside the

storage bin compartment (Roadster - upper
right side).
 To open the rear hatch from the inside, firmly
pull the release handle to the left towards the
passenger side until the lock releases.
POWER WINDOWS
The power windows operate when the ignition key is in the
ON position, and for about
45 seconds after the ignition key is turned to the
OFF position.
Automatic Adjusting Function:
The front door power windows have an automatic adjusting function. This ensures the
windows close completely to help seal against wind noise and weather leaks.
When the doors are closed, the windows
automatically raise slightly.
When
the front doors are being
opened, the windows automatically
lower slightly to avoid contact between
the windows and the side roof panels.
SEATBACK TILT CANCEL SWITCH (Roadster only)
The passenger seat of the 350Z Roadster automatically tilts
forward when operating the soft top. This function can be
cancelled by pushing the seatback tilt cancel switch to the
CANCEL position. Push the seatback tilt cancel switch to the
AUTO position to reactivate the power seatback tilt switch.
If the seatback tilt cancel switch is in the
CANCEL position,
the seatback tilt paddle switch (located on the back of the
passenger seat) will not work. In this situation, tilt the passenger
seatback forward using the power seat position switch.

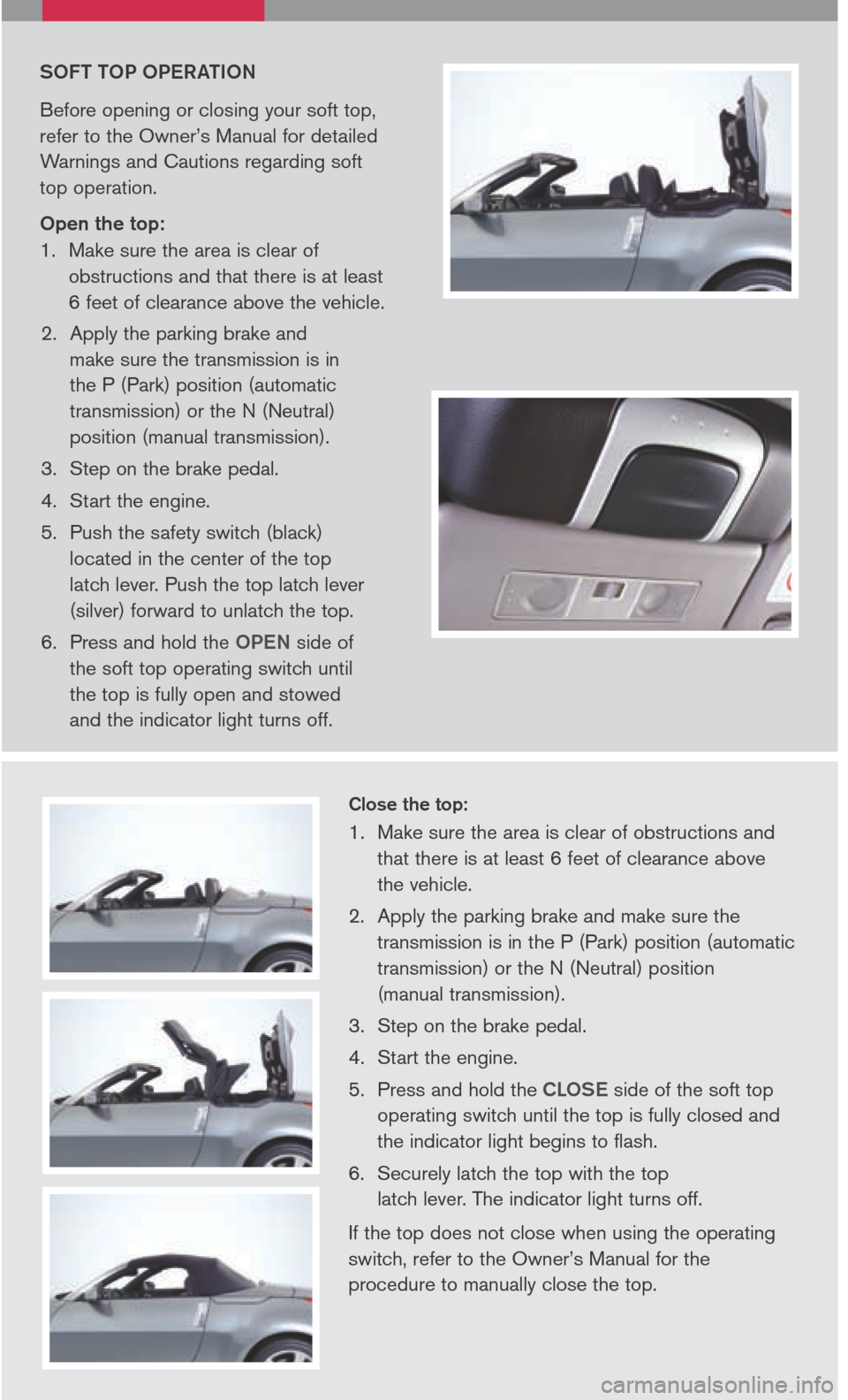

SOFT TOP OPERATION
Before opening or closing your soft top,
refer to the Owner’s Manual for detailed
Warnings and Cautions regarding soft

top operation.
Open the top:
1. Make sure the area is clear of
obstructions and that there is at least

6 feet of clearance above the vehicle.

2. Apply the parking brake and
make sure the transmission is in
the P (Park) position (automatic
transmission) or the N (Neutral)
position (manual transmission).
3. Step on the brake pedal.
4. Start the engine.
5. Push the safety switch (black)
located in the center of the top
latch lever. Push the top latch lever
(silver) forward to unlatch the top.
6. Press and hold the
OPEN side of
the soft top operating switch until
the top is fully open and stowed
and the indicator light turns off.
Close the top:
1. Make sure the area is clear of obstructions and
that there is at least 6 feet of clearance above

the vehicle.
2. Apply the parking brake and make sure the
transmission is in the P (Park) position (automatic
transmission) or the N (Neutral) position

(manual transmission).
3. Step on the brake pedal.
4. Start the engine.
5. Press and hold the
CLOSE side of the soft top
operating switch until the top is fully closed and
the indicator light begins to flash.
6. Securely latch the top with the top

latch lever. The indicator light turns off.
If the top does not close when using the operating
switch, refer to the Owner’s Manual for the
procedure to manually close the top.
