to set the other maintenance information.
1. Reset the driving distance to the new main-
tenance schedule.
2. Set the interval (mileage) of the maintenance
schedule. To determine the recommended
maintenance interval, refer to your “NISSAN
Service and Maintenance Guide”.
3. To display the MAINTENANCE INFORMA-
TION automatically when the set trip distance
is reached, highlight the “Interval Re-
minder” key with the joystick and push the
“ENTER” button.
4. To return the display to the “Maintenance”
screen, push the “BACK” button.“Maintenance” display cannot be operated
when the vehicle is moving. Stop the vehicle in a
safe place to see the information.
SAA1291
4-4
Display screen, heater, air conditioner and audio systems


06.1.17/Z33-D/V5.0

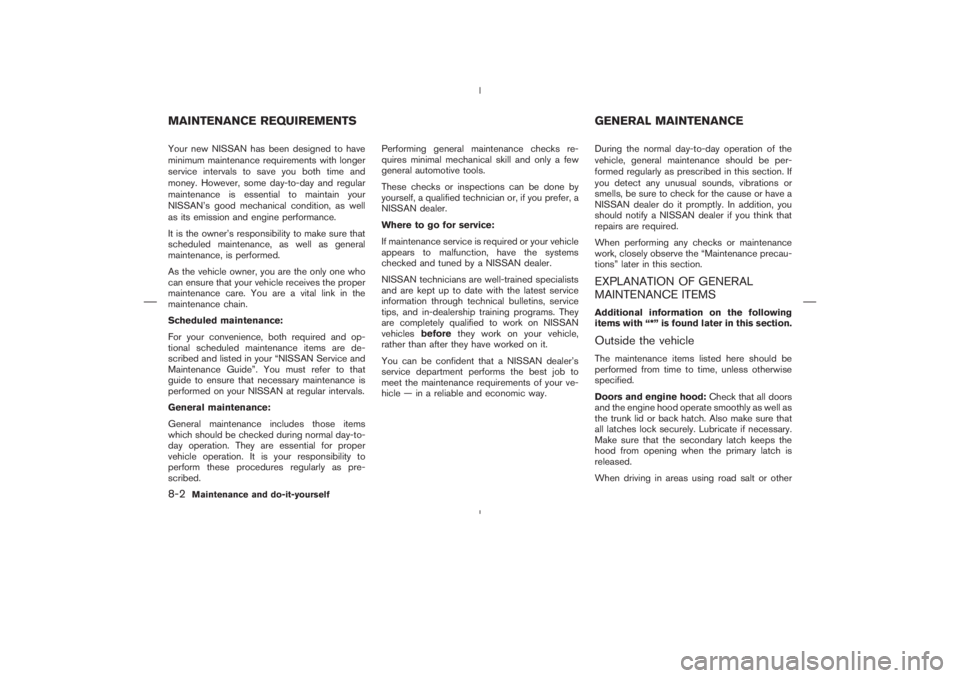

Your new NISSAN has been designed to have
minimum maintenance requirements with longer
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your
NISSAN’s good mechanical condition, as well
as its emission and engine performance.
It is the owner’s responsibility to make sure that
scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
Scheduled maintenance:
For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “NISSAN Service and
Maintenance Guide”. You must refer to that
guide to ensure that necessary maintenance is
performed on your NISSAN at regular intervals.
General maintenance:
General maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
NISSAN dealer.
Where to go for service:
If maintenance service is required or your vehicle
appears to malfunction, have the systems
checked and tuned by a NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealership training programs. They
are completely qualified to work on NISSAN
vehiclesbeforethey work on your vehicle,
rather than after they have worked on it.
You can be confident that a NISSAN dealer’s
service department performs the best job to
meet the maintenance requirements of your ve-
hicle — in a reliable and economic way.During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smells, be sure to check for the cause or have a
NISSAN dealer do it promptly. In addition, you
should notify a NISSAN dealer if you think that
repairs are required.
When performing any checks or maintenance
work, closely observe the “Maintenance precau-
tions” later in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMSAdditional information on the following
items with “*” is found later in this section.Outside the vehicleThe maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:Check that all doors
and the engine hood operate smoothly as well as
the trunk lid or back hatch. Also make sure that
all latches lock securely. Lubricate if necessary.
Make sure that the secondary latch keeps the
hood from opening when the primary latch is
released.
When driving in areas using road salt or other
MAINTENANCE REQUIREMENTS GENERAL MAINTENANCE8-2
Maintenance and do-it-yourself


06.1.17/Z33-D/V5.0


CHECKING ENGINE OIL LEVEL1. Park the vehicle on a level surface and apply
parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn off the engine.Wait more than 10
minutes for the oil to drain back into the
oil pan.
4. Remove the dipstick and wipe it clean. Rein-
sert it all the way.5. Remove the dipstick again and check the oil
level. It should be between the H and L marks
B. If the oil level is below the L mark
A,
remove the oil filler cap and pour recom-
mended oil through the opening.Do not
overfill
C.
6. Recheck oil level with dipstick.
It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the severity
of operating conditions.
CAUTION
Oil level should be checked regularly.
Operating the engine with insufficient
amount of oil can damage the engine,
and such damage is not covered by
warranty.CHANGING ENGINE OIL AND
FILTERChange the engine oil and filter according to the
maintenance log shown in the Service and Main-
tenance Guide.Vehicle set-up1. Park the vehicle on a level surface and apply
the parking brake.
2. Run the engine until it reaches operating
temperature.
3. Turn the engine off and wait more than 10
minutes.
4. Raise and support the vehicle using a suit-
able floor jack and safety jack stands.

Place the safety jack stands under the vehicle
jack-up points.
SDI1386C
SDI1781
ENGINE OIL8-10
Maintenance and do-it-yourself


06.1.17/Z33-D/V5.0


1
API certification mark
2
API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct grade,
quality and viscosity engine oil to ensure satis-
factory engine life and performance. See “Ca-
pacities and recommended fuel/lubircants” ear-
lier in this section. NISSAN recommends the use
of an energy conserving oil in order to improve
fuel economy.Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifi-
cation mark on the front of the container. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. The “Rec-
ommended SAE viscosity number” chart (on the
next page) shows the recommended oil viscosi-
ties for the expected ambient temperatures.
Choosing an oil viscosity other than that recom-
mended could cause serious engine damage.Selecting the correct oil filterYour new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals”.Change intervalsThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
STI0367A
Technical and consumer information
9-5


06.1.17/Z33-D/V5.0


quality and/or viscosity is not covered by the
new NISSAN vehicle limited warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes:

repeated short distance driving at cold out-
side temperatures

driving in dusty conditions

extensive idling

towing a trailer

stop and go commuting
Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.
RECOMMENDED SAE VISCOSITY
NUMBERSAE 5W-30 viscosity oil is preferred for all
ambient temperatures. SAE 10W-30 or
10W-40 viscosity oil may be used if the
ambient temperature is above 0°F (−18°C).
AIR CONDITIONER SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONSThe air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
NISSAN A/C System Oil Type S or the
exact equivalents.
CAUTION
The use of any other refrigerant or lubri-
cant will cause severe damage to the air
conditioning system and will require the
replacement of all air conditioner sys-
tem components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air conditioner
system service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.
TI1028-C
9-6
Technical and consumer information


06.1.17/Z33-D/V5.0

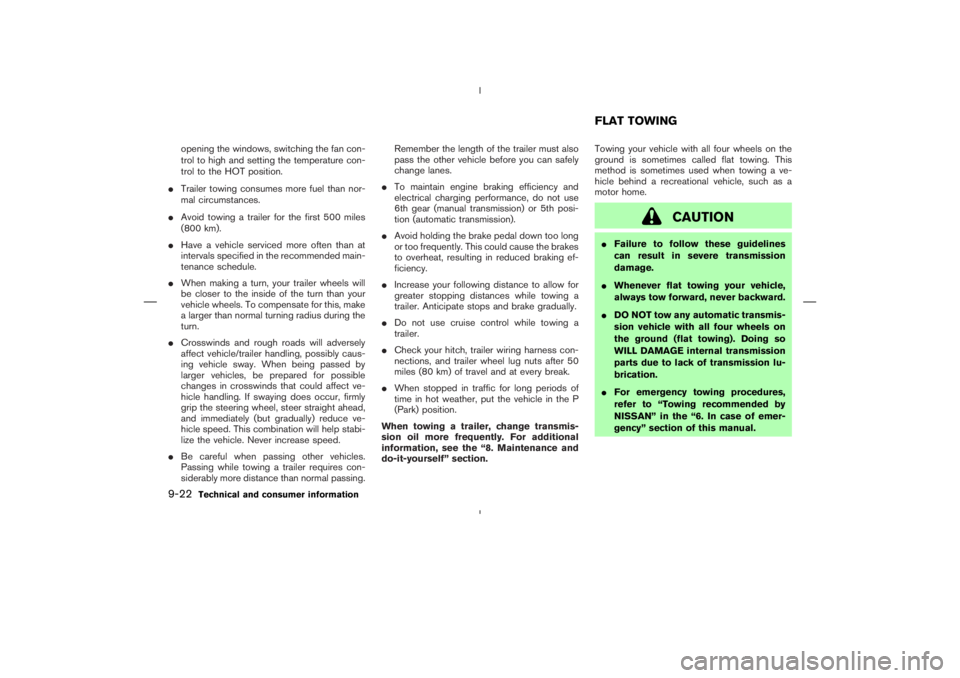

opening the windows, switching the fan con-
trol to high and setting the temperature con-
trol to the HOT position.

Trailer towing consumes more fuel than nor-
mal circumstances.

Avoid towing a trailer for the first 500 miles
(800 km).

Have a vehicle serviced more often than at
intervals specified in the recommended main-
tenance schedule.

When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this, make
a larger than normal turning radius during the
turn.

Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling. If swaying does occur, firmly
grip the steering wheel, steer straight ahead,
and immediately (but gradually) reduce ve-
hicle speed. This combination will help stabi-
lize the vehicle. Never increase speed.

Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal passing.Remember the length of the trailer must also
pass the other vehicle before you can safely
change lanes.

To maintain engine braking efficiency and
electrical charging performance, do not use
6th gear (manual transmission) or 5th posi-
tion (automatic transmission).

Avoid holding the brake pedal down too long
or too frequently. This could cause the brakes
to overheat, resulting in reduced braking ef-
ficiency.

Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.

Do not use cruise control while towing a
trailer.

Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after 50
miles (80 km) of travel and at every break.

When stopped in traffic for long periods of
time in hot weather, put the vehicle in the P
(Park) position.
When towing a trailer, change transmis-
sion oil more frequently. For additional
information, see the “8. Maintenance and
do-it-yourself” section.Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a ve-
hicle behind a recreational vehicle, such as a
motor home.
CAUTION

Failure to follow these guidelines
can result in severe transmission
damage.

Whenever flat towing your vehicle,
always tow forward, never backward.

DO NOT tow any automatic transmis-
sion vehicle with all four wheels on
the ground (flat towing). Doing so
WILL DAMAGE internal transmission
parts due to lack of transmission lu-
brication.

For emergency towing procedures,
refer to “Towing recommended by
NISSAN” in the “6. In case of emer-
gency” section of this manual.FLAT TOWING
9-22
Technical and consumer information


06.1.17/Z33-D/V5.0
