2006 MINI Hardtop 2 Door Owner's Manual

47
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
SAFETY BELTS SEAT HEATING* STEERING WHEEL
Damaged safety belts
If the safety belts are damaged or
stretched in an accident: have the
safety belts including the seat-belt tension-
ers and the belt anchors checked. Have the
necessary work carried out only by a MINI
Dealer or a workshop that has specially
trained personnel working in accordance
with the specifications of the MINI manu-
facturer, otherwise correct operation of
these safety systems is not ensured.<
Press once for each temperature level.
The highest preselected temperature is set
when two LEDs are lit.
To switch off:
Press the button for a longer period.Do not adjust the steering wheel
while the vehicle is moving; other-
wise unexpected movement could increase
the accident risk.<
Settings
1. Push the locking lever downward
2. Adjust the desired steering wheel posi-
tion
3. Pull the lever back in.

48
MIRRORS
Exterior mirrors
The front passenger's mirror is more
concave than the driver's mirror. The
objects reflected in the mirror are closer
than they appear. Do not gauge your dis-
tance from following traffic based on what
you see in the mirrors; otherwise there is
an increased risk of an accident.<
Adjusting
1 Button for 4-way adjustment
2 Switch for choosing between the left and
right mirror
3 To fold the mirrors in or out
*
To adjust manually
The mirrors can also be adjusted manually:
Press the edge of the lens.
To fold the mirrors in or out*
Press button 3.
The mirrors can be folded in or out up to a
road speed of approx. 20 mph / 30 km/h.
This can be useful on narrow roads, for
example, or to reset the mirrors to their
correct positions after they have been
folded in.
Automatic heating*
Both mirrors are heated automatically
when the ignition key is in position 2.
Interior rearview mirror
To reduce glare from vehicles behind you
when you are driving at night:
Turn the knob.
Illuminated vanity mirrors
1. Fold down the sun visor
2. Fold up the cover panel.
Sun visors
Can be swung sideways.
An additional sun visor is provided on the
driver's side to better protect the driver
from being blinded.

49
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
VEHICLE MEMORY
How the system functions
No doubt you have often reflected on how
great it would be if you could configure
your vehicle's various adjustment settings
to meet your own personal requirements.
In developing this vehicle, the manufac-
turer of the MINI has incorporated a num-
ber of options which can be programmed
specifically for your vehicle.
What the system can do
Your MINI Dealer can provide you with
details on the capabilities of the Vehicle
Memory system.
Examples for Vehicle Memory:
>Automatic locking if none of the vehicle
doors are opened, refer to page26
>Automatic locking after starting to drive,
refer to page28
>Selective central locking system, refer to
pages26, 27
>Convenience operation, refer to
pages26, 27
>Pathway lighting, refer to page59
>Daytime driving lamps, refer to page60
>Speed-dependent windshield wipers,
refer to page62
>Setting units for outside temperature
and fuel consumption display, refer to
page69>Setting units for display of temperatures
specified for automatic climate control
system, refer to page83
>Volume control PDC, refer to page77
>Acoustic alarm for starting PDC activa-
tion, refer to page77.
This symbol alerts you to Vehicle
Memory functions in the Owner's
Manual.<
After memory functions have been
reconfigured, your vehicle may oper-
ate slightly differently from the descrip-
tions used in this Owner's Manual. If you
decide to sell your vehicle one day, please
remember to have the memory functions
reset to their default configuration.<

50
TRANSPORTING CHILDREN SAFELY
The proper place for children
Do not leave children unattended in
the vehicle; otherwise they could
endanger themselves and others by open-
ing the doors, for example.<
In principle, all seats in your MINI or MINI
Convertible except for the driver's seat are
suitable for installing universal child-
restraint systems for all age groups that
have been approved for the age group in
question.
Children should always sit in the rear
Accident research shows that the safest
place for children is on the rear seats.
Only transport children under the age
of 13 or smaller than 5 ft/150 cm in
the rear in a child-restraint system suitable
for their age, weight and size. Otherwise
there is an increased risk of injury in the
event of an accident.<
Children 13 years of age or older must wear
a fastened safety belt as soon as a child-
restraint system is no longer suitable due
to their age, size or weight.
All rear seat positions in your vehicle meet
the recommendations of the SAE J1819 stan-
dard for securely mounting child-restraint
systems in motor vehicles.
Exception for the front passenger seat
Should it be necessary to use a child-
restraint system on the front passen-
ger seat, the front and side airbags for the
front passenger must be deactivated. Oth-
erwise, there is a significant risk of injury to
the child if the airbags deploy, even if the
child is seated in a child-restraint system.
Your MINI Dealer will be glad to advise
you.<
For additional information on automatic
deactivation of the front passenger airbags,
refer to page75.
Installing child-restraint systems
Always follow the manufacturer's
instructions when selecting, install-
ing and using child-restraint systems; oth-
erwise the system's protective effect could
be diminished.<
Commercially available child-restraint sys-
tems are designed to be secured with a lap
belt or with the lap-belt section of a lap-
and-shoulder belt. Incorrectly or improperly
installed child-restraint systems can
increase the risk of injury to children.
Always follow the instructions on installing
the system precisely.

51
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX

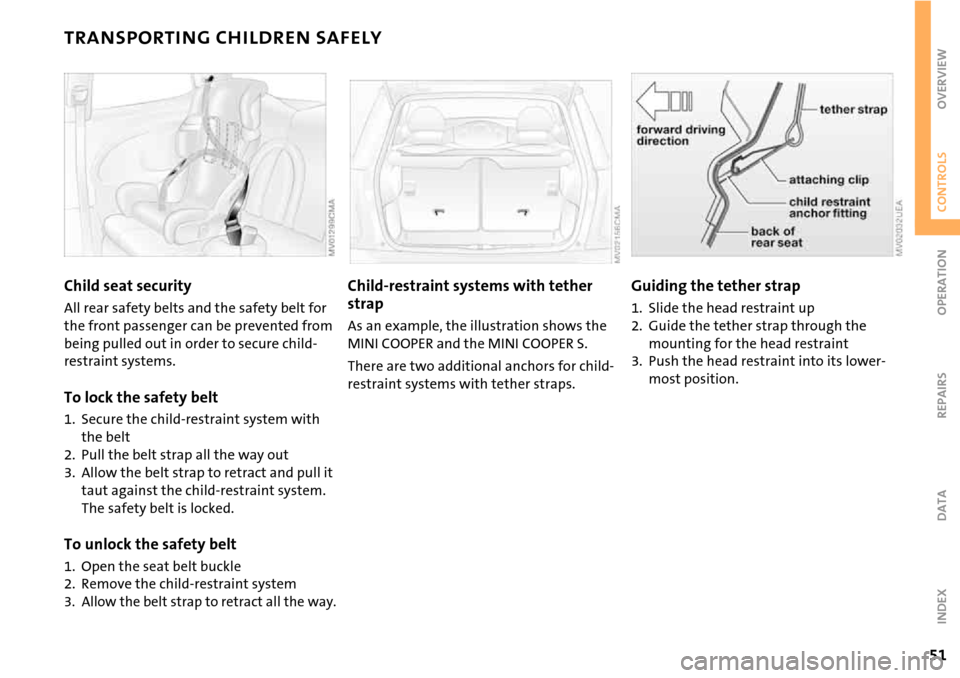

TRANSPORTING CHILDREN SAFELY
Child seat security
All rear safety belts and the safety belt for
the front passenger can be prevented from
being pulled out in order to secure child-
restraint systems.
To lock the safety belt
1. Secure the child-restraint system with
the belt
2. Pull the belt strap all the way out
3. Allow the belt strap to retract and pull it
taut against the child-restraint system.
The safety belt is locked.
To unlock the safety belt
1. Open the seat belt buckle
2. Remove the child-restraint system
3. Allow the belt strap to retract all the way.
Child-restraint systems with tether
strap
As an example, the illustration shows the
MINI COOPER and the MINI COOPER S.
There are two additional anchors for child-
restraint systems with tether straps.
Guiding the tether strap
1. Slide the head restraint up
2. Guide the tether strap through the
mounting for the head restraint
3. Push the head restraint into its lower-
most position.

52
TRANSPORTING CHILDREN SAFELY
LATCH child-restraint fixing system
LATCH: Lower Anchor and Tethers for CHil-
dren.
The anchor points for the LATCH child-
restraint fixing system are behind the
marked cover caps. Flip up the correspond-
ing cover caps.
To mount a LATCH child-restraint sys-
tem, follow the system manufac-
turer's operating and safety instructions.<

53
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
IGNITION LOCK STARTING THE ENGINE
0 Steering locked
1 Steering unlocked
2 Ignition switched on
3 Starting the engine
Steering locked
The key can be inserted or removed in this
position only.
To lock the steering:
1. Remove the key
2. Turn the steering wheel slightly to the
left or right until the lock engages.
An alarm goes off if the key remains in the
ignition after opening the driver's door.
Interlock for automatic transmission with
Steptronic:
The ignition key cannot be turned to
position 0 and removed until the selector
lever is in position P.
Steering unlocked
Individual electrical accessories are ready
for operation.
You will find that it is often easier to turn
the ignition key from position 0 to
position 1 when you move the steering
wheel slightly to help disengage the lock.
Ignition switched on
All electrical accessories are ready for oper-
ation.
Starting the engine
Vehicles with manual transmission:
Step on the clutch when starting the
vehicle. A lockout prevents the engine from
starting if the clutch is not depressed.<
Do not allow the engine to run in
enclosed spaces. Breathing the nox-
ious exhaust gases can lead to uncon-
sciousness and death. The exhaust gases
contain carbon monoxide, an odorless and
colorless, but highly toxic gas.
Do not leave the vehicle unattended with
the engine running. This is a safety hazard.
Before getting out of the vehicle with the
engine running, put the transmission in
idle or position P, and apply the parking
brake. If you fail to do this, the vehicle
could move.<
Do not let the engine warm up with the
vehicle at a standstill. Move off immedi-
ately at a moderate engine speed.
Do not stop the starting procedure
too early, and do not continue it for
more than approx. 20 seconds. Release the
ignition key immediately when the engine
starts.
Extended starting attempts, characterized
by excessively frequent or long periods
with the starter engaged, can lead to dam-
age in the catalytic converter.<

54
STARTING THE ENGINE SWITCHING OFF THE ENGINE PARKING BRAKE
Manual transmission
1. Engage the parking brake
2. Gearshift lever in idle position
3. Depress the clutch
4. Start the engine.
Automatic transmission with
Steptronic
1. Press the footbrake
2. Put the selector lever in position P or N
3. Start the engine.
Special starting conditions
In the following situations, depress the
accelerator pedal halfway and continue
starting the engine for up to approx.
10 seconds:
>If the engine does not start on the first
attempt, for instance if the engine is very
hot or cold.
>The engine is started at very low temper-
atures, below approx. +57/–156, at
high altitudes above 3,300 ft/1000 m.You should never remove the ignition
key when the vehicle is in motion, as
the steering lock could engage.
When you leave the vehicle, always remove
the ignition key and engage the steering
lock.
When parking on inclines, engage the park-
ing brake, or the vehicle could roll.<
Manual transmission
Turn the ignition key to position 1 or 0.
Automatic transmission with
Steptronic
Engage selector lever position P, turn the
ignition key to position 1 or 0.
The parking brake is designed primarily to
prevent the vehicle from rolling when it is
parked. It operates against the rear wheels.
To engage
Lever automatically locks in position.
The indicator lamp in the instrument clus-
ter lights up from ignition key position 2,
refer to page17.
To release
1. Pull up slightly
2. Press the button
3. Push the lever downwards.
If, in exceptional circumstances, it
should be necessary to engage the
parking brake while the vehicle is in
motion, do not pull the lever with excessive
