27 At a glance
Cockpit
Item
Page
1
Hood lock release
244
2
Cruise control lever
197
3
Instrument cluster
28,
113
4
Multifunction steering wheel
30,
118
5
Overhead control panel
33
6
Center console
31, 32
7
Starter switch
40
8
Horn
Item
Page
9
Steering wheel adjustment
stalk
43
a
Headlamp washer button
179
b
Exterior lamp switch
52,
105
c
Combination switch

Turn signals


Windshield wipers


High beam
53
54
109

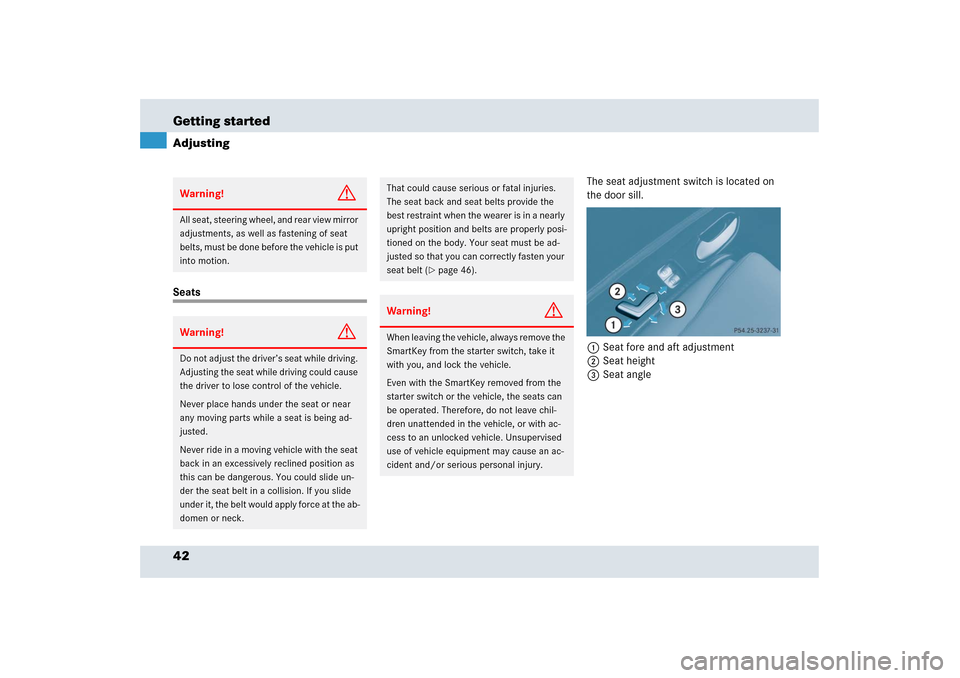

42 Getting startedAdjustingSeatsThe seat adjustment switch is located on
the door sill.
1Seat fore and aft adjustment
2Seat height
3Seat angleWarning!
G
All seat, steering wheel, and rear view mirror
adjustments, as well as fastening of seat
belts, must be done before the vehicle is put
into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck.
That could cause serious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in a nearly
upright position and belts are properly posi-
tioned on the body. Your seat must be ad-
justed so that you can correctly fasten your
seat belt (
page 46).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch or the vehicle, the seats can
be operated. Therefore, do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.

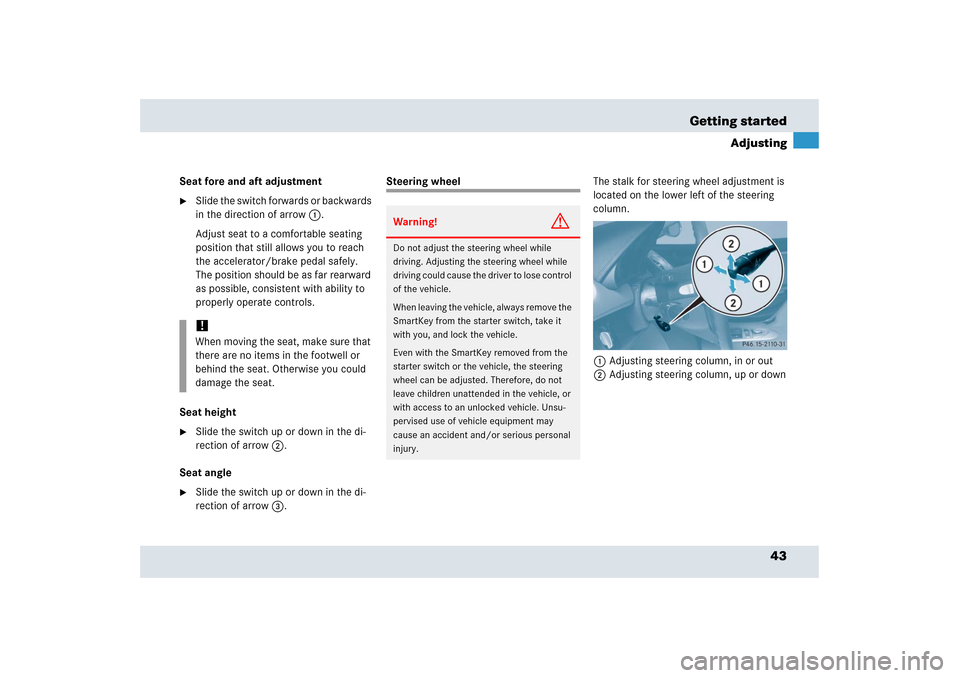

43 Getting started
Adjusting
Seat fore and aft adjustment
Slide the switch forwards or backwards
in the direction of arrow 1.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator/brake pedal safely.
The position should be as far rearward
as possible, consistent with ability to
properly operate controls.
Seat height

Slide the switch up or down in the di-
rection of arrow 2.
Seat angle

Slide the switch up or down in the di-
rection of arrow 3.
Steering wheelThe stalk for steering wheel adjustment is
located on the lower left of the steering
column.
1Adjusting steering column, in or out
2Adjusting steering column, up or down
!When moving the seat, make sure that
there are no items in the footwell or
behind the seat. Otherwise you could
damage the seat.
Warning!
G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving could cause the driver to lose control
of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch or the vehicle, the steering
wheel can be adjusted. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

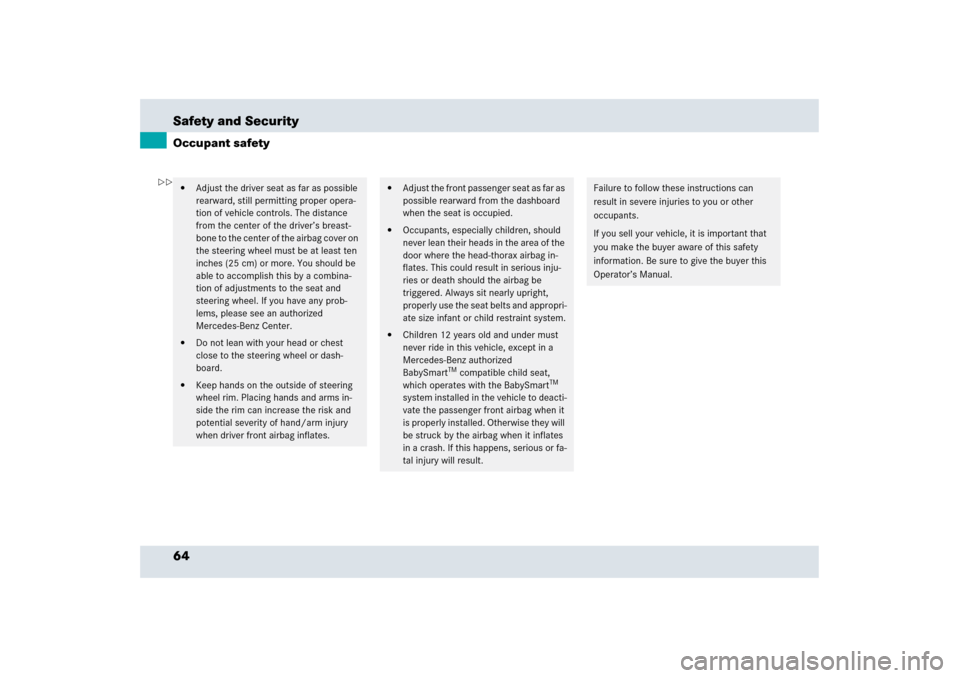

64 Safety and SecurityOccupant safety

Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the airbag cover on
the steering wheel must be at least ten
inches (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front airbag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never lean their heads in the area of the
door where the head-thorax airbag in-
flates. This could result in serious inju-
ries or death should the airbag be
triggered. Always sit nearly upright,
properly use the seat belts and appropri-
ate size infant or child restraint system.


Children 12 years old and under must
never ride in this vehicle, except in a
Mercedes-Benz authorized
BabySmart
TM compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger front airbag when it
is properly installed. Otherwise they will
be struck by the airbag when it inflates
in a crash. If this happens, serious or fa-
tal injury will result.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.
