2006 MERCEDES-BENZ SLR fuel consumption

121 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Standard display
AUDIO
Vehicle status
message memory
1
1The Vehicle status message memory menu is only displayed if there is a message stored.
Settings
Trip computer
Telephone
(page 122)
(page 123)
(page 124)
(page 126)
(page 137)
(page 139)
Commands/submenusDigital speedometer
Selecting radio
station
Calling up vehicle
malfunction, warn-
ing and system sta-
tus messages
stored in memory
Resetting to factory
settings
Fuel consumption
statistics after start
Loading phone book
Calling up mainte-
nance service dis-
play
Operating the
CD player
Instrument cluster
submenu
Fuel consumption
statistics since the
last reset
Searching for name
in phone book
Checking tire infla-
tion pressure
Time submenu
Calling up range
Lighting submenuVehicle submenu

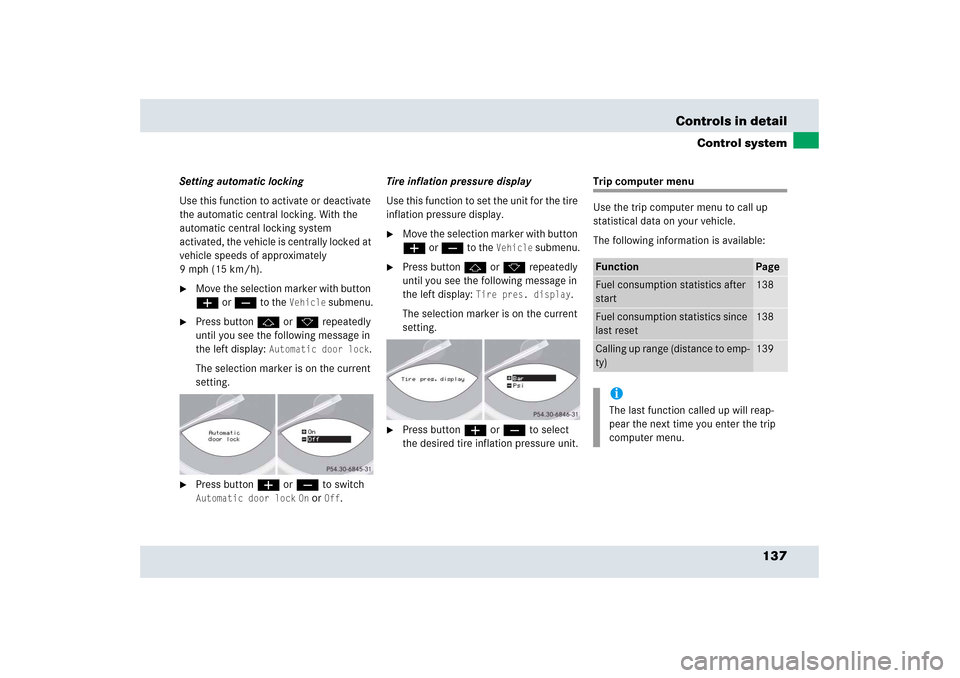

137 Controls in detail
Control system
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the
automatic central locking system
activated, the vehicle is centrally locked at
vehicle speeds of approximately
9mph(15km/h).
Move the selection marker with button
æ or ç to the
Vehicle
submenu.

Press button j or k repeatedly
until you see the following message in
the left display:
Automatic door lock
.
The selection marker is on the current
setting.

Press button æ or ç to switch Automatic door lock
On or
Off
.Tire inflation pressure display
Use this function to set the unit for the tire
inflation pressure display.

Move the selection marker with button
æ or ç to the
Vehicle
submenu.

Press button j or k repeatedly
until you see the following message in
the left display:
Tire pres. display
.
The selection marker is on the current
setting.

Press button æ or ç to select
the desired tire inflation pressure unit.
Trip computer menu
Use the trip computer menu to call up
statistical data on your vehicle.
The following information is available:Function
Page
Fuel consumption statistics after
start
138
Fuel consumption statistics since
last reset
138
Calling up range (distance to emp-
ty)
139
iThe last function called up will reap-
pear the next time you enter the trip
computer menu.

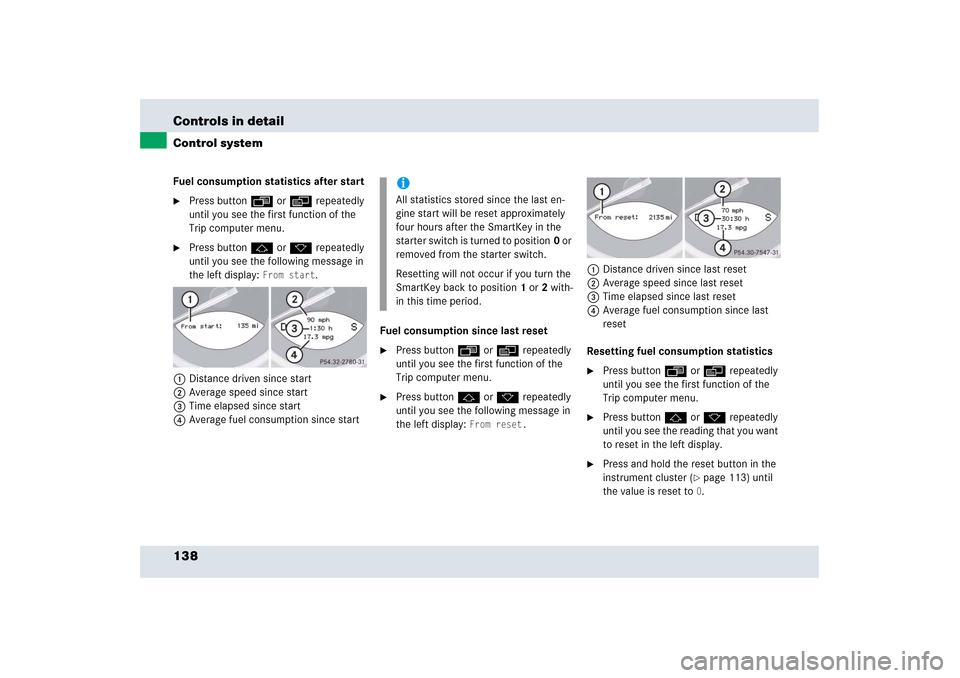

138 Controls in detailControl systemFuel consumption statistics after start
Press button ÿ or è repeatedly
until you see the first function of the
Trip computer menu.

Press button j or k repeatedly
until you see the following message in
the left display:
From start
.
1Distance driven since start
2Average speed since start
3Time elapsed since start
4Average fuel consumption since startFuel consumption since last reset

Press button ÿ or è repeatedly
until you see the first function of the
Trip computer menu.

Press button j or k repeatedly
until you see the following message in
the left display:
From reset.
1Distance driven since last reset
2Average speed since last reset
3Time elapsed since last reset
4Average fuel consumption since last
reset
Resetting fuel consumption statistics
Press button ÿ or è repeatedly
until you see the first function of the
Trip computer menu.

Press button j or k repeatedly
until you see the reading that you want
to reset in the left display.

Press and hold the reset button in the
instrument cluster (
page 113) until
the value is reset to 0.
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2 with-
in this time period.

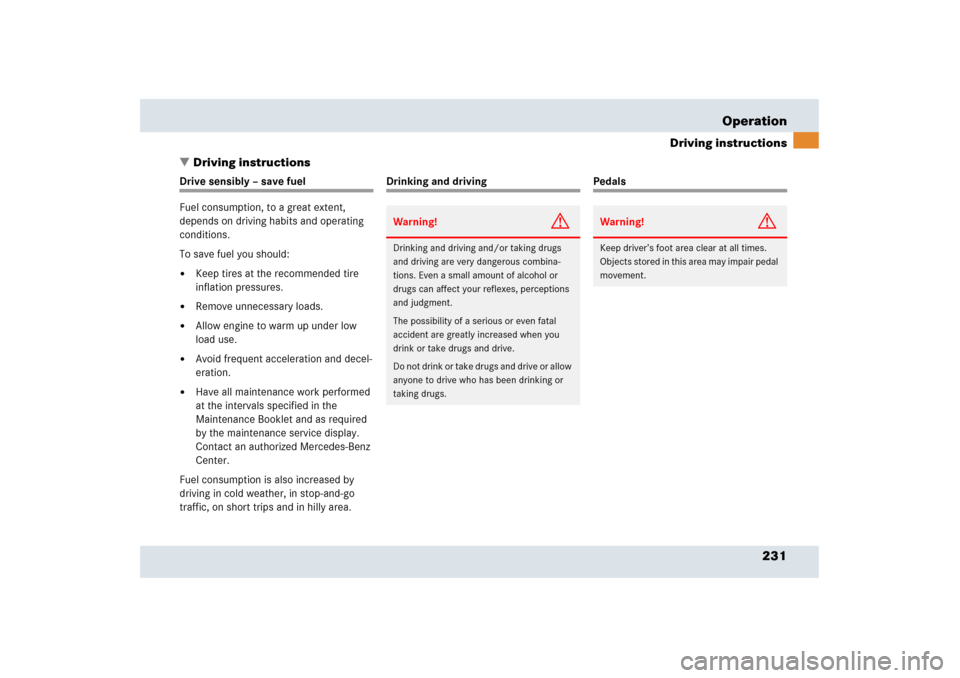

231 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent,
depends on driving habits and operating
conditions.
To save fuel you should:

Keep tires at the recommended tire
inflation pressures.


Remove unnecessary loads.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the
Maintenance Booklet and as required
by the maintenance service display.
Contact an authorized Mercedes-Benz
Center.
Fuel consumption is also increased by
driving in cold weather, in stop-and-go
traffic, on short trips and in hilly area.
Drinking and driving
Pedals
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgment.
The possibility of a serious or even fatal
accident are greatly increased when you
drink or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Keep driver’s foot area clear at all times.
Objects stored in this area may impair pedal
movement.

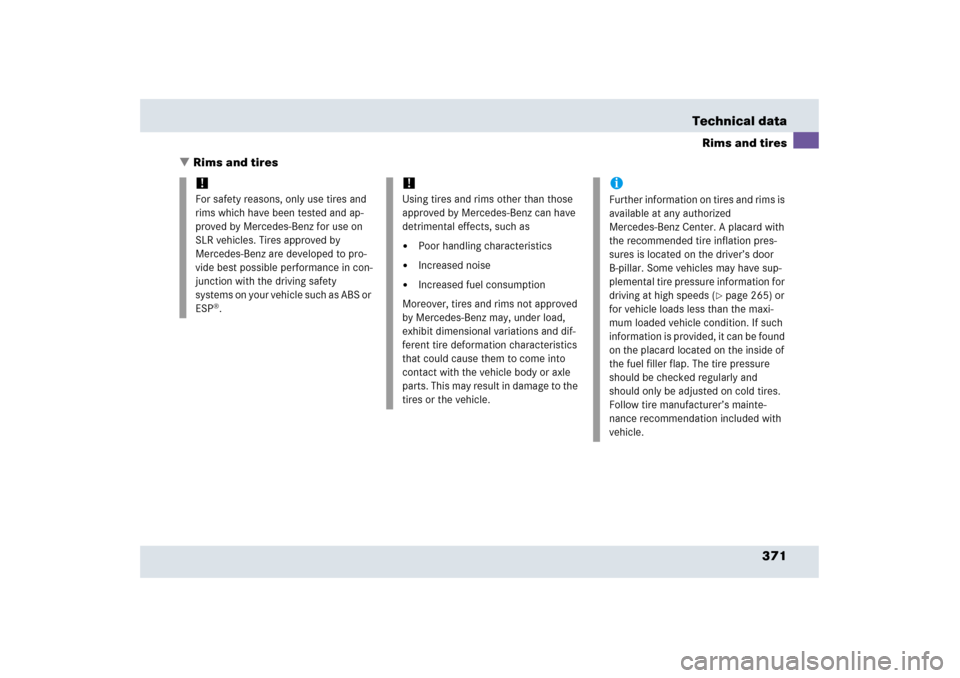

371 Technical data
Rims and tires
Rims and tires
!
For safety reasons, only use tires and
rims which have been tested and ap-
proved by Mercedes-Benz for use on
SLR vehicles. Tires approved by
Mercedes-Benz are developed to pro-
vide best possible performance in con-
junction with the driving safety
systems on your vehicle such as ABS or
ESP
®.
!Using tires and rims other than those
approved by Mercedes-Benz can have
detrimental effects, such as

Poor handling characteristics


Increased noise


Increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. This may result in damage to the
tires or the vehicle.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar. Some vehicles may have sup-
plemental tire pressure information for
driving at high speeds (
page 265) or
for vehicle loads less than the maxi-
mum loaded vehicle condition. If such
information is provided, it can be found
on the placard located on the inside of
the fuel filler flap. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

396 IndexEngine oil 247, 378
Adding 249, 377
Additives 247, 378
Checking level 248
Consumption 247
Filler neck 248
Message in the multifunction
display 328
Recommended engine oils and oil
filter 378
Temperature 29
Oil temperature indicator 303
Viscosity 386
ESP
®
79, 81, 386
Resetting 311
Warning lamp 81, 298
Messages in the multifunction
display 310
ETD 72, 386
Safety guidelines 67
Exterior lamp switch 52, 105
Exterior rear view mirrors 44F
Filler neck, Engine oil 248
First aid kit 342
Flat tire 351
Preparing the vehicle 351
TIREFIT kit 351
Floormats 223
Fluids
Automatic transmission fluid 249,
377
Brake fluid 242, 377, 379
Capacities 377
Engine coolant 250, 377, 381
Engine oil 247, 377, 378
Power steering fluid 377
Windshield washer and headlamp
cleaning system 252, 377
Fog lamps 108, 349
Message in the multifunction
display 330
Front airbags 68
Front lamps see HeadlampsFuel 241
Additives 380
Capacity, Fuel tank 377
Consumption statistics 138
Filler flap 241
Filling the tank 241
Fuel reserve warning lamp 29, 303
Gauge 29
Premium unleaded gasoline 241,
379
Requirements, Octane rating 377,
380
Fuel cap
Messages in the multifunction
display 301, 329
Fuel filler flap
Locking/unlocking 241
Fuel reserve
Message in the multifunction
display 329
Fuel reserve warning lamp 29
Fuel system
Message in the multifunction
display 329
